Product Description

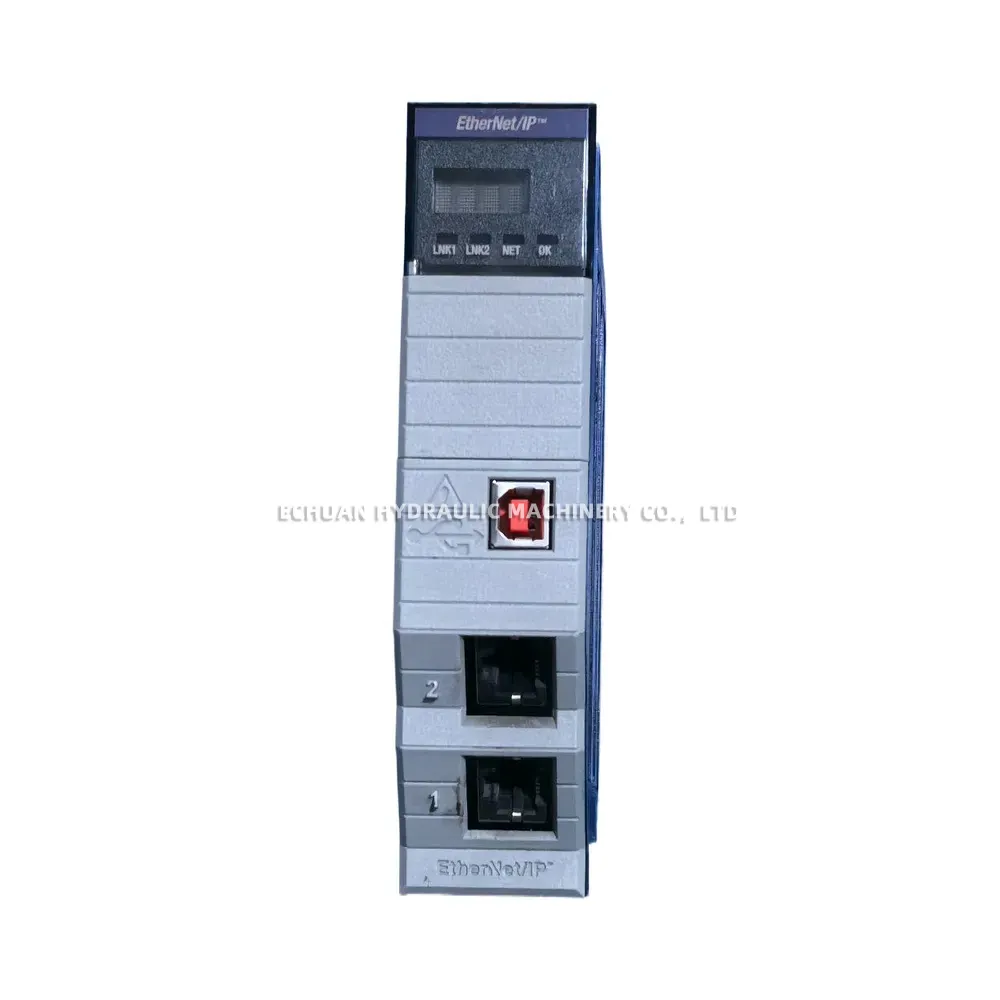

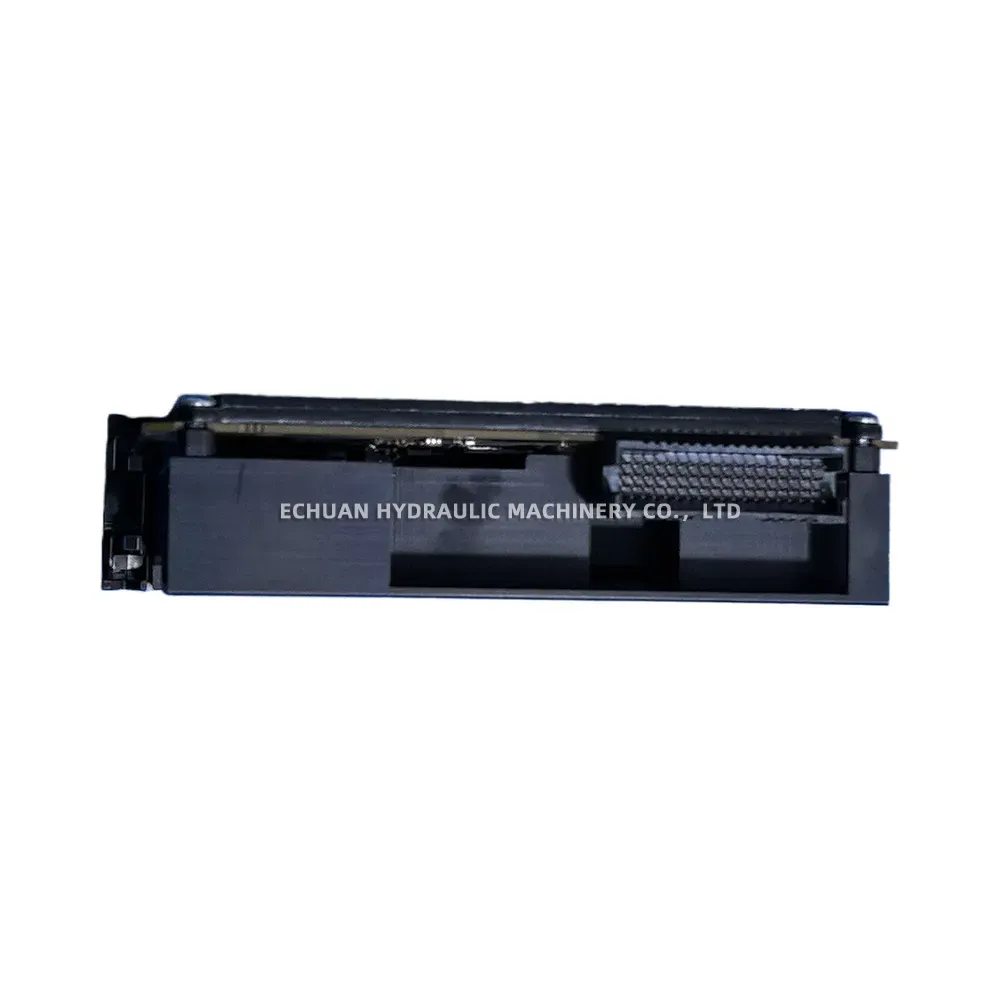

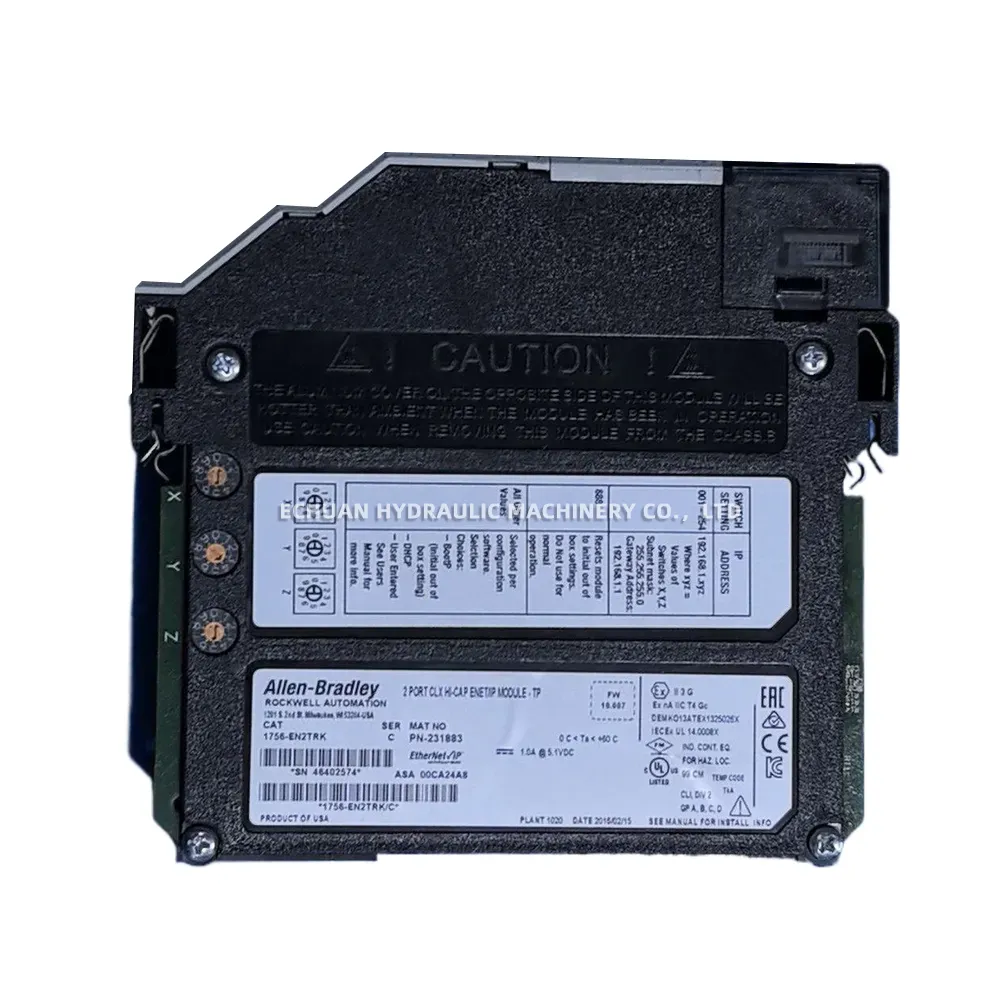

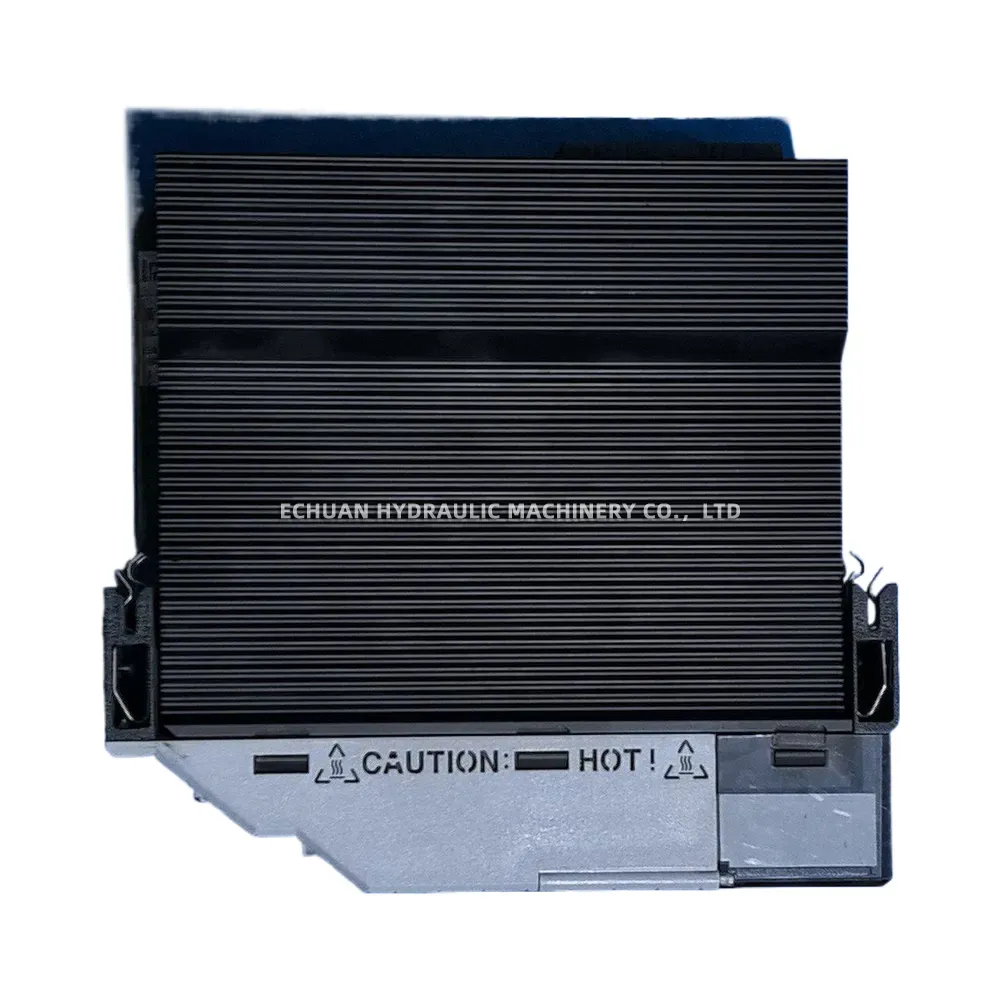

Allen-Bradley 1756-EN2TRK
The Allen-Bradley 1756-EN2TRK is a high-performance EtherNet/IP communication bridge module for the ControlLogix platform. It facilitates seamless communication between the ControlLogix controller and other devices on an EtherNet/IP network. Featuring two RJ45 ports, it supports 10/100/1000 Mbps speeds and advanced network topologies like Device Level Ring (DLR) and Parallel Redundancy Protocol (PRP) for enhanced network resiliency. The ‘K’ suffix indicates that the module is conformally coated, providing an extra layer of protection against moisture and airborne contaminants, making it ideal for use in harsh industrial environments.
Technical Specifications:
- Module Type: ControlLogix EtherNet/IP Communication Bridge

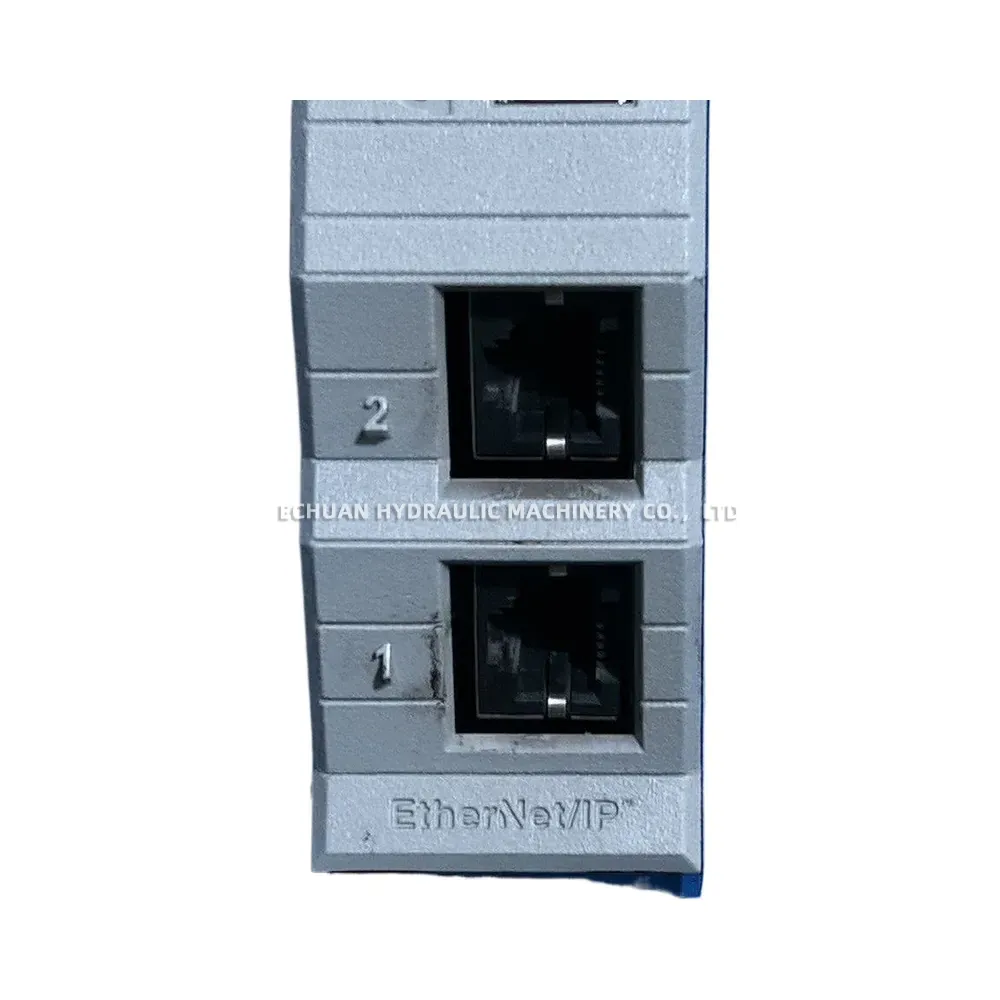

- Ports: 2 x RJ45, Twisted-Pair Copper
- Communication Rate: 10/100/1000 Mbps, full/half-duplex
- Logix Connections: Up to 256
- TCP/IP Connections: Up to 128
- Power Dissipation: 5.1 W
- Current Draw: 1 A at 5.1V DC, 1 A at 1.2V DC
- Special Features: Conformal Coated, supports Device Level Ring (DLR), Parallel Redundancy Protocol (PRP), and CIP Security
Allen-Bradley 1756-EN2TRK
Allen-Bradley 1756-EN2TRK ControlLogix dual-port EtherNet/IP communication module. Provides 1 Gbps connectivity and features conformal coating for enhanced durability in harsh industrial applications.
