Product Description

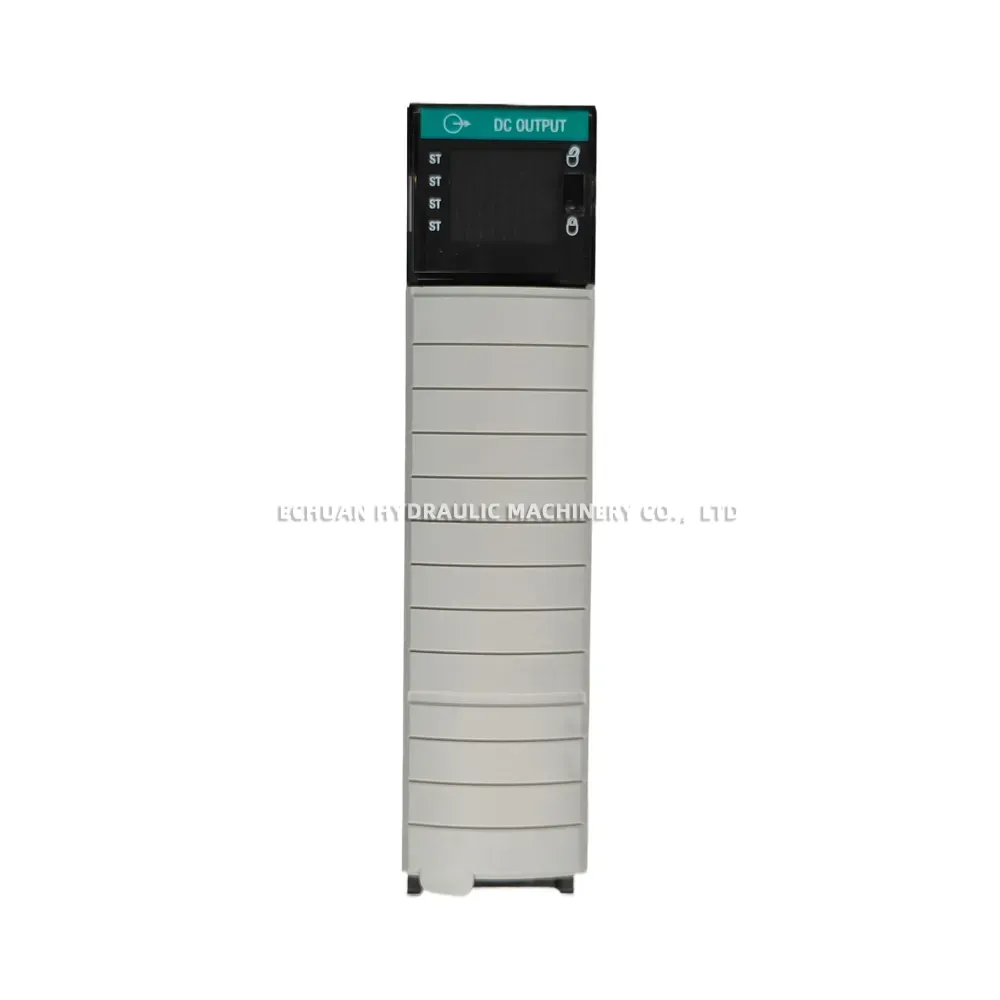

Allen-Bradley 1756-OB32
The Allen-Bradley 1756-OB32 is a ControlLogix DC Digital Output Module designed for high-density applications in industrial automation systems. This module provides 32 sourcing-type outputs, making it ideal for controlling a wide range of devices such as pilot lights, relays, and motor starters. It operates within a 10-31.2V DC range and is installed in a ControlLogix chassis. The 1756-OB32 offers robust performance and reliability, featuring electronic protection against short circuits and overloads for each output group. Its high-density design helps to save valuable space in control cabinets while providing the extensive I/O count needed for complex machinery and processes.
Technical Specifications:
- Outputs: 32 (2 groups of 16) sourcing type
- Voltage Category: 12/24V DC source
- Operating Voltage Range: 10…31.2V DC
- Output Current Rating: 0.5 A per point (max), 8 A per module (max)
- Backplane Current: 280 mA @ 5.1V DC, 2 mA @ 24V DC
- Removable Terminal Block (RTB): 1756-TBCH, 1756-TBS6H
Allen-Bradley 1756-OB32
Allen-Bradley 1756-OB32 ControlLogix 32-Point 12/24V DC Source Output Module for industrial PLC systems. High-density digital I/O for reliable automation control.
| Brand | Allen-Bradley |
|---|---|
| Model | 1756-OB32 |
| Category | Electrical |
