Product Description

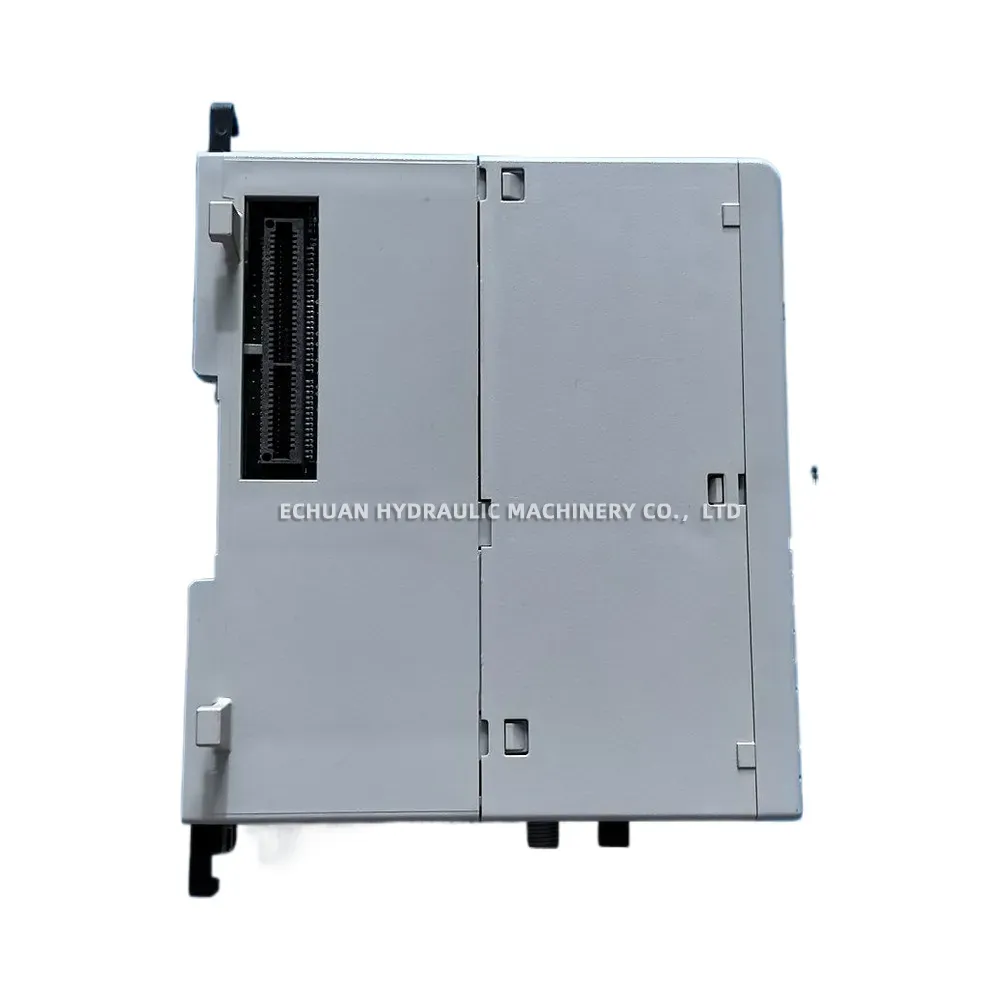

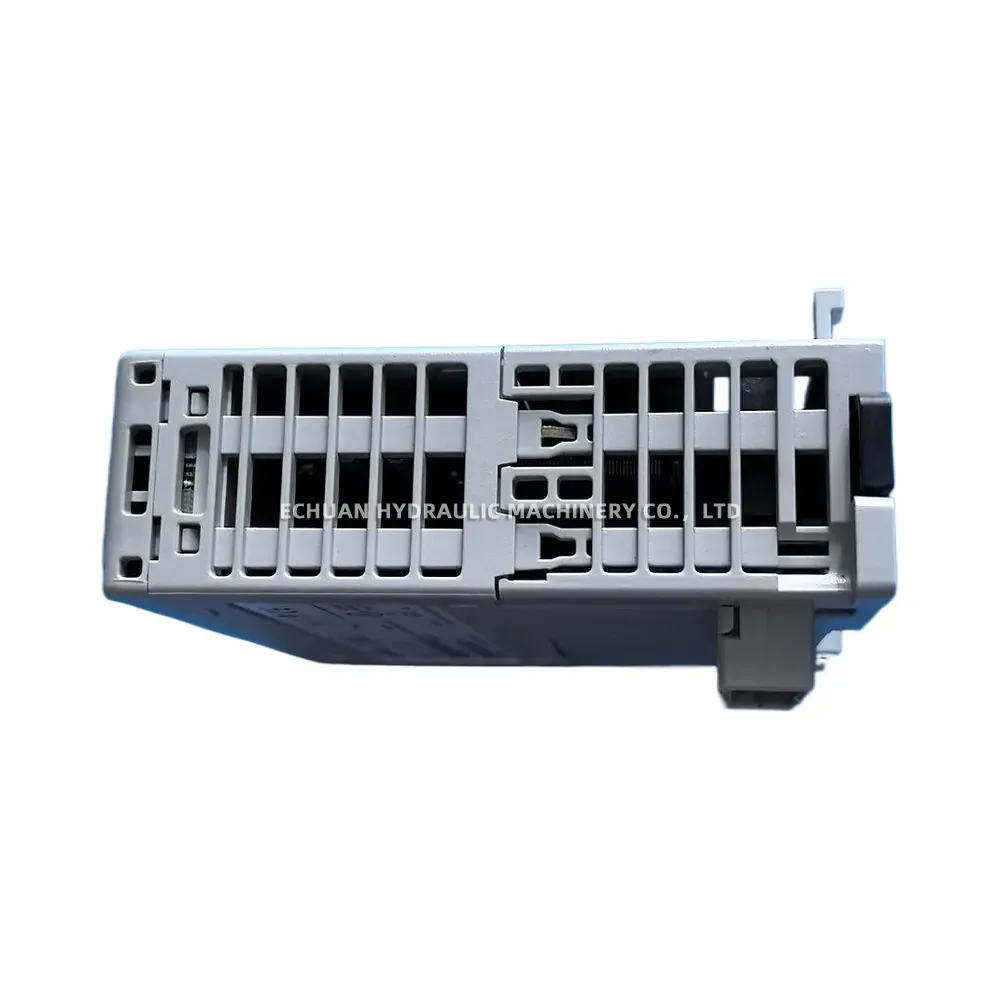

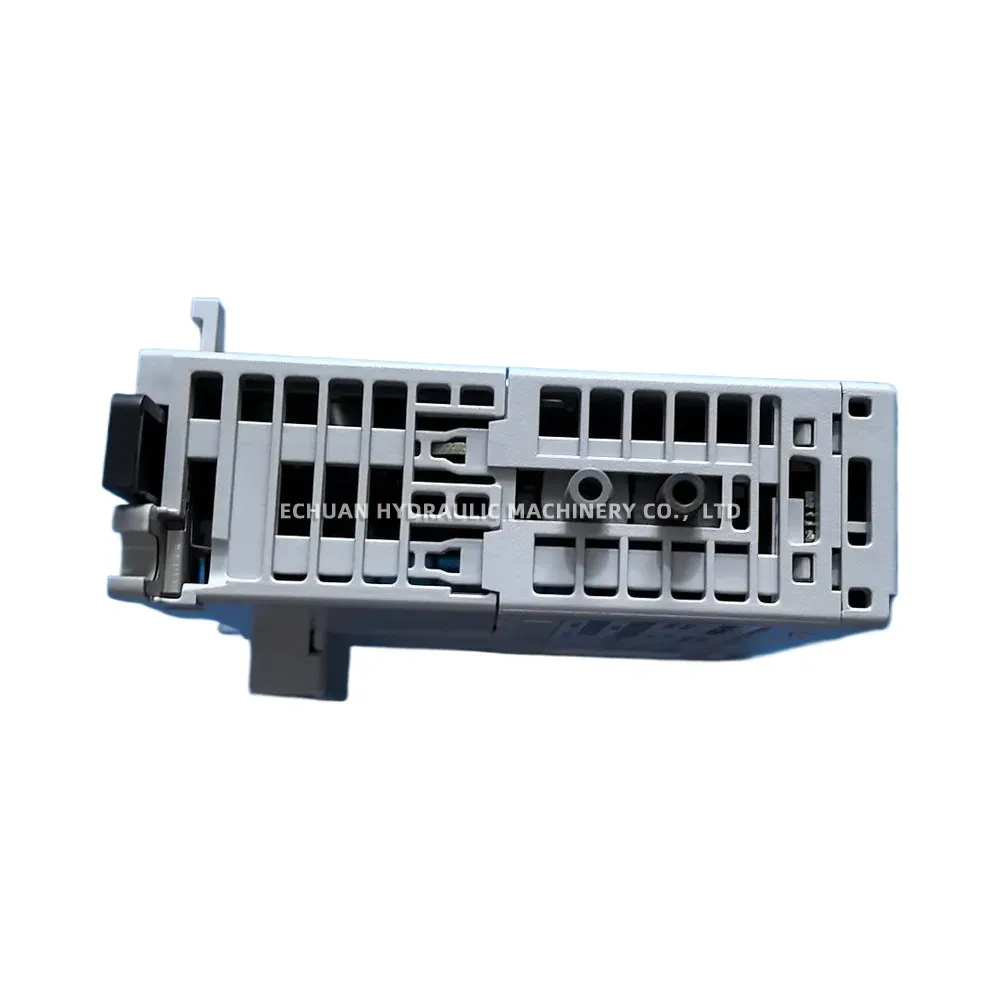

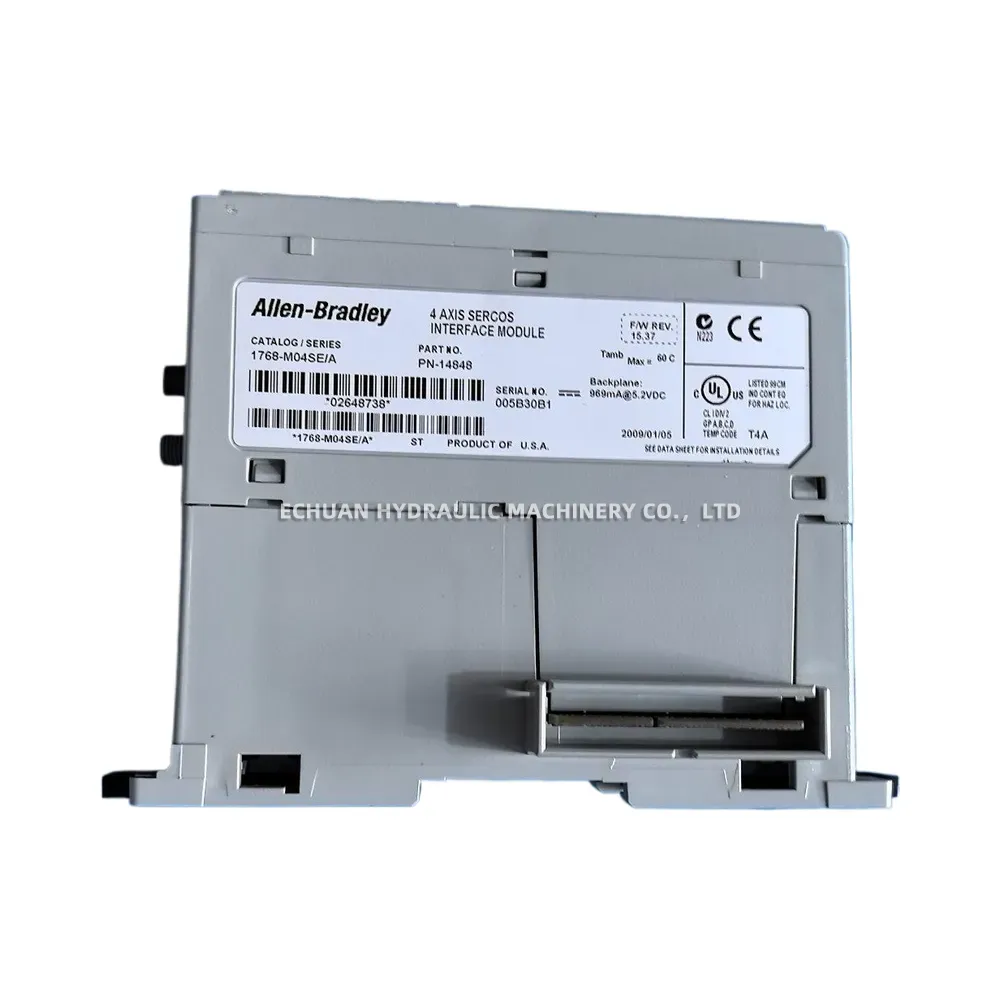

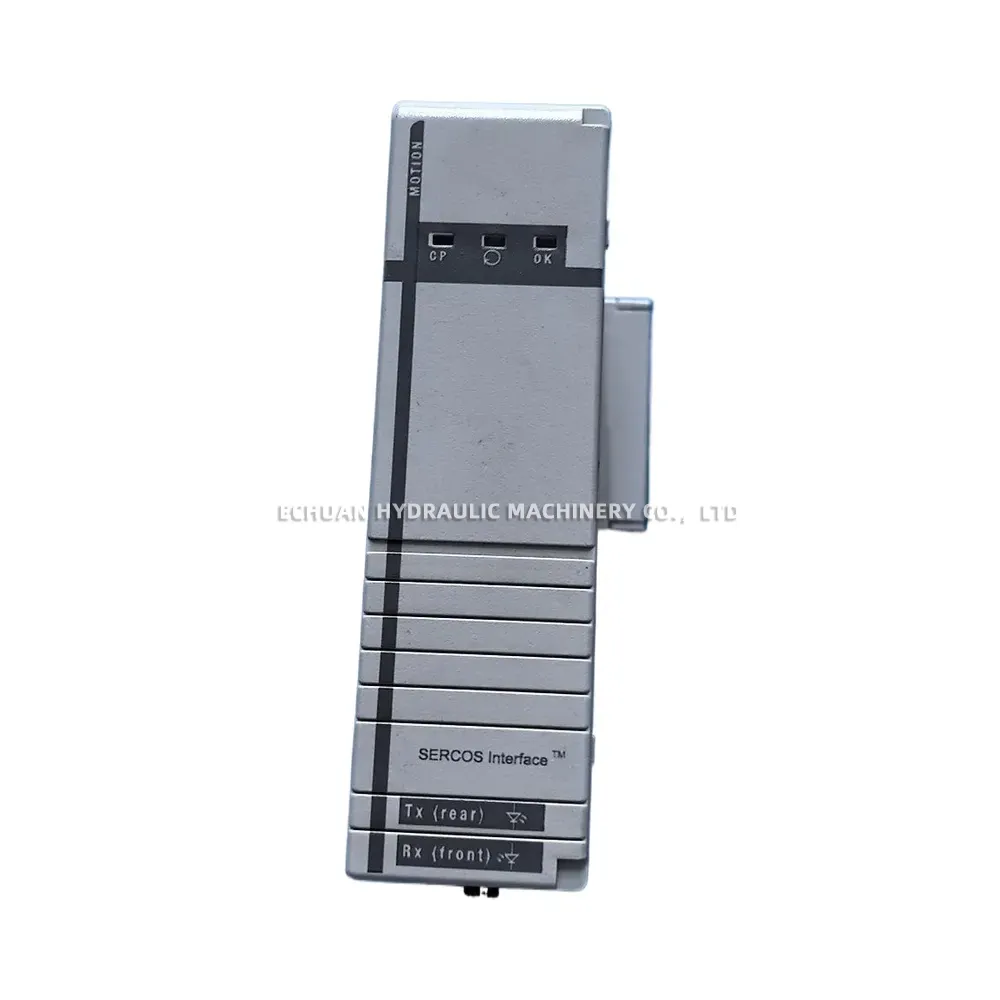

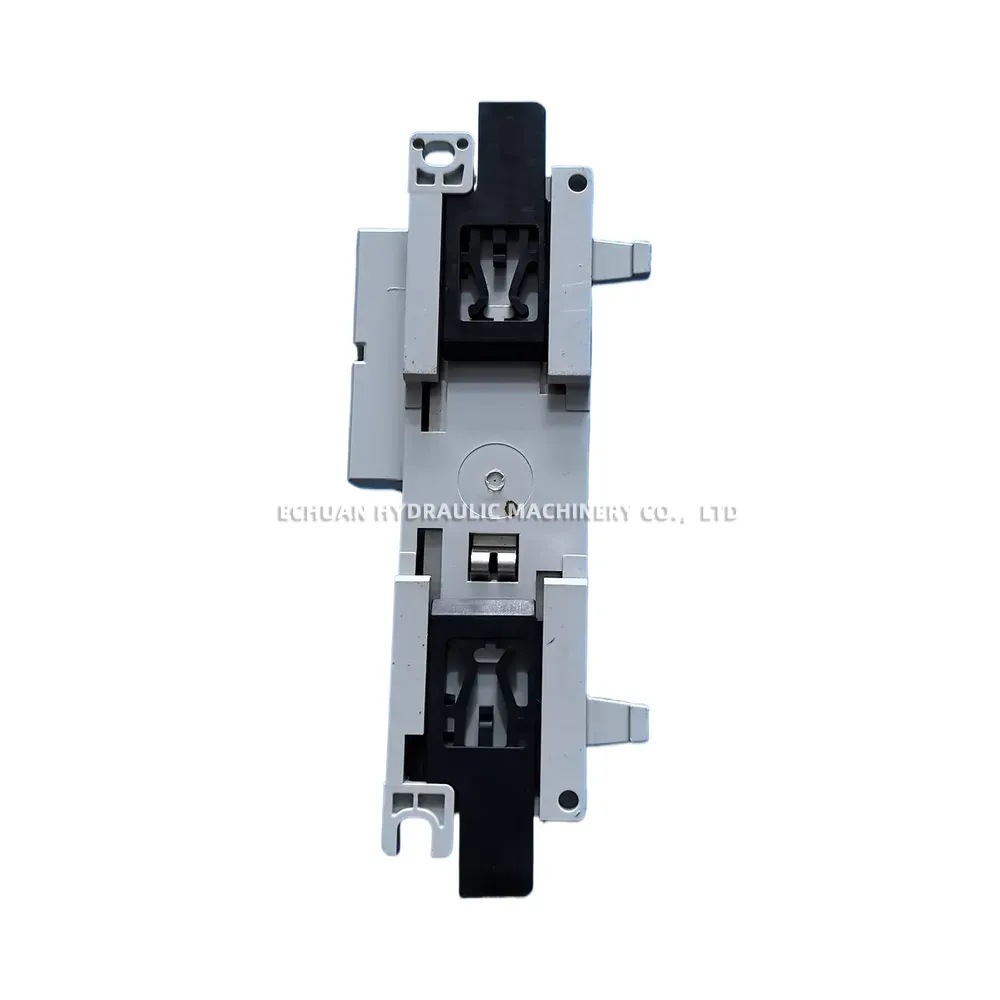

Allen-Bradley 1768-M04SE/A

The Allen-Bradley 1768-M04SE/A is a high-performance SERCOS Motion Module designed for the CompactLogix 1768 platform. This module provides integrated, synchronized motion control for up to four axes over a SERCOS fiber-optic interface. It is engineered for demanding motion applications requiring precision, speed, and reliability. By integrating directly into the CompactLogix backplane, it simplifies system architecture and streamlines communication between the controller and servo drives, making it an ideal solution for complex machine control in packaging, converting, and assembly applications.

Technical Specifications:

  • Number of Axes: 4 servo axes

  • Communication Interface: SERCOS III fiber-optic

  • Compatibility: CompactLogix 1768 Controllers (e.g., 1768-L43, 1768-L45)

  • Backplane Current Draw: 1.2 A at 5.1V DC, 2.5 mA at 24V DC

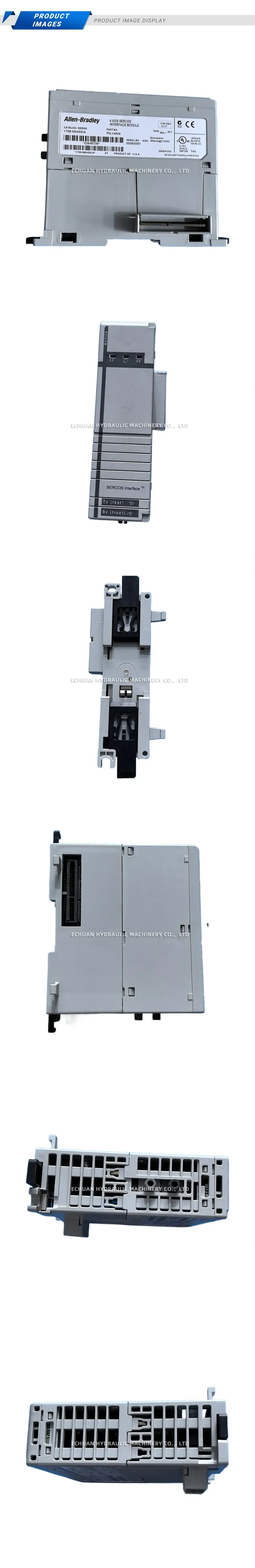

Allen-Bradley 1768-M04SE/A Description

Allen-Bradley 1768-M04SE/A

Discover the Allen-Bradley 1768-M04SE/A, a 4-axis SERCOS motion module for CompactLogix systems, providing precise and synchronized control for high-performance automation.

BrandAllen-Bradley
Model1768-M04SE/A
CategoryElectrical
Linkhttps://www.echuan-hydraulic.com/product/allen-bradley-1768-m04se-a
