Product Description

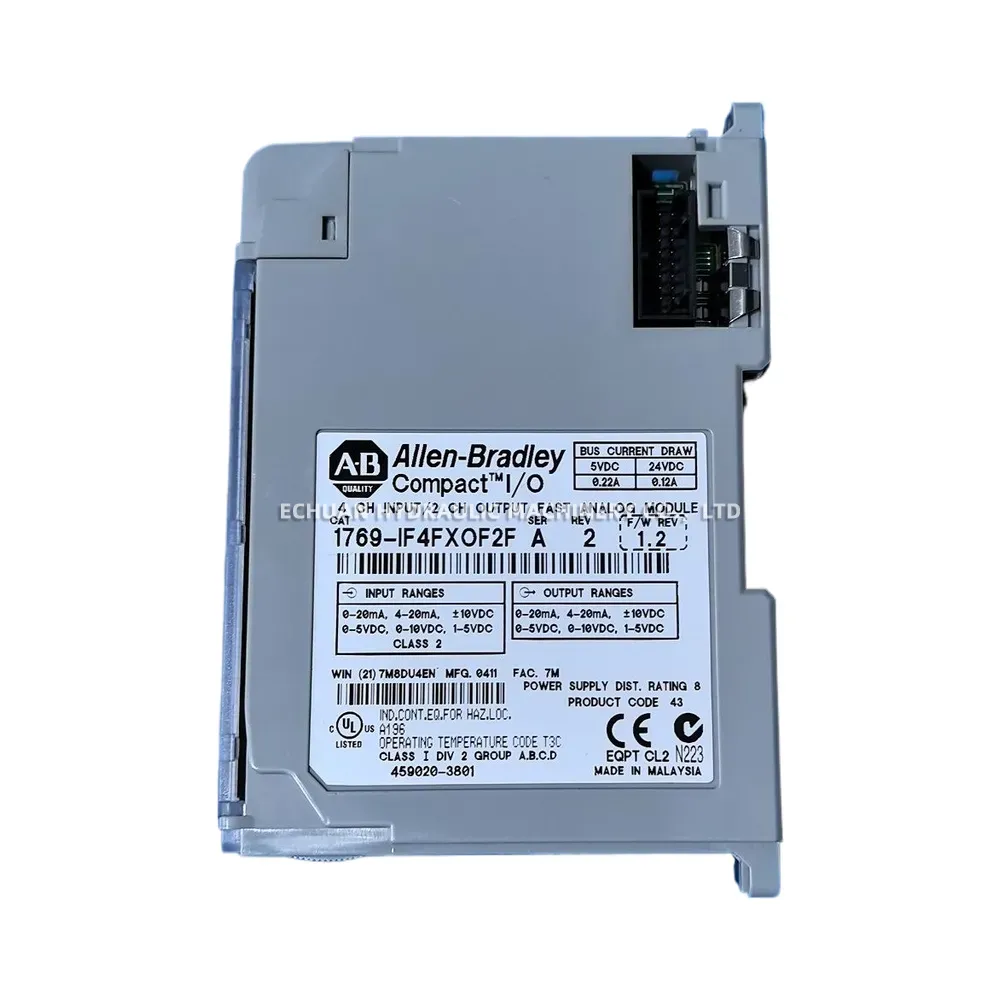

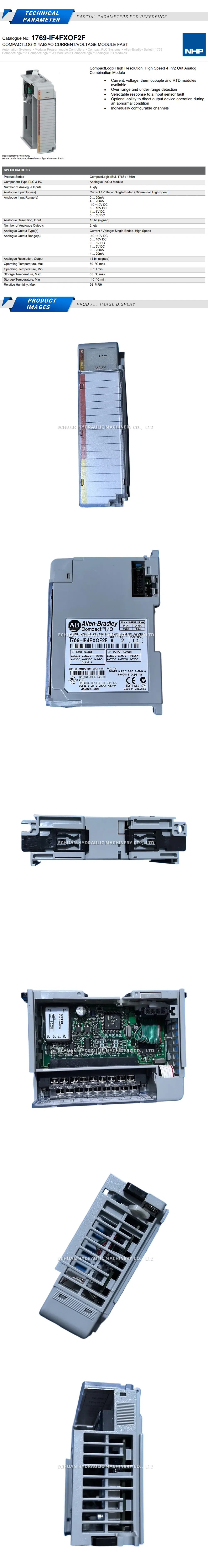

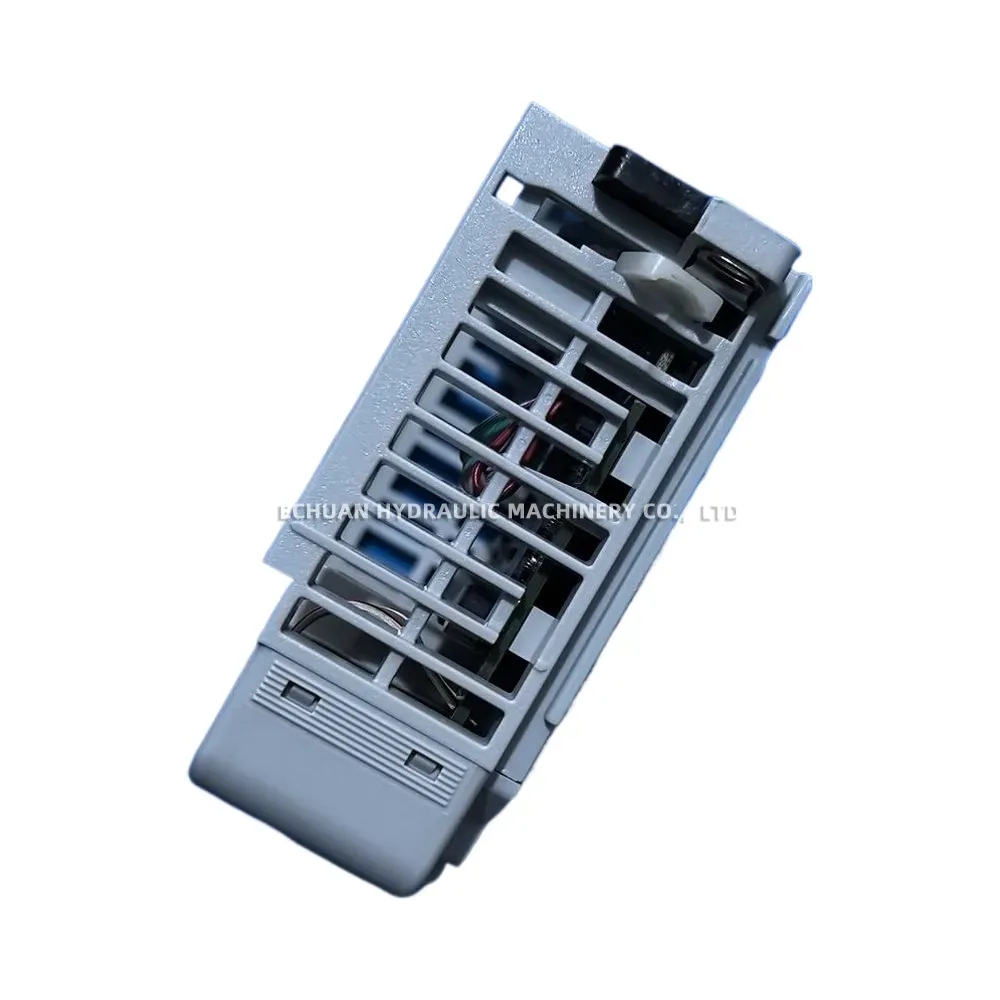

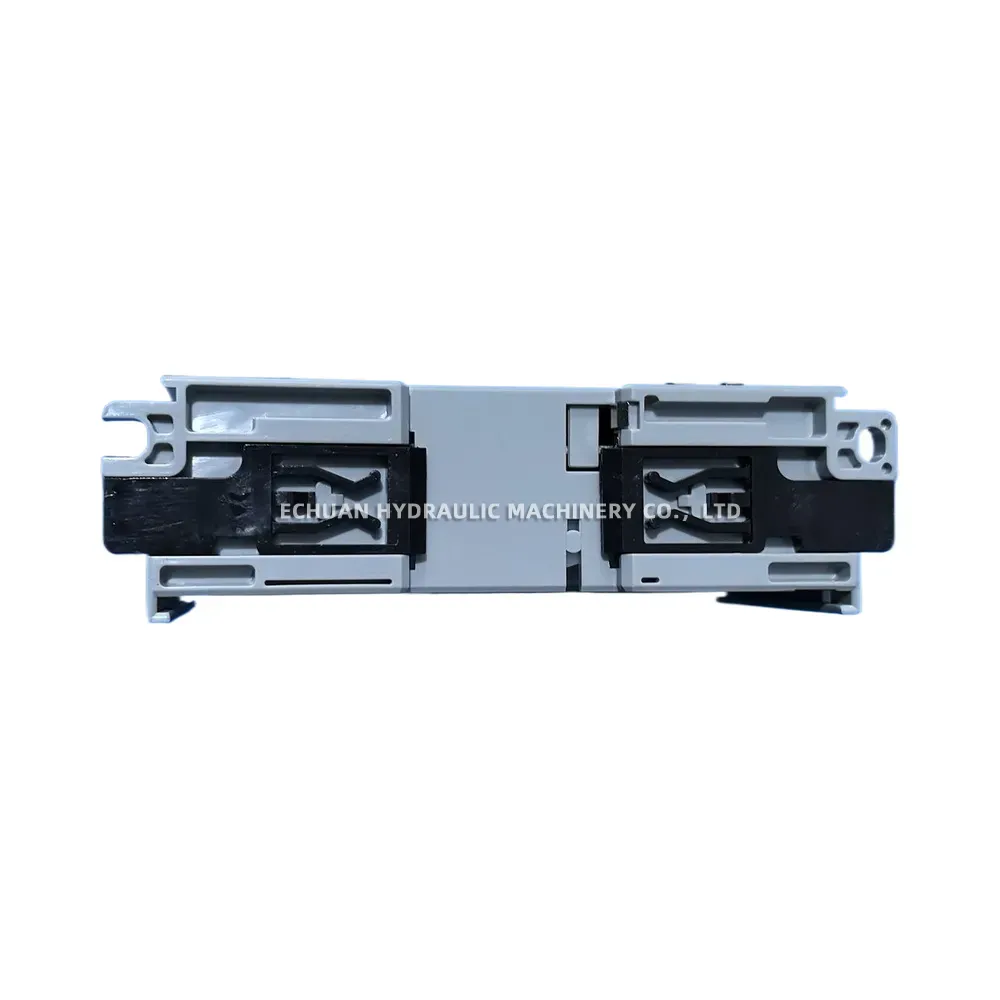

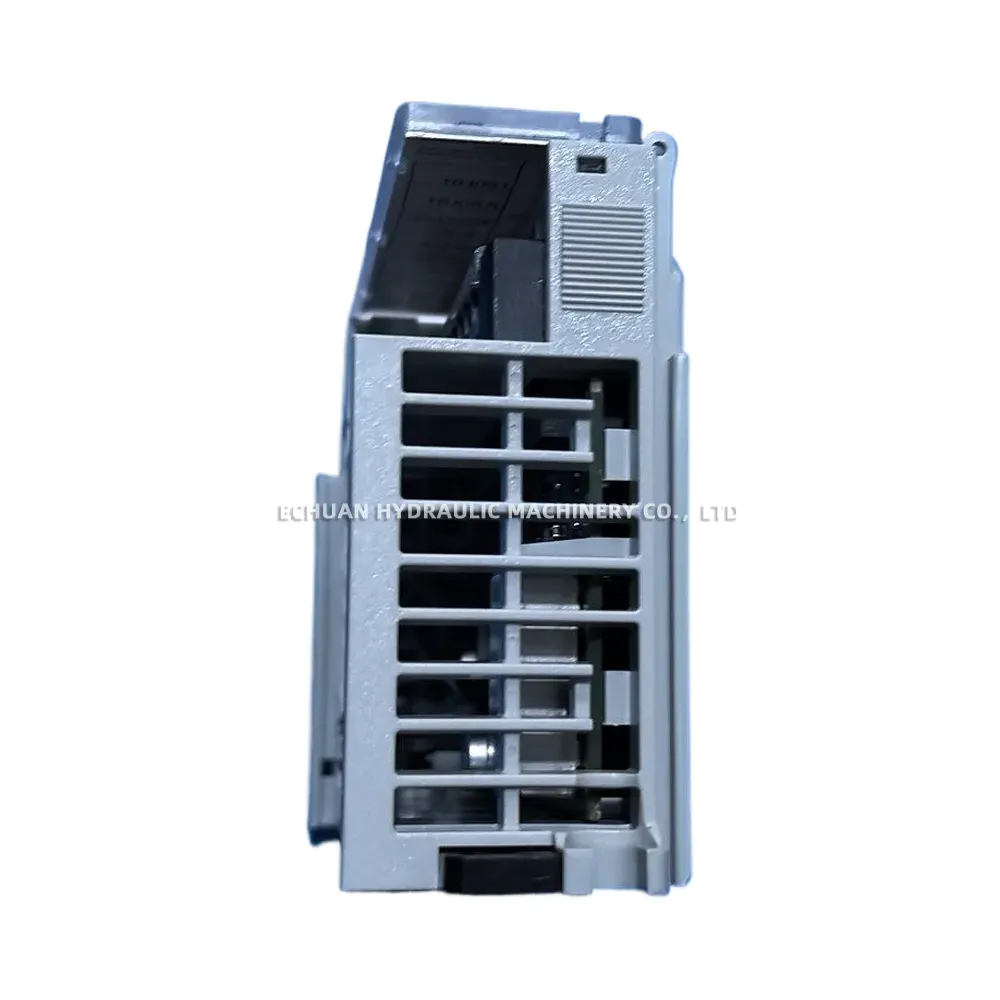

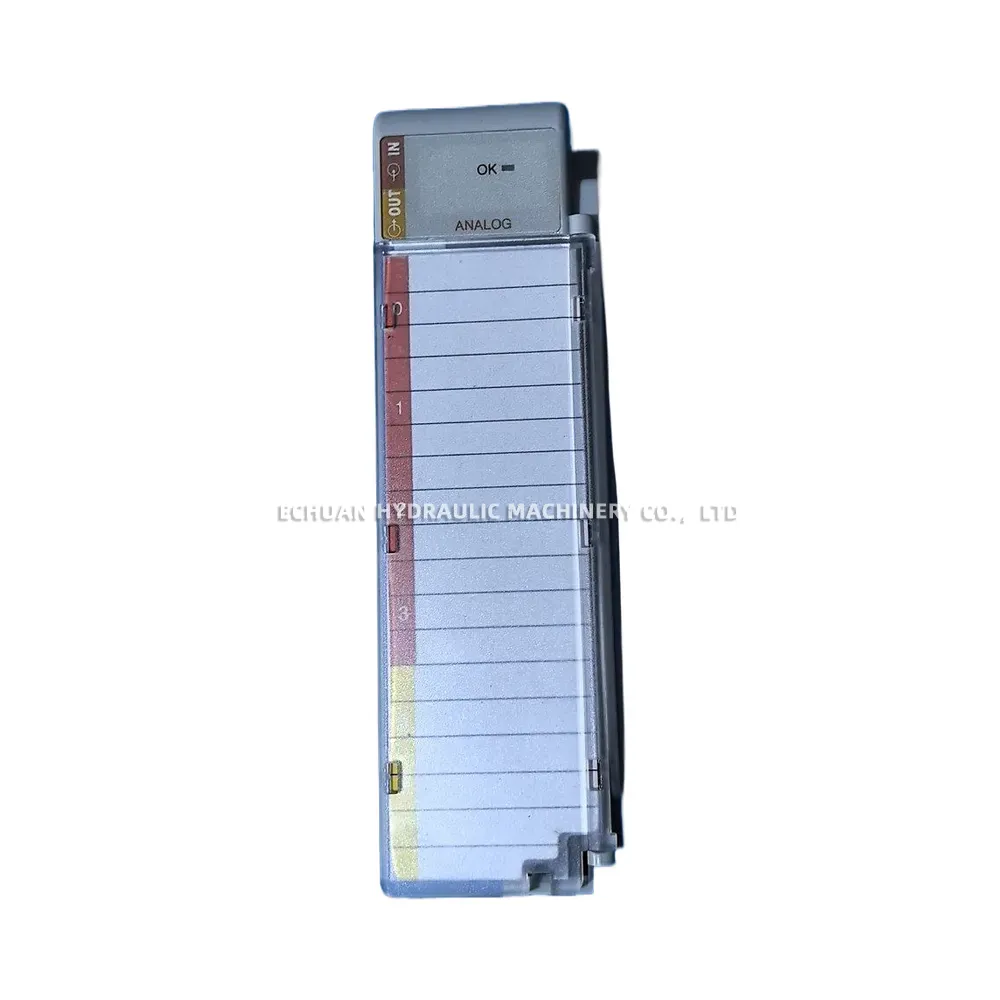

Allen-Bradley 1769-IF4FXOF2F
The Allen-Bradley 1769-IF4FXOF2F is a high-performance Fast Analog Combination I/O Module designed for the CompactLogix and MicroLogix 1500 control systems. This versatile module combines four individually configurable, high-speed analog inputs with two individually configurable, high-speed analog outputs in a single-slot design. It supports a wide range of voltage and current signals, making it ideal for demanding applications that require rapid data acquisition and precise control, such as motion control, process regulation, and high-speed monitoring. Its fast update times and high resolution ensure accurate and timely response in critical automation tasks.
Technical Specifications:
- Module Type: Compact I/O Fast Analog Combination Module
- Number of Inputs: 4 (Differential or Single-Ended, individually configurable)
- Number of Outputs: 2 (Single-Ended, individually configurable)
- Input Signal Ranges: ±10V, 0-10V, 0-5V, 1-5V, 0-20 mA, 4-20 mA
- Output Signal Ranges: ±10V, 0-10V, 0-20 mA, 4-20 mA
- Resolution: 16-bit (unipolar), 15-bit plus sign (bipolar)
- Backplane Current Draw: 120 mA at 5.1V DC, 180 mA at 24V DC
Allen-Bradley 1769-IF4FXOF2F
Allen-Bradley 1769-IF4FXOF2F Compact I/O fast analog combination module featuring 4 inputs and 2 outputs. This module delivers high-speed, high-resolution performance for precise data acquisition and control in CompactLogix systems.
| Brand | Allen-Bradley |
|---|---|
| Model | 1769-IF4FXOF2F |
| Category | Electrical |
