Product Description

Allen-Bradley 2097-V32PRO

The Allen-Bradley 2097-V32PRO is a Kinetix 350 Single-axis EtherNet/IP Servo Drive, designed to provide a high-performance and cost-effective solution for motion control applications. It seamlessly integrates into the Rockwell Automation Integrated Architecture platform, leveraging the EtherNet/IP network for simplified commissioning, configuration, and diagnostics with Logix controllers. This compact drive is ideal for applications requiring precise control of speed, torque, and position. It features an integrated Safe Torque-Off (STO) safety function, which helps protect personnel and equipment by removing motor torque without shutting down power to the entire machine.

Technical Specifications:

  • Series: Kinetix 350

  • Input Voltage: 240V AC, Single-Phase

  • Continuous Output Current (RMS): 4.0 A

  • Peak Output Current (RMS): 12.0 A

  • Output Power: 0.8 kW

  • Communication Protocol: EtherNet/IP

  • Safety Feature: Safe Torque-Off (STO), SIL2/PLd

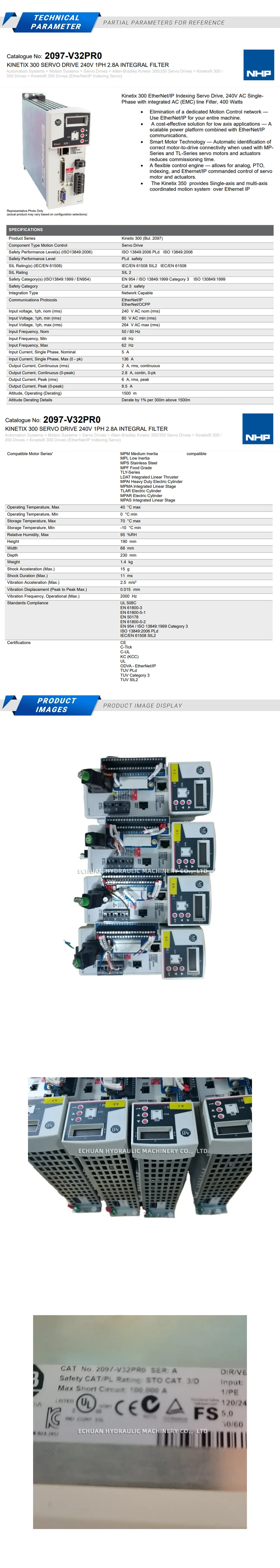

Allen-Bradley 2097-V32PRO Description

Allen-Bradley 2097-V32PRO

Discover the Allen-Bradley 2097-V32PRO, a Kinetix 350 single-axis servo drive. This 0.8 kW, 240V AC drive offers high-performance motion control with seamless EtherNet/IP integration and built-in Safe Torque-Off (STO) safety.
