Product Description

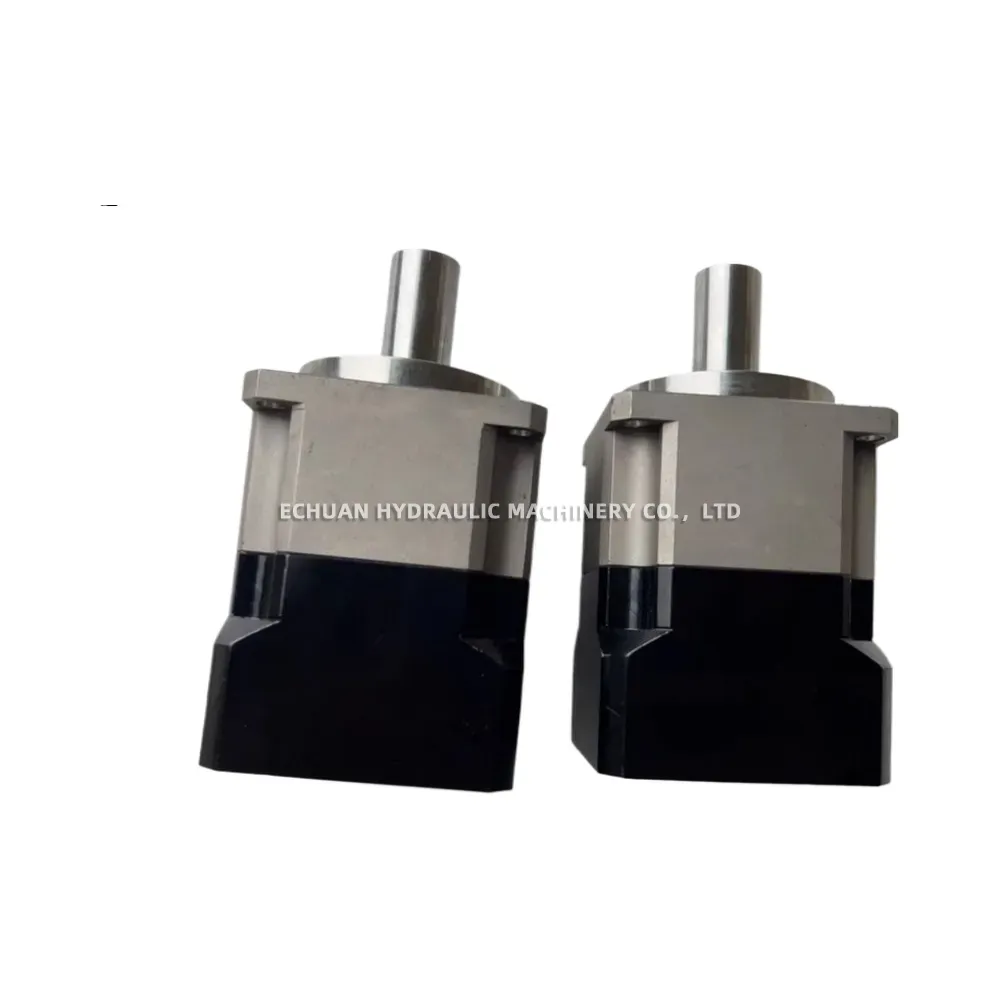

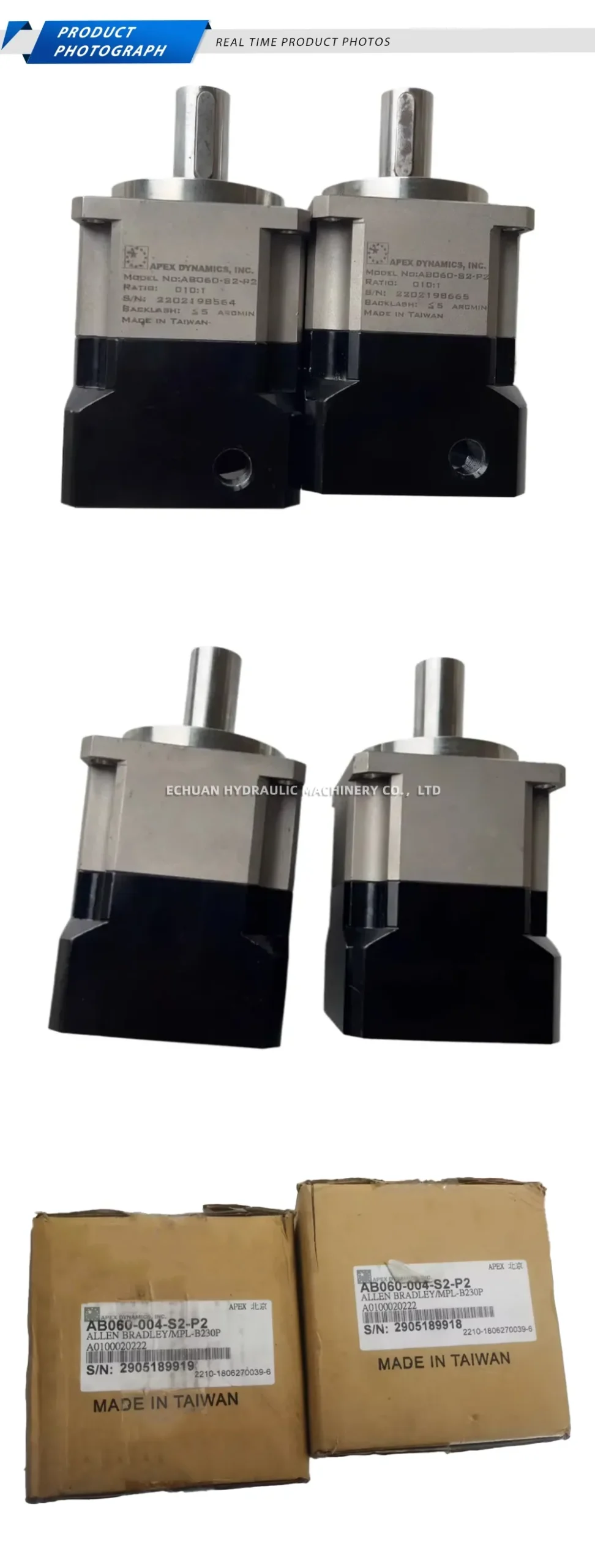

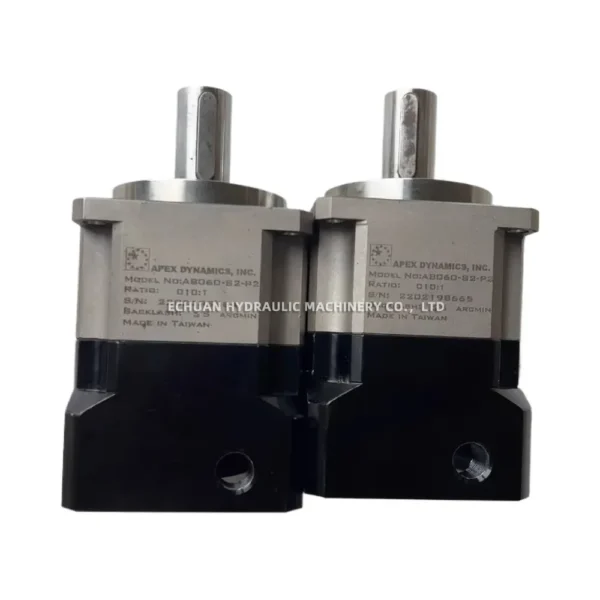

Apex AB060-004-S2-P2
The Apex AB060-004-S2-P2 is a high-precision planetary gearbox engineered for demanding servo motor applications. Part of the renowned AB series, it features helical gearing for exceptionally smooth and quiet operation, along with high torsional rigidity and low backlash characteristics. Its robust design ensures reliability and longevity in various industrial automation environments requiring precise motion control and power transmission. This specific model, AB060-004-S2-P2, incorporates a 60mm frame size, a 4:1 gear reduction ratio, a smooth output shaft (S2 type) for versatile coupling options, and is built to P2 precision standards, guaranteeing excellent performance and accuracy for dynamic applications.
Technical Specifications:
- Frame Size: 60 mm
- Gear Ratio: 4:1
- Nominal Backlash: ≤ 5 arcmin (P2 Precision Class)
- Nominal Output Torque: 32 Nm
- Max. Acceleration Torque: 64 Nm
- Torsional Stiffness: 4.5 Nm/arcmin
- Max. Continuous Input Speed: 6000 rpm
- Efficiency (1-stage): ≥ 97%
- Output Shaft Type: Smooth Shaft (S2 designation)
- Protection Class: IP65
- Lubrication: Lifetime synthetic grease
- Operating Temperature Range: -10°C to +90°C
- Mounting Position: Any
Apex AB060-004-S2-P2
Model:Apex AB060-004-S2-P2
| Brand | Apex |
|---|---|
| Model | AB060-004-S2-P2 |
| Part No. | Apex AB060-004-S2-P2 |
| Category | Hydraulic pumps |
| Link | https://www.echuan-hydraulic.com/product/apex-ab060-004-s2-p2 |
