Product Description

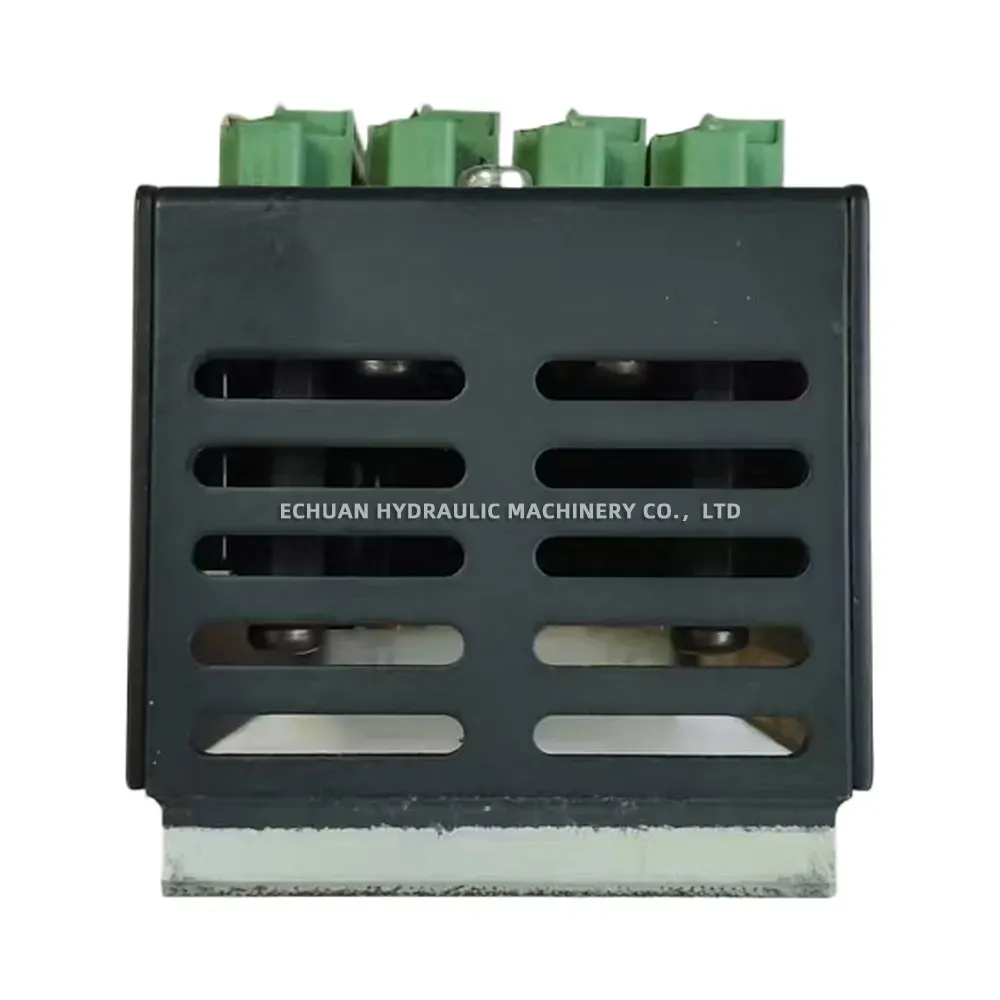

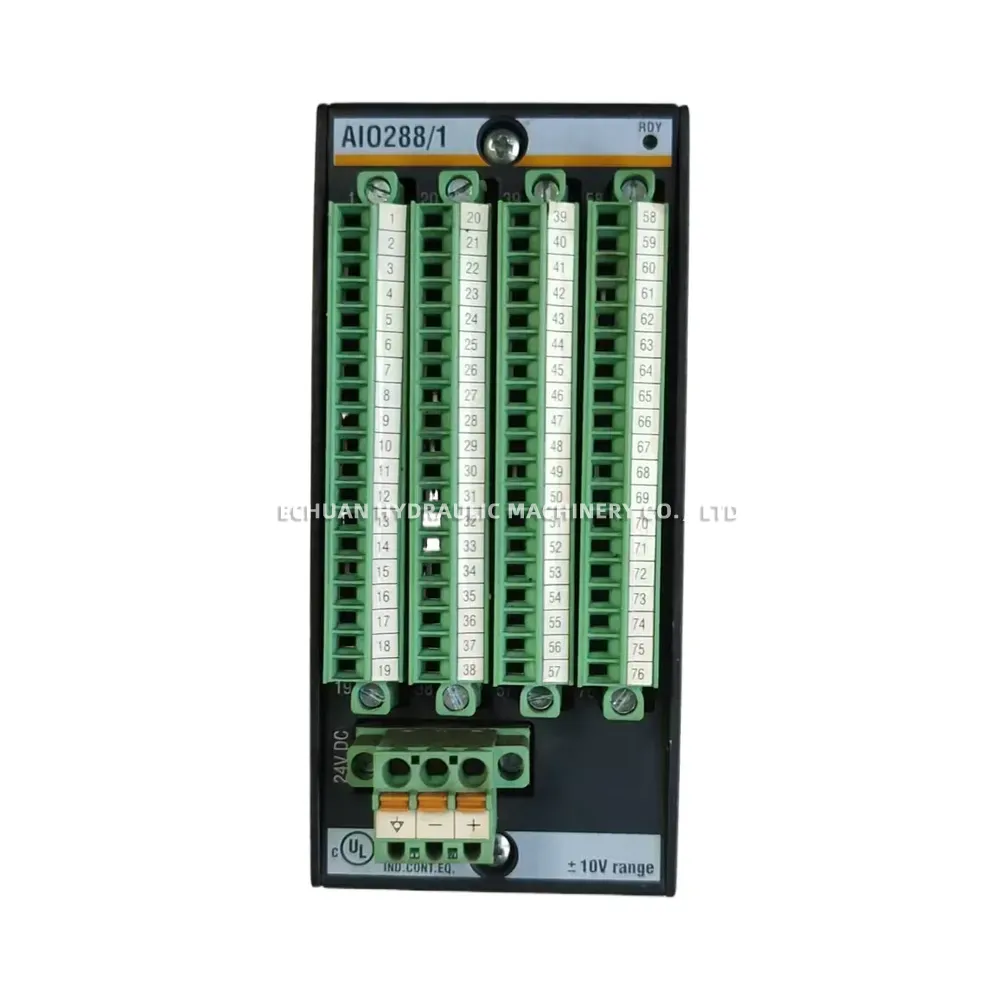

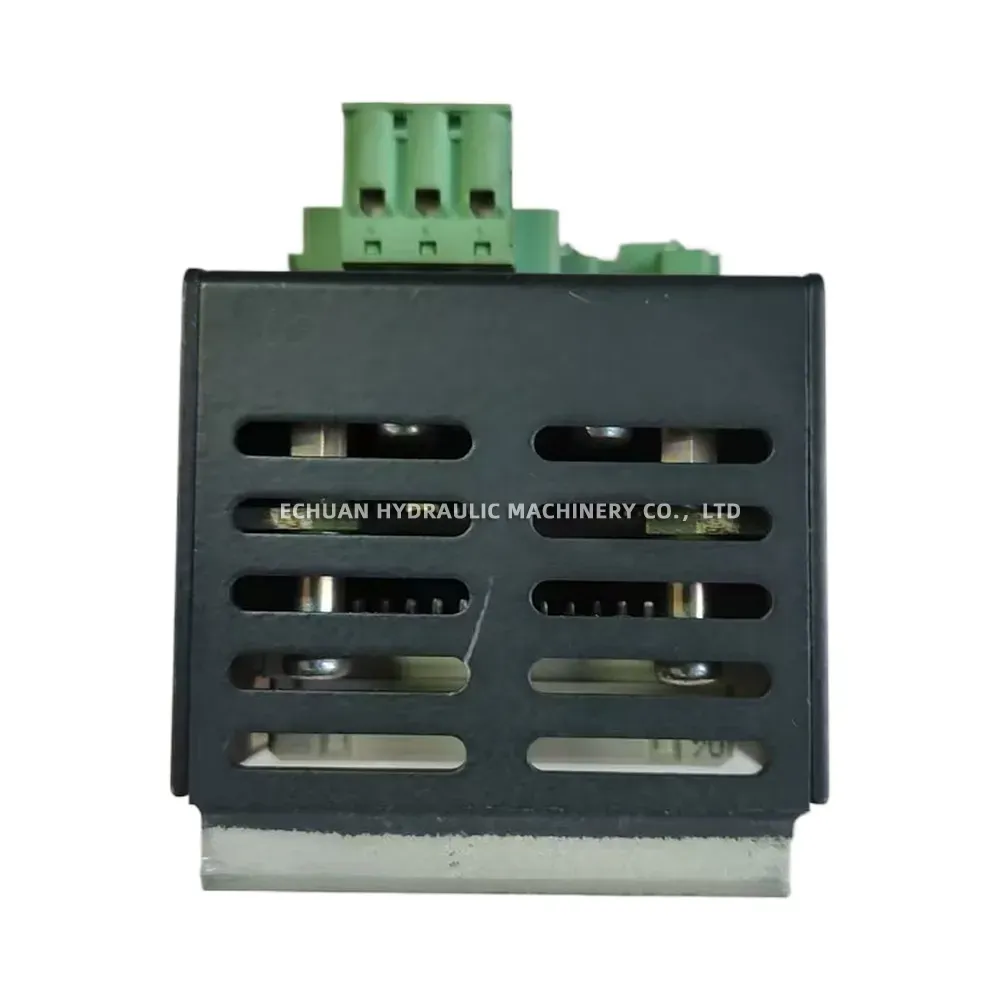

Bachmann AIO288/1 Module
The Bachmann AIO288/1 is a high-performance, versatile analog input/output module designed for the robust Bachmann M1 automation system. It provides a compact and efficient solution for acquiring and controlling analog signals in demanding industrial environments. This module features eight configurable analog inputs and eight configurable analog outputs, offering exceptional flexibility for a wide range of applications, from process control to complex test and measurement tasks. With high-resolution 16-bit converters for both inputs and outputs, the AIO288/1 ensures precise and accurate signal processing. Galvanic isolation between the channels and the system bus enhances system stability and protects against electrical interference, making it a reliable choice for critical control operations.
Technical Specifications:
- Module Type: Analog Input/Output Module
- Analog Inputs: 8 differential inputs, configurable for voltage (±10 V, 0-10 V) or current (±20 mA, 0/4-20 mA)
- Analog Outputs: 8 outputs, configurable for voltage (±10 V, 0-10 V) or current (0/4-20 mA)
- Resolution: 16-bit for both inputs and outputs
- Galvanic Isolation: Yes, between channels and to the M1 system bus
- Operating Temperature: -30 °C to +60 °C
Bachmann AIO288/1 Module
Discover the Bachmann AIO288/1, a versatile 8-channel analog input and 8-channel analog output module for the M1 automation system. It features 16-bit resolution and galvanic isolation for precise, reliable industrial control and data acquisition.
