Product Description

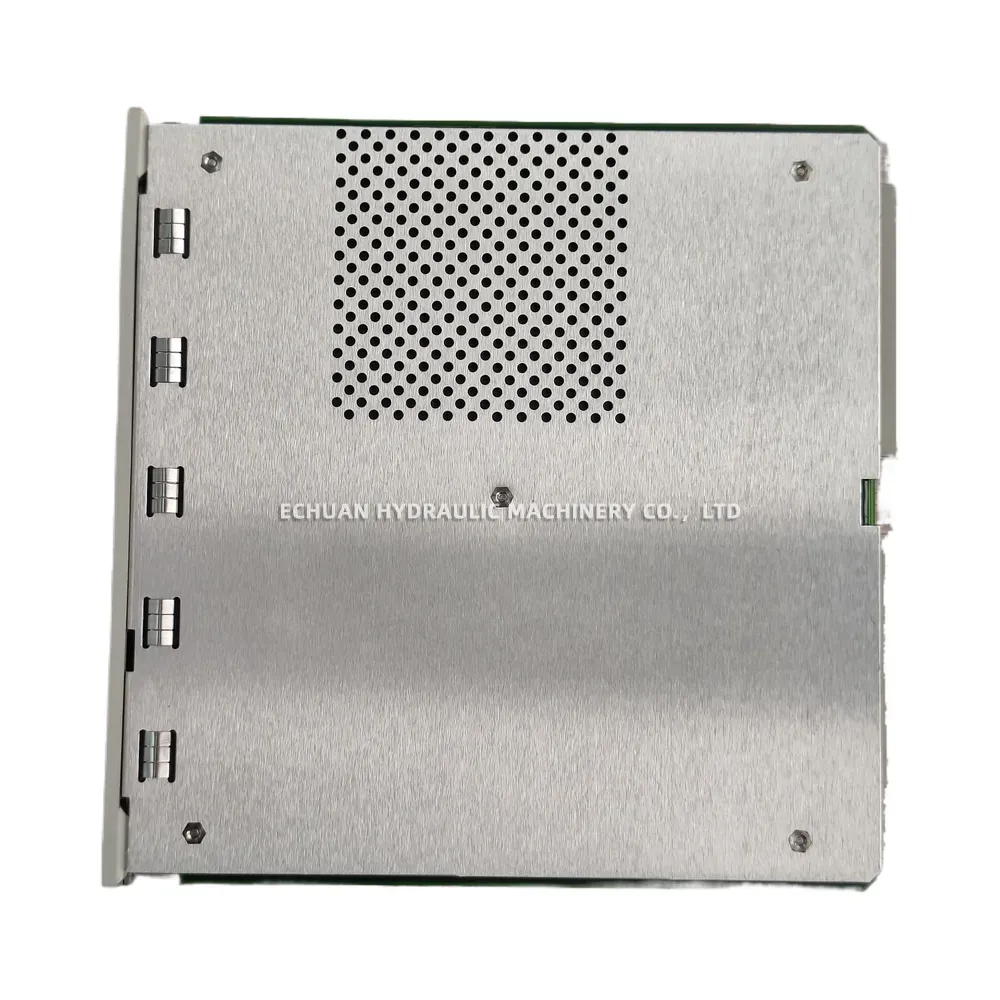

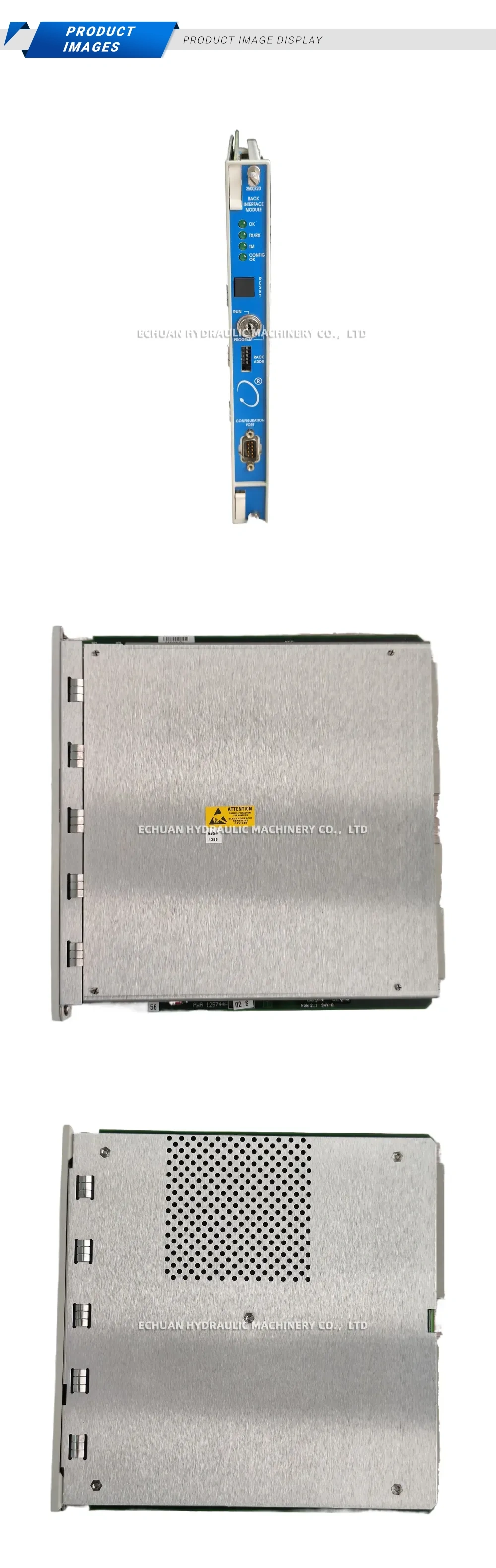

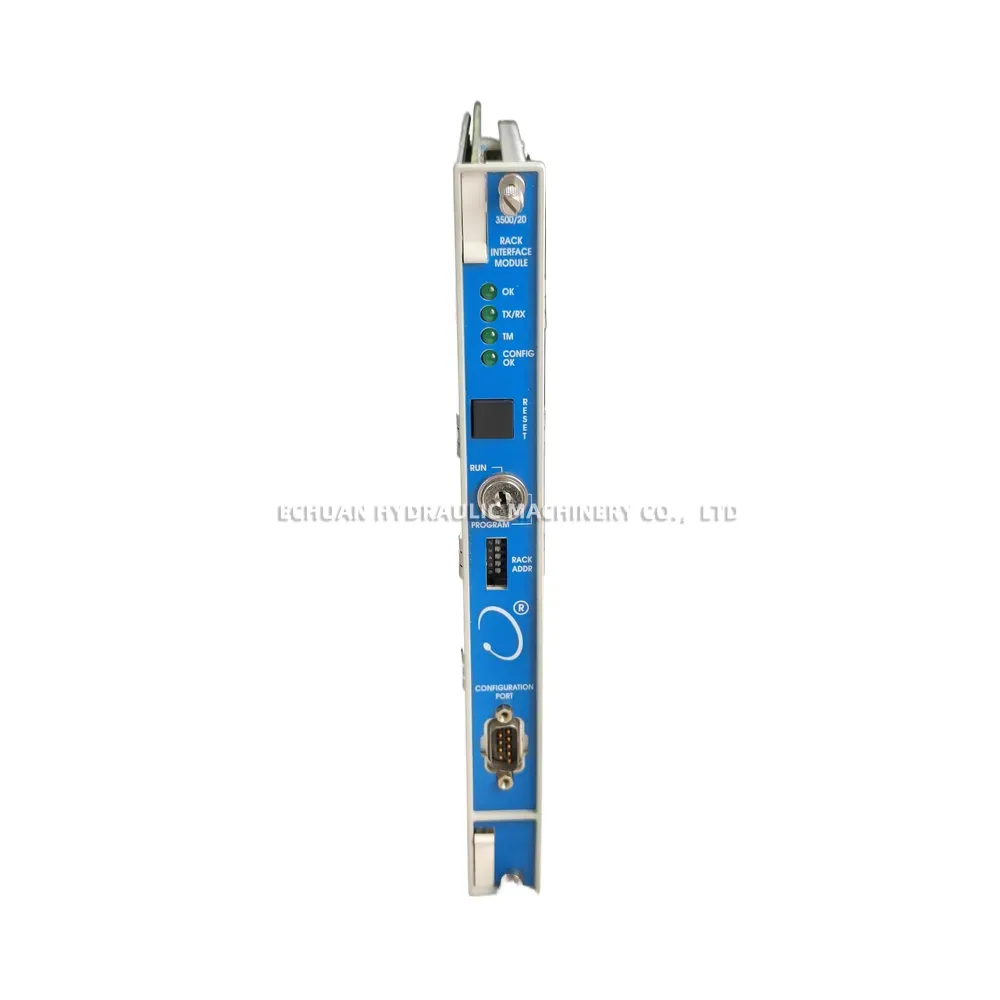

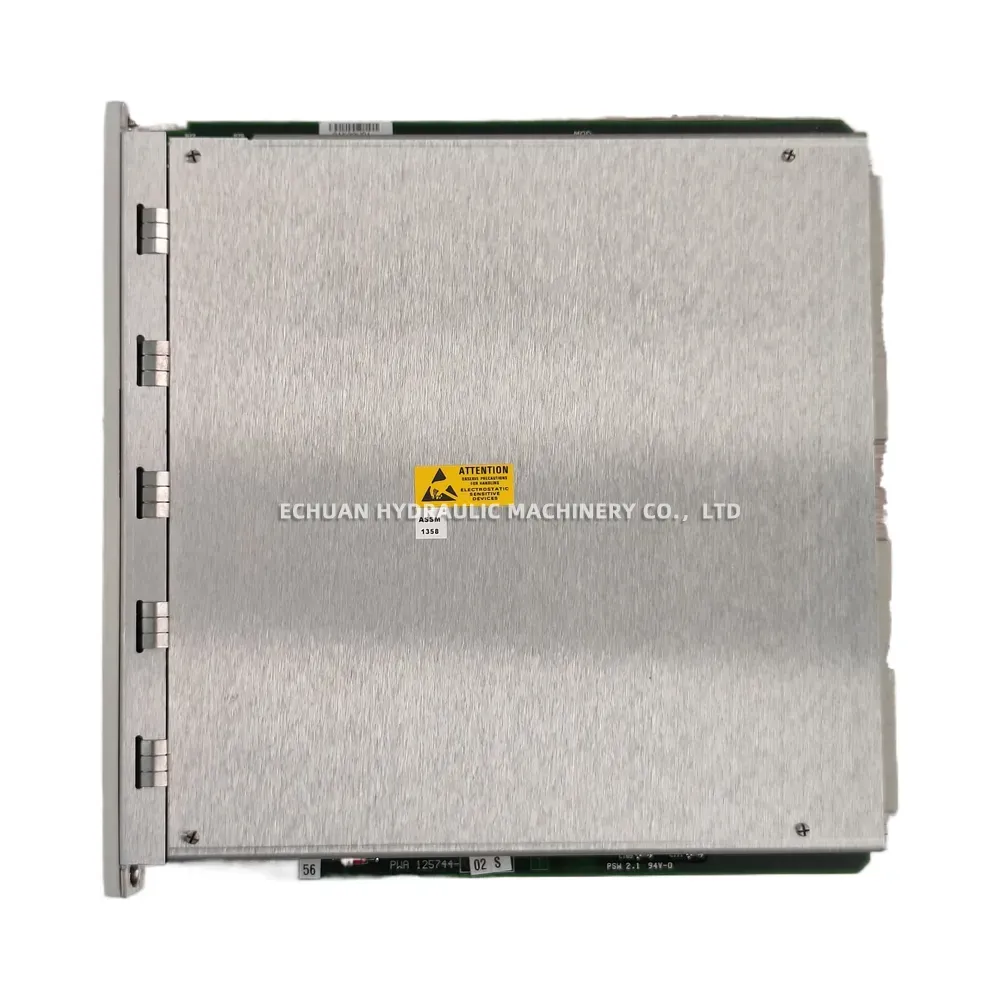

Bently 3500/20 Rack interface module
The Bently Nevada 3500/20 Rack Interface Module (RIM) is the primary interface for the 3500 Machinery Protection System. It serves as the central communication hub, facilitating data exchange between the monitoring modules within the rack and external software, such as the 3500 System Configuration Software and System 1 Condition Monitoring and Diagnostic Software. The 3500/20 RIM is essential for configuring the rack, retrieving real-time data and status information, and accessing historical event logs. It occupies the first slot in the rack, adjacent to the power supplies, and is a critical component for any comprehensive machinery monitoring strategy.
Technical Specifications:
- Power Consumption: 3.5 Watts typical
- Operating Temperature: -30 °C to +65 °C (-22 °F to +150 °F)
- Rack Space Requirements: 1 full-height front slot (Slot 1), does not require a corresponding I/O module slot.
- Communication Ports: Provides buffered outputs for OK Relay, Rack OK/TDI Reset, Keyphasor, and Configurable Relay outputs. Connects to external communication processors like the 3500/92 for network connectivity.
Bently 3500/20 Rack interface module
Discover the Bently 3500/20 Rack Interface Module (RIM), the essential communication gateway for the Bently Nevada 3500 machinery protection and condition monitoring system.
