Product Description

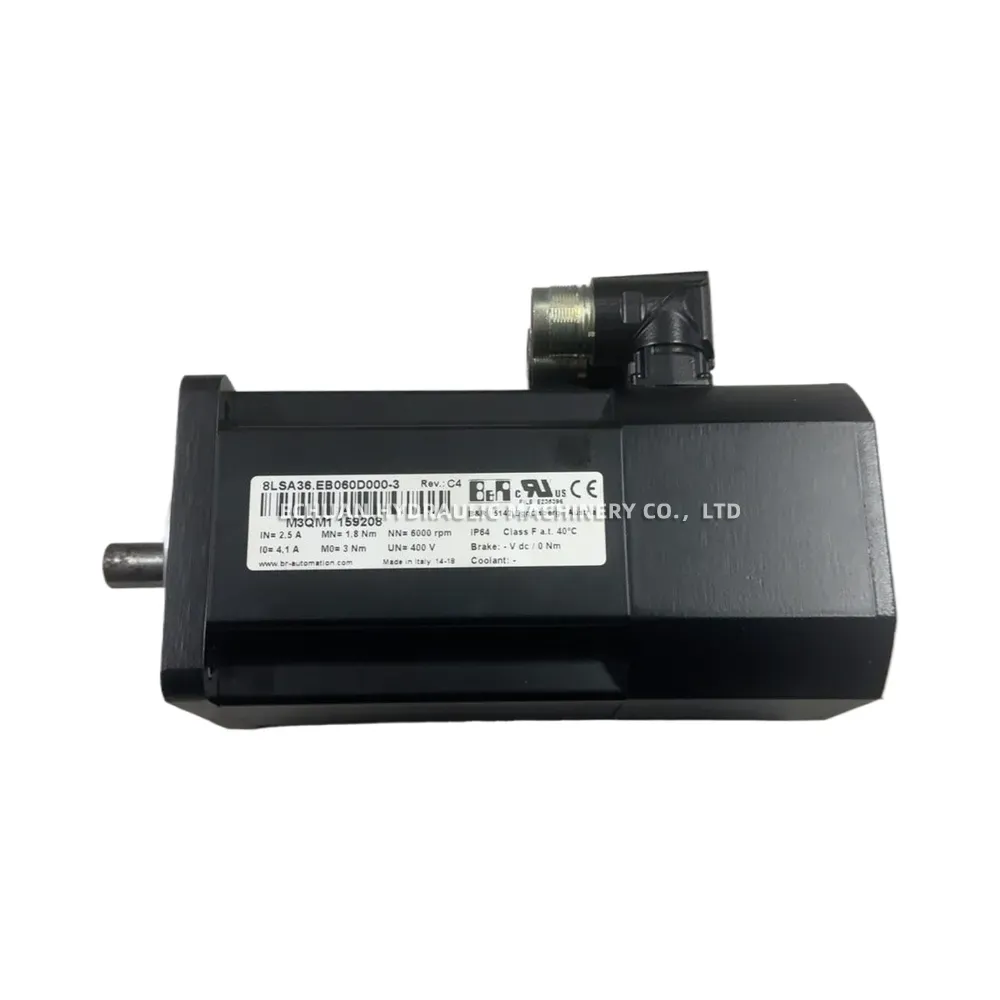

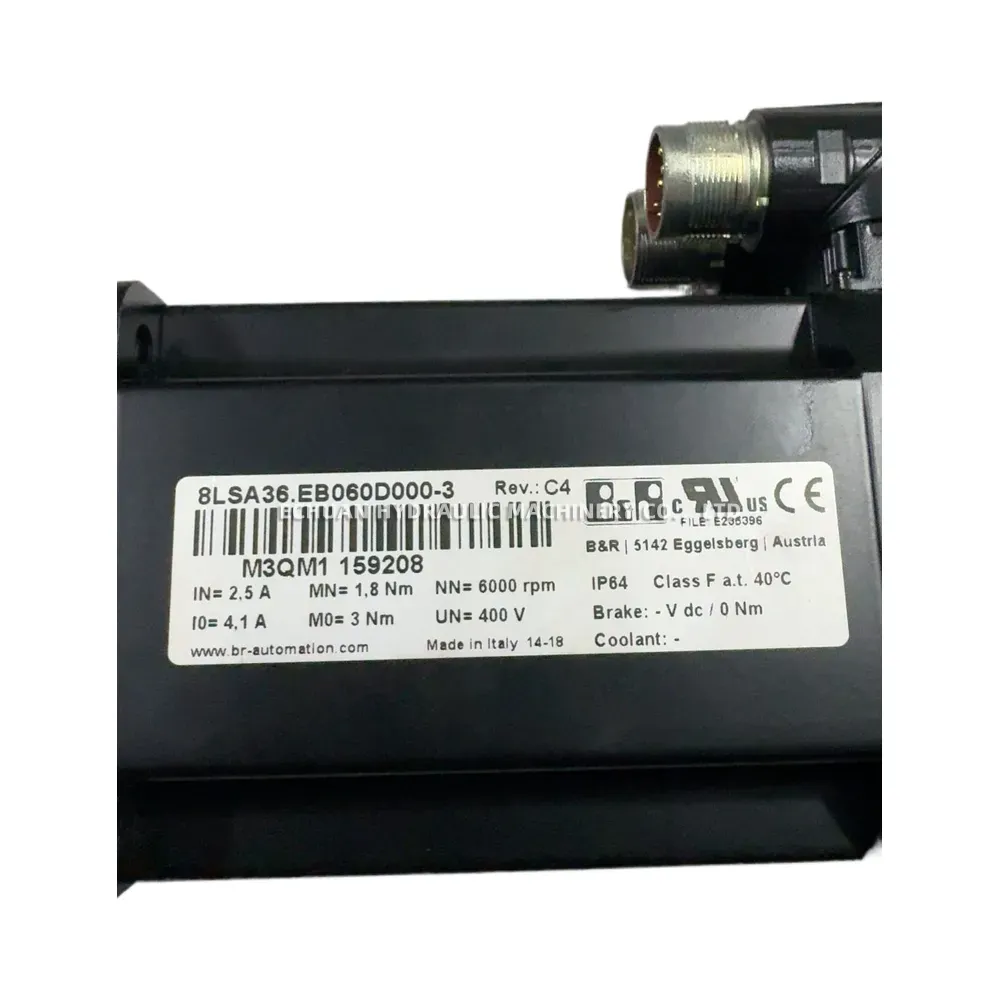

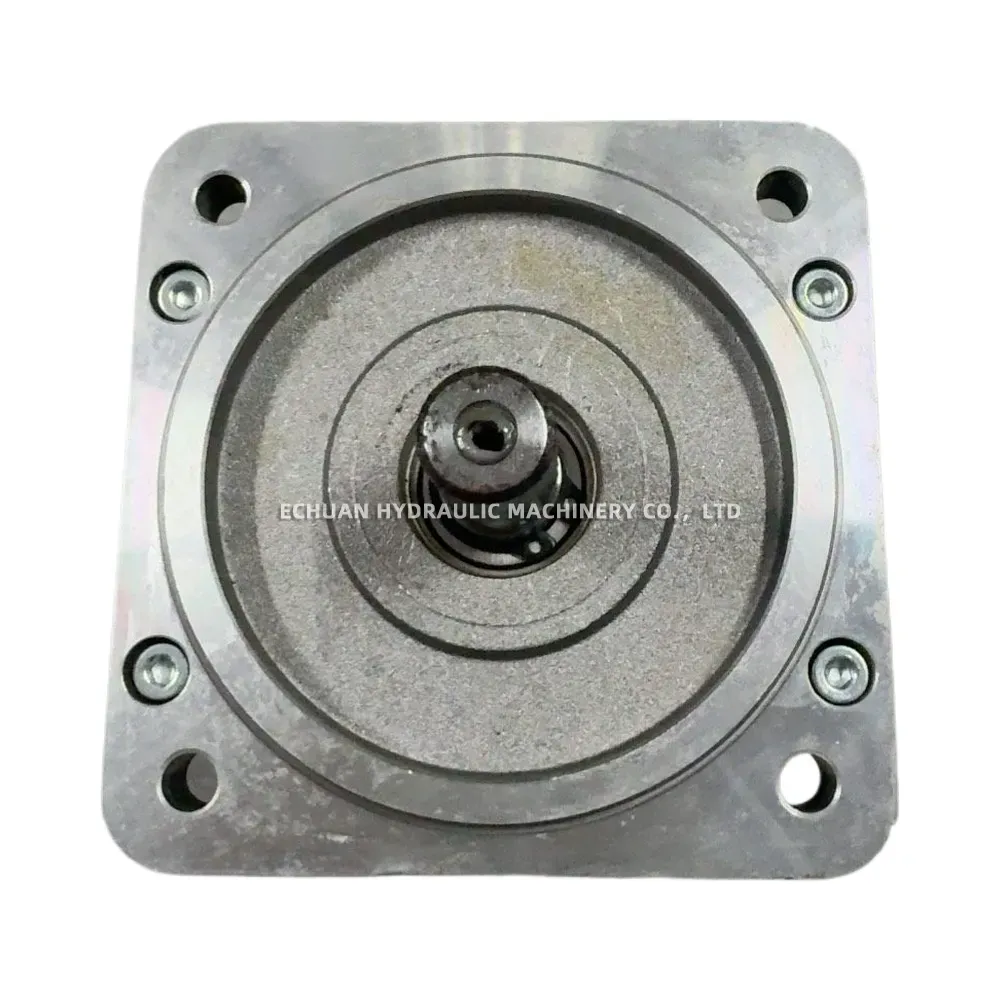

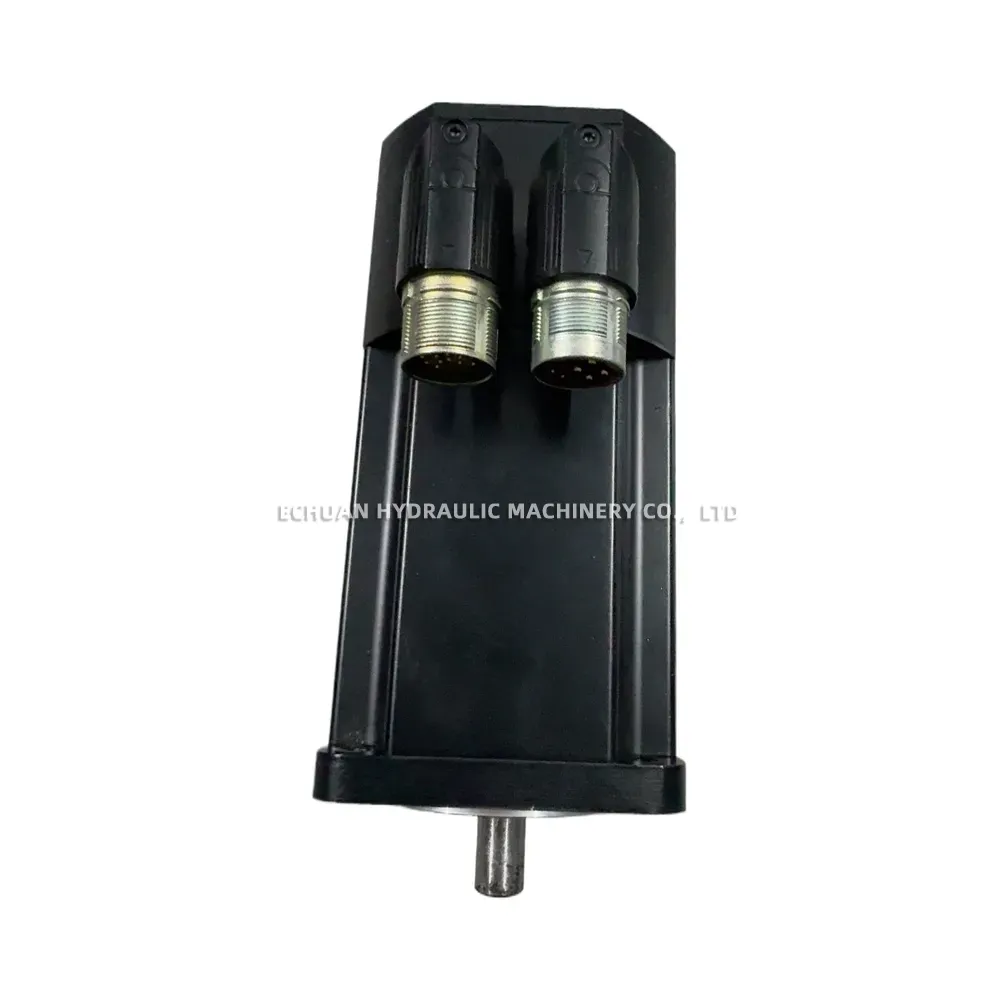

B&R 8LSA36.EB060D000-3 Servo motor
The B&R 8LSA36.EB060D000-3 is a high-performance, dynamically controlled AC synchronous servo motor designed for demanding industrial automation applications. As part of the 8LS series, this motor is characterized by its compact design, high torque density, and excellent rotational accuracy. It features an integrated EnDat 2.2 single-turn encoder for precise position feedback and includes a 24VDC holding brake for safety and position-holding applications. Its robust construction and rotatable connectors make it a versatile and reliable solution for robotics, packaging machinery, and CNC systems.
Technical Specifications:
- Motor Type: AC Synchronous Servo Motor
- Nominal Speed: 6000 rpm
- Stall Torque (M0): 0.75 Nm
- Stall Current (I0): 2.2 A
- Encoder System: EnDat 2.2, single-turn
- Holding Brake: Yes, 24 VDC, 3 Nm holding torque
- Protection Class: IP64
B&R 8LSA36.EB060D000-3 Servo motor
Discover the B&R 8LSA36.EB060D000-3, a compact AC synchronous servo motor featuring a 6000 rpm nominal speed, 0.75 Nm stall torque, an integrated EnDat 2.2 encoder, and a 24VDC holding brake for high-precision motion control applications.
