Product Description

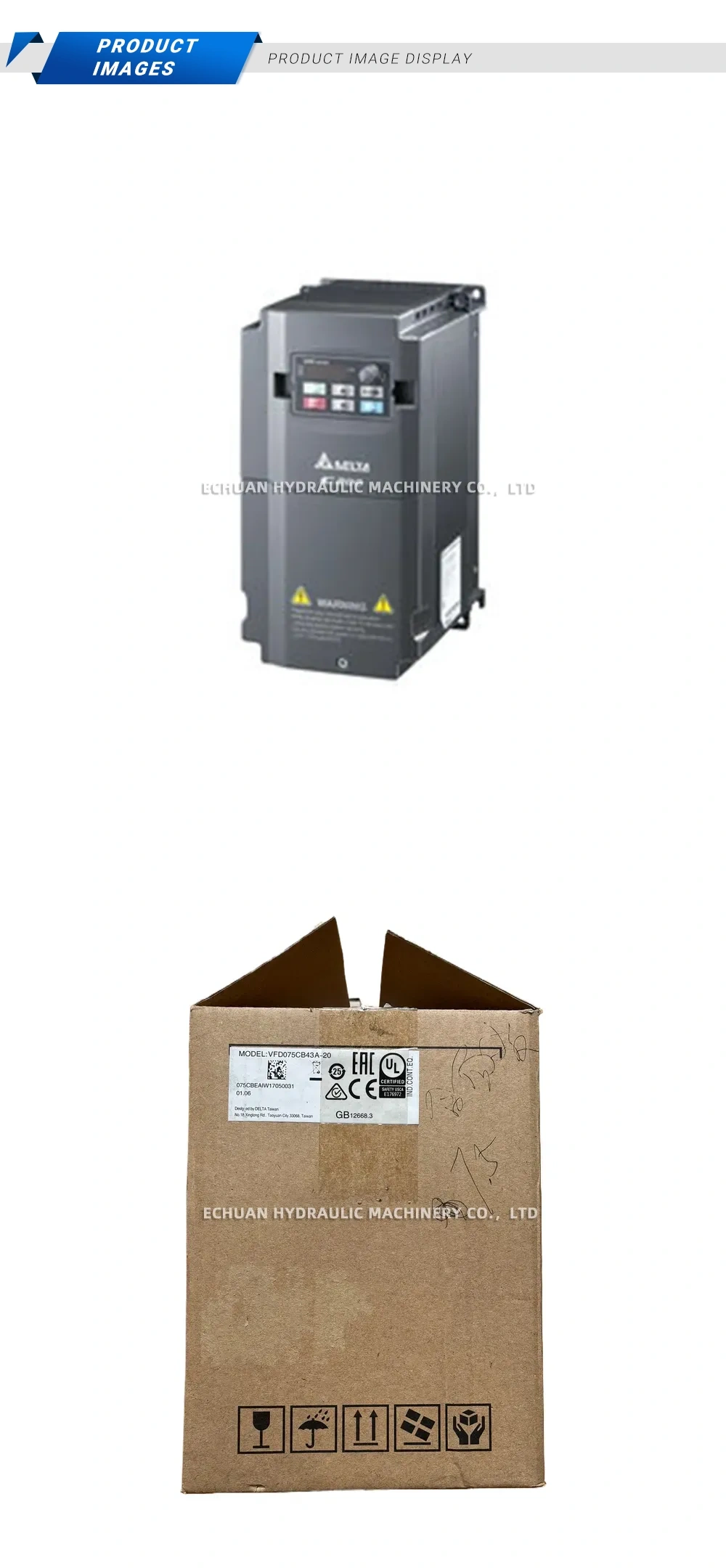

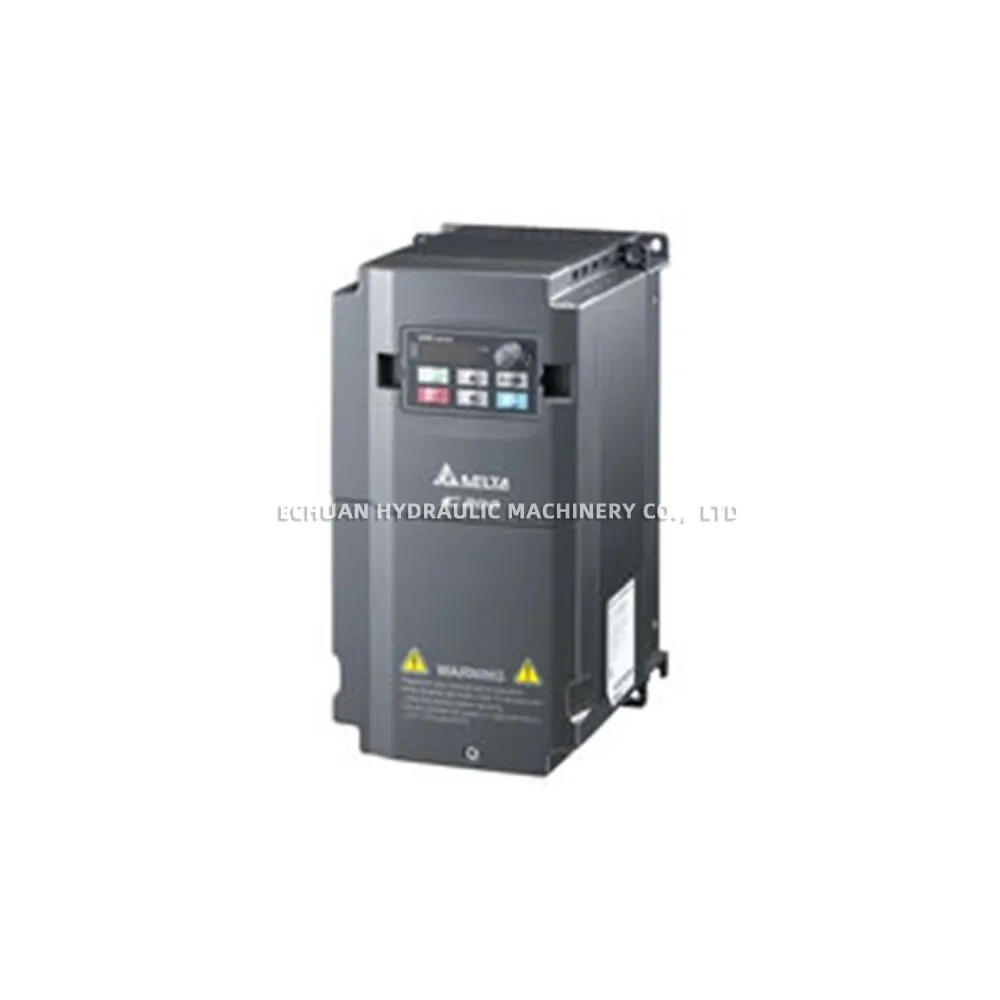

Delta VFD075CB43A-20
The Delta VFD075CB43A-20 is a high-performance FOC (Field Oriented Control) vector control drive from the C2000 Plus series. This 7.5 kW (10 HP) drive is designed for demanding industrial applications, offering precise speed, torque, and position control for AC motors. It features a built-in PLC with 10k steps capacity for flexible programming, a standard brake chopper for dynamic braking applications, and a robust design suitable for heavy-duty environments. Its modular construction allows for easy maintenance and expansion with various communication cards, making it a versatile and reliable solution for machine tools, cranes, printing, and processing machinery.
Technical Specifications:
- Model: VFD075CB43A-20
- Series: C2000 Plus
- Power Rating: 7.5 kW / 10 HP
- Input Voltage: 3-Phase 380-480 VAC, 50/60 Hz
- Output Current: 18A (Normal Duty) / 16A (Heavy Duty)
- Control Mode: V/f, SVC, FOC Sensorless, FOC+PG, TQC+PG
- Key Features: Built-in PLC (10k steps), Built-in Brake Chopper, IP20 Enclosure
Delta VFD075CB43A-20
Buy the Delta VFD075CB43A-20, a high-performance 7.5kW (10 HP) C2000 Plus series vector control drive. This 3-phase 480V VFD features a built-in PLC and brake chopper, ideal for advanced motor control in industrial applications.
