Product Description

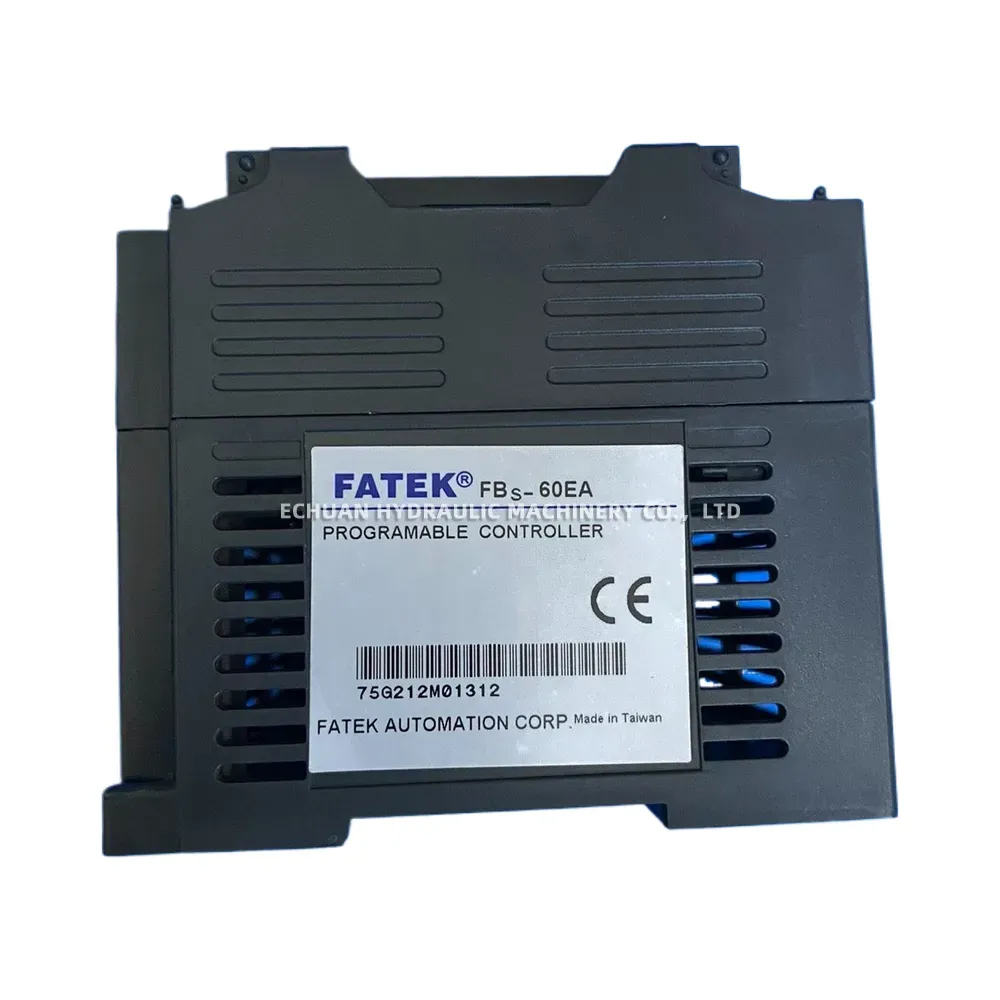

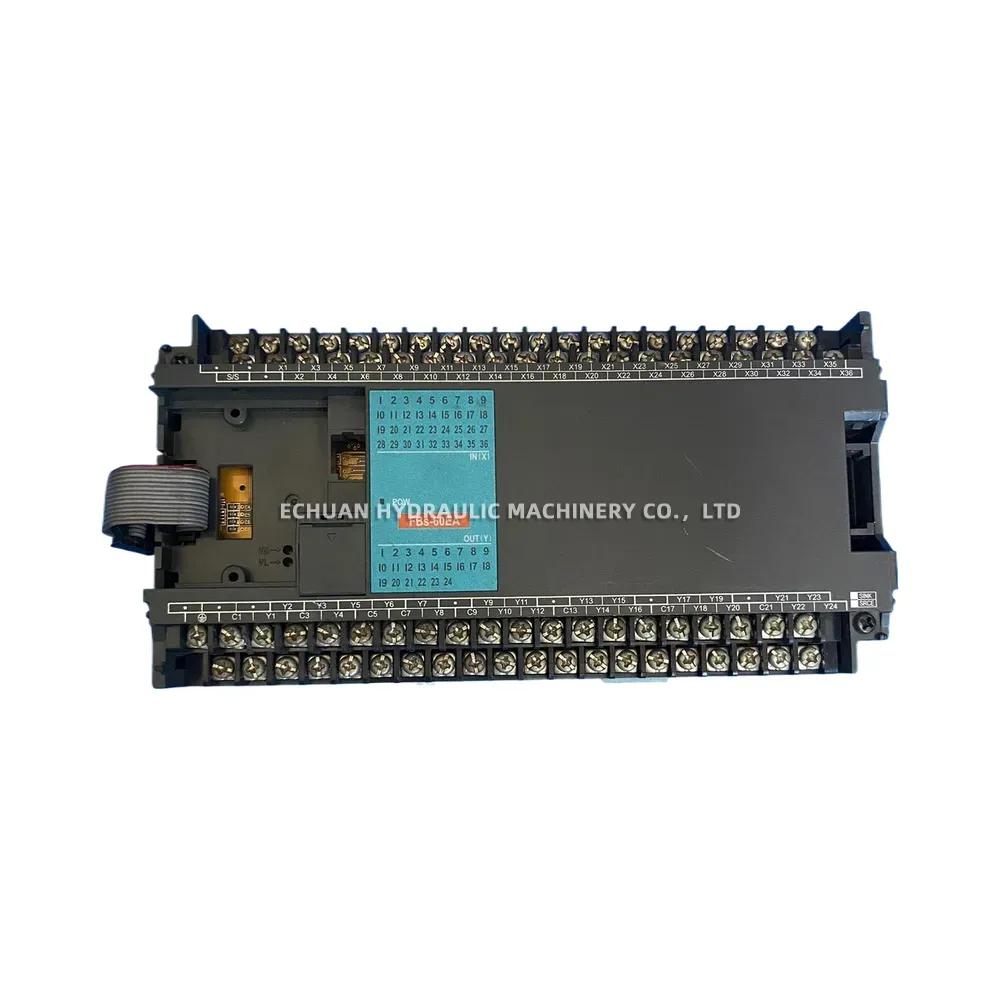

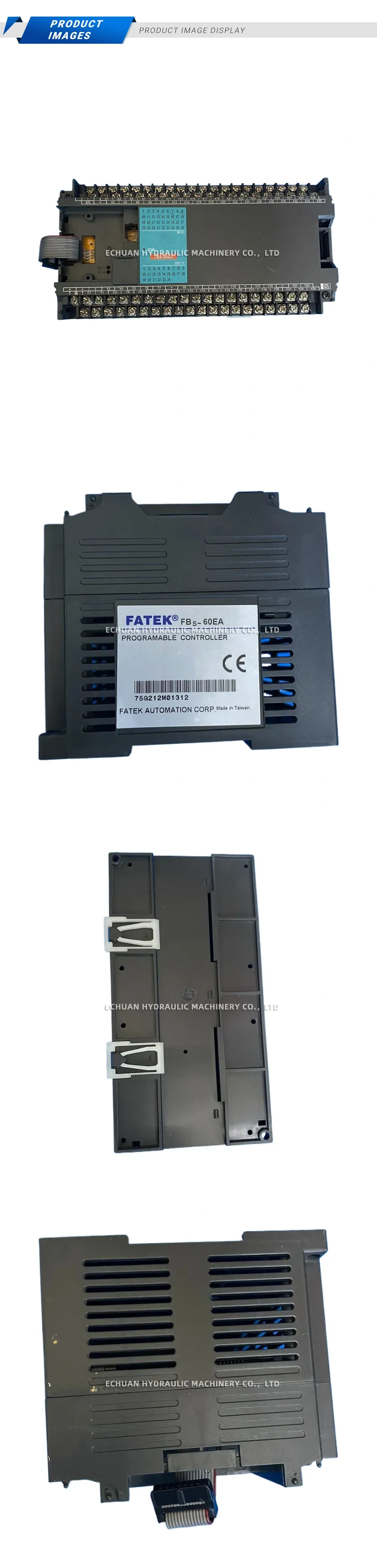

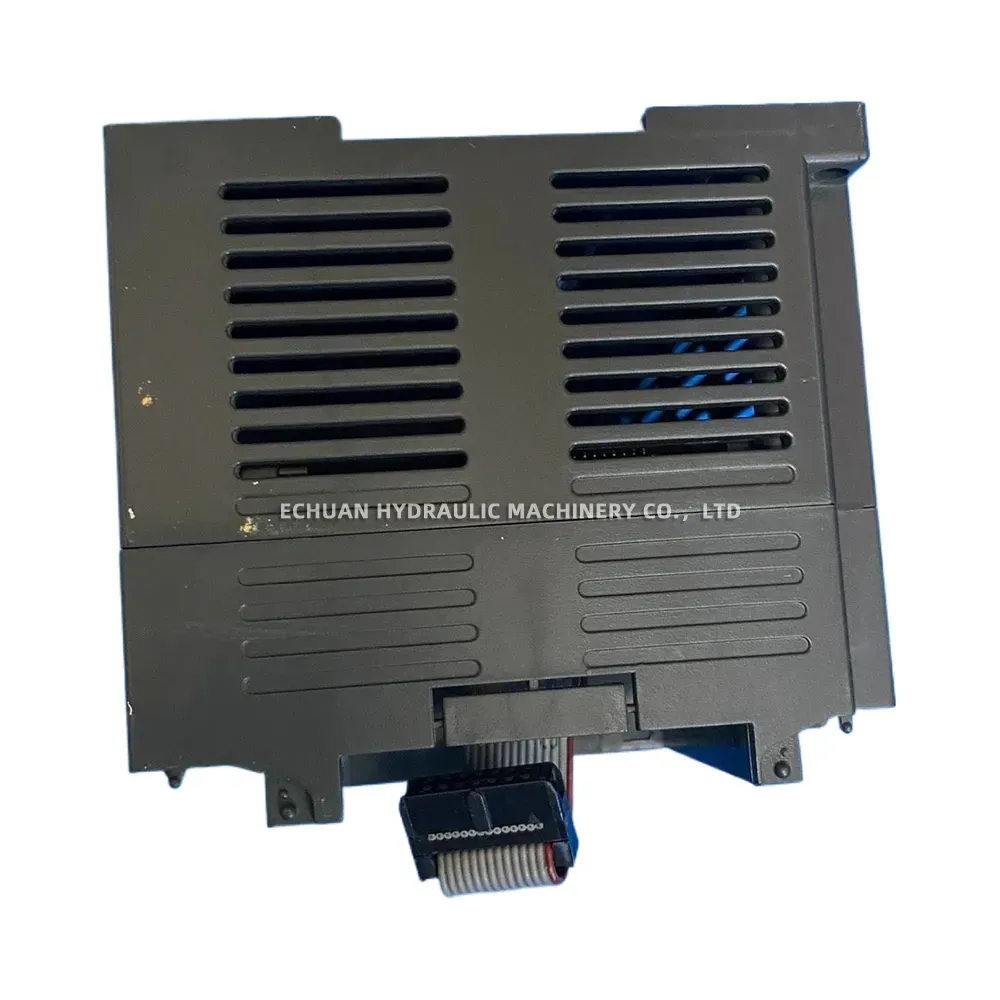

Fatek FBS-60EA
The Fatek FBS-60EA is a powerful and compact Main Unit from the FBs series of Programmable Logic Controllers (PLCs). Engineered for high performance, it features 60 onboard digital I/O points, making it an excellent choice for a wide range of industrial automation and control applications. The standout feature of the ‘E’ model is its integrated Ethernet port, which allows for seamless network communication, remote monitoring, and easy integration into modern factory systems. Powered by a versatile 100-240VAC supply and equipped with relay outputs, the FBS-60EA provides a reliable and cost-effective solution for complex machine control, process automation, and data logging tasks.
Technical Specifications:
- Model: FBS-60EA
- Power Supply: 100 ~ 240VAC
- Total I/O Points: 60
- Digital Inputs: 36 points (24VDC)
- Digital Outputs: 24 points (Relay)
- Communication Port: Built-in Ethernet Port, 1x RS232 (Expandable)
- Program Memory: 20K Words
- Expandability: Yes, with FBs-Series expansion modules
Fatek FBS-60EA
Discover the Fatek FBS-60EA, a high-performance PLC main unit featuring 60 I/O points (36DI/24DO), a built-in Ethernet port, and AC power supply. Ideal for robust and networked industrial automation control systems.
