Product Description
Fujikin MCV-18-1-3-2-S-H / 316L-P Assembly Pneumatic Valve Manifold Assembly

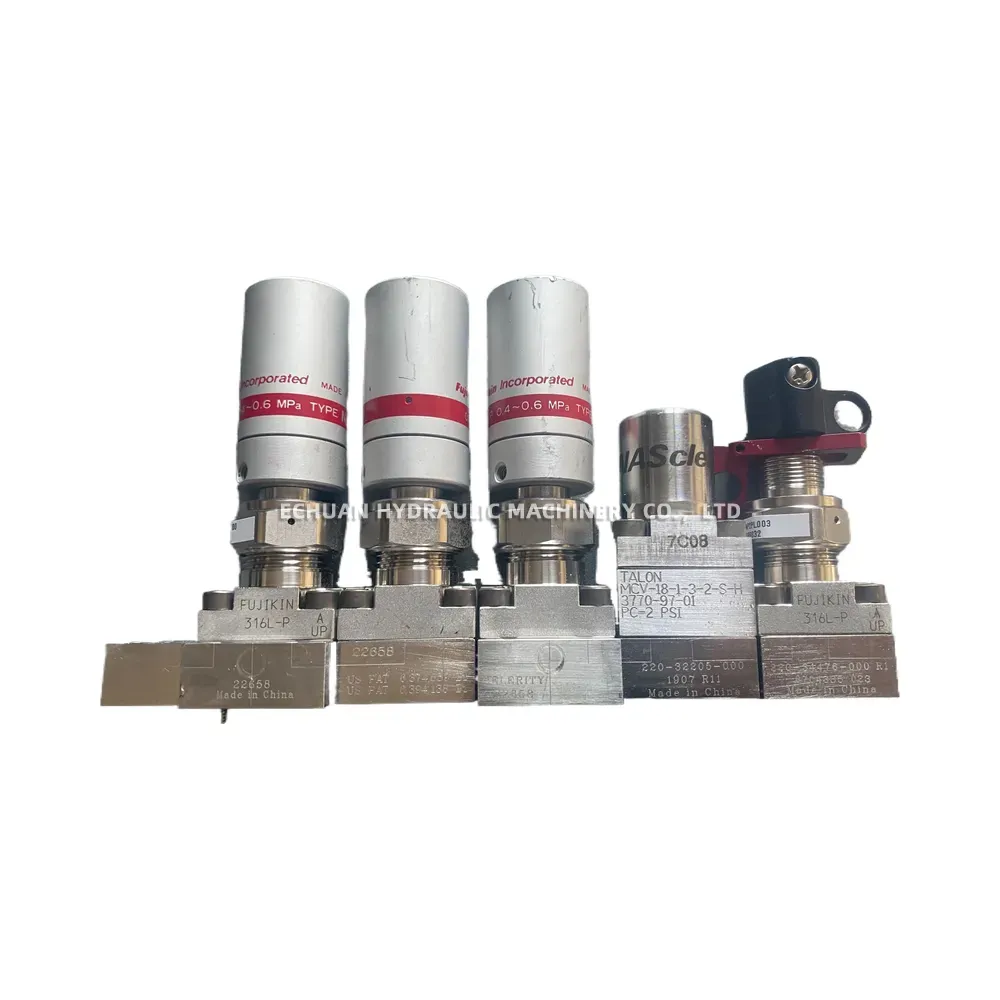

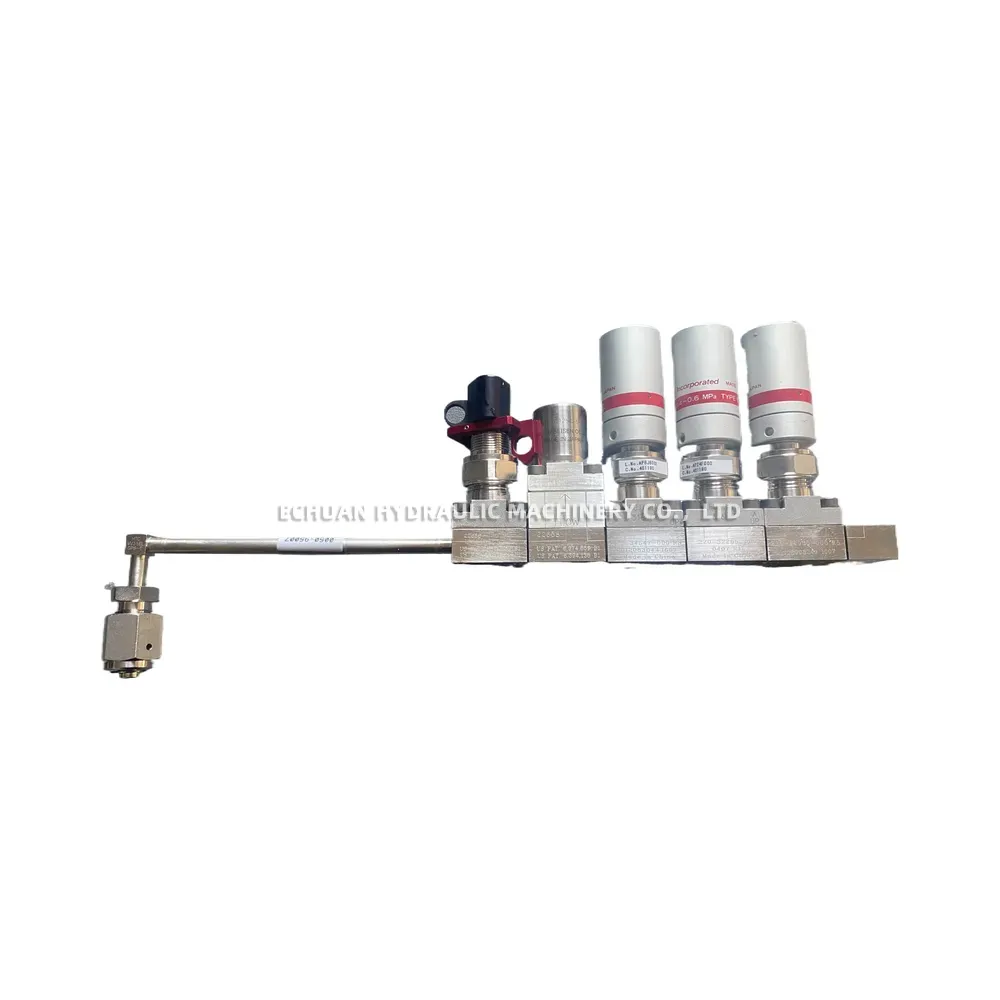

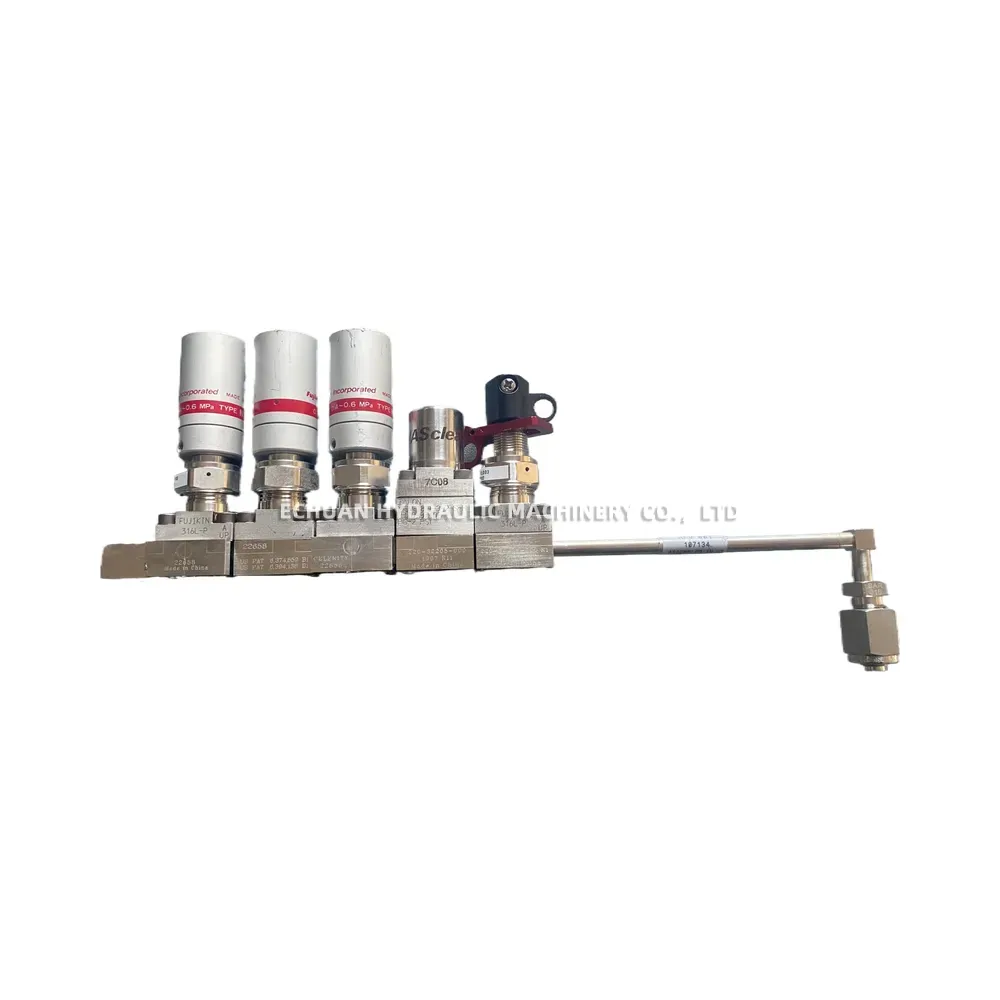

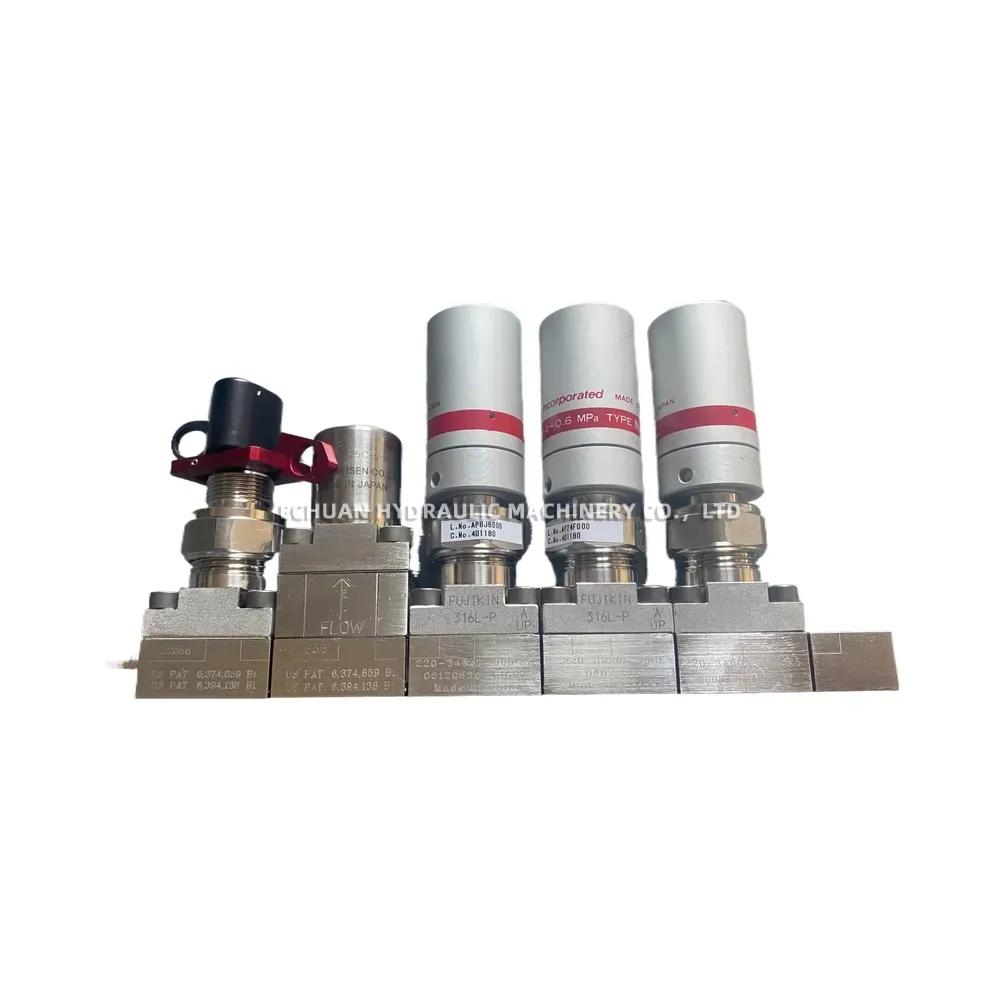

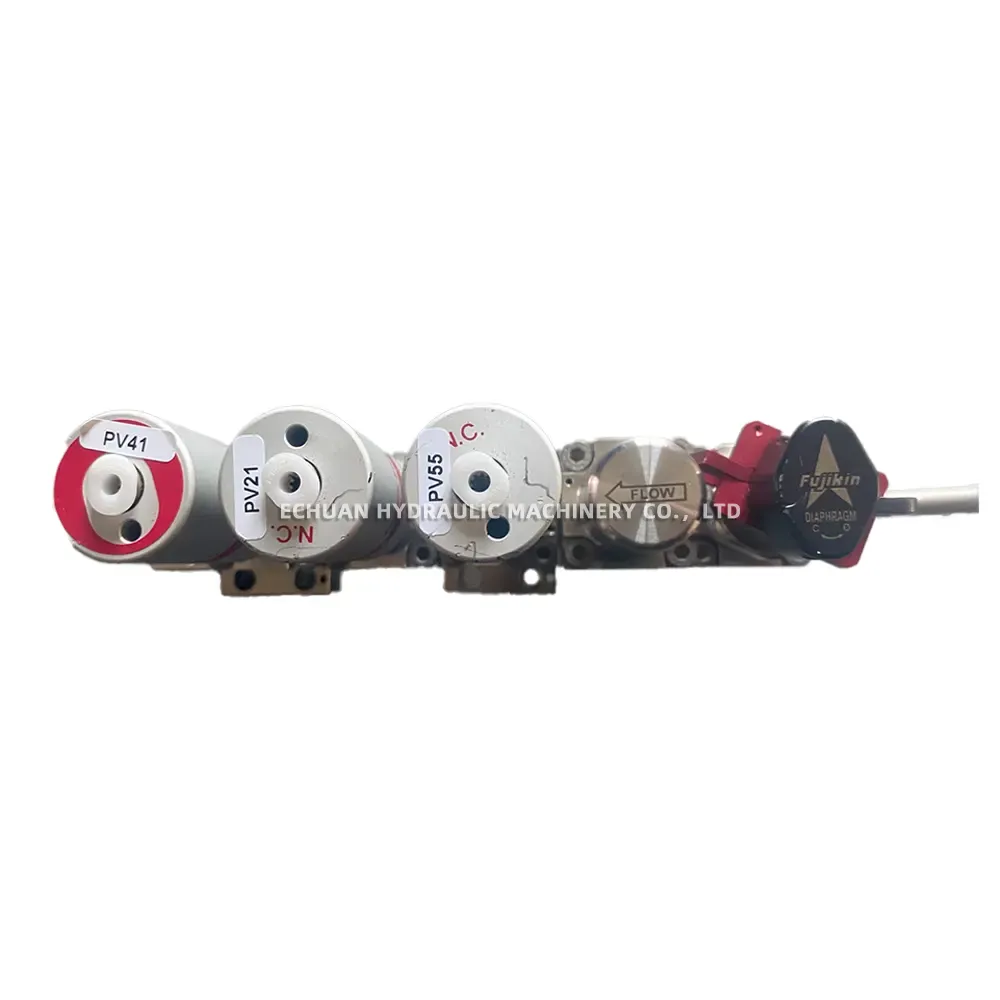

The Fujikin MCV-18-1-3-2-S-H / 316L-P Assembly is a premium high-purity gas distribution manifold engineered for precise flow control in semiconductor manufacturing and advanced industrial gas applications. Constructed from durable 316L stainless steel, this assembly ensures exceptional corrosion resistance and maintains strict gas purity standards. The unit integrates multiple pneumatic diaphragm valves with white actuators rated for 0.4-0.6 MPa operating pressure, alongside a manual diaphragm valve featuring a highly visible red handle for secure manual override. Equipped with reliable Talon series valve components, VCR-style fittings for leak-tight connections, and clear flow direction indicators, this manifold assembly delivers unparalleled reliability and performance in critical fluid handling systems.
Technical Specifications:
- Brand: Fujikin
- Model: MCV-18-1-3-2-S-H / 316L-P Assembly
- Material: 316L Stainless Steel (316L-P)
- Operating Pressure (Pneumatic): 0.4 – 0.6 MPa
- Valve Configuration: Pneumatic Diaphragm Valves (N.C. / I.C.) & Manual Diaphragm Valve
- Component Series: Talon Series
- Connection Type: VCR-style fittings
- Patents: US PAT 6,374,839 B1 / US PAT 6,394,138 B1
Fujikin MCV-18-1-3-2-S-H / 316L-P Assembly Pneumatic Valve Manifold Assembly
Optimize your semiconductor gas delivery system with the Fujikin MCV-18-1-3-2-S-H / 316L-P Assembly. This high-purity 316L stainless steel pneumatic valve manifold features Talon series components, VCR-style fittings, and reliable 0.4-0.6 MPa actuation for precise, leak-free flow control in critical industrial applications.
