Product Description

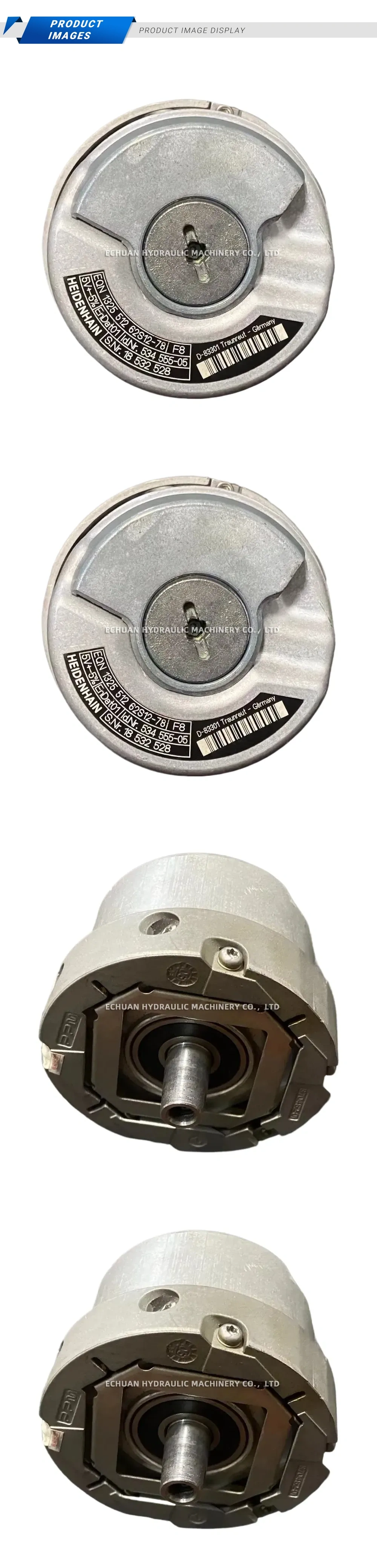

Heidenhain EQN1325512 62S12-78
The Heidenhain EQN 1325 512 62S12-78 is a high-performance absolute rotary encoder designed for integration into servo motors. It provides both absolute position information and high-quality incremental signals, making it ideal for demanding position and speed control loops. Featuring a robust tapered shaft for direct and secure mounting, this encoder utilizes the reliable EnDat 2.2 (EnDat01) interface for fast and secure data transmission. Its compact design and high accuracy ensure precise feedback for dynamic and efficient motor operation in various industrial automation applications, including robotics, CNC machinery, and drive technology.
Technical Specifications:
- Model Series: EQN 1325
- Type: Absolute Rotary Encoder
- Positions per Revolution: 8192 (13 bits)
- Incremental Signals: 1 Vpp, 512 lines
- Data Interface: EnDat 2.2 (EnDat01)
- Shaft: Tapered shaft 1:10 for motor integration
- Power Supply: DC 5 V ± 5%
- Max. Speed (Mechanical): 12000 rpm
Heidenhain EQN1325512 62S12-78
Buy the Heidenhain EQN1325512 62S12-78 absolute rotary encoder. Features 13-bit resolution, 512 lines, EnDat 2.2 interface, and a tapered shaft for servo motor feedback applications.
| Brand | HEIDENHAIN |
|---|---|
| Model | EQN1325512 62S12-78 |
| Category | Electrical |
