Product Description

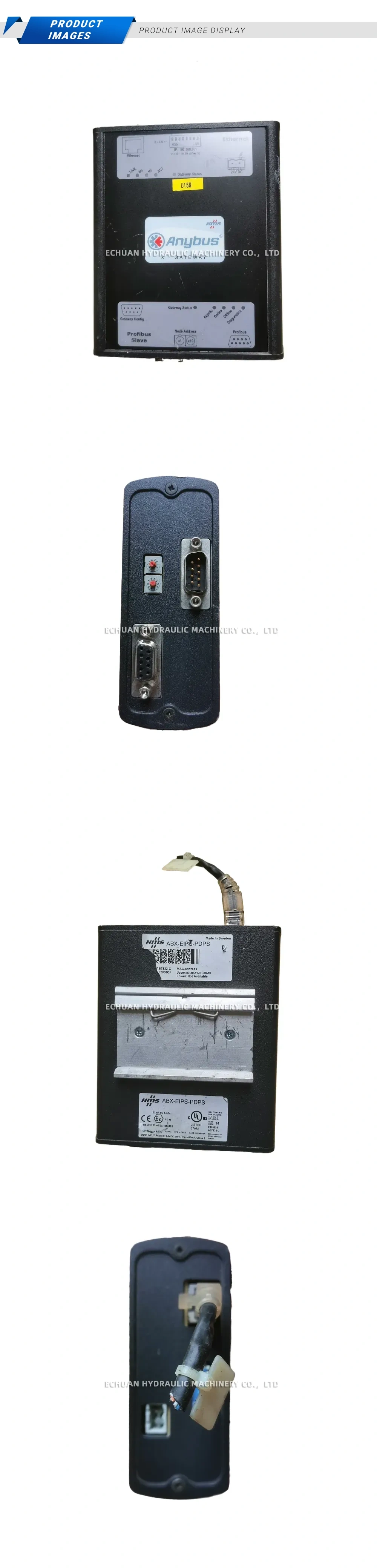

HMS ABX-EIPS-PDPS Anybus X-gateway
The HMS ABX-EIPS-PDPS, also known as the Anybus X-gateway (AB7650), is a high-performance industrial protocol converter designed to facilitate seamless communication between an EtherNet/IP network and a PROFIBUS DP network. This gateway acts as an EtherNet/IP Scanner (Master) on one side and a PROFIBUS DP Slave on the other, enabling a PLC on the EtherNet/IP network to control and monitor devices on a PROFIBUS fieldbus. It is an ideal solution for system integrators and plant operators who need to integrate legacy PROFIBUS equipment into modern EtherNet/IP-based control architectures without extensive reprogramming. The gateway is configured through a user-friendly web interface and is built for reliability in demanding industrial environments.
Technical Specifications:
- Model Number: AB7650 (ABX-EIPS-PDPS)
- EtherNet/IP Interface (Scanner/Master): 2 x RJ-45 connectors, 10/100 Mbit/s, up to 509 bytes Input and 505 bytes Output data
- PROFIBUS DP Interface (Slave): D-sub 9-pin female connector, auto baud rate detection from 9.6 kbit/s to 12 Mbit/s, up to 244 bytes Input and 244 bytes Output data
- Power Supply: 24 VDC (19.2 – 28.8 VDC)
- Operating Temperature: -25 to +65 °C (-13 to +149 °F)
- Mounting: DIN-rail (35 mm)
- Configuration: Web-based interface and configuration tool
HMS ABX-EIPS-PDPS
High-performance Anybus X-gateway connecting EtherNet/IP Scanner (Master) networks to PROFIBUS DP Slave devices. Enables seamless data exchange and integration for industrial automation systems.
