Product Description

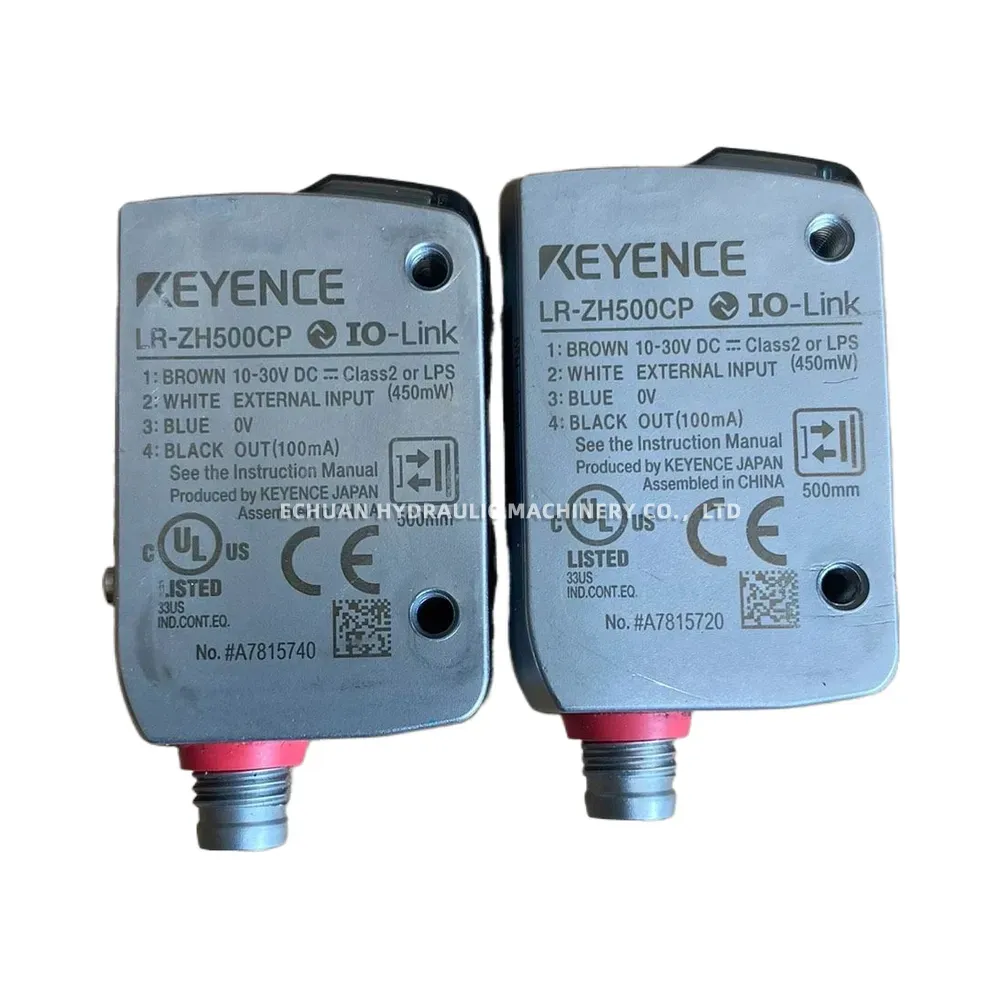

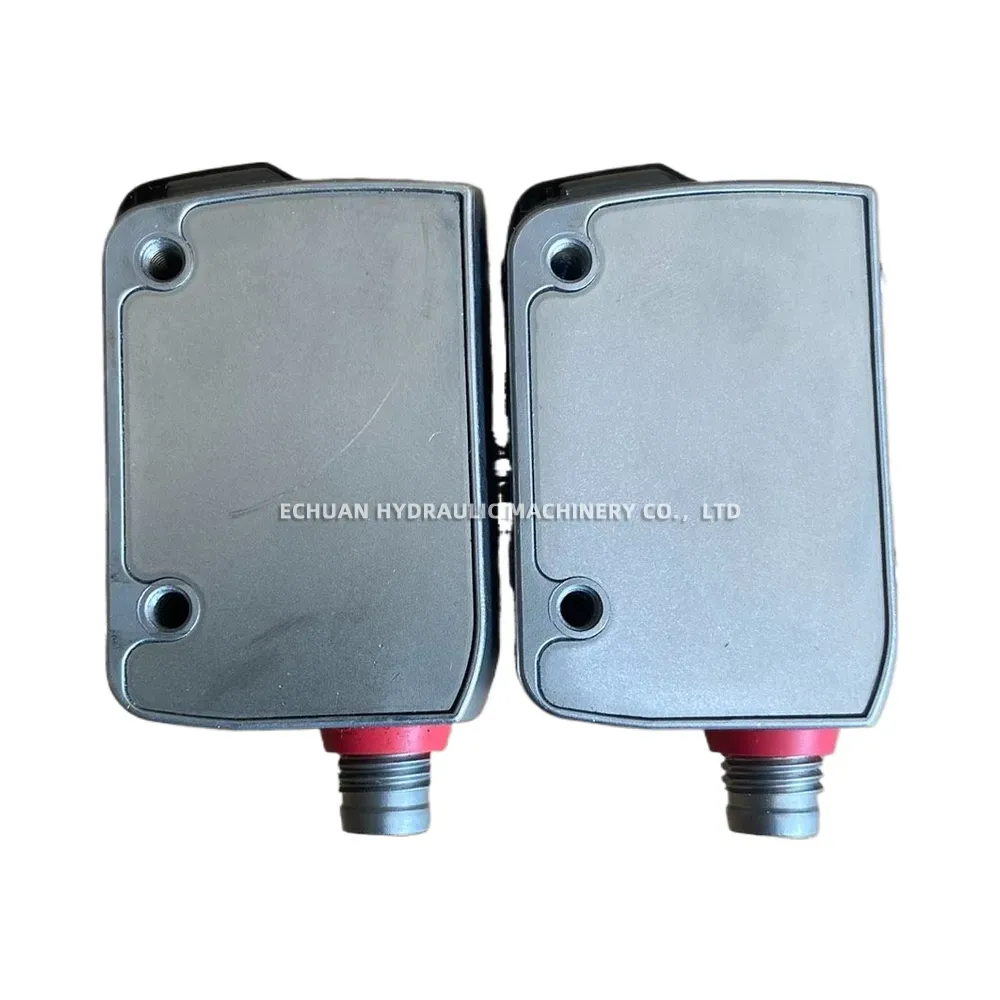

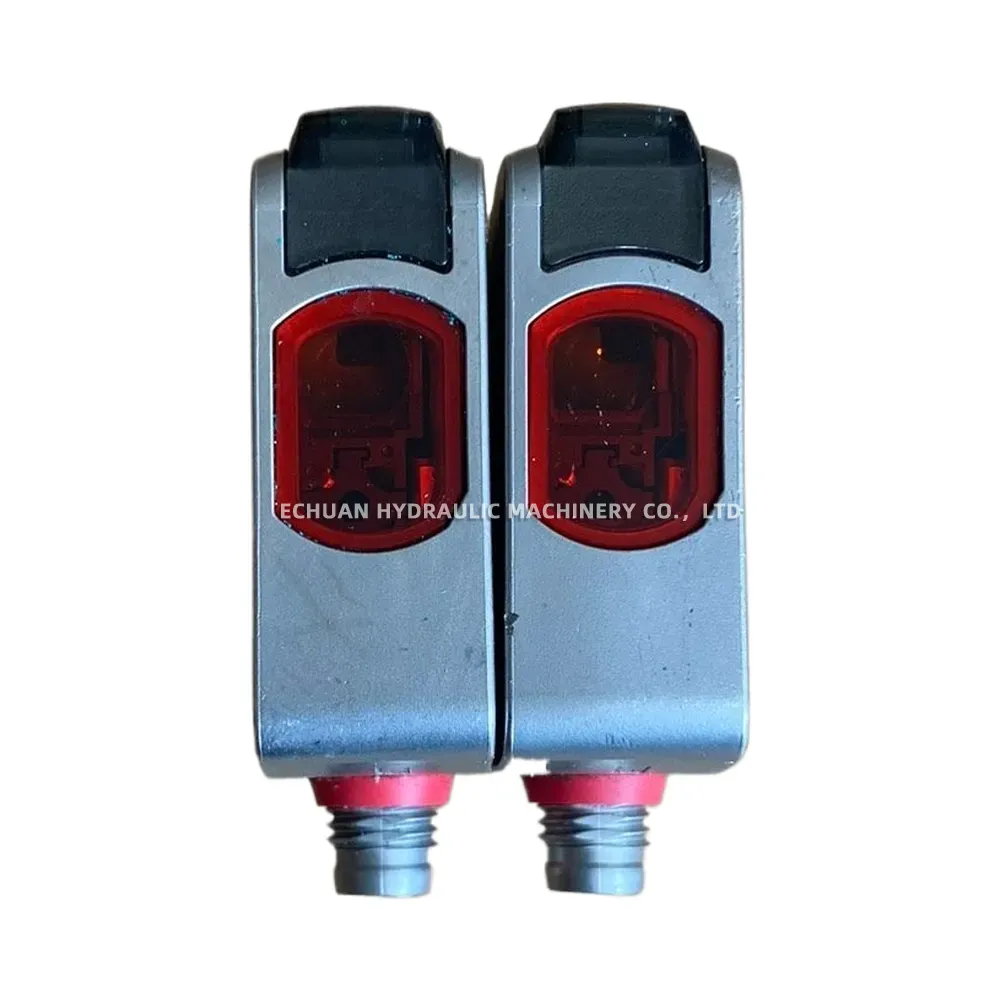

Keyence LR-ZH500CP Self-Contained CMOS Laser Sensor
The Keyence LR-ZH500CP is a high-performance, self-contained CMOS laser sensor designed for reliable and stable detection in demanding industrial environments. It utilizes an innovative technology that automatically adjusts sensitivity to detect targets based on position, regardless of color, surface finish, or shape. This eliminates the need for frequent recalibration and ensures consistent performance even with challenging targets like black rubber, shiny metal, or multi-colored objects. The sensor is housed in a robust, IP67-rated metal body, making it resistant to harsh conditions, impacts, and environmental factors. Its M8 connector type allows for quick and easy installation, making it an ideal solution for a wide range of automation applications including presence/absence detection, part positioning, and quality control.

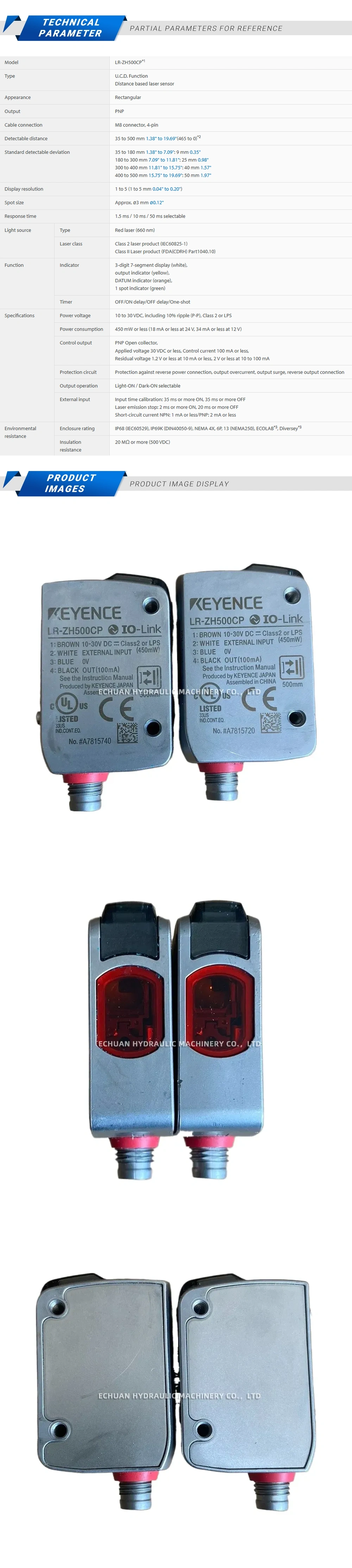

Technical Specifications:
- Model: LR-ZH500CP
- Detectable Distance: 25 to 500 mm (0.98″ to 19.69″)
- Light Source: Red laser (660 nm), Class 1
- Control Output: PNP open collector
- Connection Type: M8 connector (4-pin)
- Power Voltage: 10 to 30 VDC, including 10% ripple (P-P)
- Response Time: 1.5 ms / 10 ms / 50 ms (selectable)
- Enclosure Rating: IP67 / IP65 (NEMA 4X, 6P, 12)
Keyence LR-ZH500CP
Discover the Keyence LR-ZH500CP, a robust self-contained CMOS laser sensor with a 25-500mm range, PNP output, and M8 connector. Ideal for stable, position-based detection in industrial automation.
