Product Description

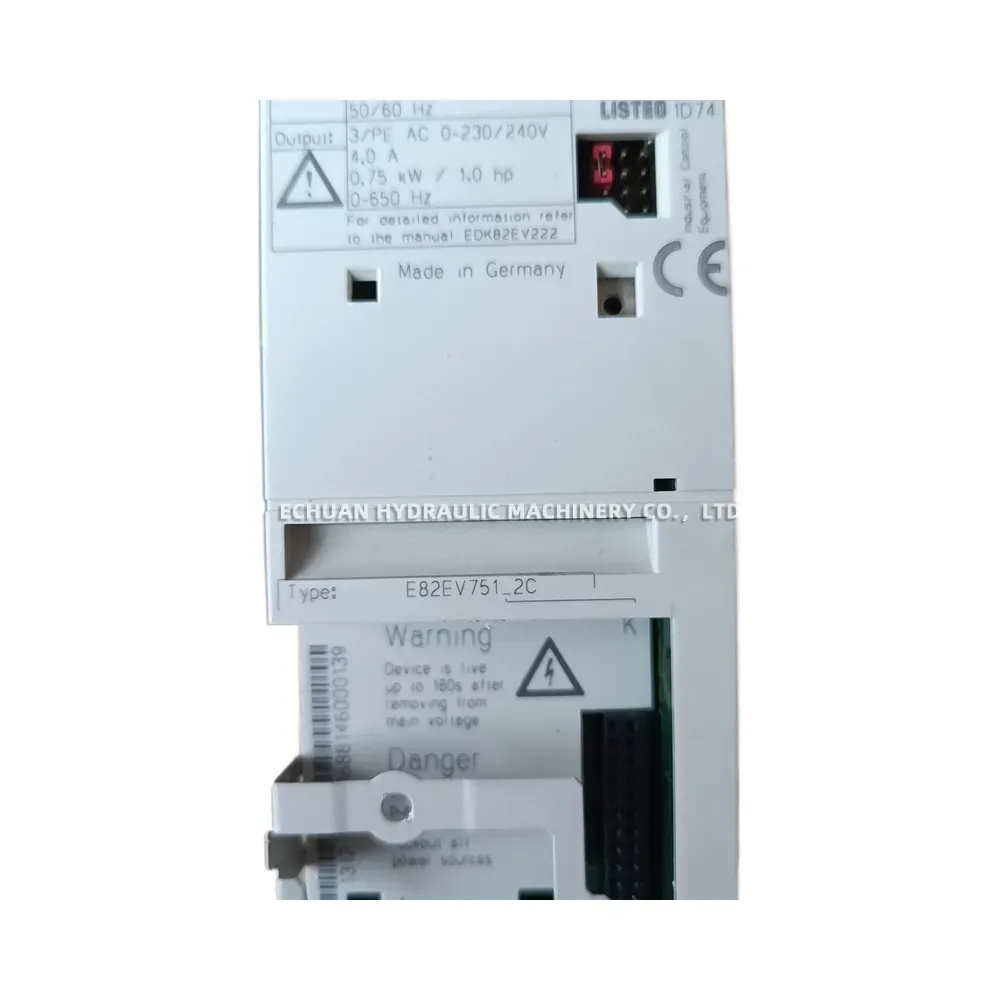

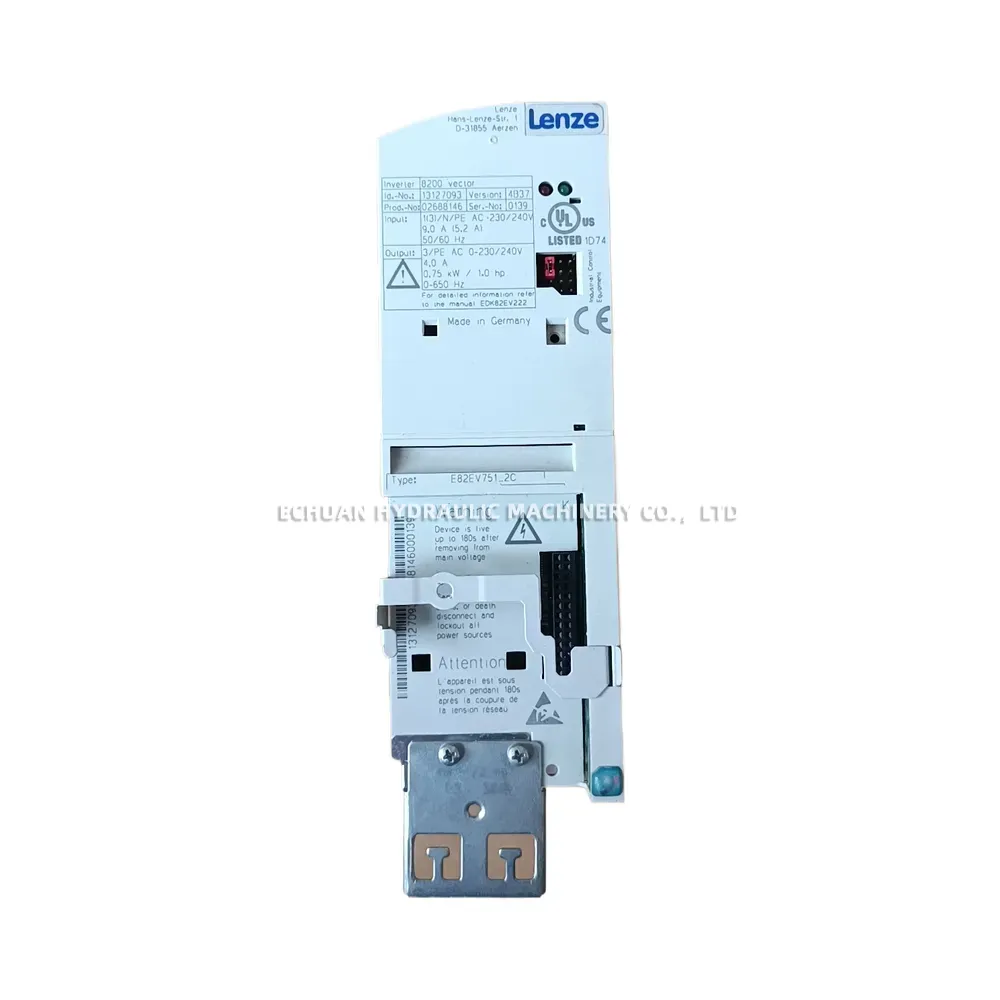

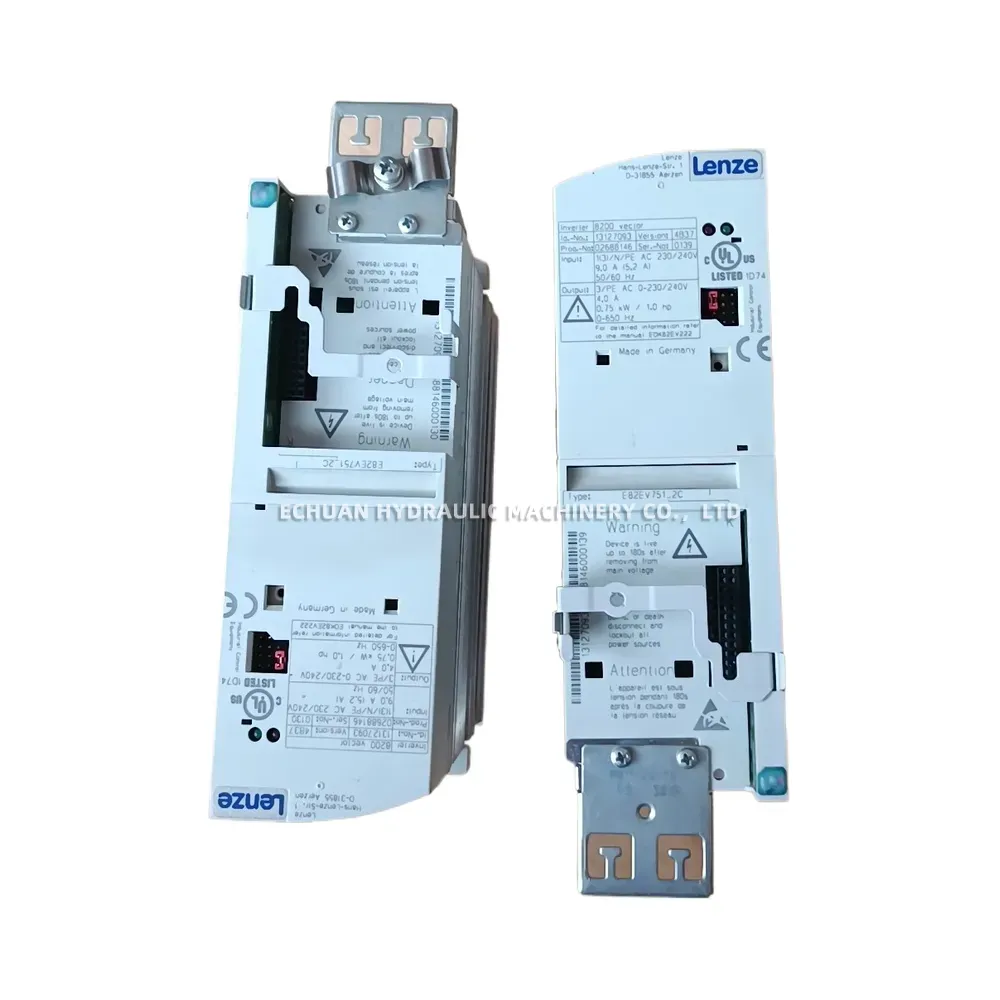

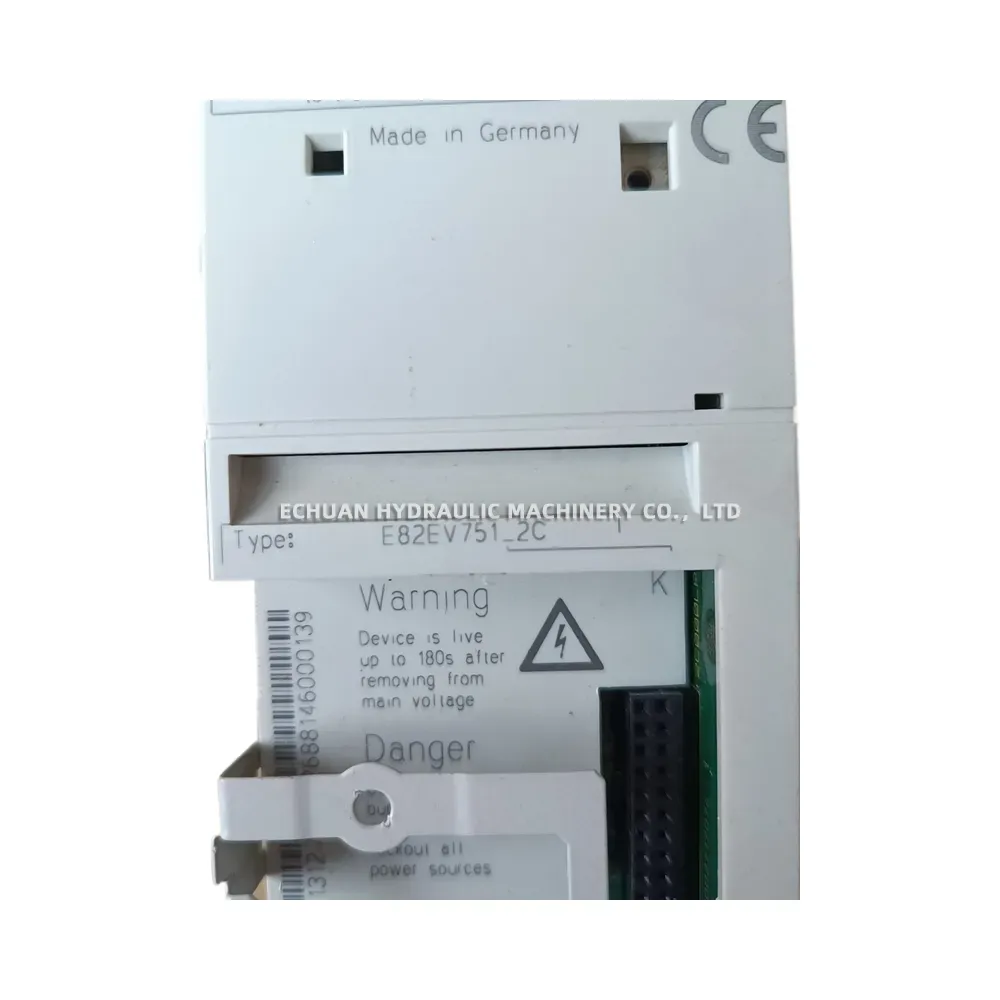

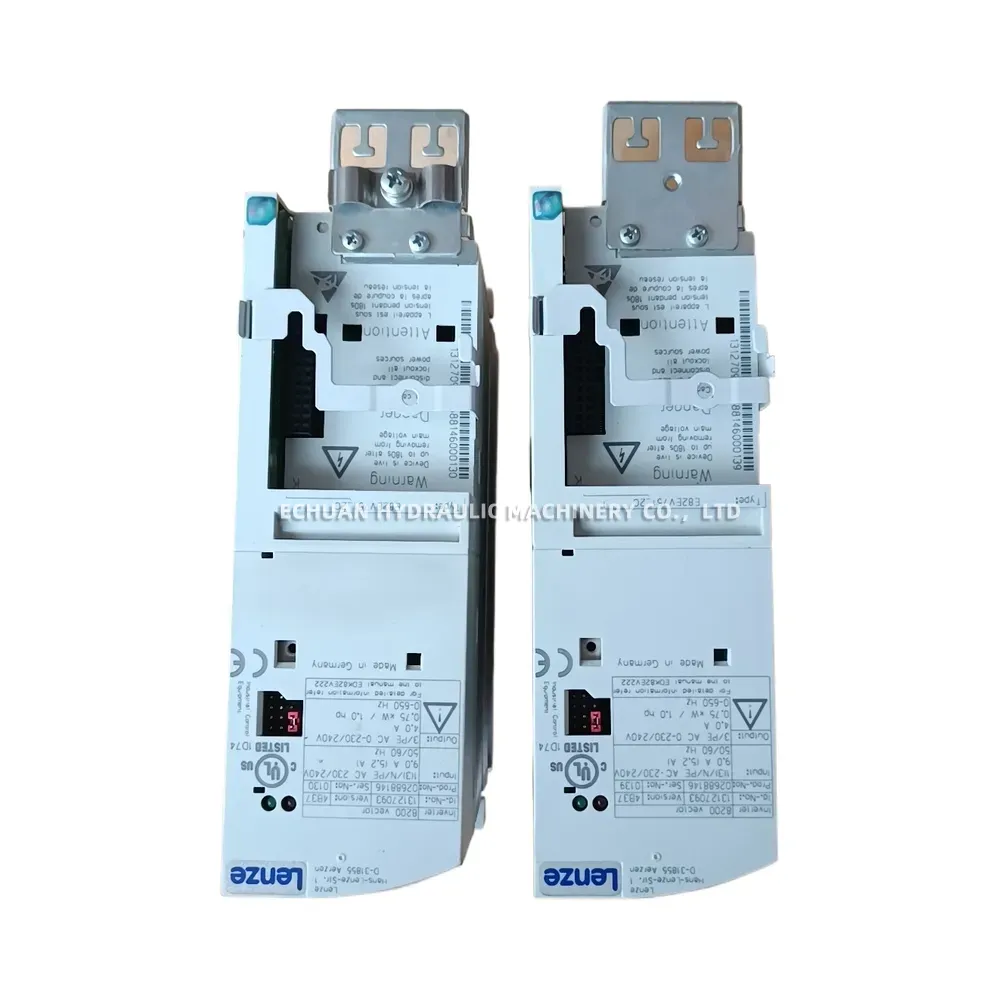

Lenze E82EV751-2C

The Lenze E82EV751-2C is a compact and versatile frequency inverter from the 8200 vector series, designed for sophisticated motor control applications. This 0.75 kW (1.0 HP) drive operates on a single-phase 230/240V AC input and delivers a three-phase output, making it ideal for a wide range of industrial tasks. It features sensorless vector control for improved torque and speed regulation, as well as standard V/f control. The E82EV751-2C includes an integrated EMC filter (Category C1) to minimize electromagnetic interference and a built-in braking chopper for dynamic braking capabilities. Its modular design allows for easy expansion with various communication modules and I/O extensions, ensuring flexibility and integration into diverse automation systems.

Technical Specifications:

Product Series: 8200 vector
Model: E82EV751-2C
Type: Frequency Inverter
Power Rating: 0.75 kW (1.0 HP)
Input Voltage: 1-phase 230/240 V AC (-15% / +10%)
Input Frequency: 50/60 Hz
Output Voltage: 3-phase, 0 – Input Voltage
Rated Output Current: 4.0 A
Output Frequency Range: 0 – 650 Hz
Control Modes: Sensorless Vector Control (SVC), V/f characteristic control
Overload Capacity: 180% of rated output current for 60 seconds
EMC Filter: Integrated, EN 61800-3 Category C1
Braking Chopper: Integrated
Enclosure Rating: IP20
Operating Temperature: 0°C to +55°C (derating may apply above 40°C or 45°C depending on mounting and load)
Communication: Slot for pluggable function modules (e.g., CANopen, PROFIBUS DP, DeviceNet, EtherNet/IP, Modbus RTU/TCP, EtherCAT)
Digital Inputs: Typically 5 (configurable)
Analog Inputs: Typically 2 (configurable)
Relay Outputs: Typically 1 (configurable)
Approvals: CE, UL, cUL, RoHS
