Product Description

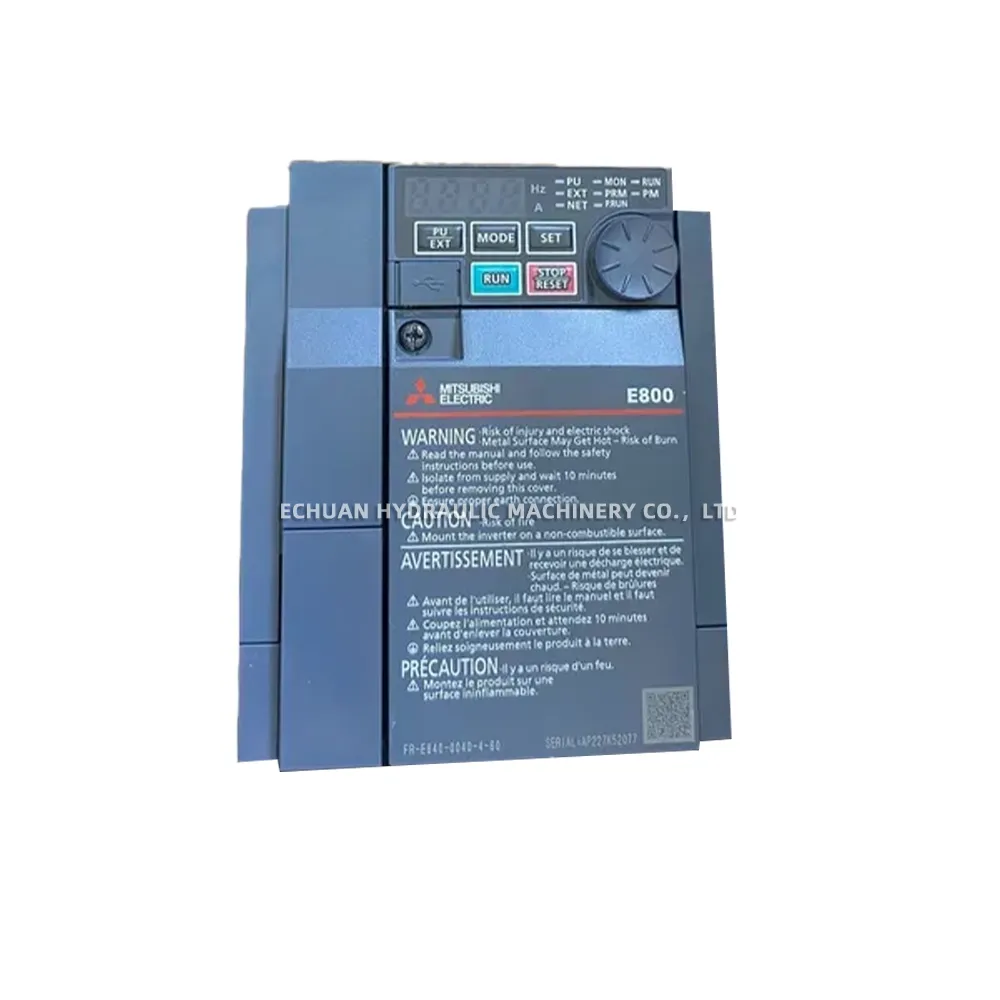

Mitsubishi FR-E840-0040-4-60
The Mitsubishi FR-E840-0040-4-60 is a high-performance, compact variable frequency drive (VFD) from the advanced FR-E800 series. Engineered for versatility and reliability, this inverter is designed to control 3-phase AC motors with precision and efficiency. It incorporates cutting-edge technology, including AI-based diagnostics and advanced magnetic flux vector control, to optimize motor performance and reduce energy consumption. With a built-in 2-port Ethernet communication interface, it seamlessly integrates into modern industrial networks like CC-Link IE TSN, Ethernet/IP, and Modbus/TCP. The integrated Safe Torque Off (STO) function (SIL2) enhances machine safety, making the FR-E840-0040-4-60 an ideal solution for a wide range of applications, from pumps and fans to conveyors and machine tools.
Technical Specifications:
- Model: FR-E840-0040-4-60
- Series: MELSEC FR-E800
- Input Voltage: 3-Phase 380-500V AC (+10%/-15%), 50/60Hz
- Applicable Motor Capacity (ND): 1.5 kW / 2 HP
- Rated Output Current (ND): 4.0 A
- Control Method: Advanced magnetic flux vector control, Real sensorless vector control (RSV), PM sensorless vector control
- Communication: Built-in 2-Port Ethernet (Supports CC-Link IE TSN, Ethernet/IP, Modbus/TCP)
- Safety Function: STO (Safe Torque Off) SIL2
Mitsubishi FR-E840-0040-4-60
Discover the Mitsubishi FR-E840-0040-4-60, a compact 1.5kW (2HP) VFD for 400V 3-phase systems. Part of the FR-E800 series, it features built-in Ethernet, advanced motor control, and STO safety for superior performance in industrial automation.
