Product Description

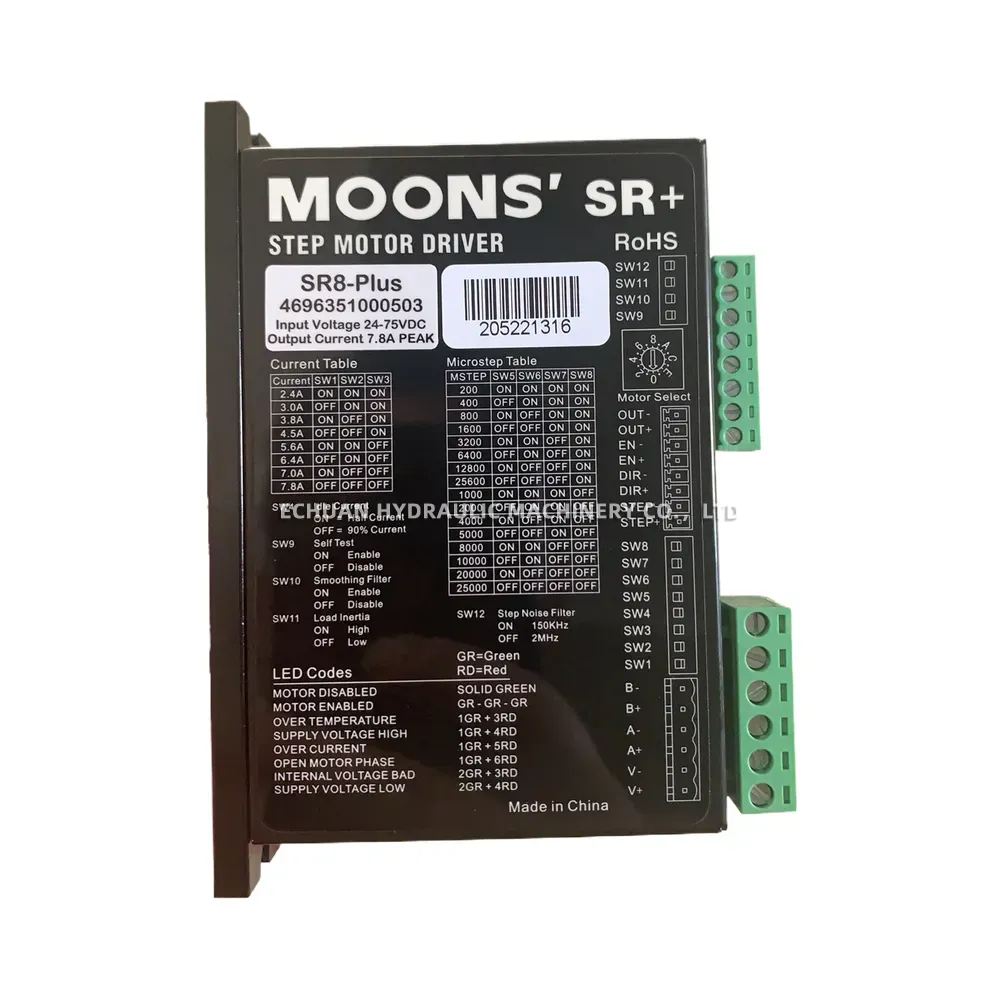

MOONS’ SR8-PLUS Stepper Drive
The MOONS’ SR8-PLUS is a high-performance, digital microstepping drive based on the latest DSP technology. It offers advanced features like anti-resonance, torque ripple smoothing, multi-stepping, and self-test diagnostics. Suitable for a wide range of NEMA 23, 24, and 34 stepper motors, the SR8-PLUS provides smooth, quiet motion with low motor heating, making it ideal for demanding automation applications requiring precise motion control.
Technical Specifications:
- Input Voltage: 24 – 80 VDC
- Output Current: 0.5 – 8.0 A (Peak)
- Microstep Resolutions: 16 selectable resolutions up to 51,200 steps/rev via DIP switch or software

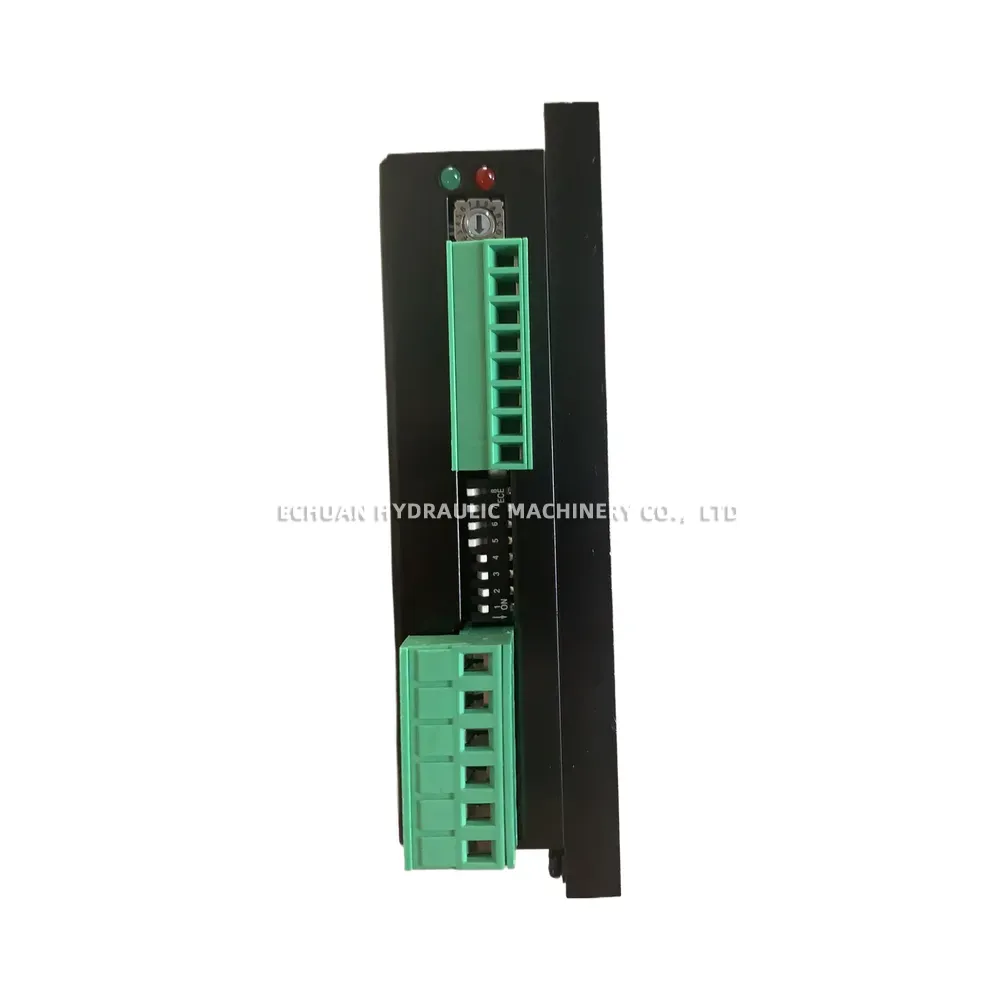

- Control Signal Inputs: Optically isolated Step, Direction, and Enable signals
- Control Modes: Step & Direction (PUL/DIR) or CW/CCW (double pulse)
- Maximum Input Frequency: 300 kHz
- Logic Signal Current: 7-16 mA (10 mA typical)
- Protection: Over-voltage, over-current, motor cable short-circuit
- Features: Anti-Resonance, Torque Ripple Smoothing, Multi-Stepping, Automatic Idle Current Reduction
- Operating Environment (Temperature): 0 – 50 °C (32 – 122 °F)

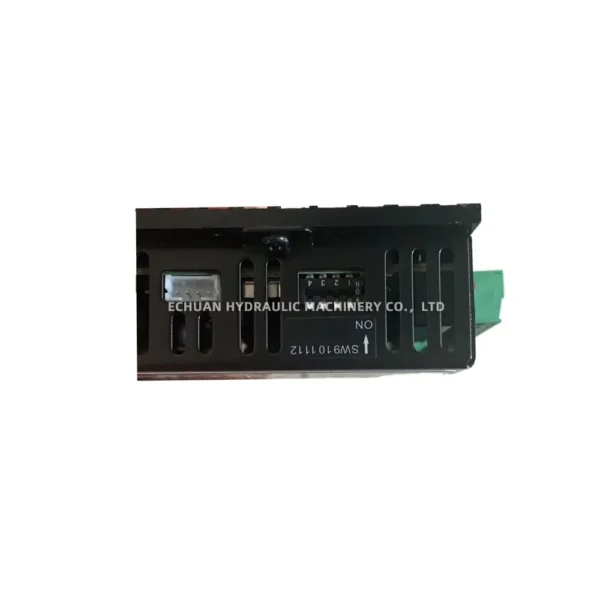

- Configuration: DIP switch or MOONS’ ST Configurator™ software (via RS232)
MOONS SR8-PLUS
Type:MOONS SR8-PLUS
| Brand | Moons |
|---|---|
| Model | SR8-PLUS |
| Category | Electrical |
| Link | https://www.echuan-hydraulic.com/product/moons-sr8-plus |
