Product Description

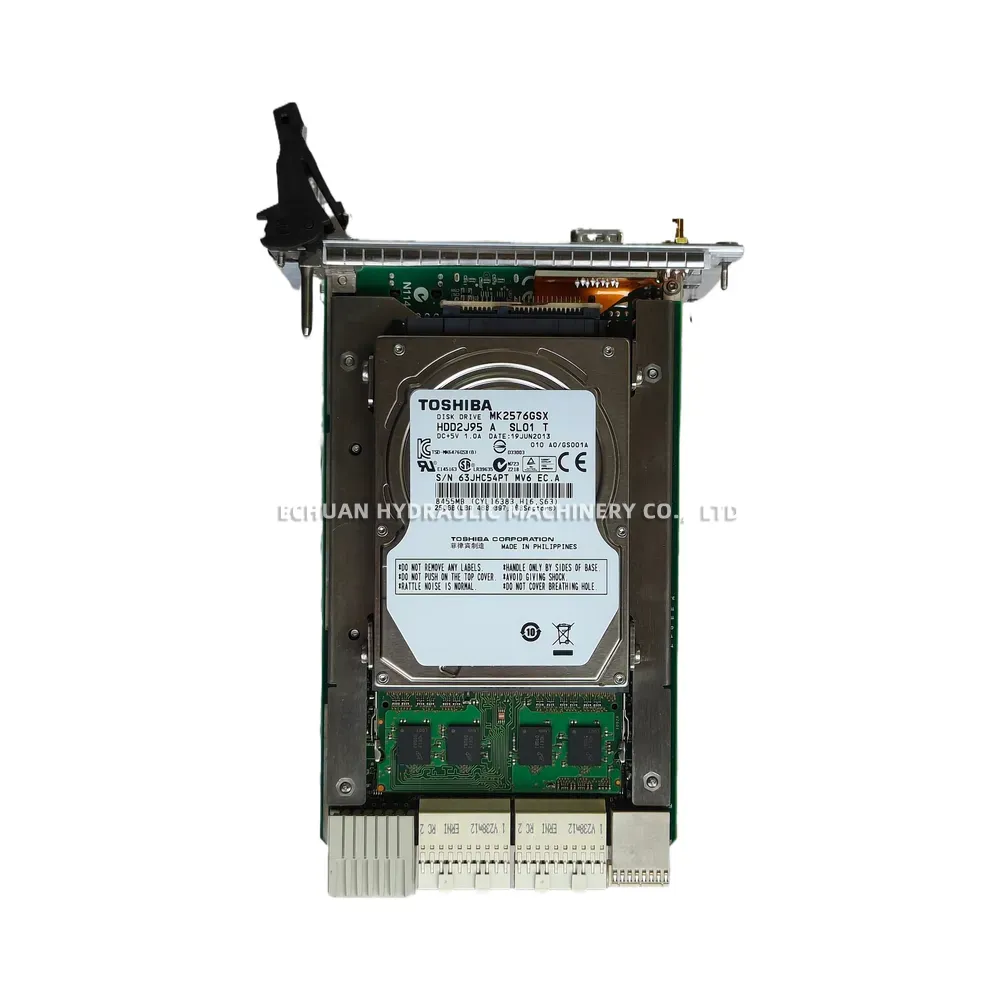

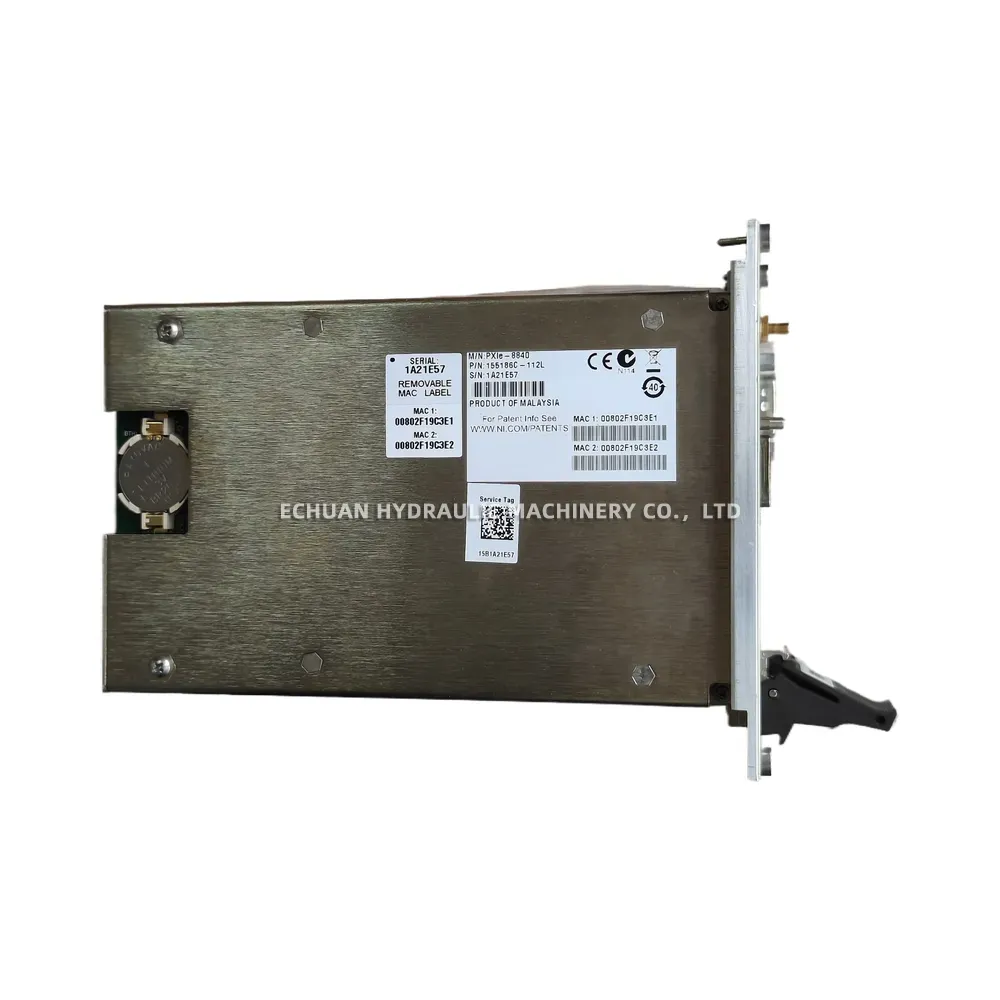

National Instruments PXIe-8840 Controller module
The National Instruments PXIe-8840 is a high-performance embedded controller for PXI Express systems. Powered by an Intel Core i5 processor, it delivers a robust and powerful platform for a wide range of demanding test, measurement, and control applications. This controller is engineered for high-throughput data acquisition, complex signal processing, and intensive automated testing routines. With its extensive connectivity options, including dual Gigabit Ethernet, USB 3.0, and DisplayPort, the PXIe-8840 integrates seamlessly into sophisticated setups, providing desktop-level performance within a compact and rugged PXI form factor. It is an ideal choice for developing or upgrading automated test equipment (ATE) and high-channel-count data acquisition systems.
Technical Specifications:
- Processor: Intel Core i5-4400E (2.7 GHz base frequency, 3.3 GHz max turbo frequency, dual-core)
- System Bandwidth: Up to 8 GB/s
- Onboard Memory: 4 GB 1600 MHz DDR3 RAM (8 GB maximum)
- Storage: 240 GB or larger solid-state drive (SSD)
- Connectivity Ports: 2x USB 3.0, 4x USB 2.0, 2x Gigabit Ethernet, 1x DisplayPort, 1x GPIB, 1x RS-232, 1x RS-485/RS-422
National Instruments PXIE-8840 Controller module
High-performance NI PXIe-8840 embedded controller featuring an Intel Core i5 processor, delivering up to 8 GB/s system bandwidth for demanding test, measurement, and automation systems.
