Product Description

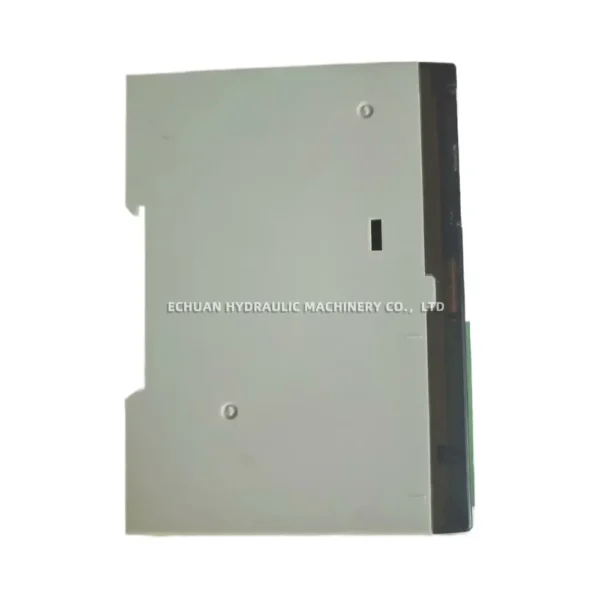

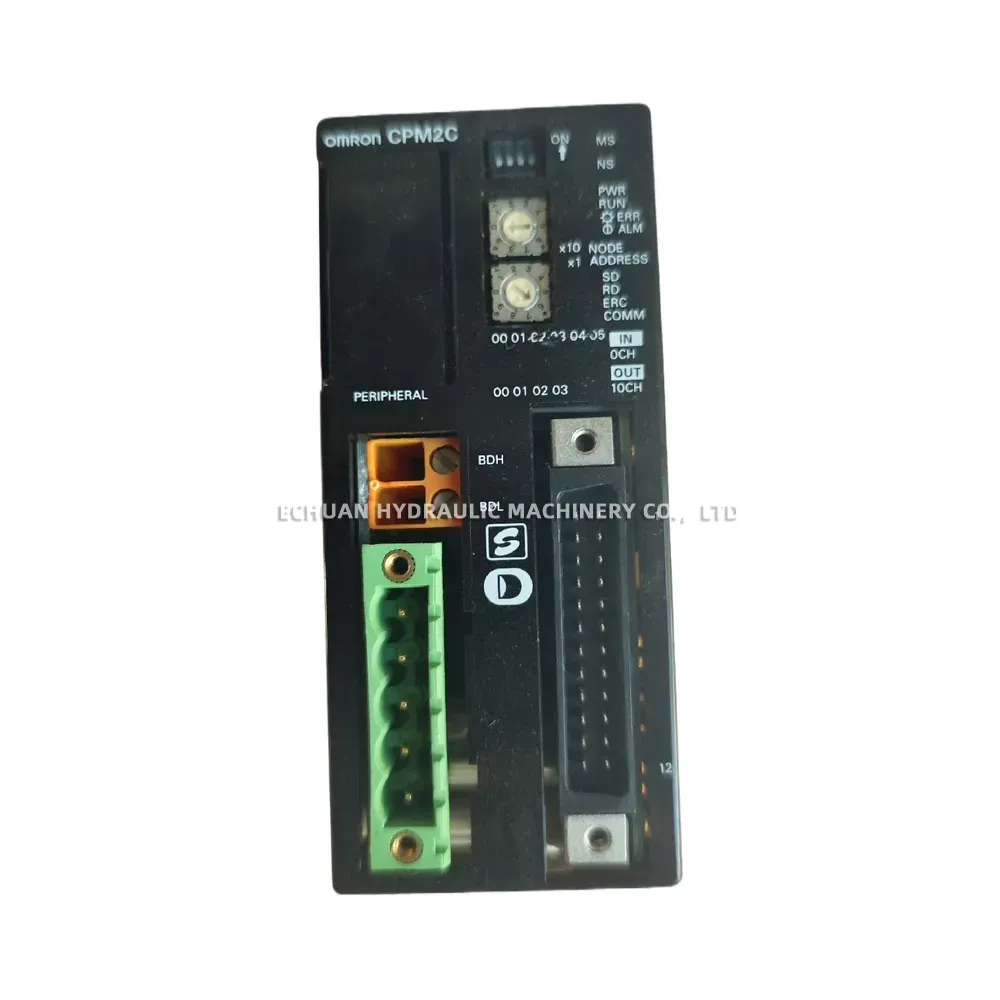

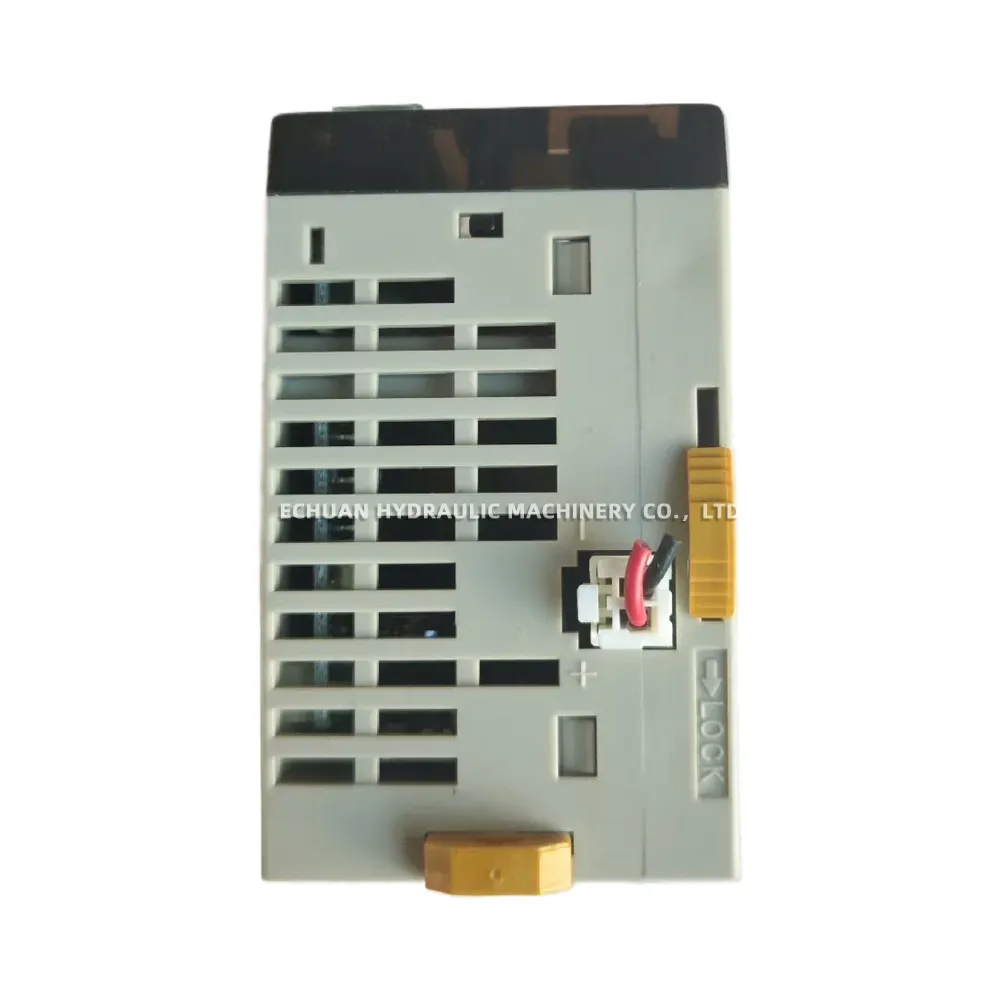

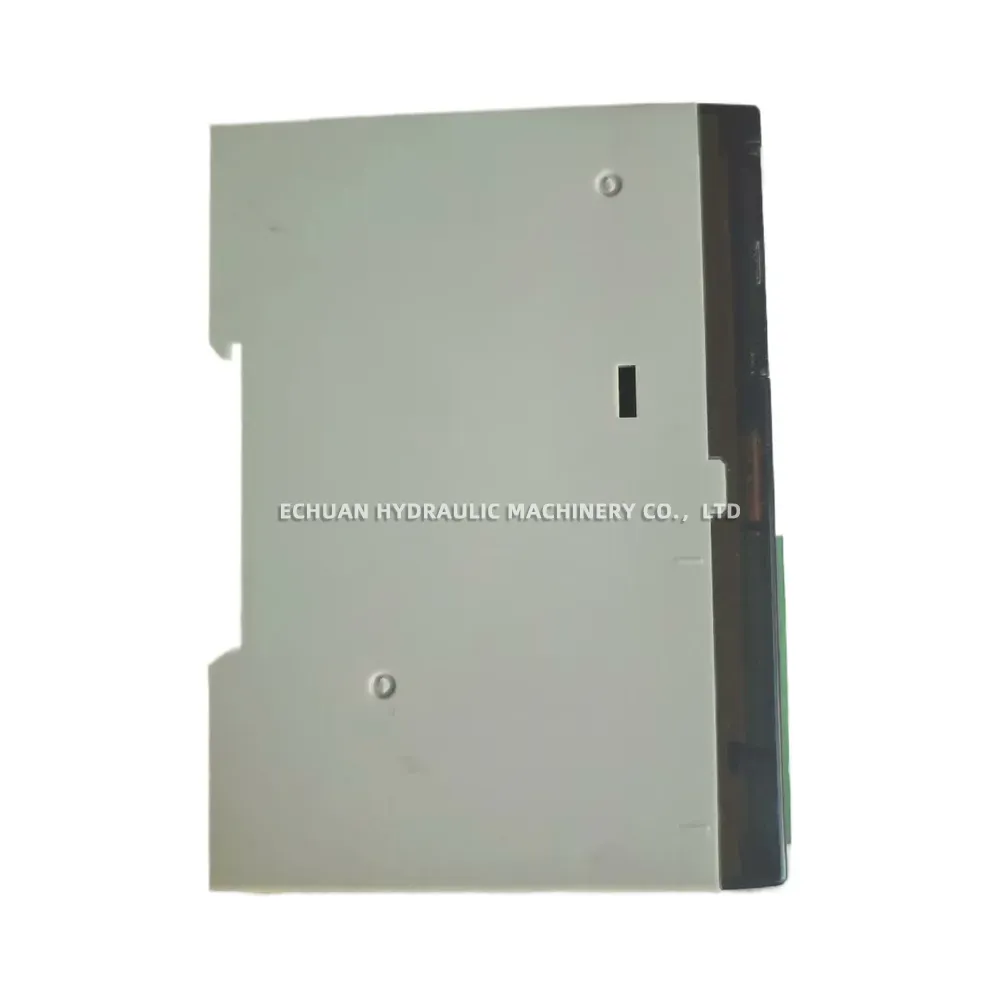

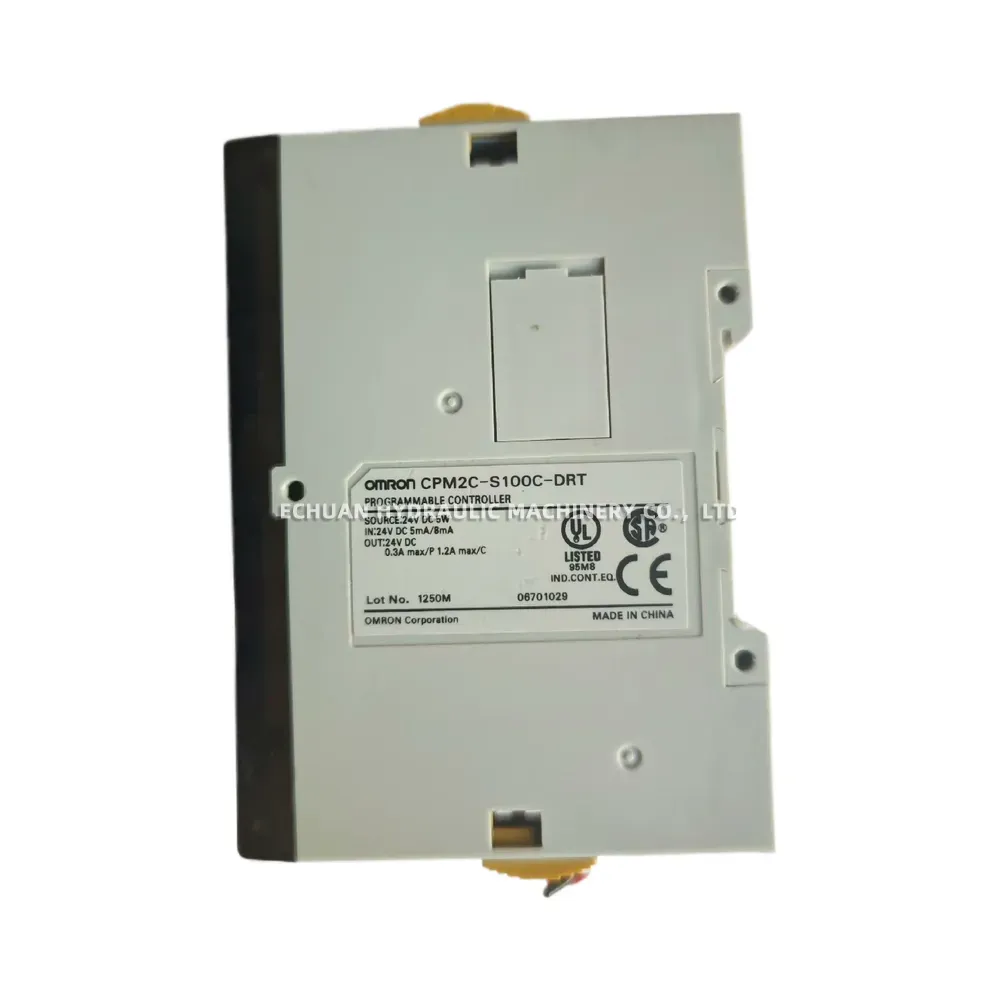

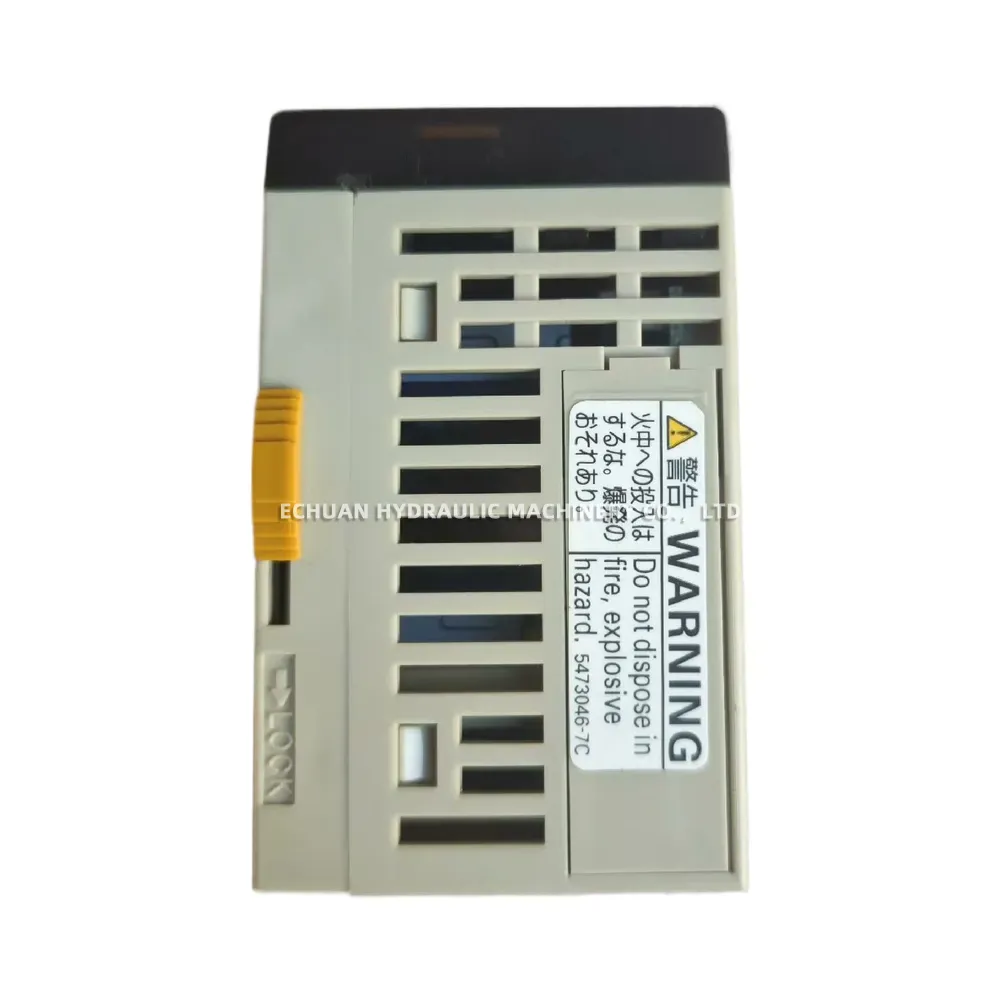

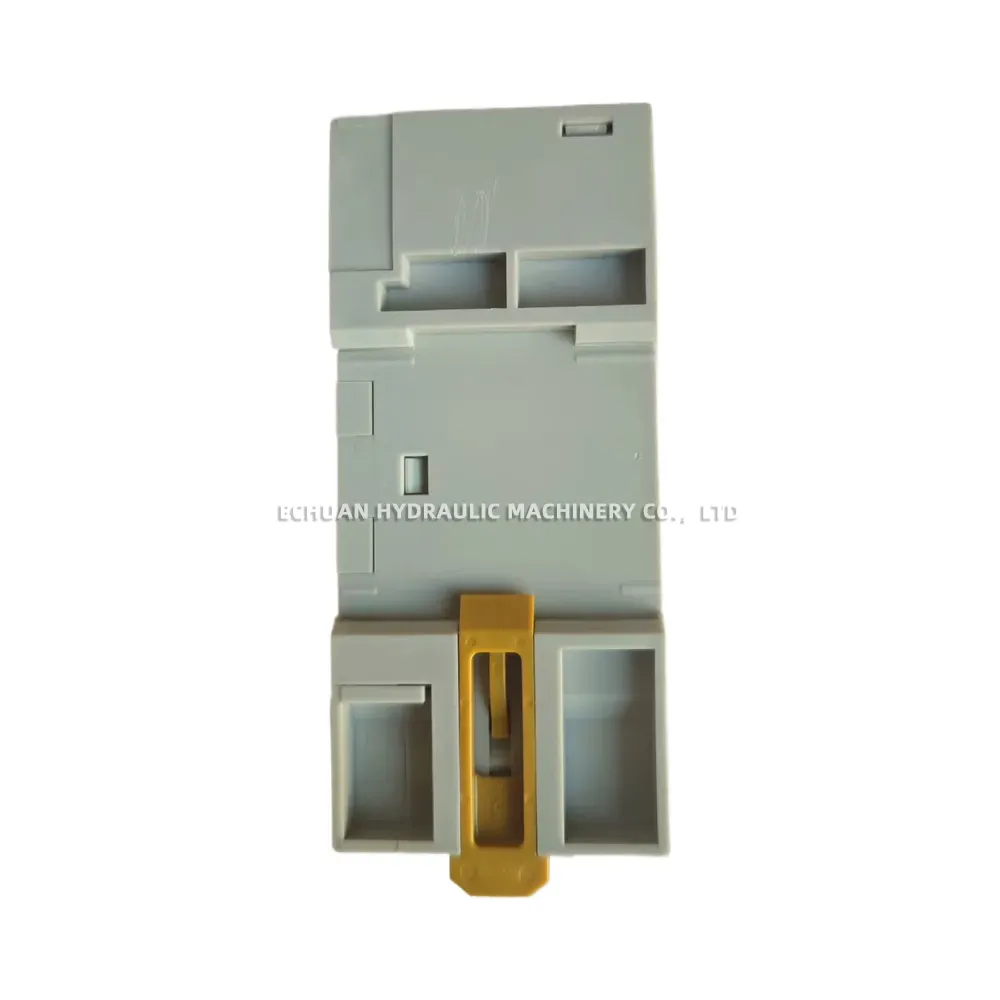

Omron CPM2C-S100C-DRT

The Omron CPM2C-S100C-DRT is a compact and highly functional programmable logic controller (PLC) CPU unit designed for small-scale machine control and automation tasks. It features an integrated DeviceNet slave interface, allowing for easy integration into DeviceNet networks for distributed control and data acquisition. This model offers a fixed set of inputs and outputs, making it a cost-effective solution for applications requiring basic control logic with network communication capabilities. Its compact design is ideal for installations where space is at a premium, providing robust performance and reliability characteristic of Omron products.

Technical Specifications:

Product Series: CPM2C
Product Type: PLC CPU Unit with DeviceNet Slave Interface
Power Supply: 100 to 240 VAC, 50/60 Hz
Number of I/O Points: 10 total (6 inputs, 4 outputs)
Input Type: 24 VDC Sink/Source
Output Type: Relay
Program Capacity: 2K words
Data Memory Capacity: 2K words (DM: 1K words, EM: 1K words)
Communication Port 1: Built-in DeviceNet Slave (fixed node address, baud rate set by DIP switch)
Communication Port 2: Peripheral port (RS-232C for programming/monitoring, requires CS1W-CN118 adapter)
Execution Speed: LD instruction: 0.64 µs
High-speed Counter Inputs: 2 points (10 kHz single-phase, 5 kHz two-phase)
Pulse Outputs: Not available on relay output models (available on transistor output models)
Expansion: Supports up to 3 CPM2C I/O expansion units
Programming Language: Ladder Logic
Ambient Operating Temperature: 0 to 55 °C (32 to 131 °F)
Mounting: DIN track or screw mounting
