Product Description

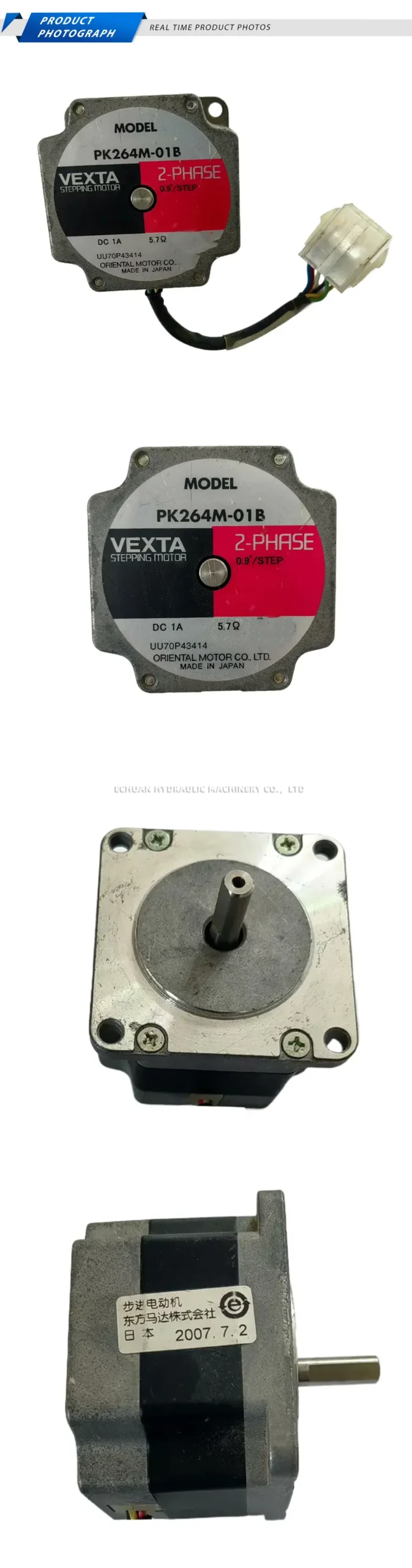

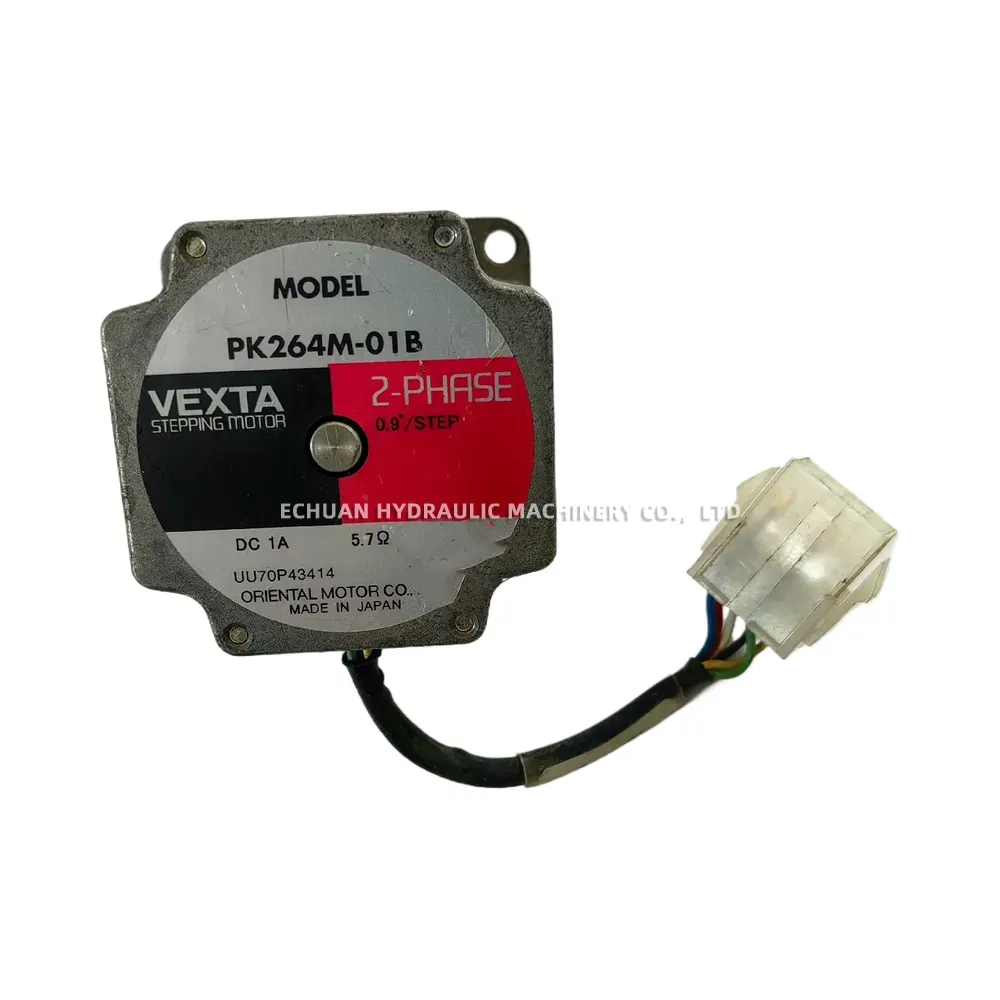

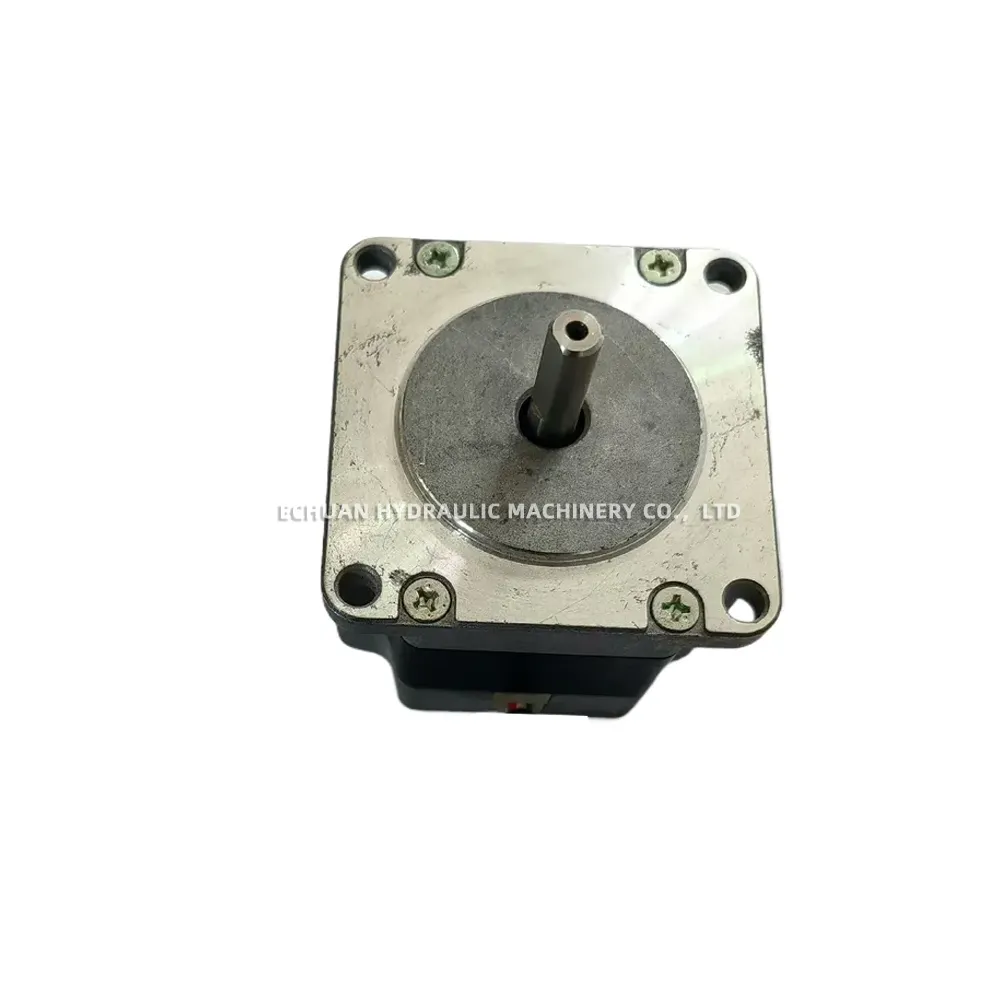

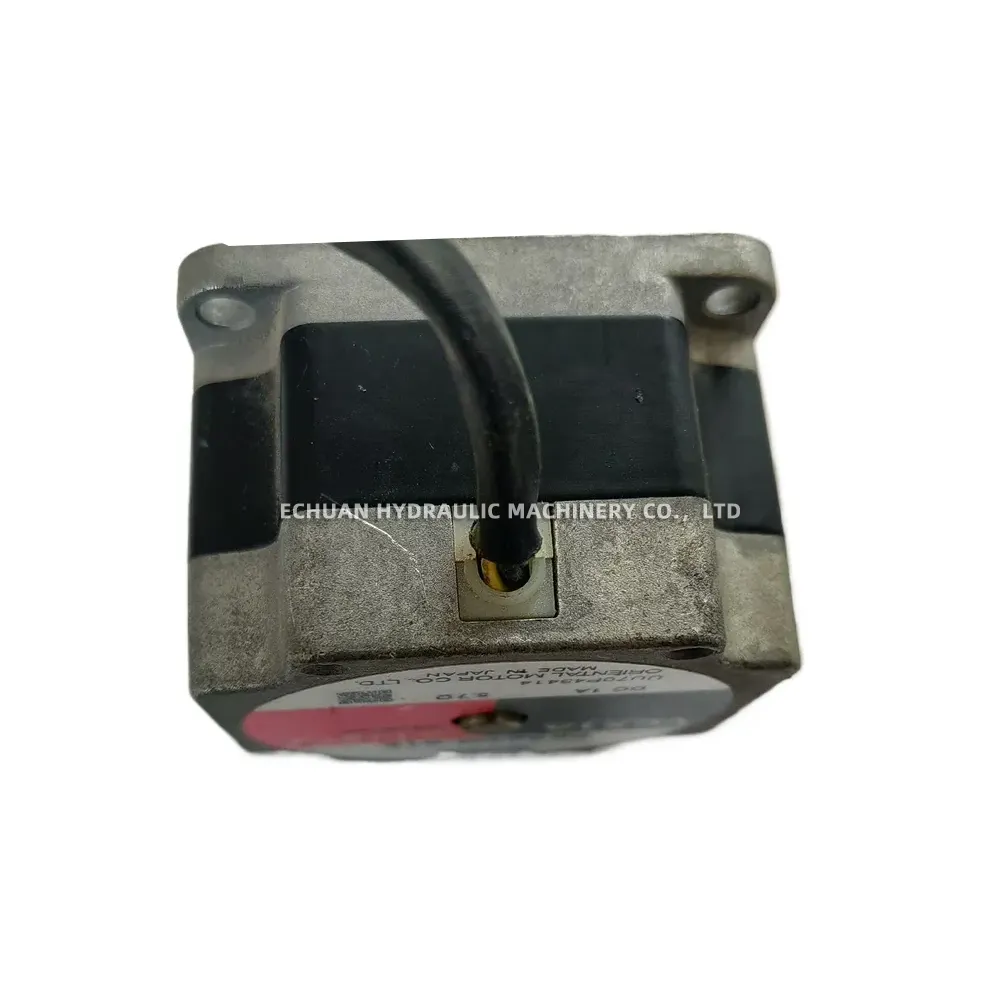

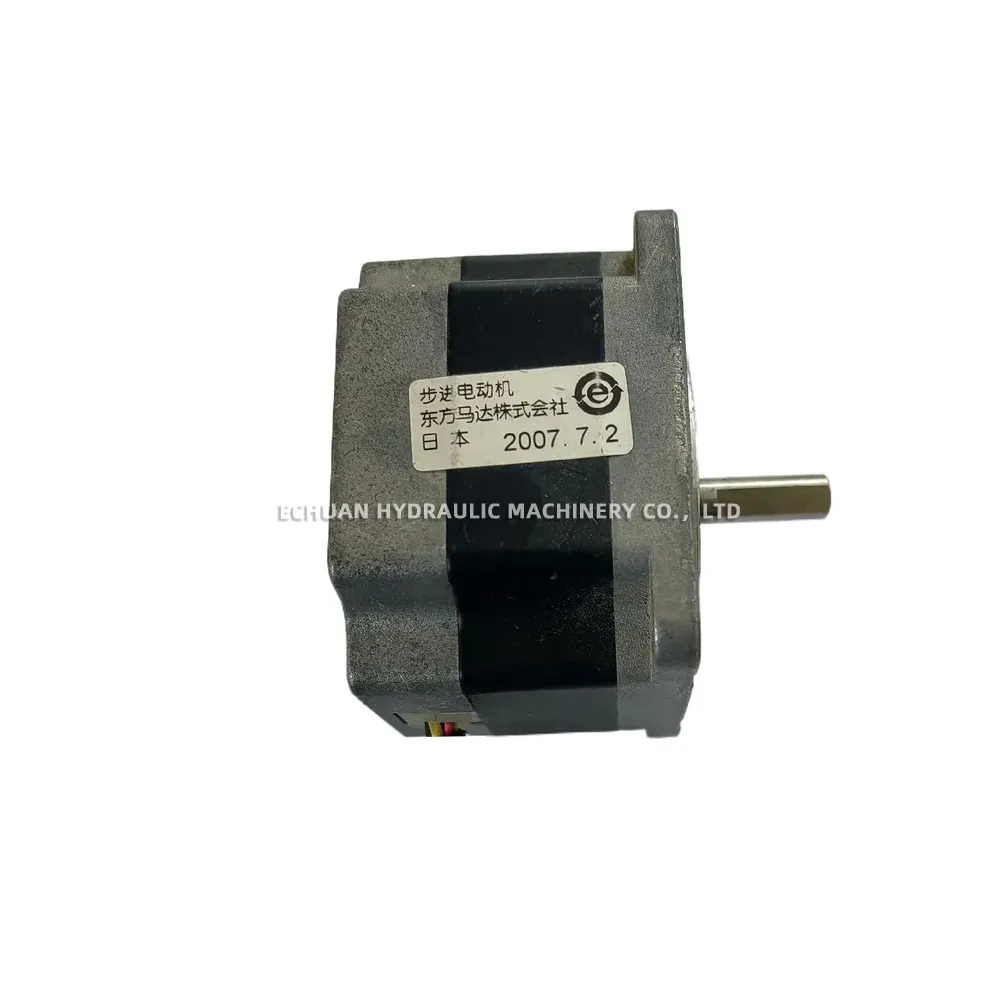

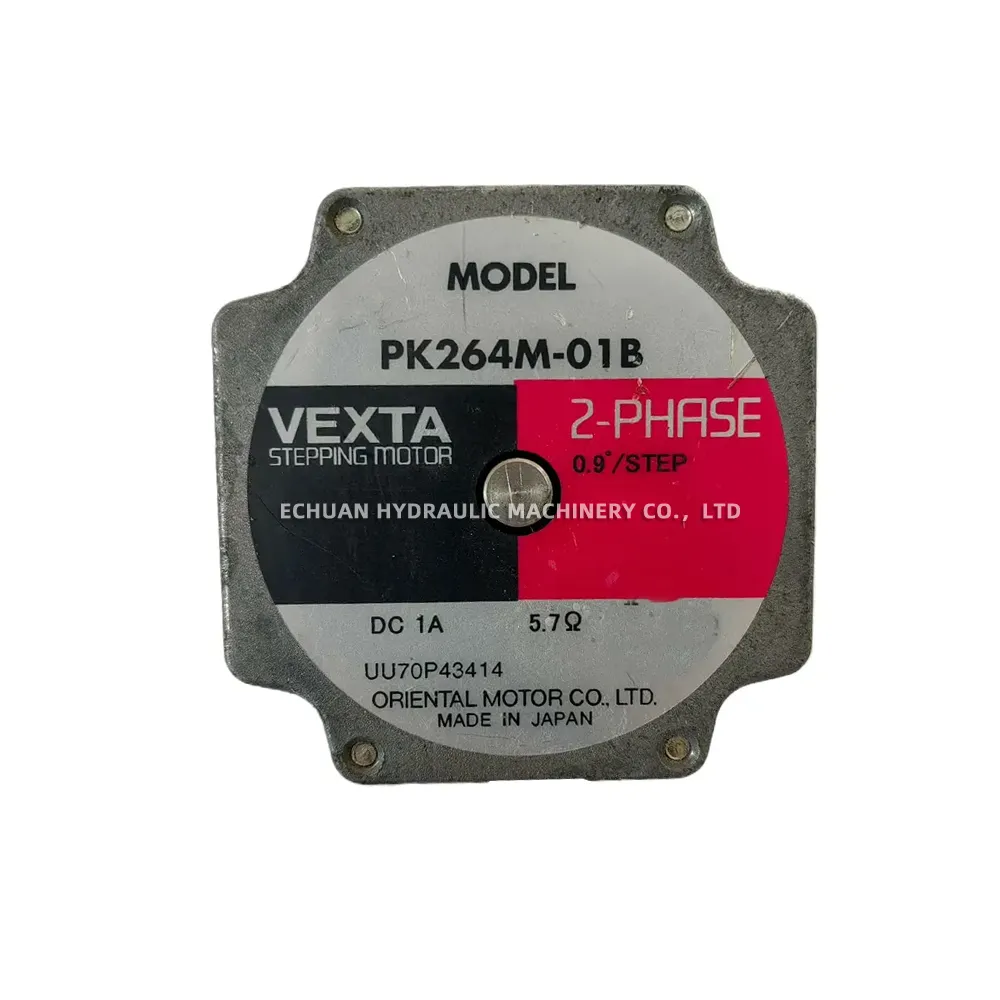

Oriental motor PK264M-01B
The Oriental Motor PK264M-01B is a 2-phase stepper motor from the PKP series, known for its high torque and low vibration characteristics. This motor is well-suited for applications demanding precise and rapid positioning. Its 6-lead wire configuration allows for flexible unipolar or bipolar (parallel) driving methods, catering to various control system requirements.
Technical Specifications:
- Motor Type: 2-Phase Stepper Motor
- Frame Size: 56.4 mm sq. (NEMA 23 compatible)
- Step Angle: 1.8°
- Shaft Type: Single Shaft
- Holding Torque (Bipolar Parallel Wiring): 0.42 N·m (59 oz-in)
- Rated Current (Bipolar Parallel Wiring, A/Phase): 1.4 A
- Voltage (Bipolar Parallel Wiring): 2.55 VDC
- Winding Resistance (Bipolar Parallel Wiring): 1.8 Ω/phase
- Inductance (Bipolar Parallel Wiring): 1.2 mH/phase
- Rotor Inertia: 150 g·cm² (0.087 oz-in²)
- Number of Leads: 6
- Weight: 0.45 kg (0.99 lb)
Oriental motor PK264M-01B
Model：Oriental motor PK264M-01B
| Brand | ORIENTAL MOTOR |
|---|---|
| Model | PK264M-01B |
| Part No. | Oriental motor PK264M-01B |
| Category | Other products |
