Product Description

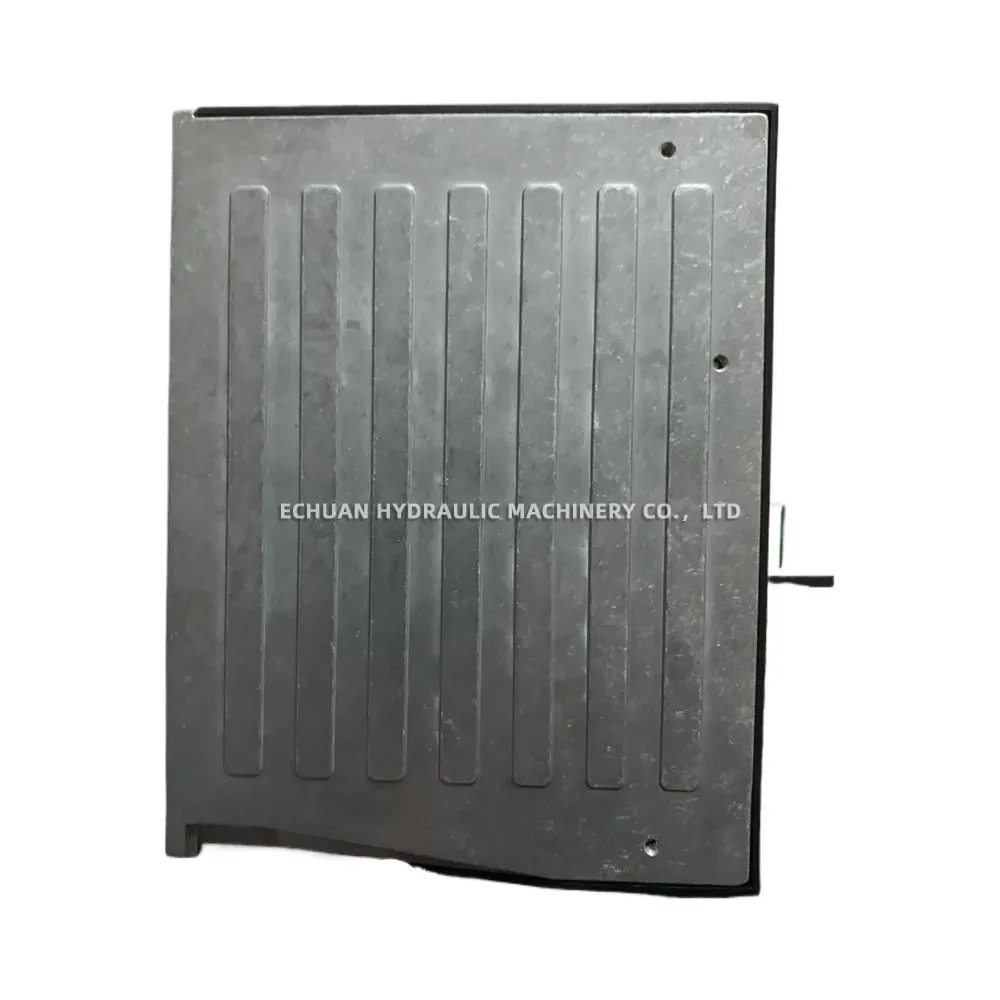

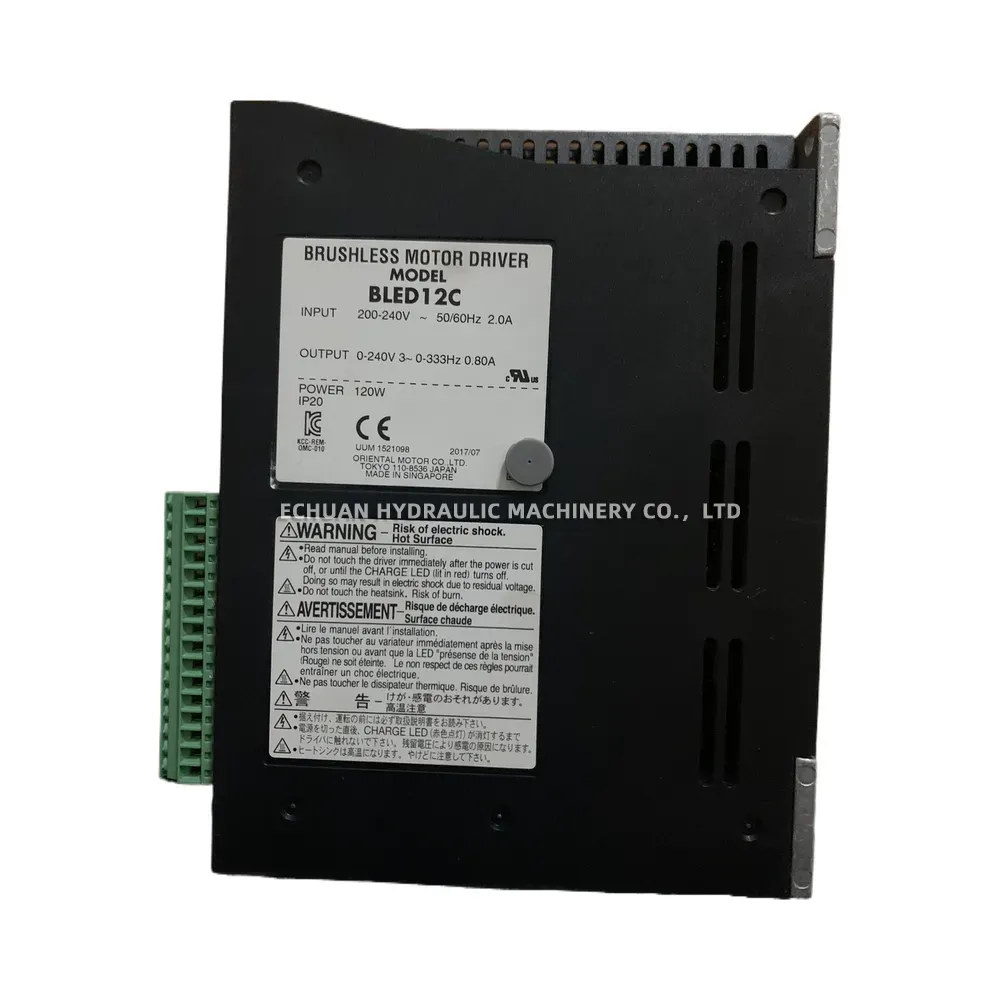

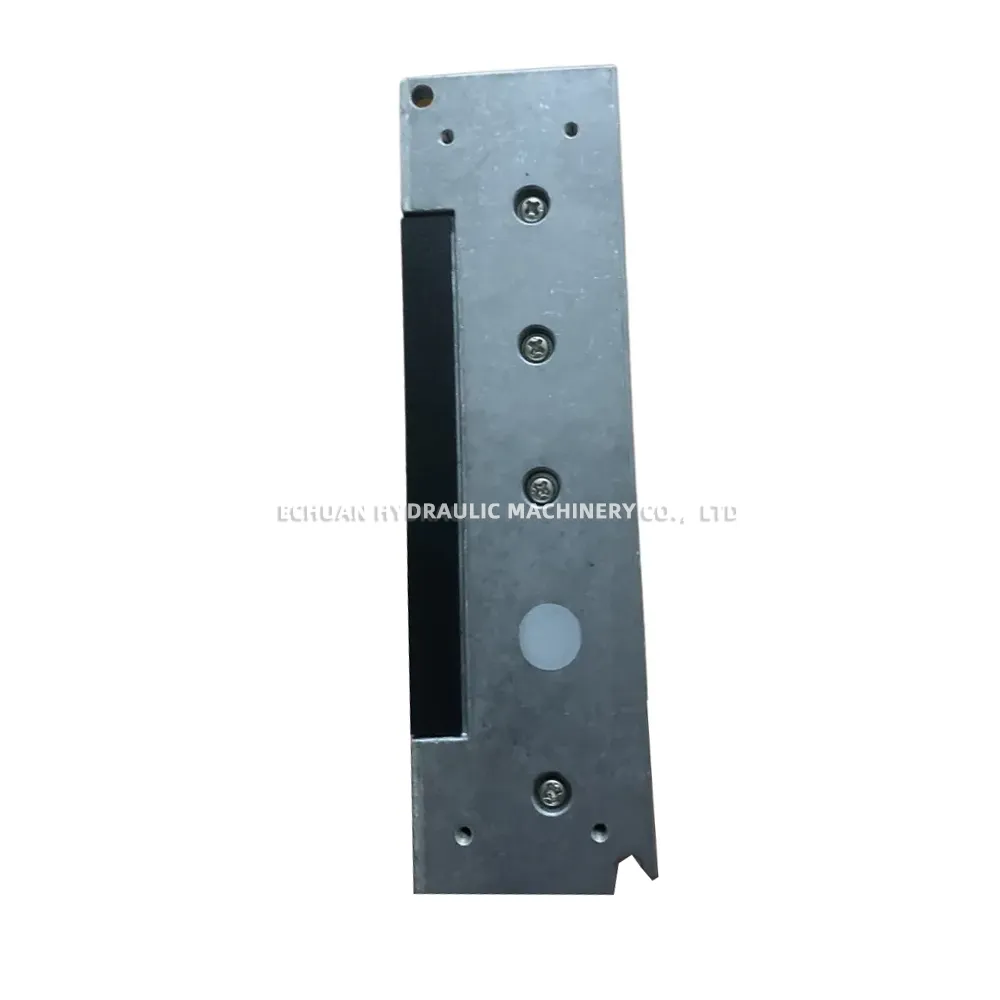

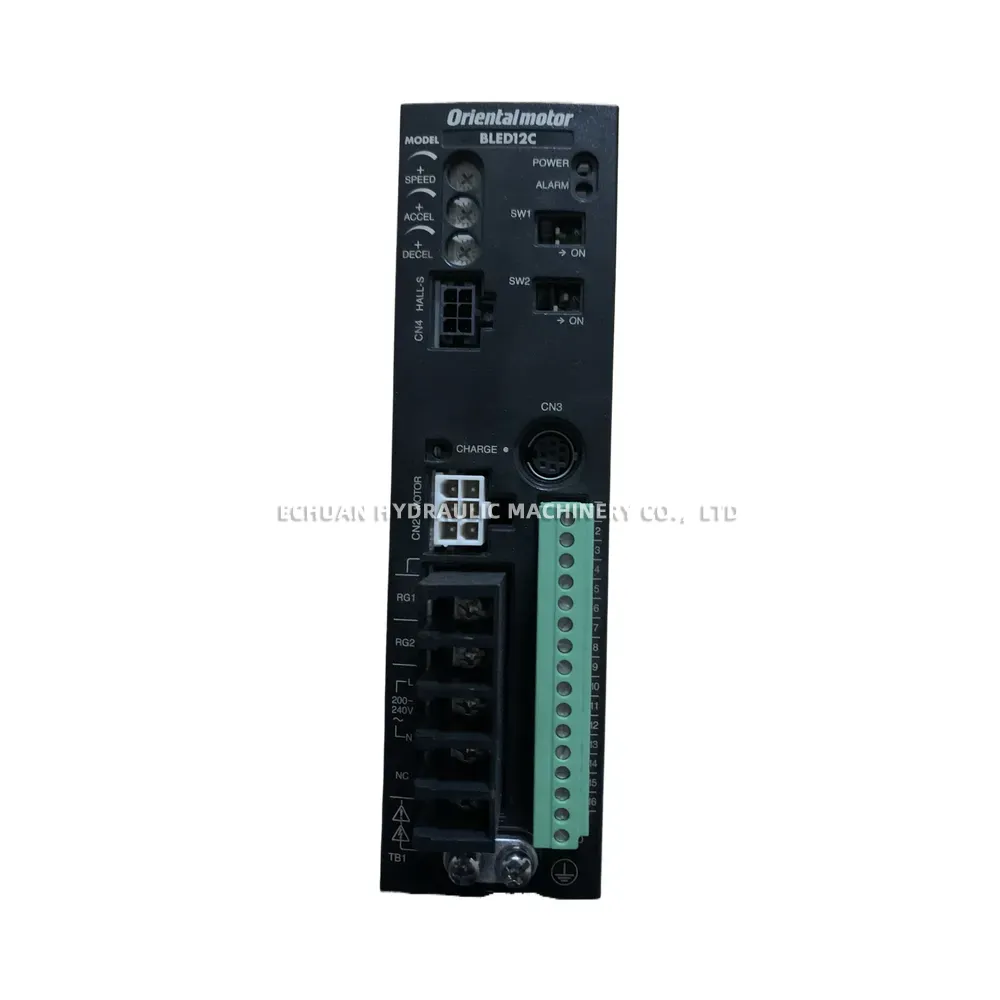

Orientalmotor BLED12C

The Orientalmotor BLED12C is a compact and versatile driver designed for use with the BLE2 Series brushless DC (BLDC) motors up to 120W. It operates on a 24/48 VDC power supply and offers advanced control capabilities, including speed control, position control, torque limiting, and multi-speed operation. Configuration and monitoring can be performed easily via digital settings using the MEXE02 support software or an external controller through RS-485 communication (Modbus RTU). Its space-saving design and DIN rail mounting capability make it ideal for integration into various automation systems and equipment requiring precise motion control.

Technical Specifications:

Product Series: BLE2 Series Driver
Applicable Motor Output Power: 30 W (1/25 HP), 60 W (1/12 HP), 120 W (1/6 HP)
Power Supply Input: 24 VDC / 48 VDC ±10%
Control Method: Speed Control, Position Control, Torque Limiting, etc.
Speed Control Range: 80 ~ 4000 r/min (Ratio 1:50)
Communication Interface: RS-485 (Modbus RTU)
I/O Type: Sink/Source Selectable
Mounting: DIN Rail Mount
Protection Functions: Overvoltage, Undervoltage, Overcurrent, Overload, Overheating, EEPROM Error, Sensor Error, etc.
Operating Ambient Temperature: 0 to +50 °C (+32 to +122 °F) (Non-freezing)
Standards: UL, CSA, CE Marking, RoHS Compliant
