Product Description

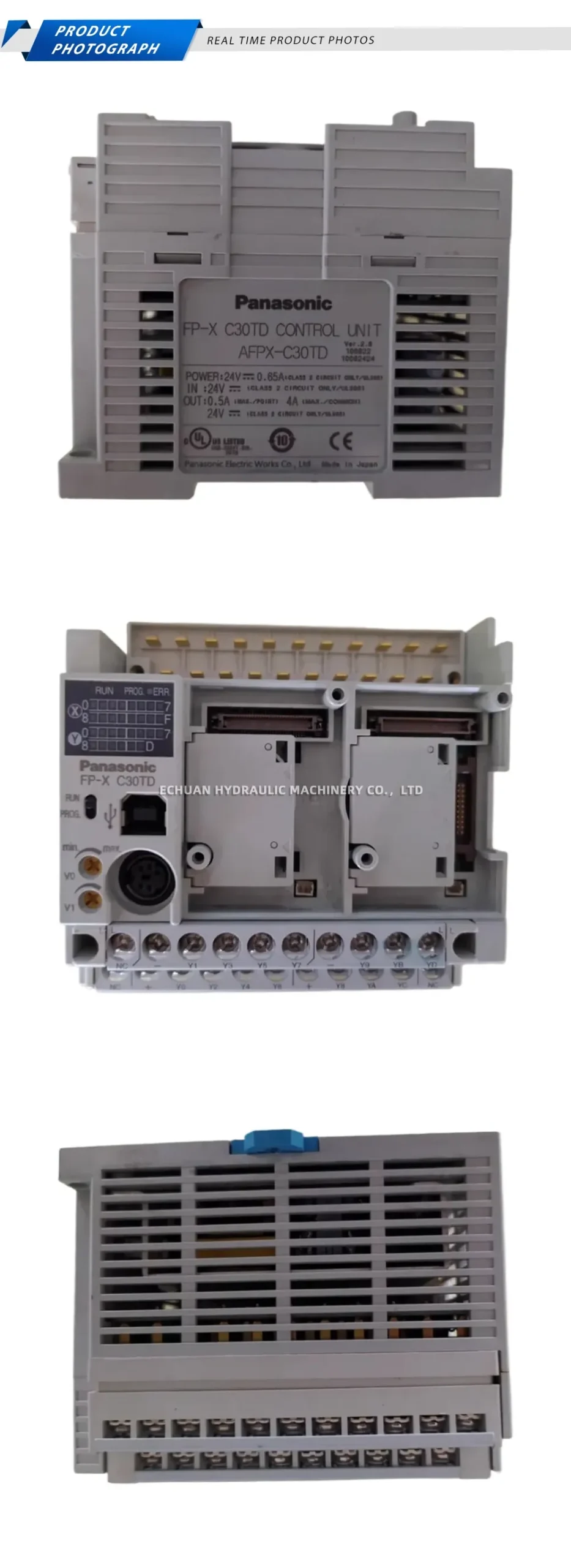

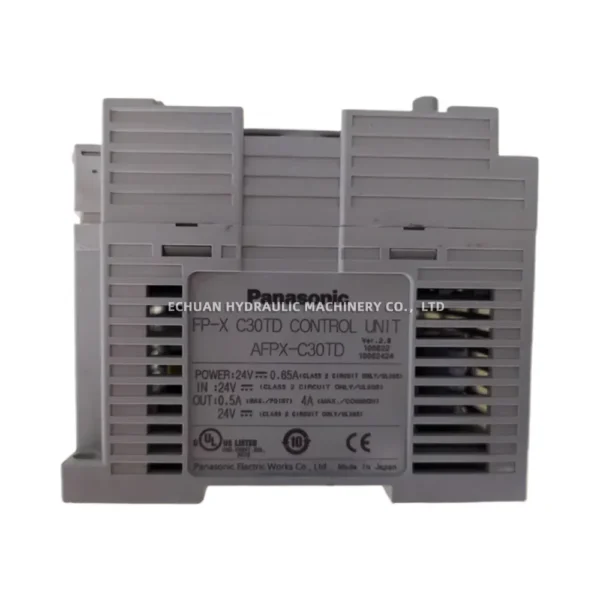

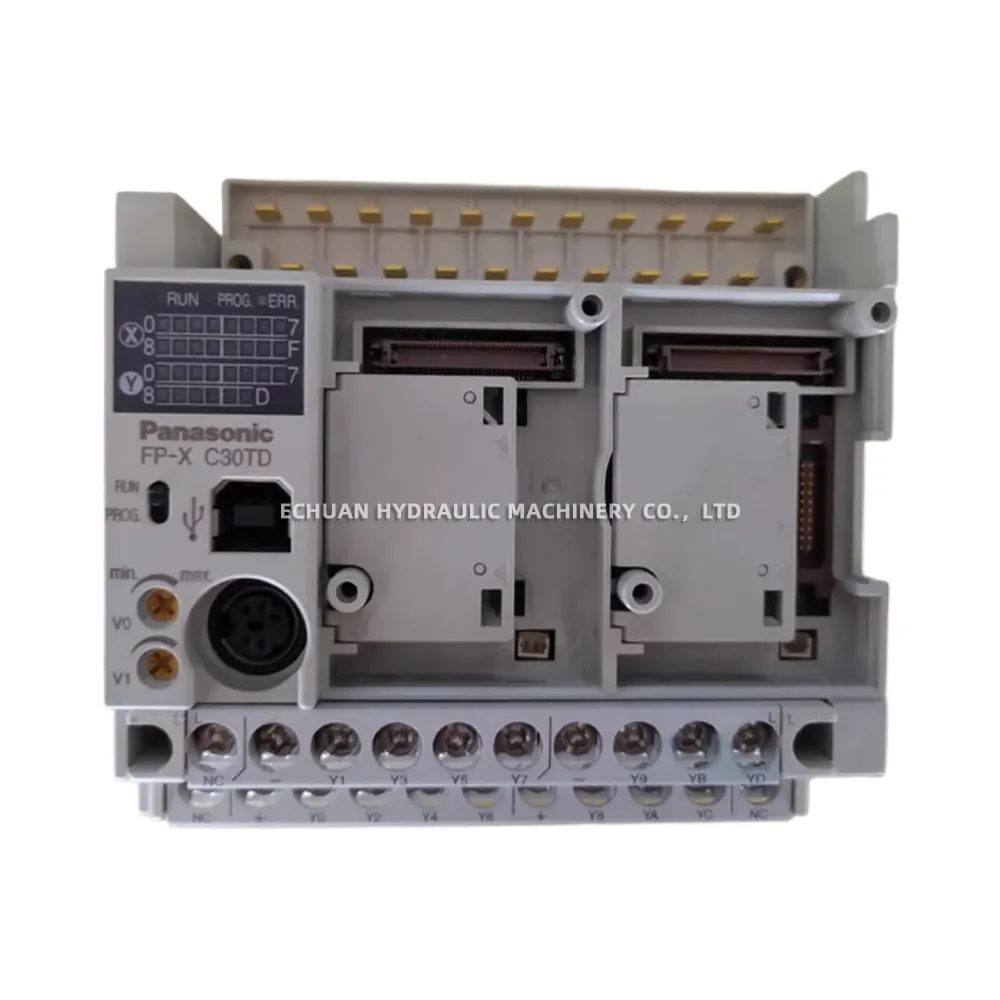

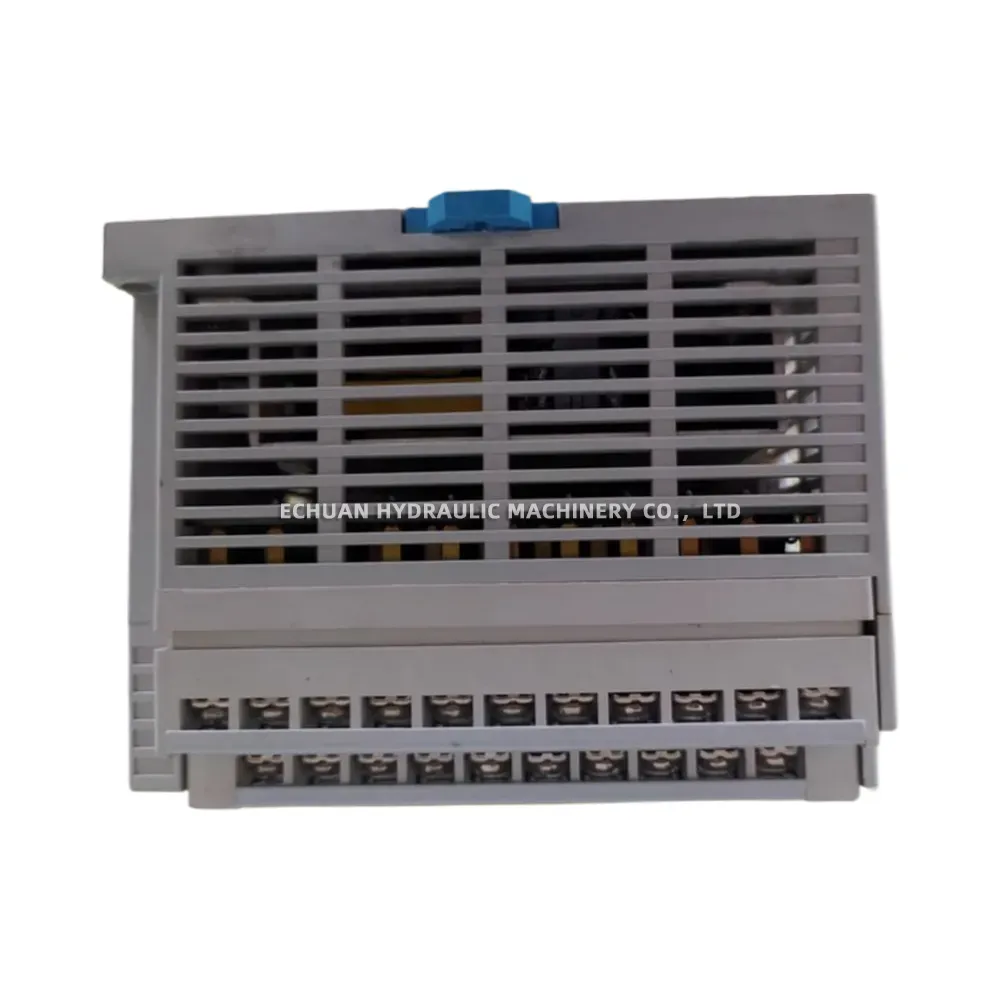

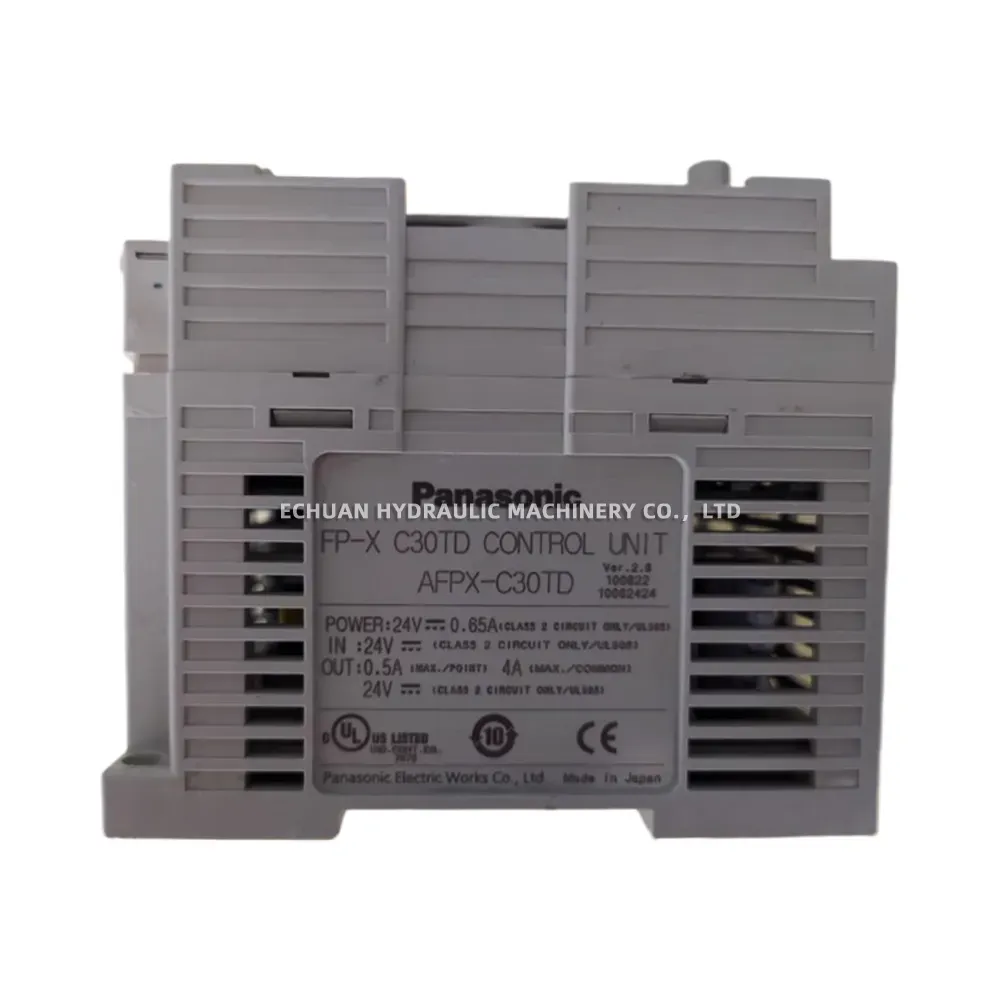

Panasonic AFPX-C30TD

The Panasonic AFPX-C30TD is a compact and powerful programmable logic controller (PLC) CPU unit from the FP-X series, designed for a wide range of automation applications. It offers a balance of processing speed, I/O capacity, and built-in functionalities like high-speed counters and pulse outputs, making it suitable for small to medium-scale machine control and automation tasks. Its expandability allows for integration into more complex systems, providing a versatile solution for industrial control.

Technical Specifications:

Product Type: PLC Control Unit
Series: FP-X
Model: AFPX-C30TD
Power Supply: 24V DC
Total I/O Points: 30
Digital Inputs: 16 points (24V DC, sink/source selectable)
Digital Outputs: 14 points (NPN Transistor output)
Program Capacity: 32,000 steps
Processing Speed: 0.32 µs/basic instruction (for first 3000 steps)
Communication Ports: Built-in RS232C port (expandable with communication cassettes for RS485, Ethernet, etc.)
High-Speed Counters: Max. 4 channels (1-phase 50kHz, 2-phase 25kHz) or 2 channels (1-phase 100kHz, 2-phase 50kHz)
Pulse Outputs: Max. 2 channels (100kHz per channel, NPN)
Memory: Flash ROM for program backup
Expandability: Up to 3 FP-X expansion units (max. 150 I/O points)
Programming Software: FPWIN GR / FPWIN Pro
Operating Temperature: 0 to +55 °C
