Product Description

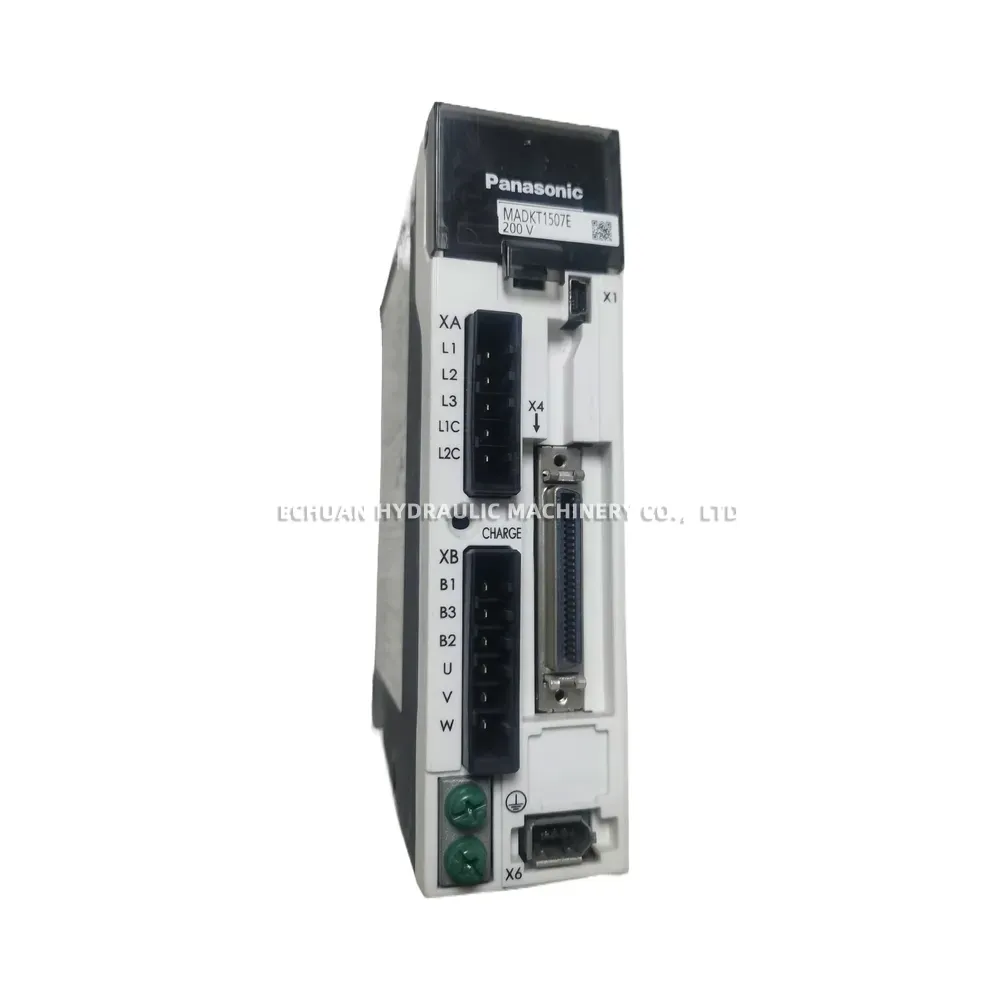

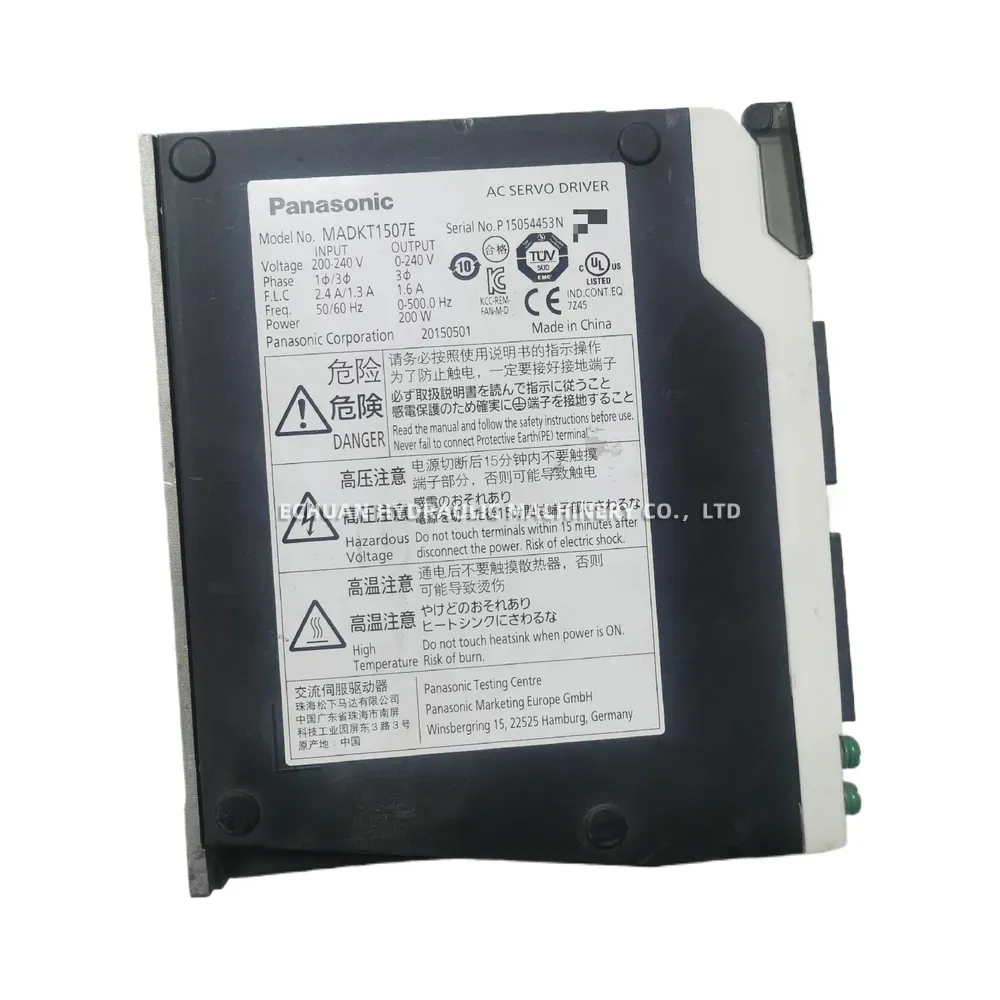

Panasonic MADKT1507E

The Panasonic MADKT1507E is a high-performance servo driver from the MINAS A4 E-Series, designed for precise motion control in industrial automation. It supports various control modes including position, velocity, and torque, making it versatile for a wide range of applications. This model features an EtherCAT interface for high-speed, real-time communication, enabling sophisticated synchronization in multi-axis systems. The MADKT1507E is engineered for compatibility with Panasonic servo motors, offering features like real-time auto-tuning and vibration suppression to optimize performance and ensure smooth, accurate operation.

Technical Specifications:

Product Type: AC Servo Driver
Series: MINAS A4 (E-Series)
Model: MADKT1507E
Input Power Supply: Single-phase/Three-phase 200-240 V AC (+10% to -15%), 50/60 Hz
Rated Output Current: 5.0 A (rms)
Applicable Motor Capacity: Typically 400W (e.g., for MSMA, MQMA, MHMA series motors)
Control Modes: Position control, Velocity control, Torque control, Full-closed loop control
Communication Interface: EtherCAT (CoE: CAN application protocol over EtherCAT, CiA402 drive profile)
Encoder Compatibility: Supports 17-bit incremental and absolute encoders
Frequency Response: 1 kHz
Key Features: Real-time auto-tuning, Damping filter, Notch filter, Disturbance observer, Vibration suppression
Protection Functions: Over-current, Over-voltage, Under-voltage, Over-speed, Overload, Regeneration error, Encoder error, etc.
Ambient Operating Temperature: 0 to +55 °C
