Product Description

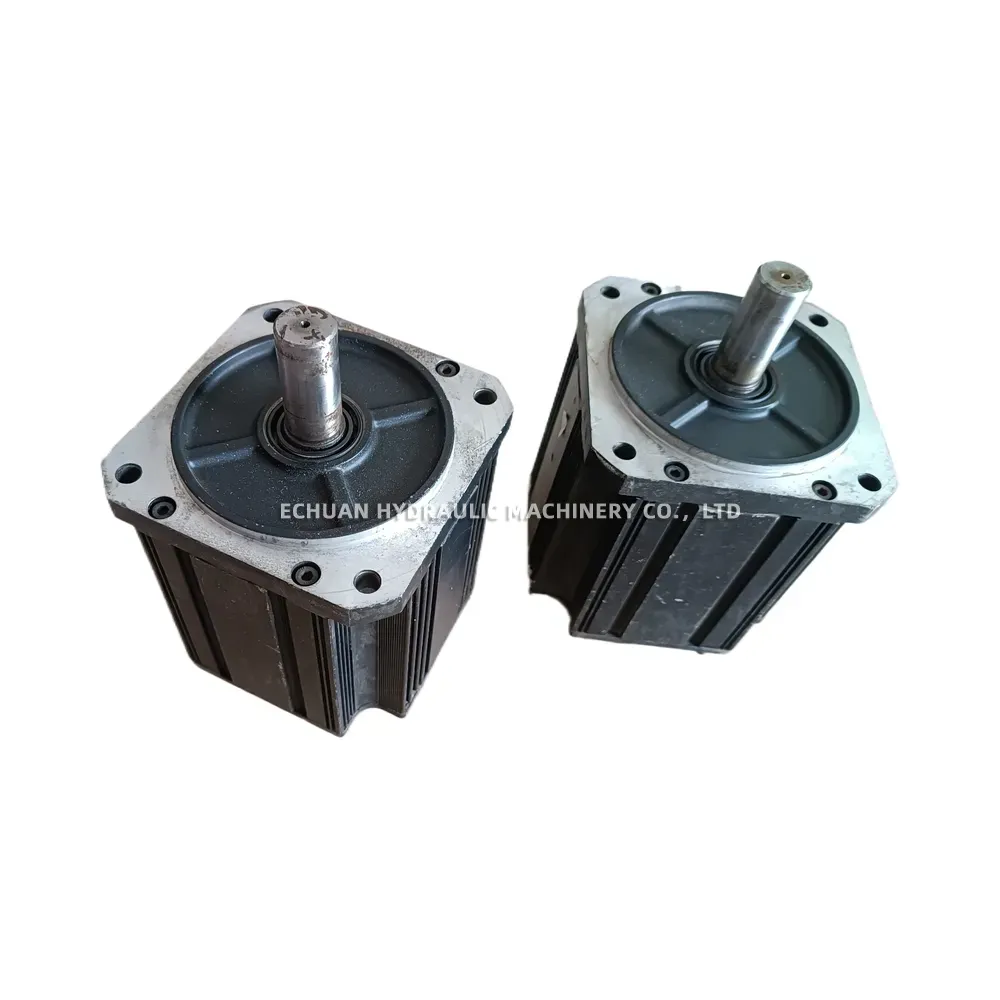

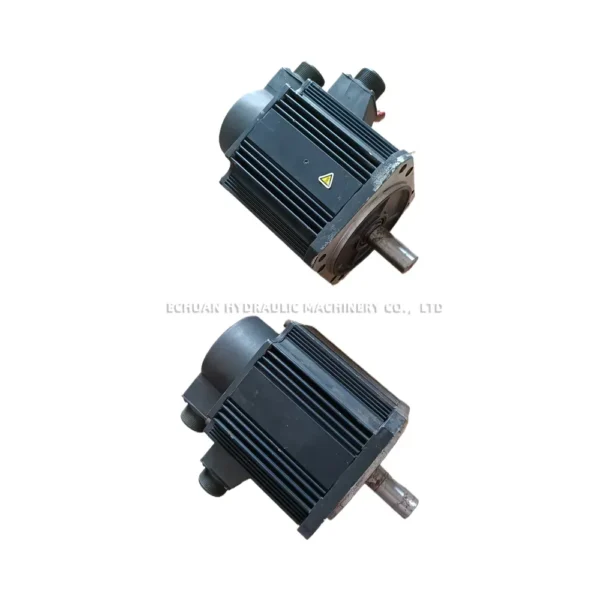

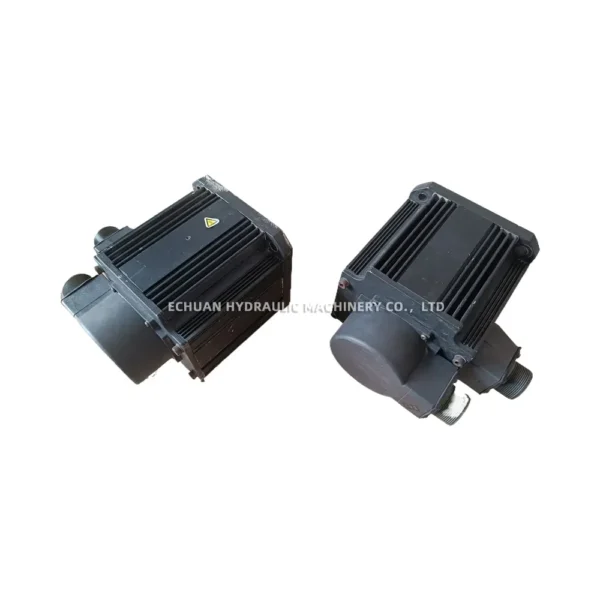

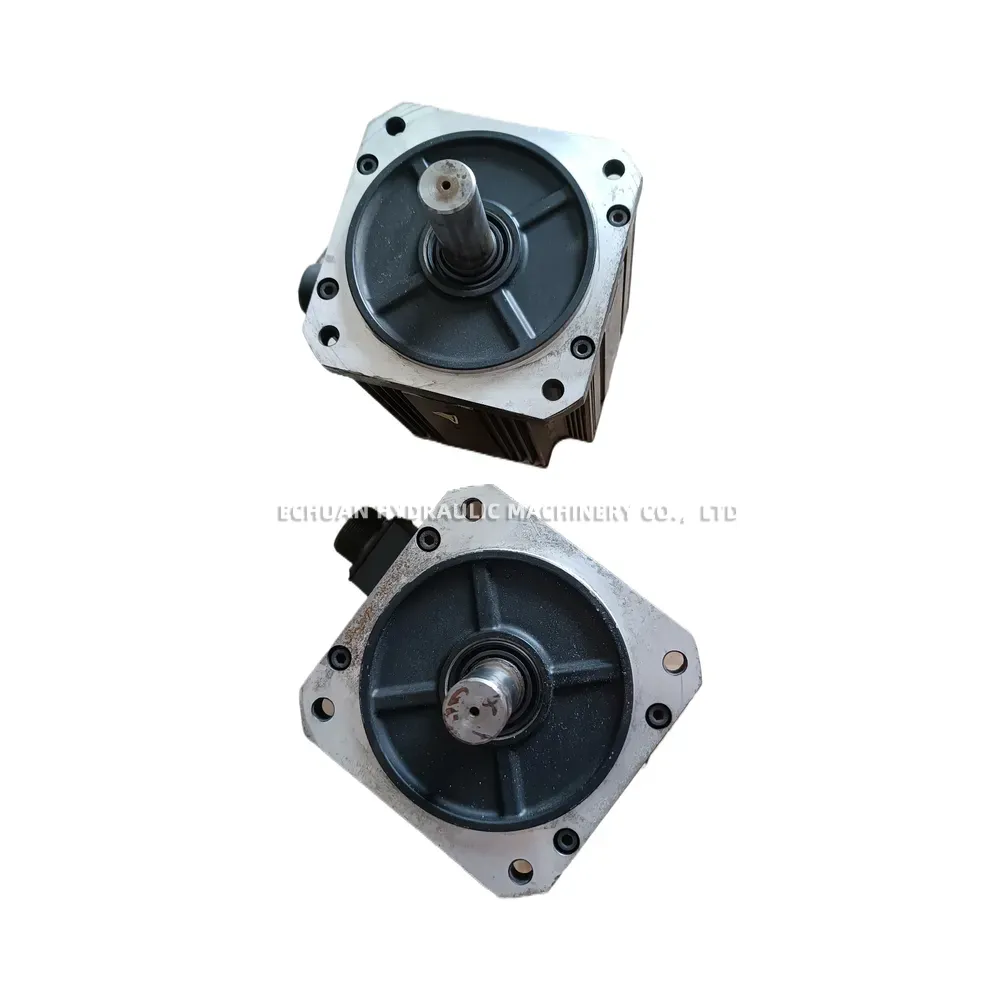

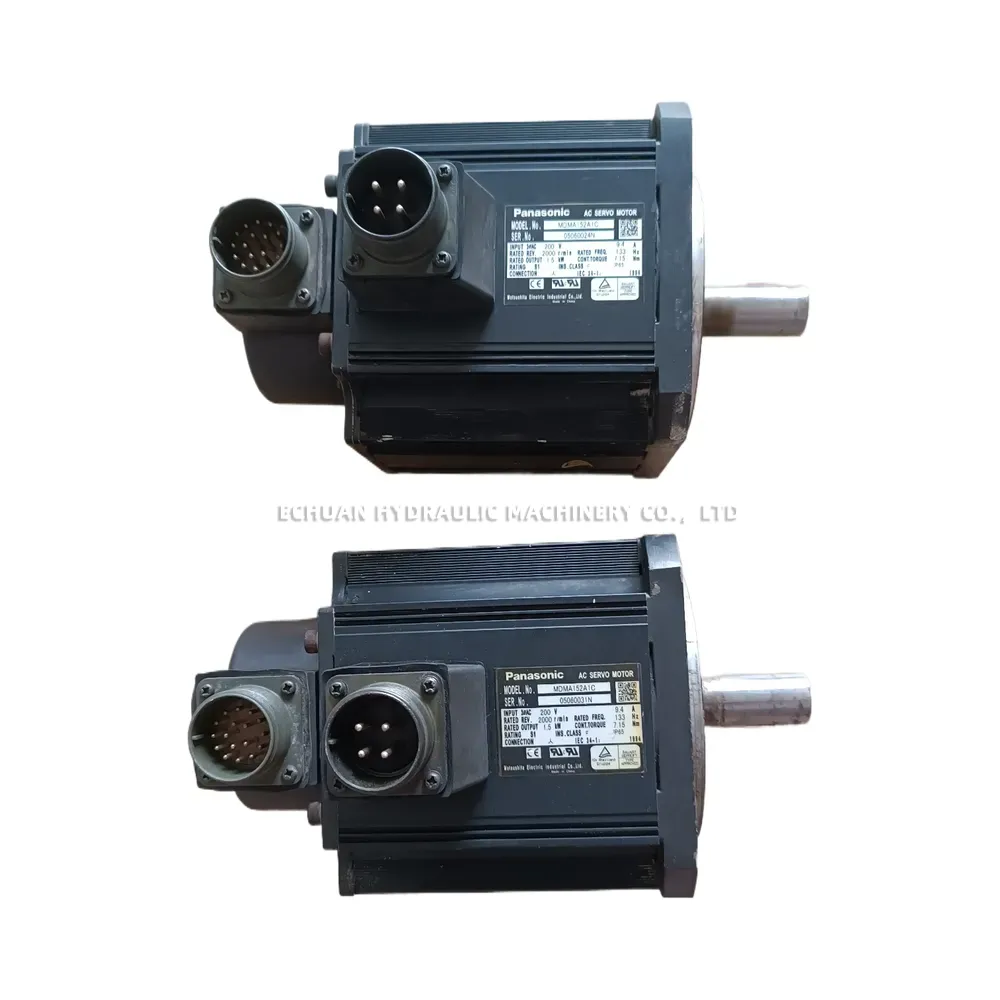

Panasonic MDMA152A1C MINAS A4 AC Servo Motor
The Panasonic MDMA152A1C is a high-performance AC servo motor from the MINAS A4 series, designed for demanding industrial automation applications. It offers precise motion control, high torque, and reliable operation. This motor is well-suited for tasks requiring accurate positioning, speed control, and dynamic response, such as in robotics, machine tools, and packaging machinery. Its robust construction ensures durability in various operating environments.
Technical Specifications:
- Series: MINAS A4
- Model: MDMA152A1C
- Type: AC Servo Motor
- Rated Output Power: 1.5 kW
- Power Supply Voltage: 200V AC (Single/Three-phase)
- Rated Current: 8.6 A
- Rated Torque: 7.16 N.m
- Maximum Peak Torque: 21.5 N.m
- Rated Speed: 2000 r/min
- Maximum Speed: 3000 r/min
- Encoder Type: 17-bit Incremental Encoder (Standard)
- Flange Size: 130 mm square
- Shaft Diameter: 22 mm (with keyway and tap)
- Protection Class: IP65 (excluding shaft opening and connector area)
- Insulation Class: Class B
- Approximate Weight: 7.2 kg
Panasonic MDMA152A1C
Model:Panasonic MDMA152A1C
