Product Description

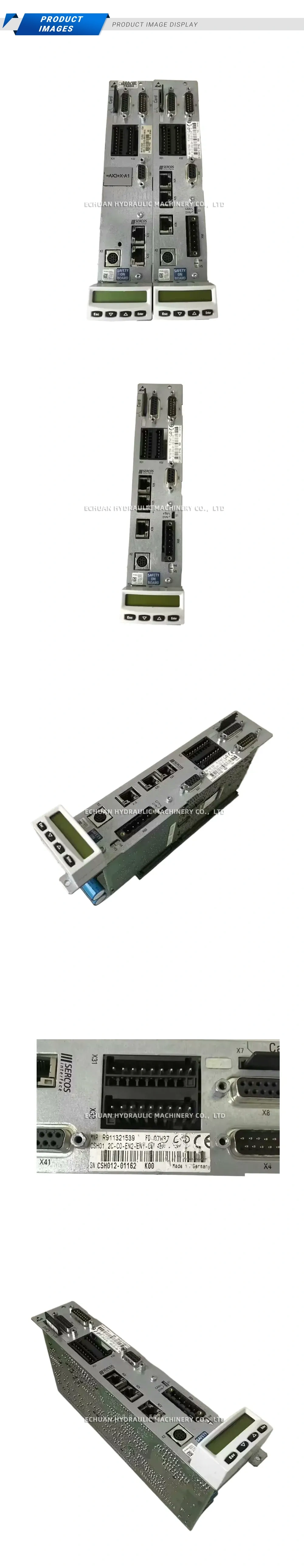

Rexroth CSH01.2C-C0-EN2-EN1-CCD-S1-S-N
The Rexroth CSH01.2C-C0-EN2-EN1-CCD-S1-S-N is a configurable control section designed for the IndraDrive Cs series of compact servo drives. This advanced control unit serves as the intelligence for the drive system, offering exceptional flexibility and performance in a compact design. It features dual multi-encoder interfaces supporting a wide range of feedback systems, including IndraDyn, Hiperface, EnDat, and SSI. Integrated safety technology with Safe Torque Off (STO) enhances machine safety without extra components. With onboard CANopen communication and a slot for optional fieldbus interfaces, this control section is easily integrated into diverse automation architectures, making it ideal for sophisticated single and multi-axis motion control applications.
Technical Specifications:
- Model: CSH01.2C-C0-EN2-EN1-CCD-S1-S-N
- Product Line: IndraDrive Cs
- Component Type: Control Section, Configurable
- Encoder Interface 1: Multi-encoder interface (IndraDyn, Hiperface, EnDat 2.1/2.2, 1Vss, TTL, SSI)
- Encoder Interface 2: Multi-encoder interface (IndraDyn, Hiperface, 1Vss, TTL)
- Communication: CANopen on-board, slot for optional communication module (e.g., SERCOS III, PROFINET, EtherNet/IP)
- Safety Technology: STO (Safe Torque Off) integrated
- Control Panel: Integrated standard control panel
Rexroth CSH01.2C-C0-EN2-EN1-CCD-S1-S-N
Shop the Rexroth CSH01.2C-C0-EN2-EN1-CCD-S1-S-N, a compact and configurable IndraDrive Cs control section. Features dual multi-encoder interfaces, integrated STO safety, and CANopen communication for high-performance servo drive applications.
