Product Description

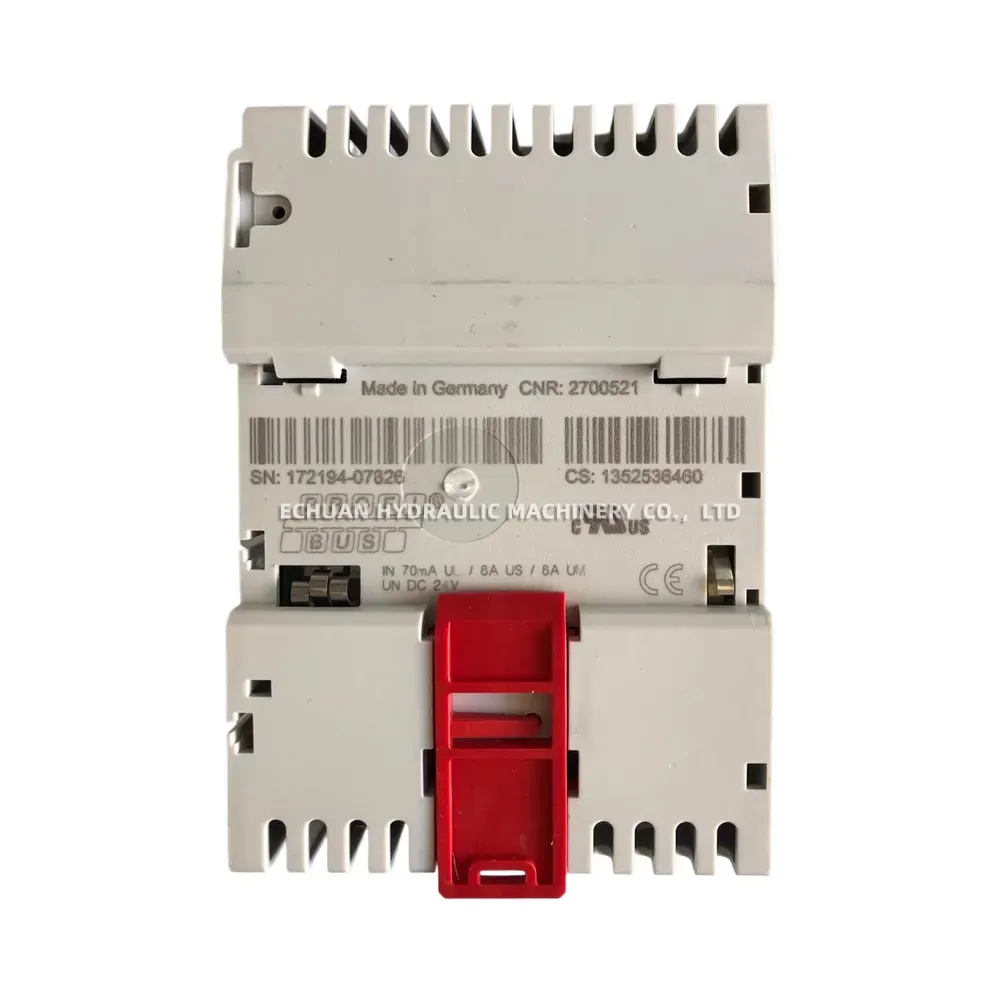

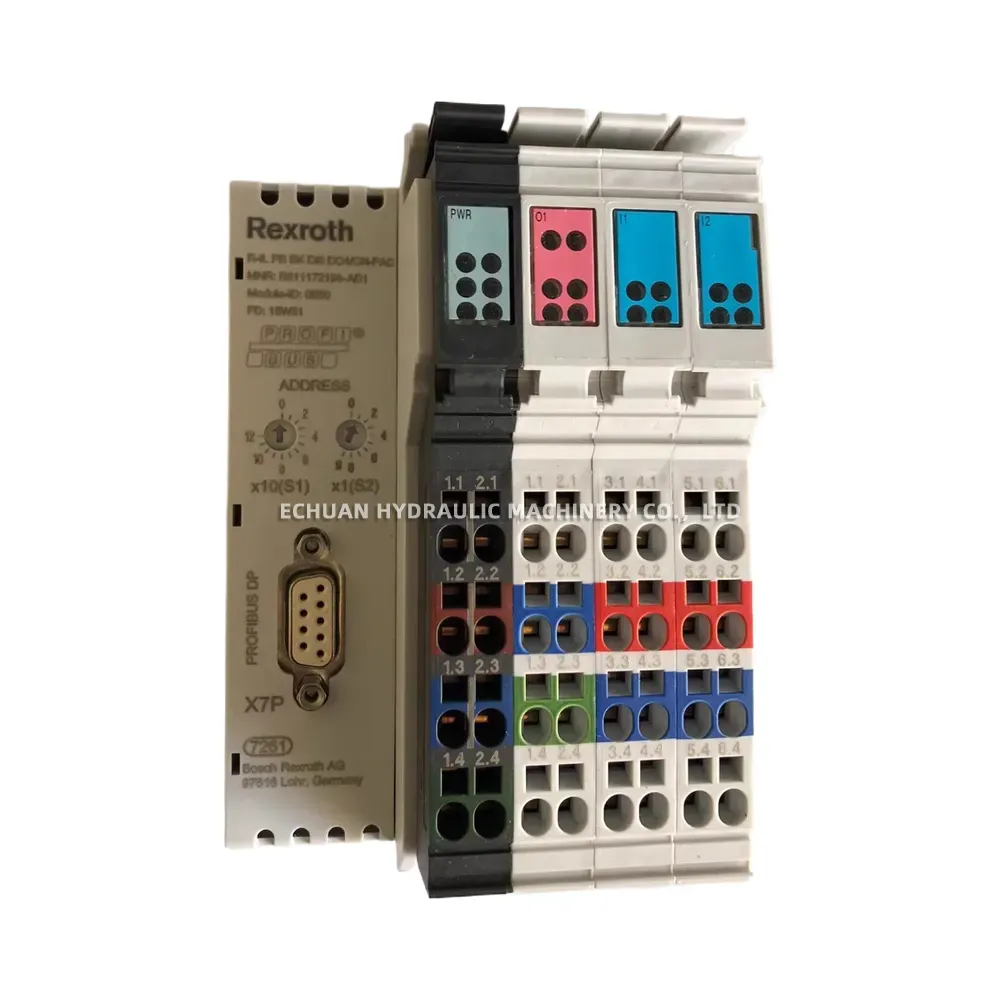

Rexroth R911172194-AD1 R-IL PB BK DI8 DO4/CN-PAC
The Rexroth R911172194-AD1 is a compact Inline I/O block module designed for integration into PROFIBUS DP automation networks. As a PROFIBUS DP slave, it provides decentralized signal processing capabilities directly on the machine or in the control cabinet. This module features 8 digital inputs for acquiring sensor signals and 4 digital outputs for controlling actuators, making it suitable for a variety of industrial automation tasks. The “/CN-PAC” designation typically indicates a version with pluggable connection technology, facilitating easy installation and maintenance. It is part of Bosch Rexroth’s robust Inline I/O system, known for its modularity and reliability in demanding industrial environments.
Technical Specifications:
- Manufacturer: Bosch Rexroth
- Product Series: Rexroth Inline (R-IL)
- Part Number: R911172194-AD1
- Type Designation: R-IL PB BK DI8 DO4/CN-PAC
- Module Type: PROFIBUS DP Slave I/O Block
- Communication Protocol: PROFIBUS DP
- Transmission Speed: Up to 12 Mbps (PROFIBUS DP)
- Digital Inputs (DI): 8
- Nominal Input Voltage: 24 V DC
- Input Standard: Typically EN 61131-2 Type 3
- Digital Outputs (DO): 4
- Nominal Output Voltage: 24 V DC
- Maximum Output Current: Typically 0.5 A per channel
- Output Type: P-switching (positive switching)
- Protection: Short-circuit and overload protected
- Supply Voltage (Electronics and I/O): 24 V DC (via dedicated power connector)
- Connection Technology: Pluggable connectors (e.g., spring-cage or screw terminals, as indicated by /CN-PAC)
- Mounting: DIN rail mounting
- Protection Class: IP20
- Operating Temperature Range: Typically 0 °C to +55 °C (standard industrial range, specific value may vary)
- Diagnostics: Module and channel-specific diagnostic capabilities (e.g., short circuit, wire break for inputs if supported)
Rexroth R911172194-AD1 R-IL PB BK DI8 DO4/CN-PAC
Model:Rexroth R911172194-AD1 R-IL PB BK DI8 DO4/CN-PAC
