Product Description

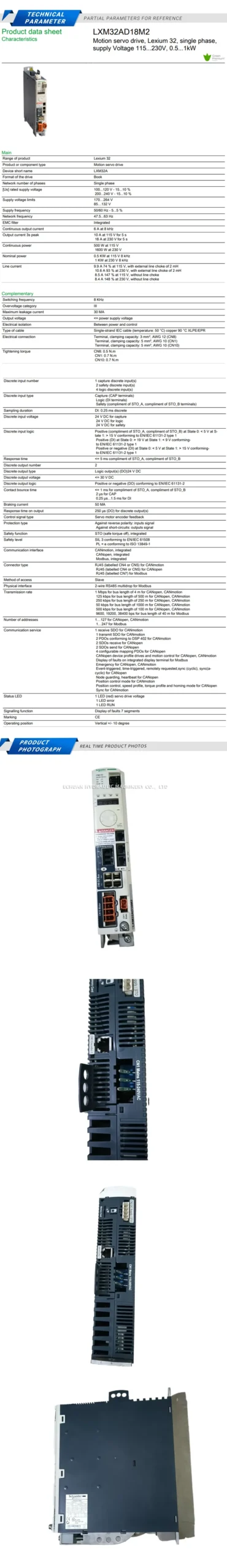

Schneider LXM32AD18M2

The Schneider Electric LXM32AD18M2 is a high-performance motion servo drive from the Lexium 32 range, designed for precise control of servo motors in a wide array of automated systems and industrial machinery. It operates on a single-phase supply voltage of 115V to 230V AC. This compact, book-format servo drive delivers a continuous output current of 6A and is capable of a nominal power output of 0.5kW at 115V or 1kW at 230V. It features an integrated EMC filter to reduce electromagnetic interference and incorporates the “Safe Torque Off” (STO) safety function for enhanced operational safety. Its design facilitates easy integration and helps minimize machine footprint.

Technical Specifications:

Product Range: Lexium 32
Product Type: Motion servo drive
Device Short Name: LXM32A
Rated Supply Voltage: 100…120 V AC (single phase), 200…240 V AC (single phase)
Supply Frequency: 50/60 Hz
Continuous Output Current: 6 A (at 8 kHz switching frequency)
Peak Output Current: 18 A (for 5 seconds)
Nominal Power: 0.5 kW at 115V (8 kHz), 1 kW at 230V (8 kHz)
Maximum Continuous Power: 0.4 kW at 115V, 0.8 kW at 230V
EMC Filter: Integrated
Safety Function: STO (Safe Torque Off) SIL 3 conforming to IEC 61508, PL e/category 3 conforming to EN/ISO 13849-1
Communication Interface: CANopen, CANmotion (via RJ45 connector)
Number of Digital Inputs: 4 (safety), 2 (logic), 4 (capture)
Number of Digital Outputs: 2 (logic)
Number of Analogue Inputs: 2
Format: Book
IP Degree of Protection: IP20
Operating Temperature: 0 to 50 °C (without derating)
