Product Description

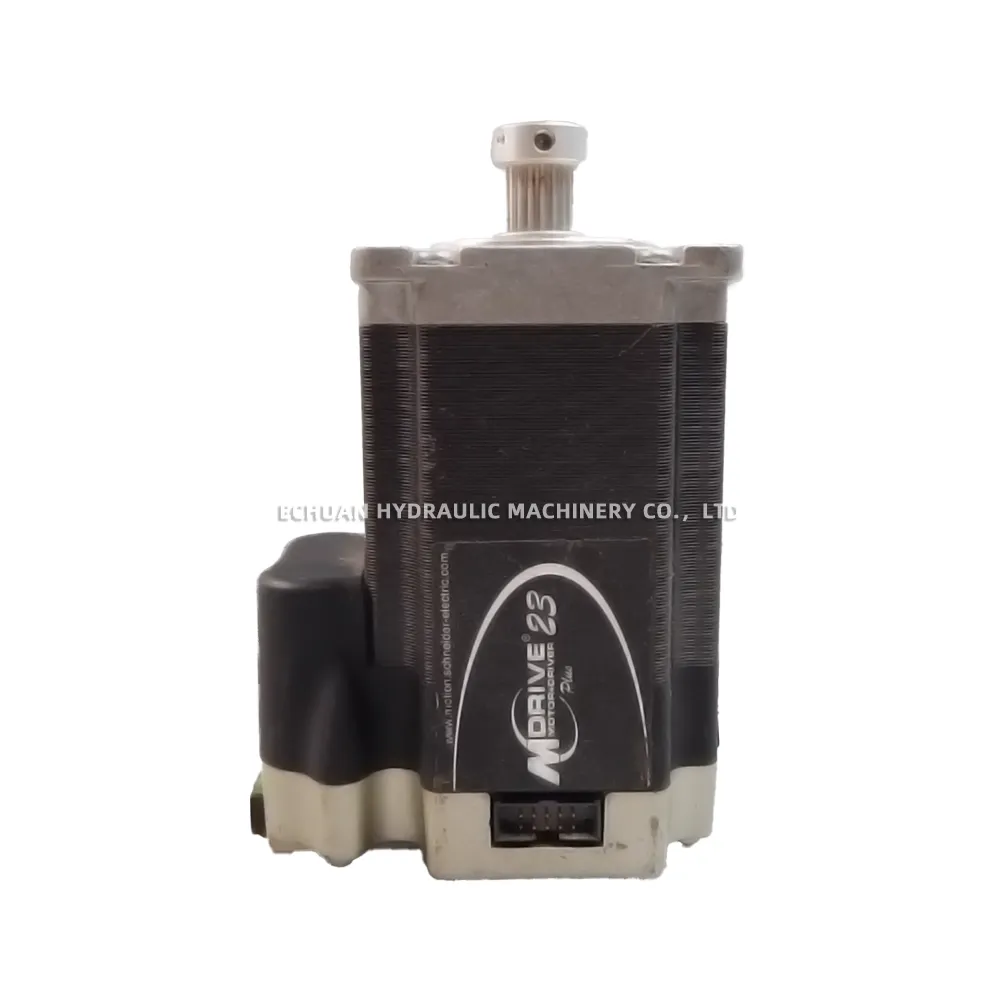

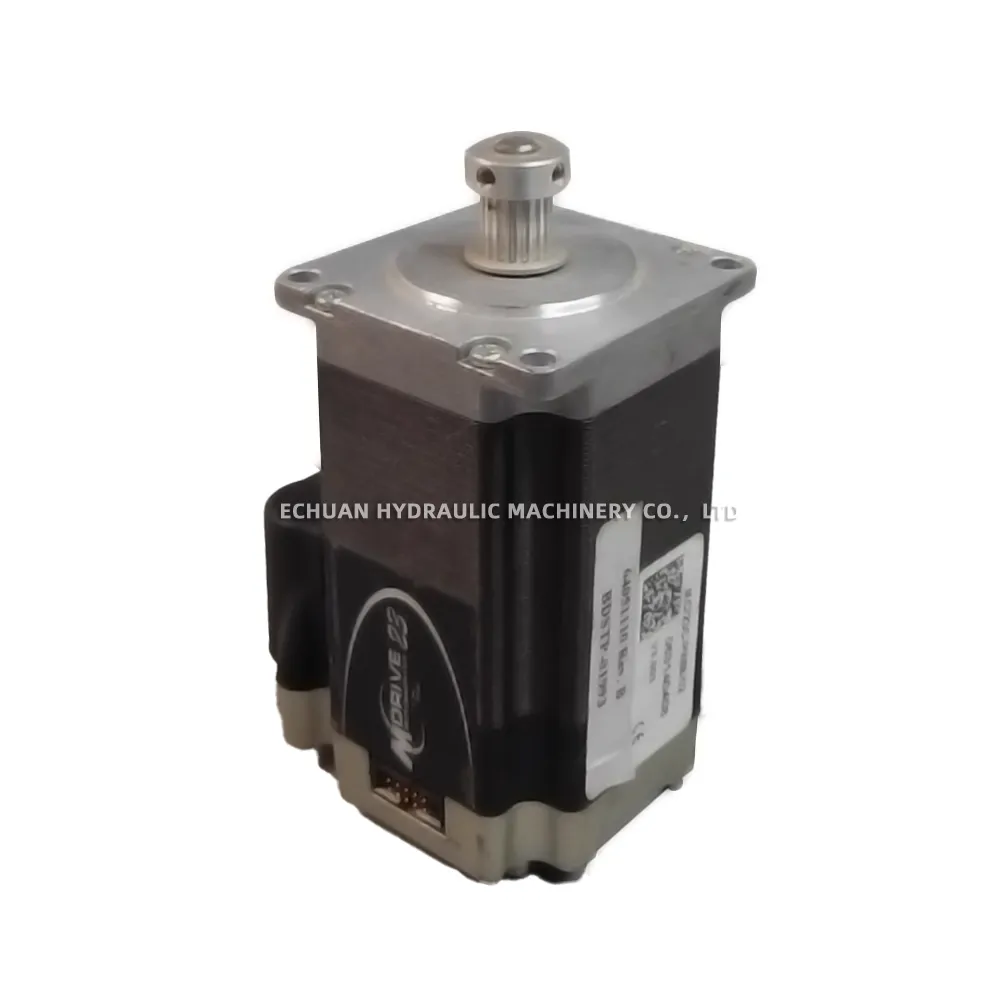

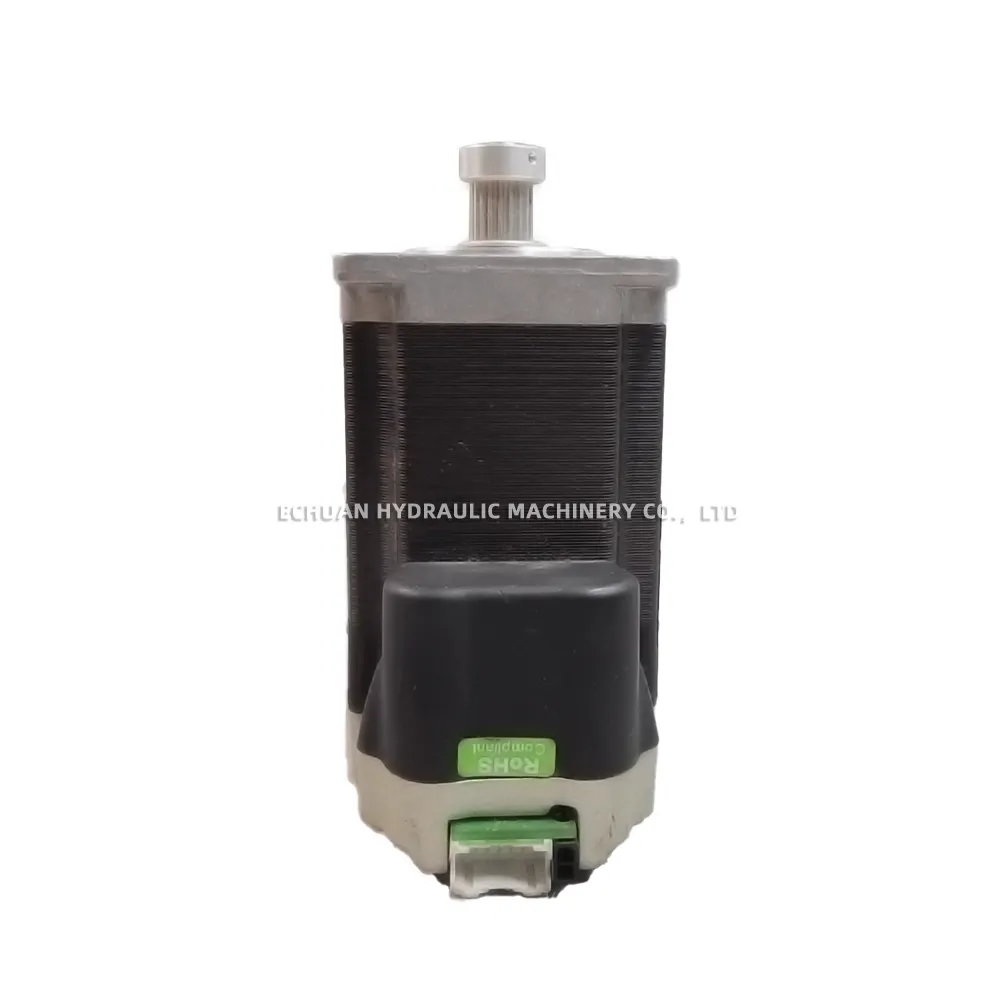

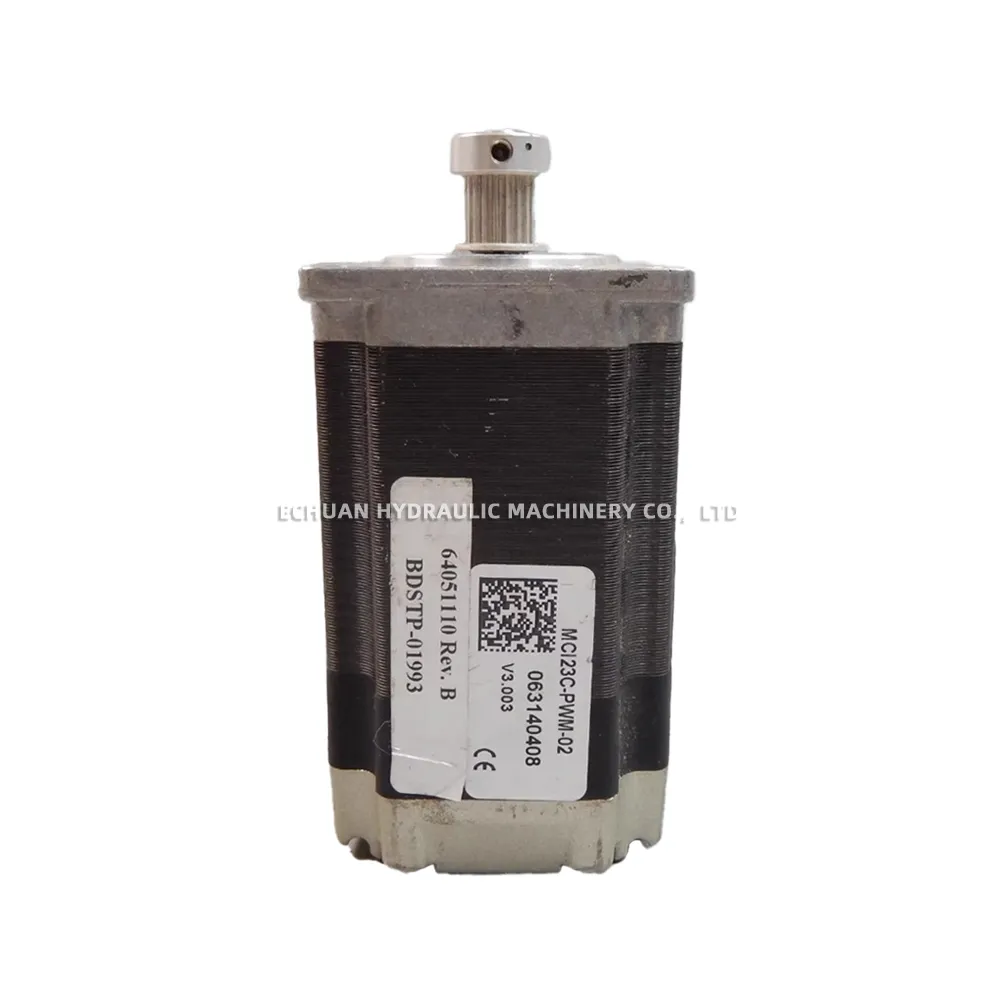

Schneider MCI23C-PWM-02
The Schneider Electric MCI23C-PWM-02 is a high-performance integrated motor solution from the Lexium MDrive series. This product combines a high-torque NEMA 23 stepper motor with a microstepping driver and controller into a single, compact unit. By integrating these components, the MCI23C-PWM-02 significantly reduces wiring complexity, saves cabinet space, and lowers overall system costs. It is designed to operate on Pulse/Direction input signals, making it easy to interface with a wide variety of third-party indexers and PLCs. This integrated motor is an excellent choice for machine builders who need precise positioning and reliable motion control in applications such as packaging, assembly, and automated equipment.
Technical Specifications:
- Product Type: Integrated Stepper Motor Drive
- Motor Frame Size: NEMA 23 (57 mm)
- Control Input Type: Pulse/Direction
- Supply Voltage: +12 to +75 VDC
- Holding Torque: 240 oz-in (1.7 N-m)
- Step Resolution: Selectable up to 256 microsteps per full step (51,200 steps/rev)
- Inputs: 1 general purpose, 5 to 24 VDC logic
- Protection: Over-temperature, over-voltage, under-voltage, and short-circuit protection
- Operating Temperature (Internal): 0°C to 85°C
- Certifications: CE, RoHS, REACH
Schneider MCI23C-PWM-02
Model：Schneider MCI23C-PWM-02
| Brand | Schneider |
|---|---|
| Model | MCI23C-PWM-02 |
| Part No. | Schneider MCI23C-PWM-02 |
| Category | Hydraulic pumps |
| Link | https://www.echuan-hydraulic.com/product/schneider-mci23c-pwm-02 |
