Product Description

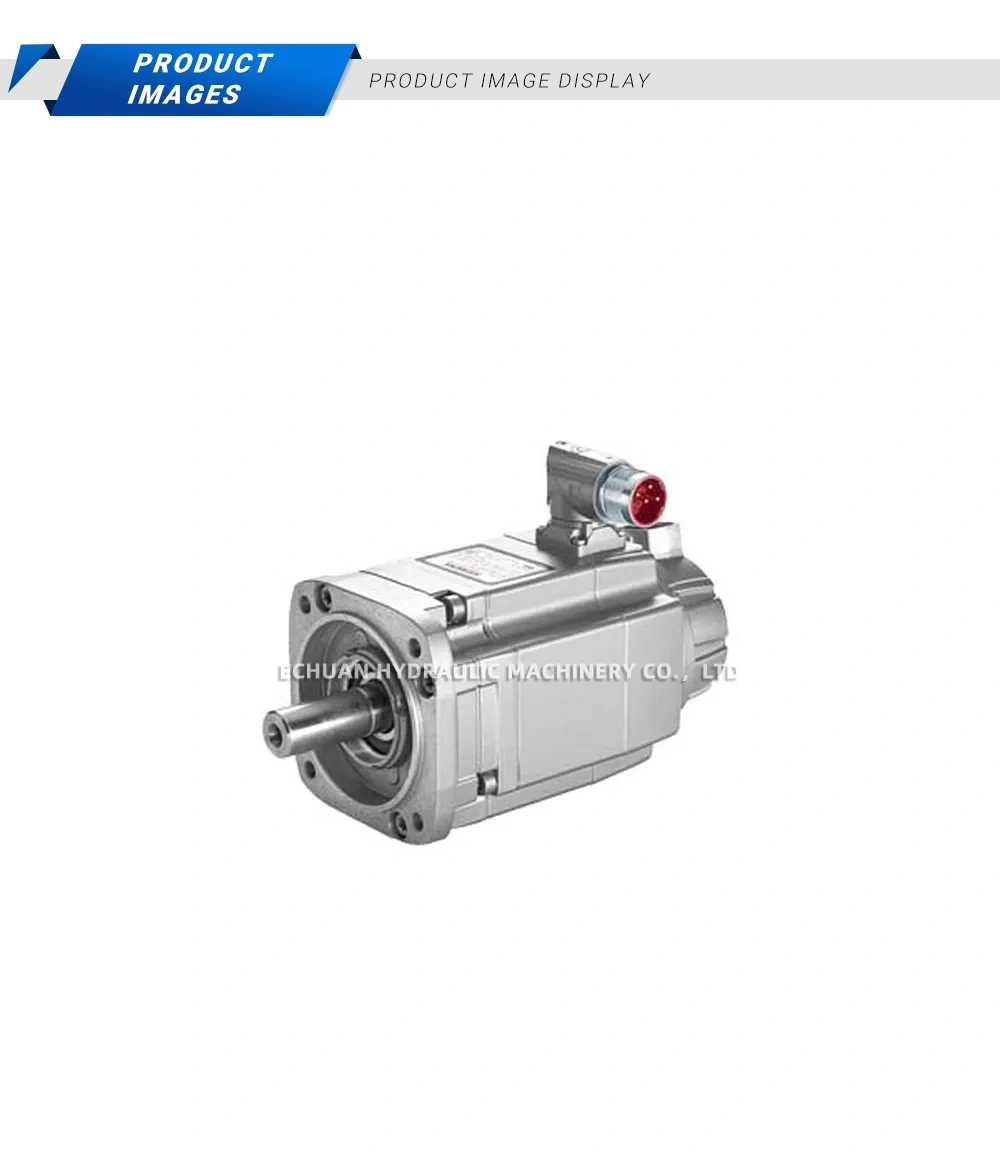

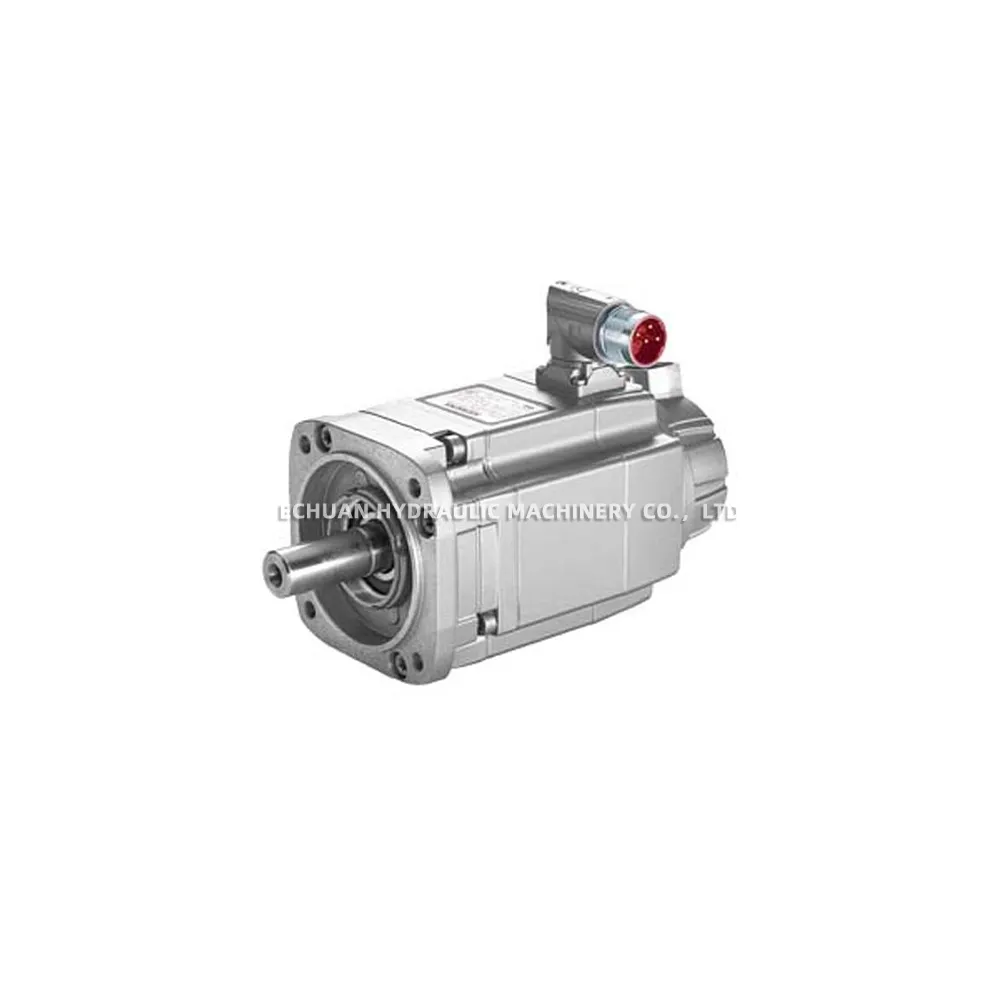

Siemens 1FK7063-2AF71-1RH1
The Siemens 1FK7063-2AF71-1RH1 is a high-performance SIMOTICS S synchronous servo motor designed for demanding motion control applications. As a compact motor, it offers excellent power density and dynamic response, making it ideal for use in machine tools, packaging machines, robotics, and handling systems. This model features a high-resolution absolute encoder for precise positioning and a built-in holding brake for safety and stability when the motor is de-energized. Its rugged construction with an IP65 protection rating ensures reliable operation even in harsh industrial environments.
Technical Specifications:
- Motor Type: SIMOTICS S-1FK7 Compact Synchronous Servo Motor
- Rated Speed (n_n): 3000 rpm
- Rated Torque (M_n): 5.1 Nm
- Stall Torque (M_0): 6 Nm
- Rated Current (I_n): 3.8 A
- Encoder System: Absolute encoder 24-bit + 12-bit multi-turn with DRIVE-CLiQ interface (AM24DQI)
- Shaft Height: 63 mm
- Features: Plain shaft, with holding brake
- Degree of Protection: IP65
Siemens 1FK7063-2AF71-1RH1
Siemens 1FK7063-2AF71-1RH1 SIMOTICS S compact synchronous servo motor, 6 Nm stall torque, 3000 rpm rated speed, with a multi-turn absolute encoder and holding brake for precision motion control applications.
