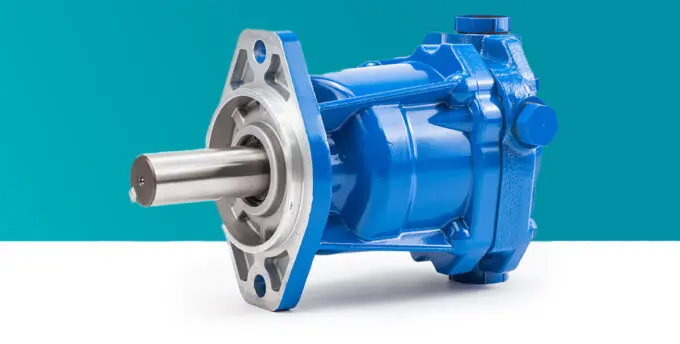

In hydraulic systems, gear motors, plunger motors and gerotor motors are the three most common hydraulic drive devices. Their respective structural characteristics and performance make them suitable for different application scenarios. This article will analyze in detail the differences between these three types of motors in terms of their use environments to help you choose a hydraulic motor that suits your specific needs.

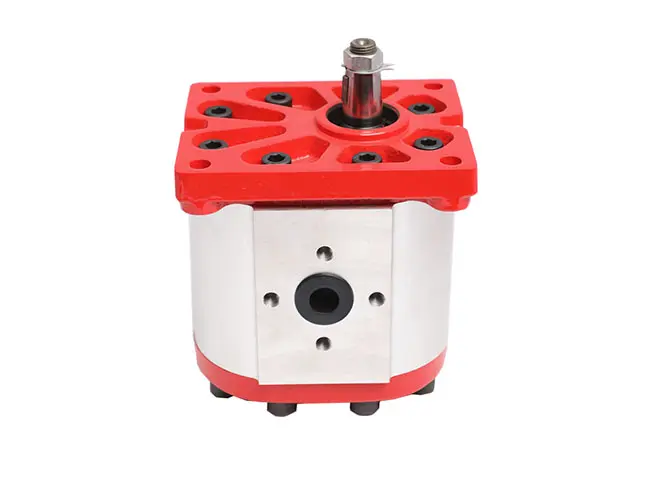

1. Gear motor
(1) Gear motors are widely used in medium and low pressure hydraulic systems due to their simple structure and small size. Their working pressure range is usually between 5-25 MPa, and they can provide stable power output under medium-intensity working conditions. Since gear motors have a compact structure, low manufacturing cost, and easy maintenance, they are often used in hydraulic equipment with low requirements.
(2) Application scenarios: Agricultural machinery such as mowers and harvesters usually require a stable and reliable hydraulic system with strong load capacity, and gear motors can meet these requirements well. Some medium-load construction equipment in construction equipment also often uses gear motors.
(3) Advantages: simple structure and low price. Suitable for medium and low pressure systems, flexible application. Disadvantages: limited ability to withstand high pressure, cannot be used in high pressure systems. Relatively low efficiency and accuracy.
2. Plunger motor
(1) Plunger motor is a hydraulic component designed for high-pressure environment, which can withstand working pressure up to 35 MPa or even higher. Due to its ability to maintain good working performance under extreme conditions, plunger motors are often used in heavy machinery and high-load equipment. The hydraulic pressure inside the plunger motor acts directly on the rotor through the plunger, so its efficiency and output accuracy are relatively high. However, plunger motors are often accompanied by large noise and vibration when running at high pressure, so additional sound insulation and shockproof design are usually required.
(2) Application scenarios: Construction machinery such as excavators, road rollers, cranes and other heavy equipment, which require high power and high load working capacity, and plunger motors can provide sufficient torque and power support. Mining equipment: Mining machinery working under high load often uses plunger motors to cope with harsh working environments.
(3) Advantages: Withstand high pressure and suitable for high power output. Stable performance, meet the needs of heavy machinery. Disadvantages: Large noise and vibration, requiring additional sound insulation measures. High price, complex structure, and high maintenance cost.

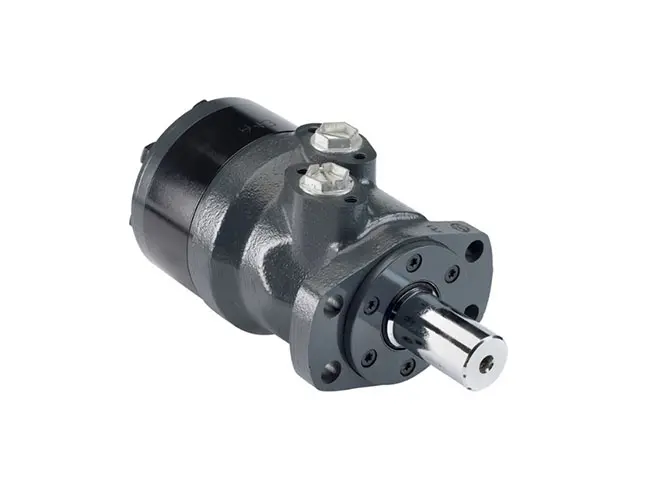

3. Cycloidal motor
(1) The design of the cycloidal motor makes it compact, smooth and efficient. The maximum working pressure of the cycloidal motor can reach 30 MPa under medium and high pressure environment. Compared with gear motors and plunger motors, the cycloidal motor performs well in situations where fast start and stop and frequent speed change are required. Its high precision and dynamic response capability make it the first choice for industrial automation equipment.
(2) Application scenarios In industrial robots, industrial automation equipment requires high precision and flexibility. Cycloidal motors can meet these requirements and ensure efficient and stable operation of the equipment. Machine tools and automation equipment: The high dynamic performance and fast response capability of the cycloidal motor are particularly suitable for processing equipment that requires frequent start and stop and high efficiency.
(3) Advantages: Compact structure, suitable for applications with limited space. Smooth operation, high efficiency and high precision, suitable for high dynamic performance requirements. Disadvantages: Suitable for specific fields, cannot withstand extreme high pressure and high load.
4.Summary:
The differences between the three types of motors in their operating environments are mainly reflected in their pressure bearing capacity, structural complexity, performance accuracy, etc.
(1) Gear motor: Suitable for medium and low pressure hydraulic systems, commonly used in agricultural machinery and other equipment, with simple structure, low price, and suitable for occasions with small loads.
(2) Piston motor: Suitable for high pressure fields, mainly used in heavy machinery and high-load equipment, can work stably under extreme conditions, but with high noise and high maintenance costs.
(3) Cycloid motor: Suitable for occasions with limited space, high precision and high dynamic response, widely used in industrial automation equipment, with high operating stability and efficiency.
According to the actual working environment and application requirements, the rational selection of a suitable hydraulic motor can not only improve the operating efficiency of the equipment, but also effectively extend the service life of the hydraulic system.
