Product Description

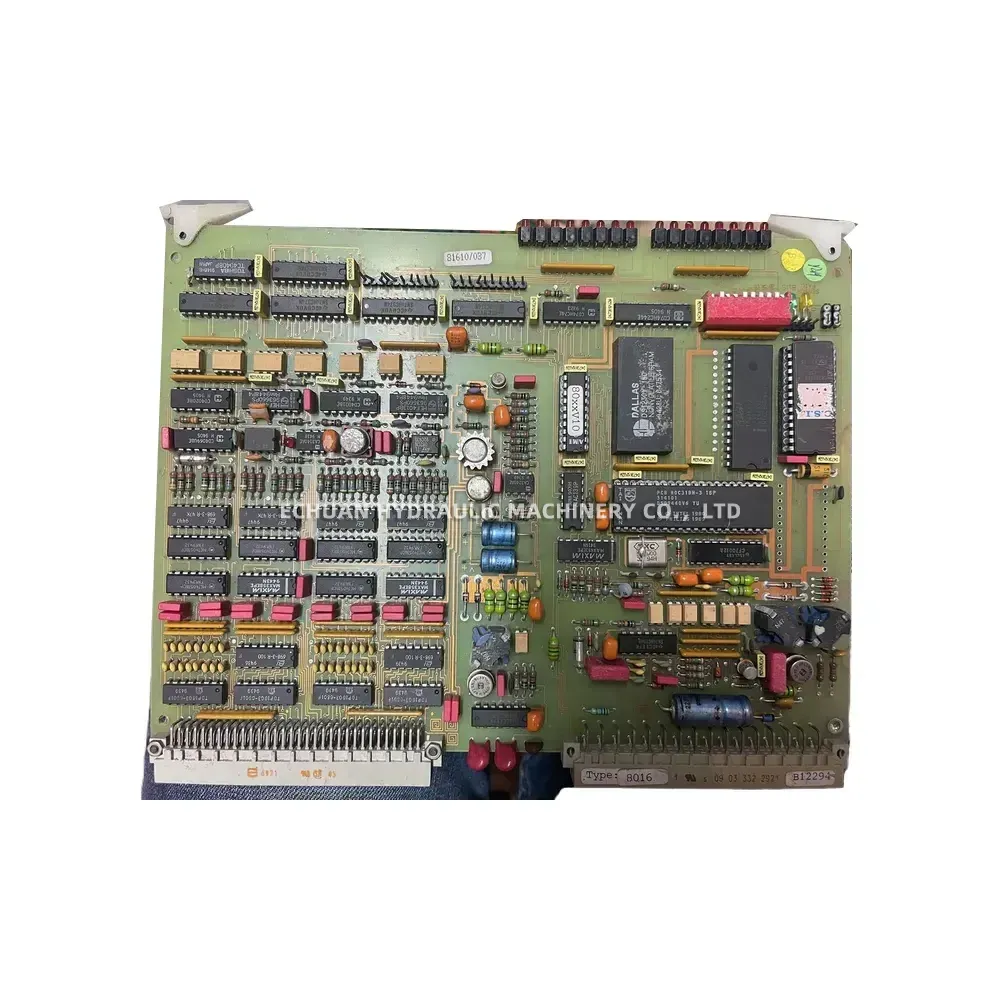

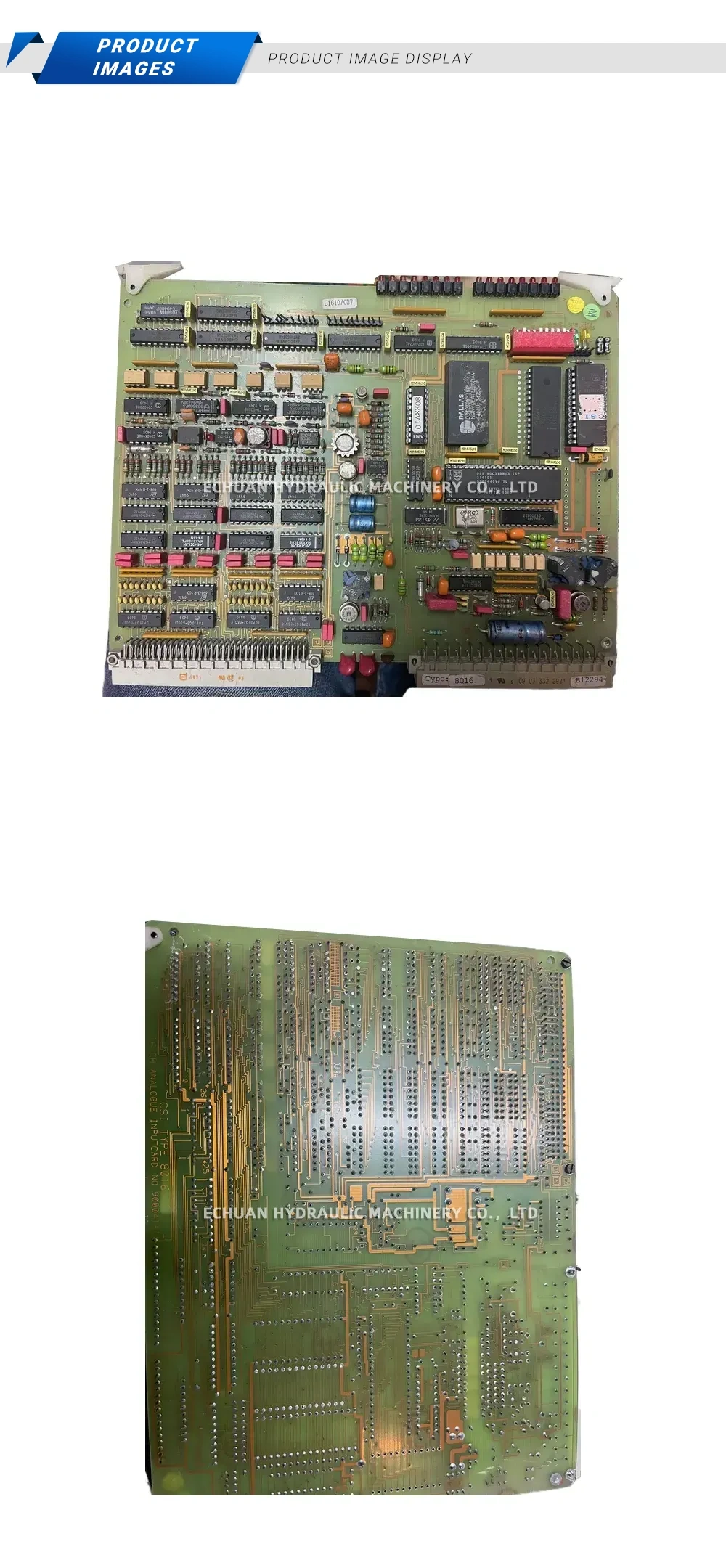

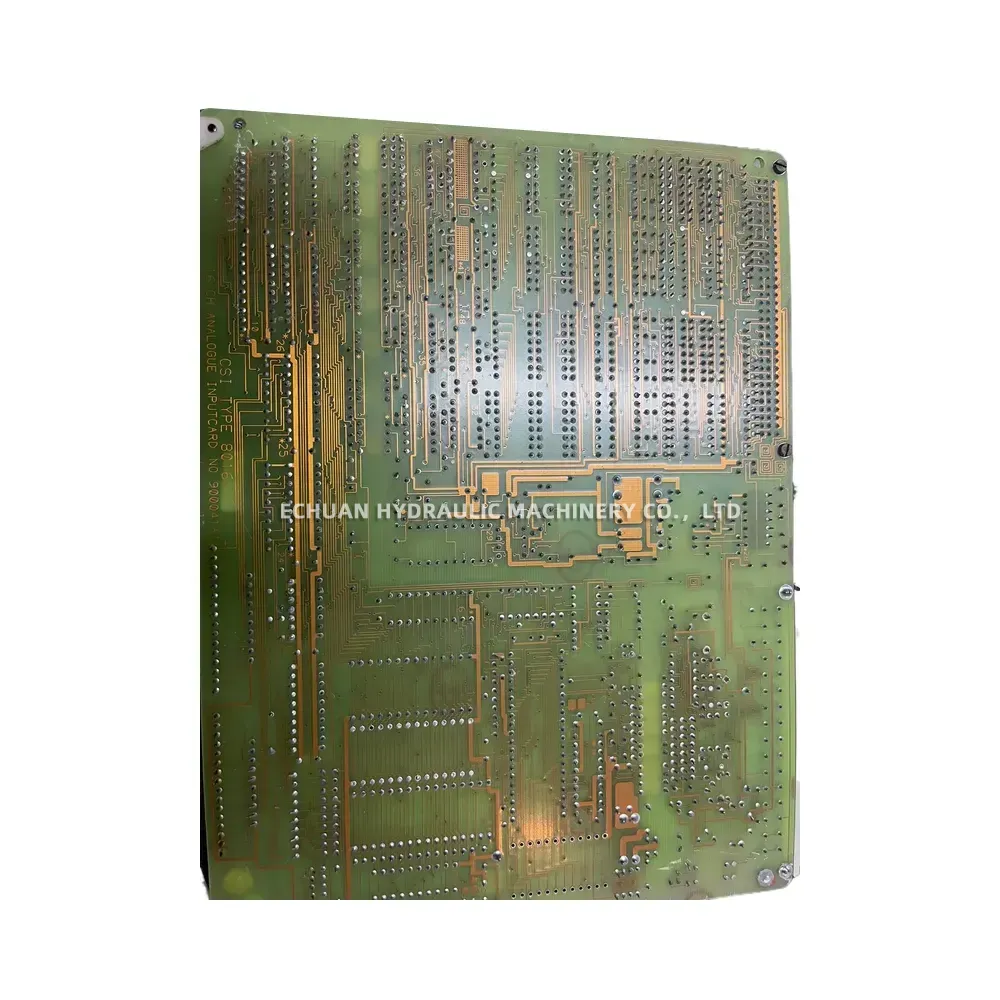

8016 Analogue Input Card
The 8016 Analogue Input Card is a specialized industrial printed circuit board designed for integration into larger control systems. Engineered for reliability, this board serves as a crucial interface for processing analogue signals. It is built around a powerful Intel 80C188XL10 microcontroller and includes a Dallas Semiconductor DS12887Q real-time clock module for precise timing and data logging operations. Featuring multiple DIP switches and trimmer potentiometers, the card allows for fine-tuning and configuration to meet specific application requirements. This board, identified by part number B1229-315401007 and revision 8015, is commonly found in legacy industrial automation and drive systems, such as the Eurotherm / SSD Drives 590 series.
Technical Specifications:
- Model/Type: 8016
- Part Number: B1229-315401007
- Function: Analogue Input / Technology Board
- Microcontroller: Intel 80C188XL10
- Real-Time Clock: Dallas Semiconductor DS12887Q
- Board Revision: CS1 REV 8015
- Connection Interface: Vertical Edge Connector for Backplane
8016 Analogue Input Card
Discover the 8016 Analogue Input Card, part number B1229-315401007. This industrial technology board, featuring an Intel 80C188XL10 CPU, is a key component for Eurotherm and SSD Drives 590 series systems, ensuring reliable analogue signal processing.
