Product Description
ABB 560CIG10 Remote Terminal Unit (RTU)

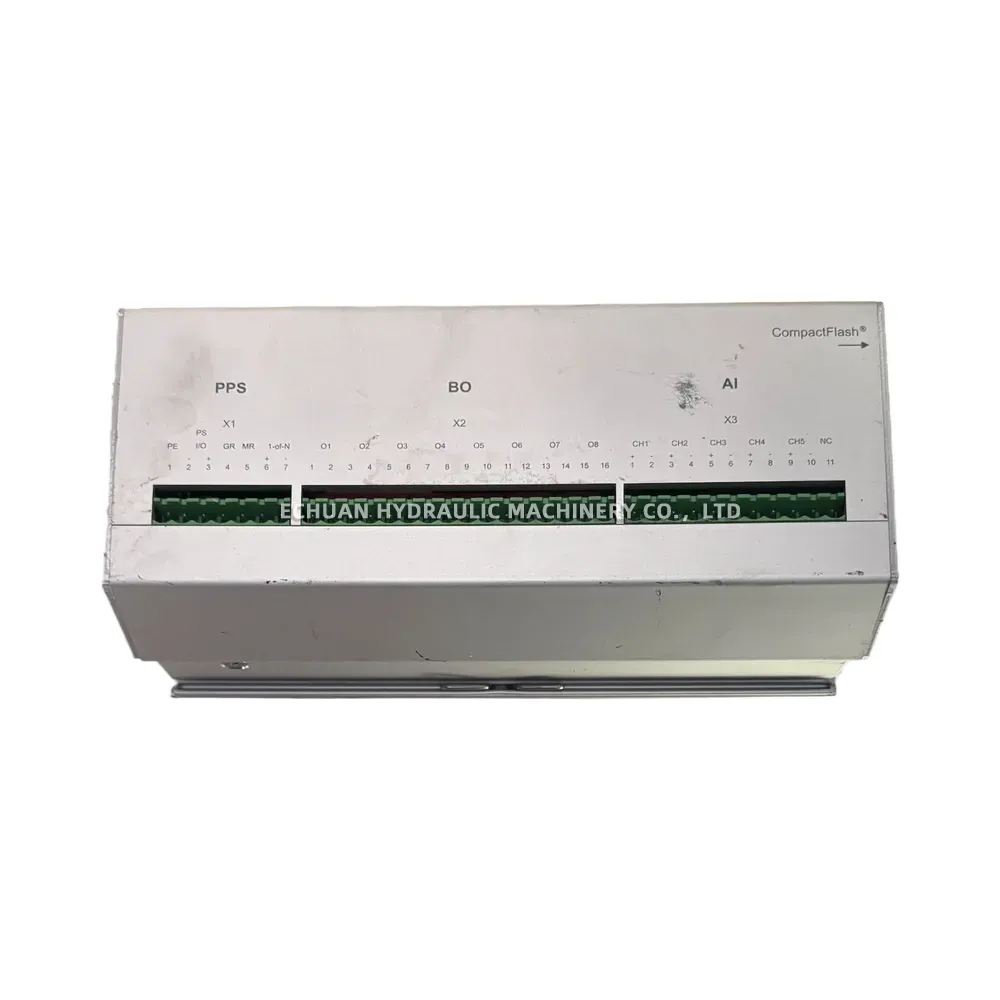

The ABB 560CIG10 is a highly reliable and versatile Remote Terminal Unit (RTU) module belonging to the industry-proven ABB RTU560 series. Designed for advanced industrial automation, substation control, and grid management, this powerful controller module delivers comprehensive I/O capabilities. It is equipped with 16 Binary Inputs (BI), 8 Binary Outputs (BO), and dedicated terminal blocks for Analog Inputs (AI) and PPS (Power/Signal). The 560CIG10 ensures seamless network integration and rapid data transmission through multiple communication interfaces, including CPA, CP1, CP2, and Ethernet ports. Built for robust performance, it operates on a 24VDC (2.0A) power supply with a process input range of 24-60 VDC. Additional features include CompactFlash storage support and intuitive LED status indicators (ERR, PF, RUN, Def. IP, and IO-Bus) for efficient real-time diagnostics and system monitoring.
Technical Specifications:
- Brand / Model: ABB 560CIG10
- Product Series: RTU560 Series Industrial Controller Module

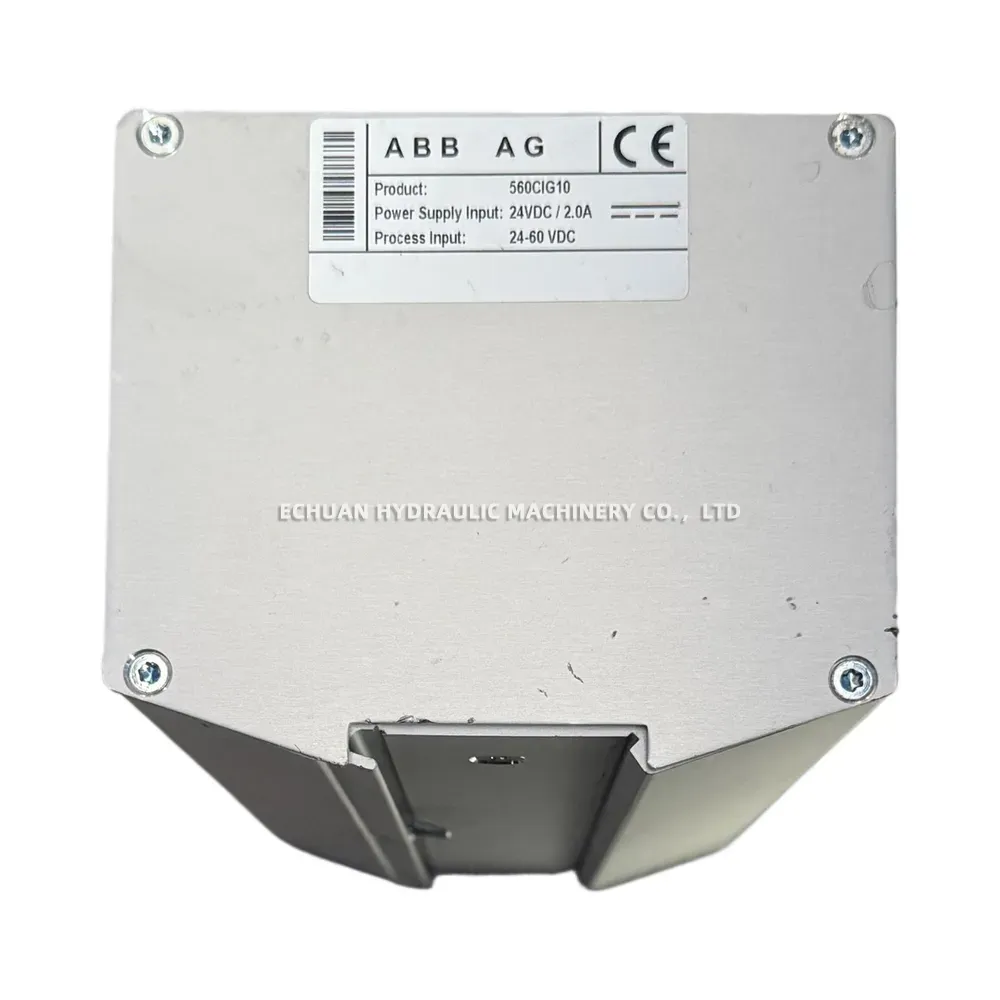

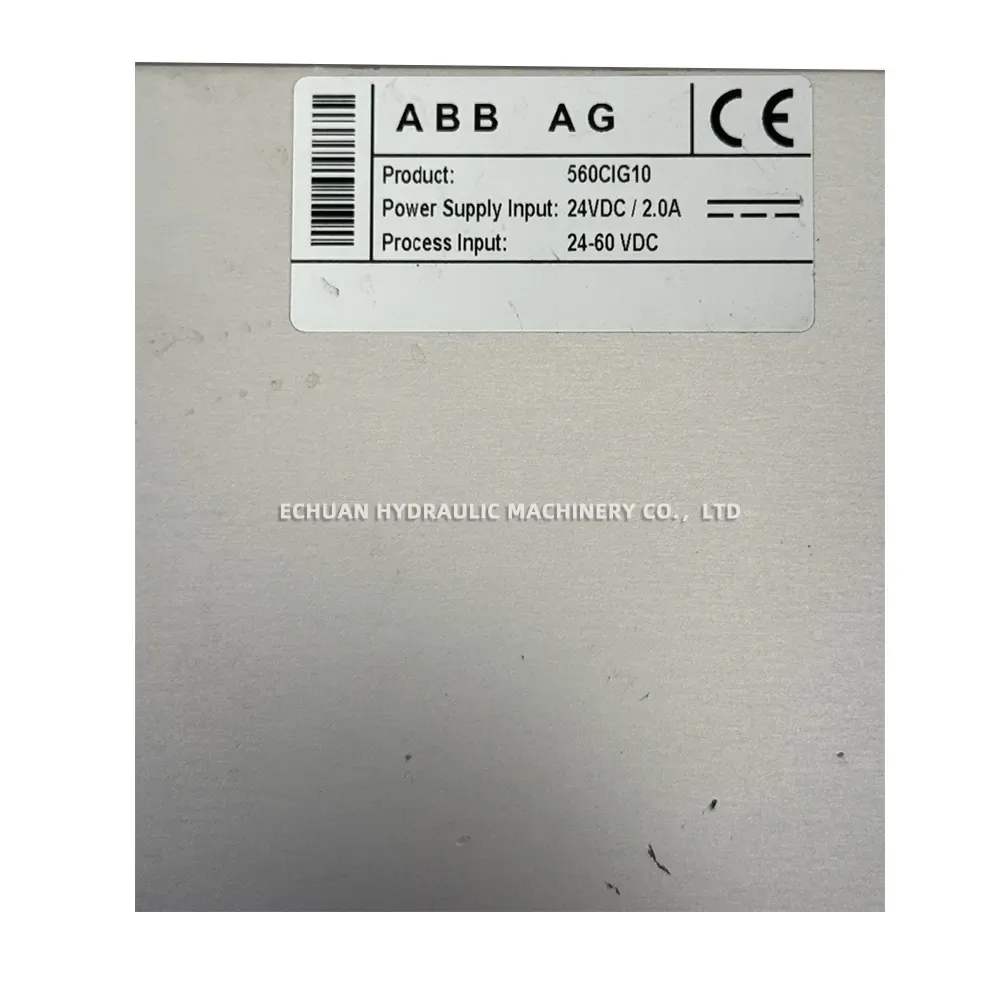

- Power Supply Input: 24 VDC / 2.0 A
- Process Input Voltage: 24 – 60 VDC
- Input/Output Configuration: 16 Binary Inputs (BI), 8 Binary Outputs (BO), Analog Inputs (AI)
- Communication Interfaces: CPA, CP1, CP2, and Ethernet (E)
- Storage: Supports CompactFlash storage

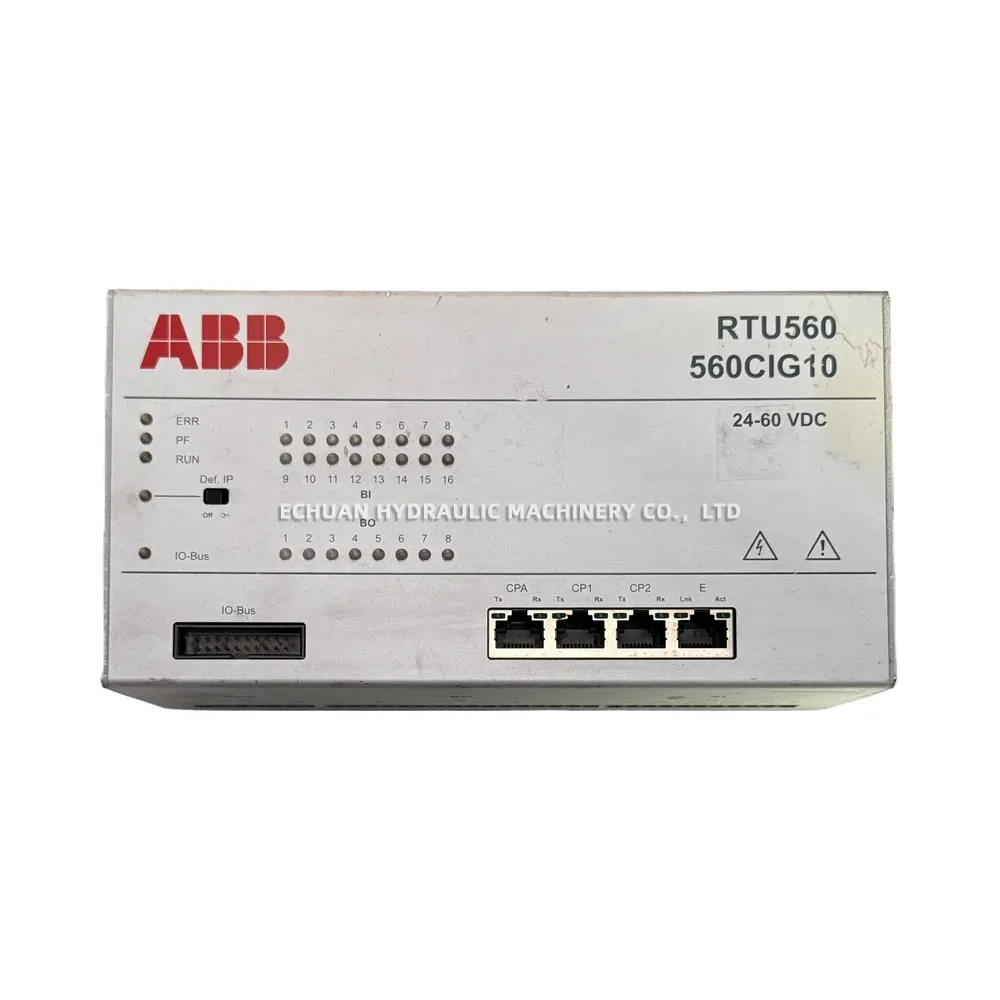

- Diagnostic Indicators: Status LEDs for ERR, PF, RUN, Def. IP, and IO-Bus
ABB 560CIG10 Remote Terminal Unit (RTU)
Upgrade your substation automation with the ABB 560CIG10 Remote Terminal Unit (RTU560 series). This high-performance industrial controller features 16 Binary Inputs, 8 Binary Outputs, Ethernet connectivity, and CompactFlash support. Operating on a 24VDC power supply, it delivers reliable data transmission and real-time diagnostics for demanding grid management applications.
| Brand | ABB |
|---|---|
| Model | 560CIG10 |
| Part No. | 1007741625422 |
| Category | Electrical |
