Product Description

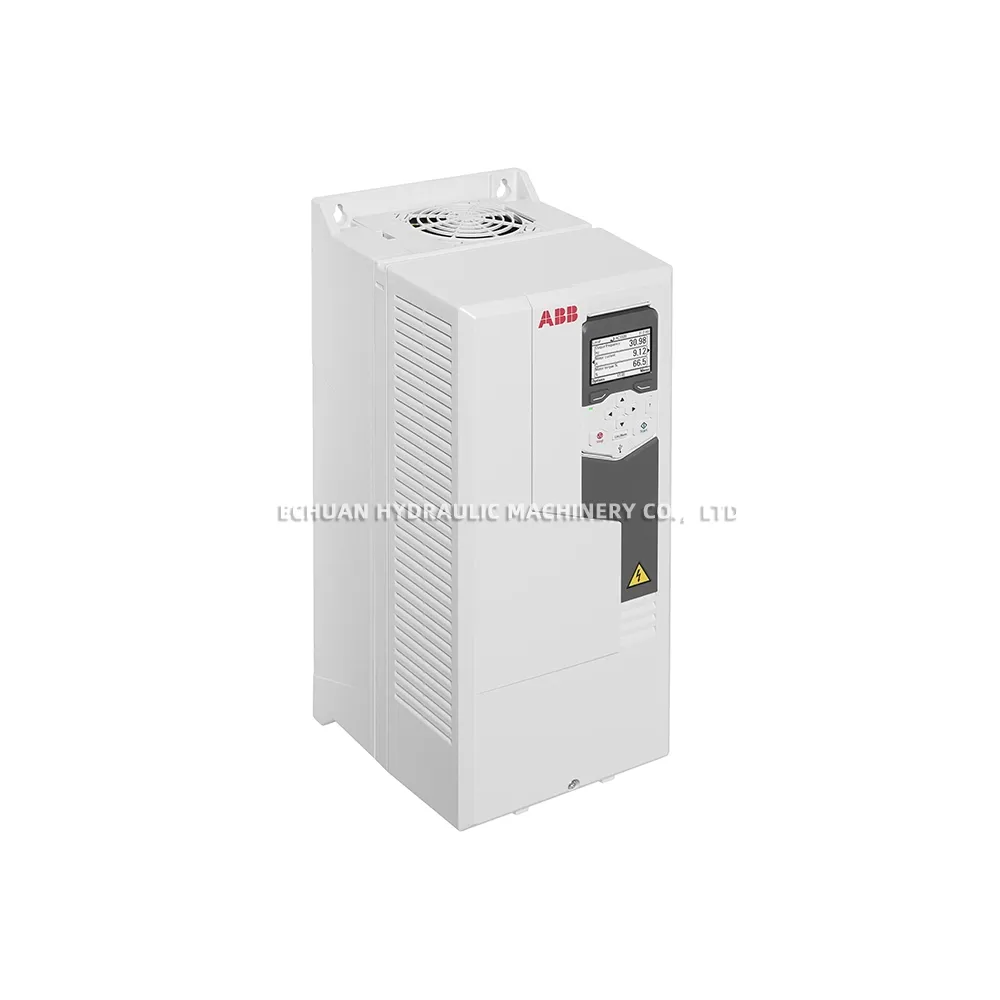

ABB ACS580-01-046A-4+0J400
The ABB ACS580-01-046A-4 is a general-purpose variable frequency drive (VFD) designed for simplicity, reliability, and efficiency in a wide range of industrial applications. As part of the all-compatible ACS580 series, this wall-mounted drive simplifies your processes by controlling motors for pumps, fans, conveyors, mixers, and more. It features an intuitive control panel with a primary settings menu and built-in assistants to facilitate quick and easy commissioning. The drive’s energy efficiency features, such as the energy optimizer and energy usage calculator, help monitor and reduce energy consumption. With a built-in C2 EMC filter (+0J400 option) and a brake chopper as standard in this frame size, the ACS580-01-046A-4 offers a robust and compact solution for precise motor control.

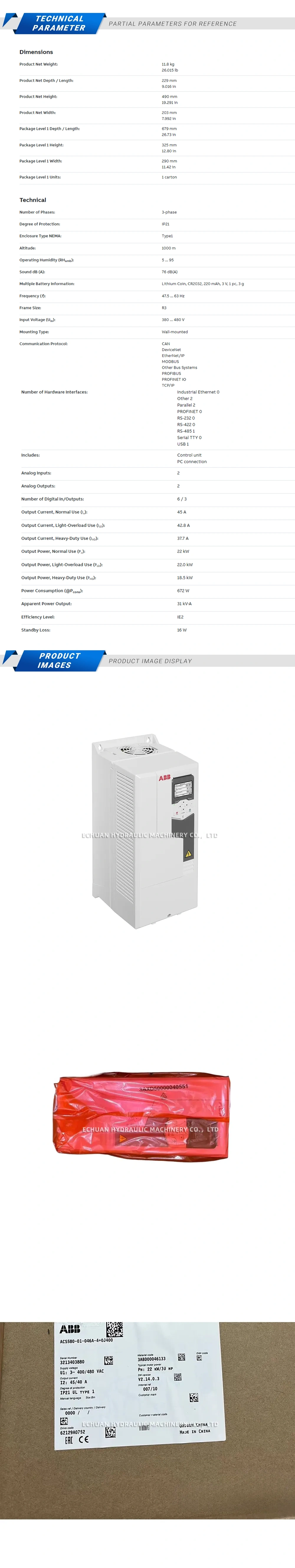

Technical Specifications:
- Power Rating (Light-Duty): 22 kW
- Power Rating (Heavy-Duty): 18.5 kW
- Nominal Output Current: 46 A
- Input Voltage: 3-Phase, 380-480 V AC
- Enclosure Rating: IP21
- Frame Size: R3
- EMC Filter: Built-in C2 EMC Filter (Option +0J400)
- Brake Chopper: Built-in as standard
ABB ACS580-01-046A-4+0J400
Discover the ABB ACS580-01-046A-4, a 22 kW general-purpose variable frequency drive for 400V systems. This VFD ensures reliable motor control with an intuitive interface, built-in C2 EMC filter, and energy-saving features, ideal for pumps, fans, and conveyors.
