Product Description
ABB AI801 3BSE020512R1
The ABB AI801 (3BSE020512R1) is an analog input module for the S800 I/O system. It features 8 individually configurable channels designed to measure current or voltage signals with high accuracy and resolution. This module is suitable for a wide range of industrial process control applications, providing reliable data acquisition from field devices. It supports HART pass-through communication on each channel, enabling seamless integration and diagnostics of HART-enabled transmitters and actuators.

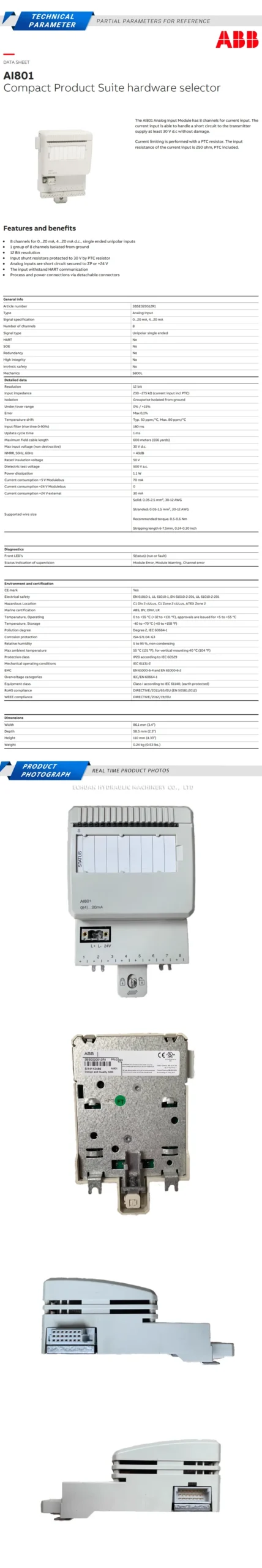

Technical Specifications:
- Product ID: 3BSE020512R1
- Product Type: Analog Input Module
- System Compatibility: ABB S800 I/O
- Number of Channels: 8, individually isolated
- Input Signal Type: Current or Voltage, selectable per channel
- Current Input Range: 0…20 mA, 4…20 mA
- Voltage Input Range: 0…10 V, -10…+10 V, 0…5 V, 1…5 V
- Resolution: 14 bits + sign (for voltage), 14 bits (for current)
- Input Impedance (Current): 250 Ohm
- Input Impedance (Voltage): > 10 MOhm
- HART Communication: Yes, HART pass-through on all 8 channels
- Supply Voltage: 24 V DC (from ModuleBus)
- Power Dissipation: Typically 2.5 W
- Operating Temperature: -40 °C to +70 °C
- Protection Class: IP20
- Mounting: DIN rail
- Termination Unit: Requires TU810, TU812, TU814, TU830, TU833, TU842, TU843, TU852
ABB AI801 3BSE020512R1
Model：ABB AI801 3BSE020512R1
| Brand | ABB |
|---|---|
| Model | AI801 3BSE020512R1 |
| Part No. | ABB AI801 3BSE020512R1 |
| Category | Electrical |
| Link | https://www.echuan-hydraulic.com/product/abb-ai801-3bse020512r1 |
