Product Description

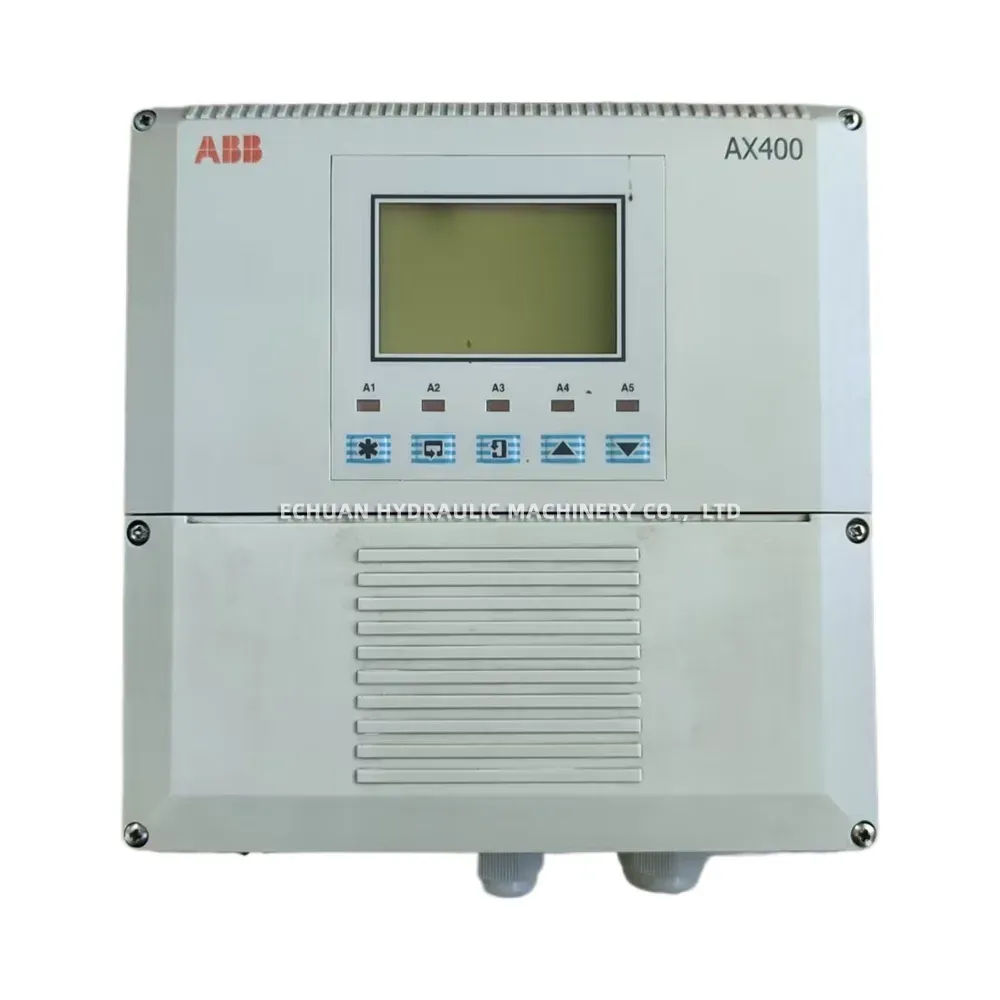

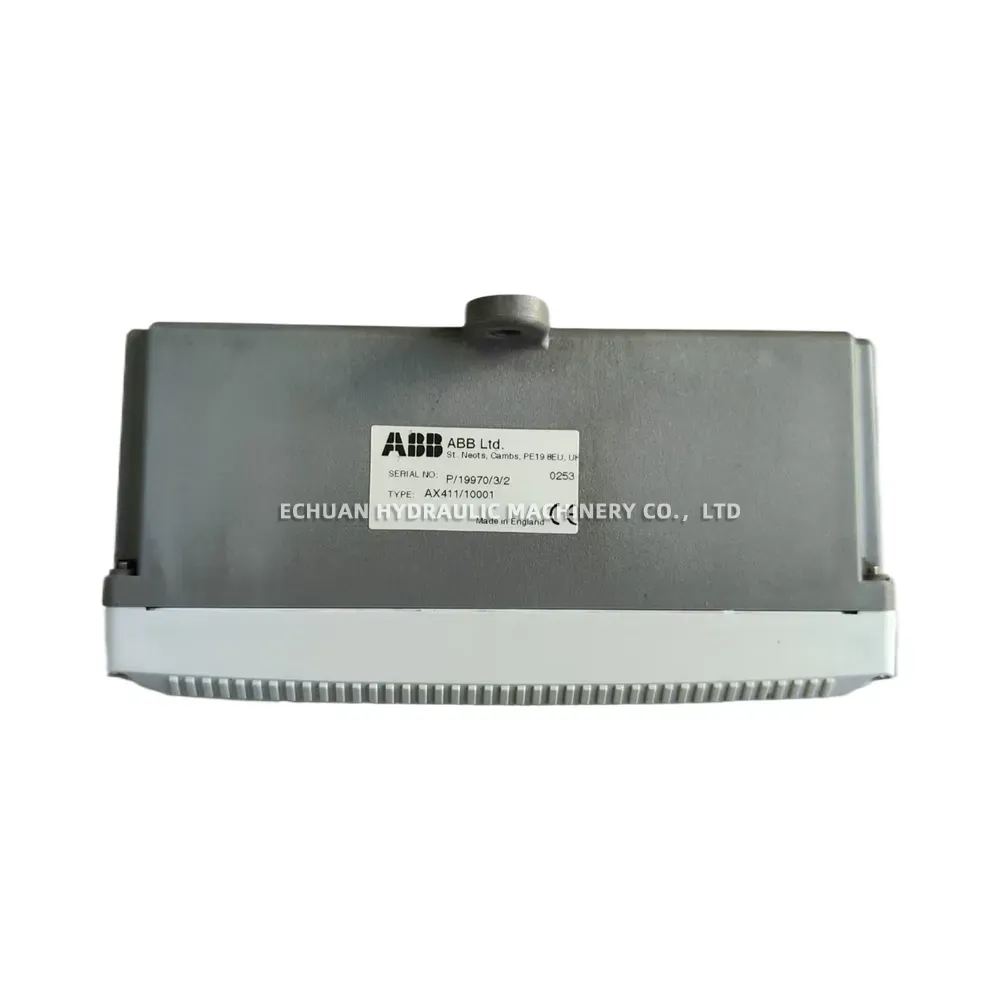

ABB AX411/10001 Single-input and dual-input analyzers
The ABB AX411 is a versatile and reliable single-input analyzer designed for the continuous monitoring of pH and Redox (ORP) in a wide range of process applications. Part of the advanced AX400 series, this instrument combines robust construction with user-friendly operation, featuring a clear backlit LCD display and an intuitive menu structure. It is engineered for demanding environments, including chemical processing, power generation, and water/wastewater treatment plants. The AX411 provides accurate and stable measurements, enhanced by features like automatic buffer recognition and comprehensive sensor diagnostics, ensuring process integrity and minimizing maintenance requirements.

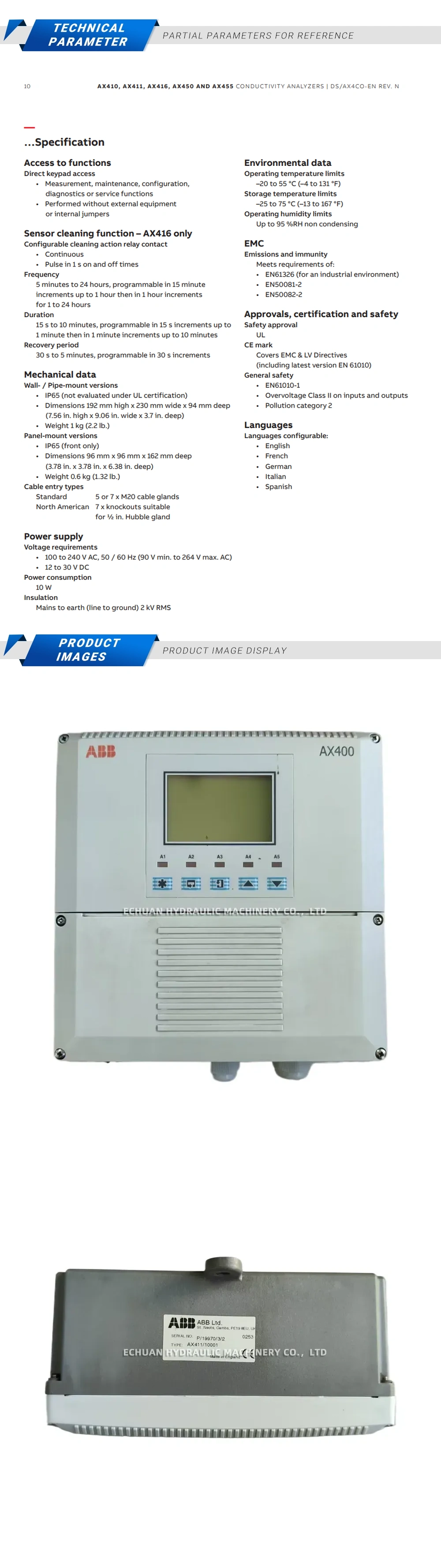

Technical Specifications:
- Measurement Range: -2 to 16 pH / -1500 to +1500 mV (Redox/ORP)
- Accuracy: ±0.01 pH / ±1 mV
- Outputs: Two isolated analog outputs (0-20 mA or 4-20 mA) and three alarm relays
- Power Supply: 85 to 265 V AC, 50/60 Hz
- Enclosure Protection: IP66 / NEMA 4X (wall, panel, or pipe-mount versions)
ABB AX411/10001 Single-input and dual-input analyzers
High-performance ABB AX411/10001 single-input analyzer for precise pH and Redox (ORP) measurement in industrial water and process applications. Features an IP66 enclosure and dual current outputs for reliable process control.
