Product Description

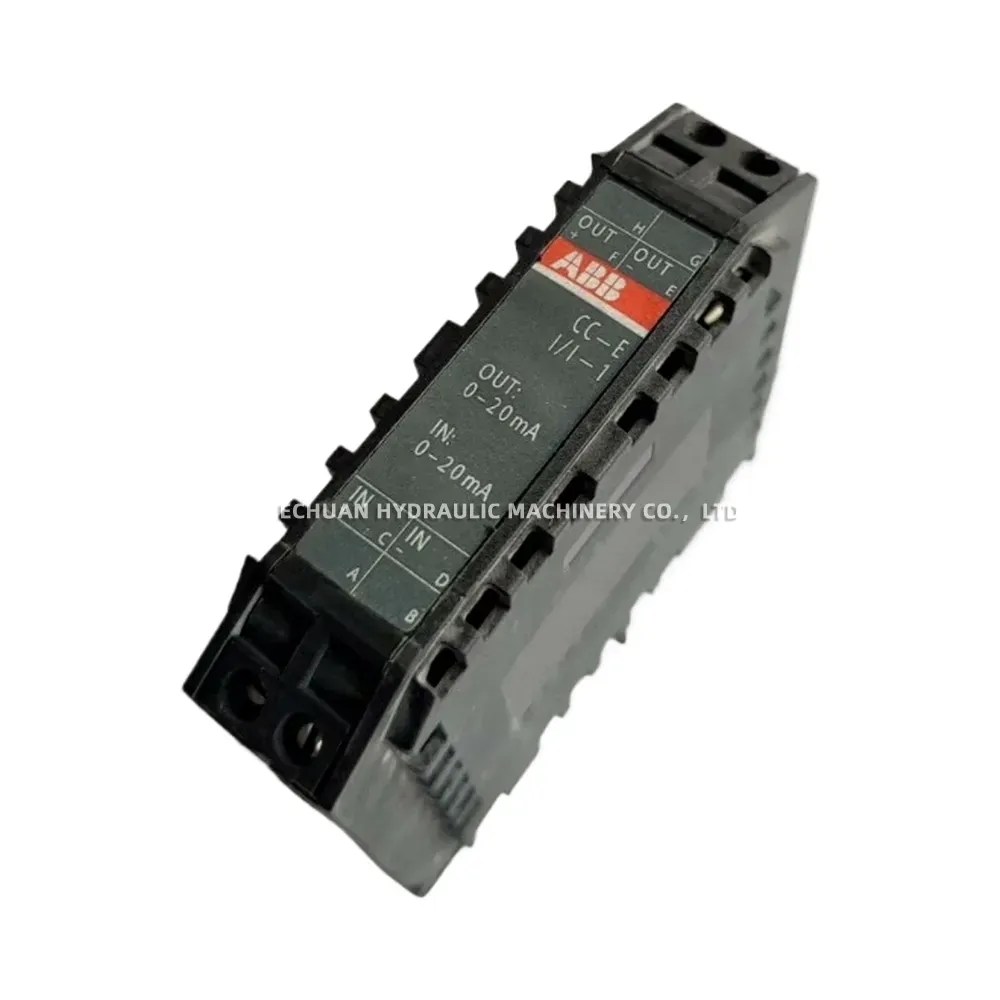

ABB CC-E I/I-1 Signal Converter
The ABB CC-E I/I-1 is a single-function analog signal converter belonging to the CC-E range. It is designed for converting standard analog current signals (0-20 mA or 4-20 mA) into other standard analog current signals. This device provides electrical isolation between the input, output, and power supply circuits (3-way isolation), preventing interference and ground loop issues. Configuration is typically done via DIP switches located on the side of the unit, allowing for easy setup of input and output signal ranges without requiring software. Its compact design makes it suitable for space-saving installation on DIN rails within control cabinets.

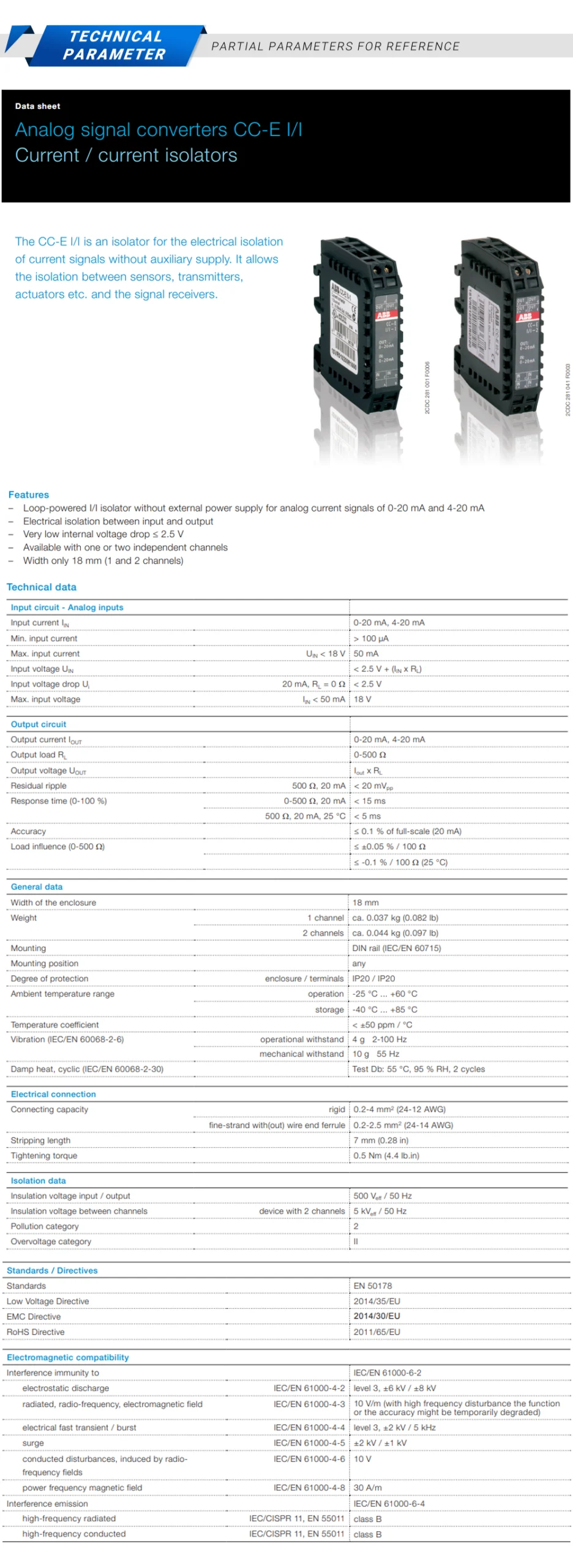

Technical Specifications:
- Rated Supply Voltage (Us): 24 V DC
- Input Signal Range: 0-20 mA / 4-20 mA (selectable via DIP switch)
- Output Signal Range: 0-20 mA / 4-20 mA (selectable via DIP switch)
- Number of Input Channels: 1
- Number of Output Channels: 1
- Isolation: 3-way (Input / Output / Supply)
- Test Voltage (Input/Output/Supply): 2.5 kV (1 min, 50 Hz)
- Accuracy: Typically ≤ 0.1% of full scale value
- Configuration: Via DIP switches
- Mounting: DIN rail (EN 60715)
- Ambient Temperature (Operation): -20°C to +60°C
- Degree of Protection: Housing IP40 / Terminals IP20
- Product Net Width: 12.5 mm

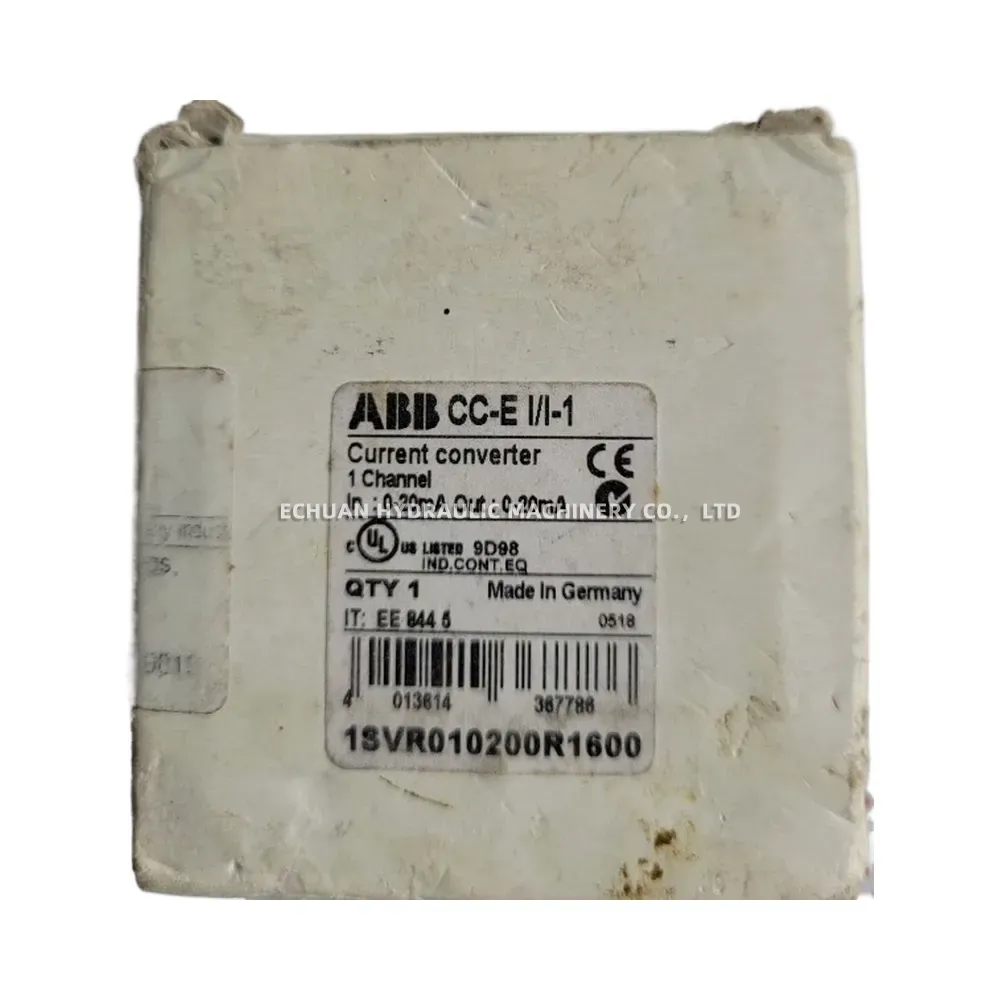

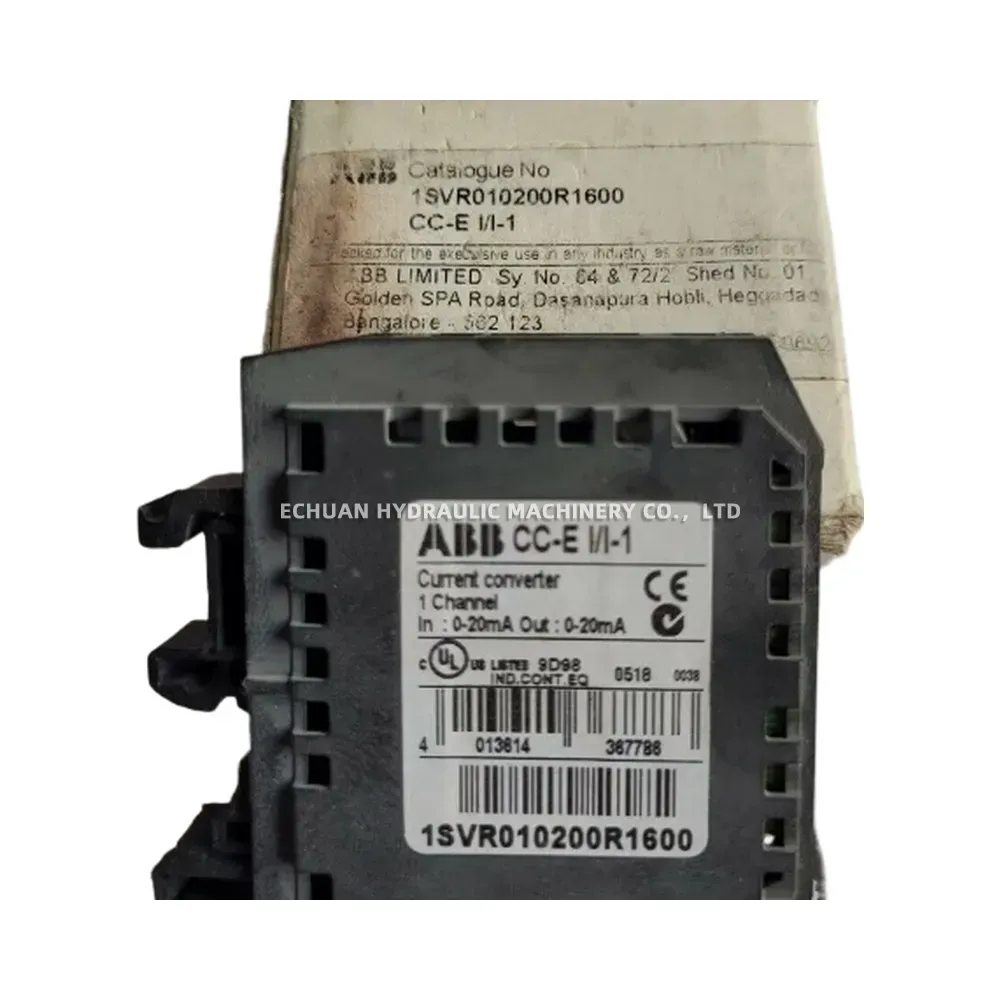

ABB CC-E I/I-1
Model:ABB CC-E I/I-1
| Brand | ABB |
|---|---|
| Model | CC-E I/I-1 |
| Part No. | ABB CC-E I/I-1 |
