Product Description

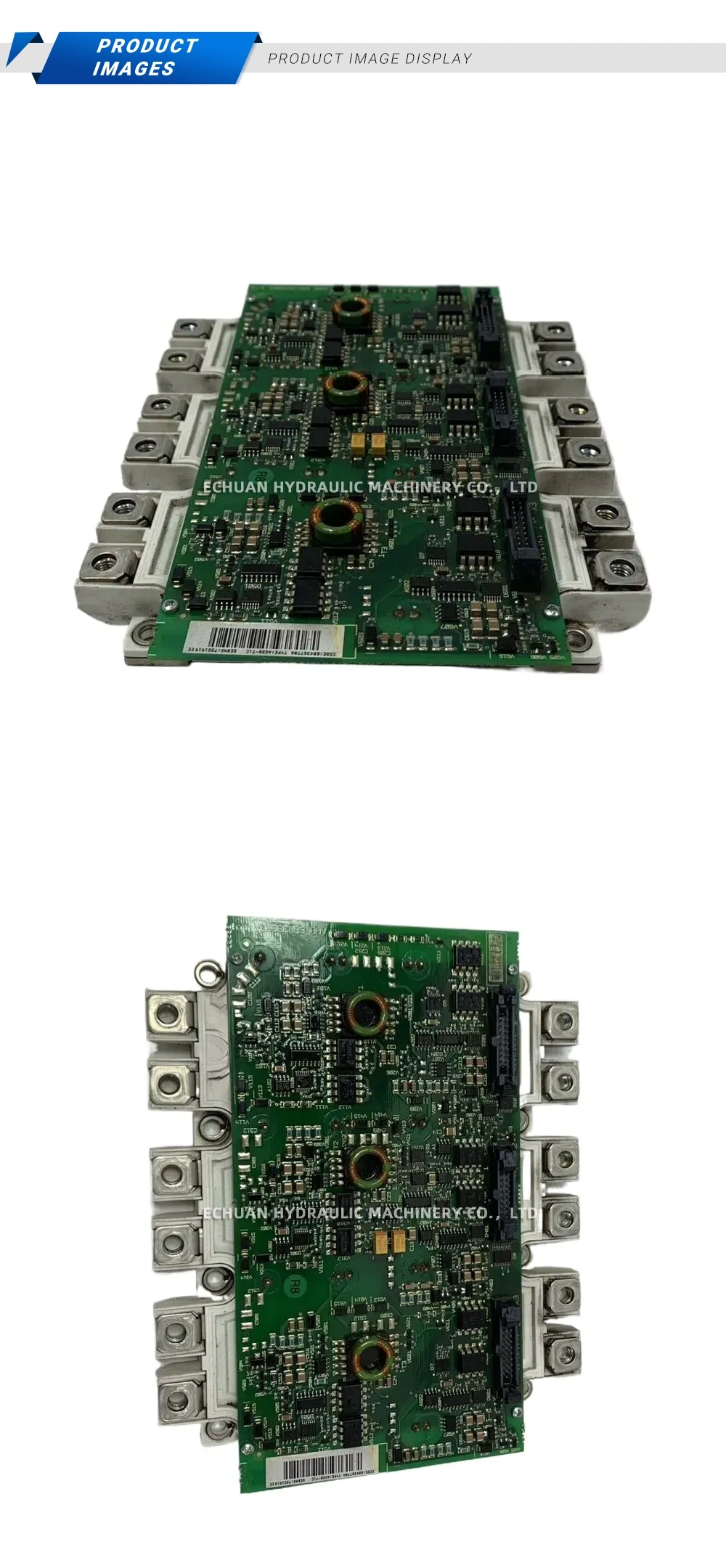

ABB FS300R12KE3/AGDR-71C
The ABB FS300R12KE3/AGDR-71C is a high-performance power electronics assembly, combining an Infineon EconoDUAL™ 3 IGBT module (FS300R12KE3) with a perfectly matched ABB AGDR-71C gate driver unit. This integrated solution is engineered for reliability and efficiency in demanding high-power conversion applications. The 1200V, 300A three-level IGBT module provides excellent switching performance, while the AGDR-71C driver ensures safe and optimized operation with features like short-circuit protection, advanced active clamping, and under-voltage lockout. This pre-assembled and tested unit simplifies system design and accelerates development time for applications such as solar inverters, uninterruptible power supplies (UPS), and industrial motor drives.
Technical Specifications:
- Model: FS300R12KE3/AGDR-71C
- Component 1 (IGBT): Infineon FS300R12KE3
- Component 2 (Driver): ABB AGDR-71C Gate Driver
- Collector-Emitter Voltage (Vces): 1200 V
- Nominal Collector Current (Ic): 300 A
- Configuration: Three-Level Inverter
- Package: EconoDUAL™ 3
- Driver Features: Short-circuit protection, advanced active clamping, under-voltage lockout (UVLO)
ABB FS300R12KE3/AGDR-71C
Discover the ABB FS300R12KE3/AGDR-71C, a reliable 1200V, 300A IGBT module with an integrated AGDR-71C gate driver. This power module is optimized for high-efficiency power conversion in solar inverters, UPS systems, and industrial drives.
