Product Description
ABB JCU-01 Control Unit Module
The ABB JCU-01 Control Unit Module is a highly reliable industrial control interface engineered specifically for ABB drive systems. This versatile module acts as the central processing and connectivity hub for your variable frequency drives, ensuring precise motor control and seamless integration into industrial automation networks. It features three dedicated expansion slots (Slot 1, Slot 2, and Slot 3) to accommodate additional option boards, allowing for highly customizable configurations. Equipped with a comprehensive array of I/O terminals, including a 24V power input, relay outputs, and multiple digital and analog channels, the JCU-01 provides robust data acquisition and signal processing capabilities. Built to ABB’s exacting standards, this control unit (Part Number 68592917) delivers exceptional performance and longevity in demanding industrial environments.
Technical Specifications:
- Brand: ABB
- Model: JCU-01

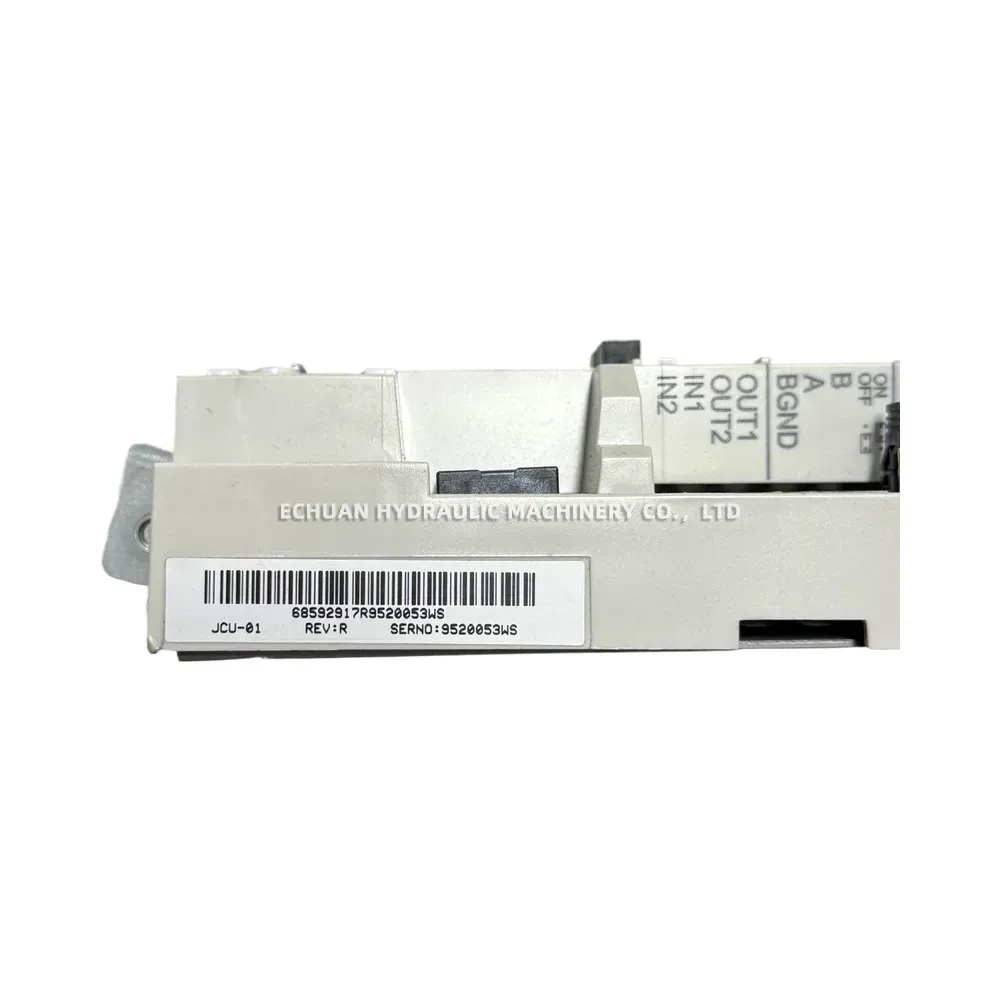

- Part Number: 68592917 (68592917R9520053WS)
- Hardware Revision: REV: R

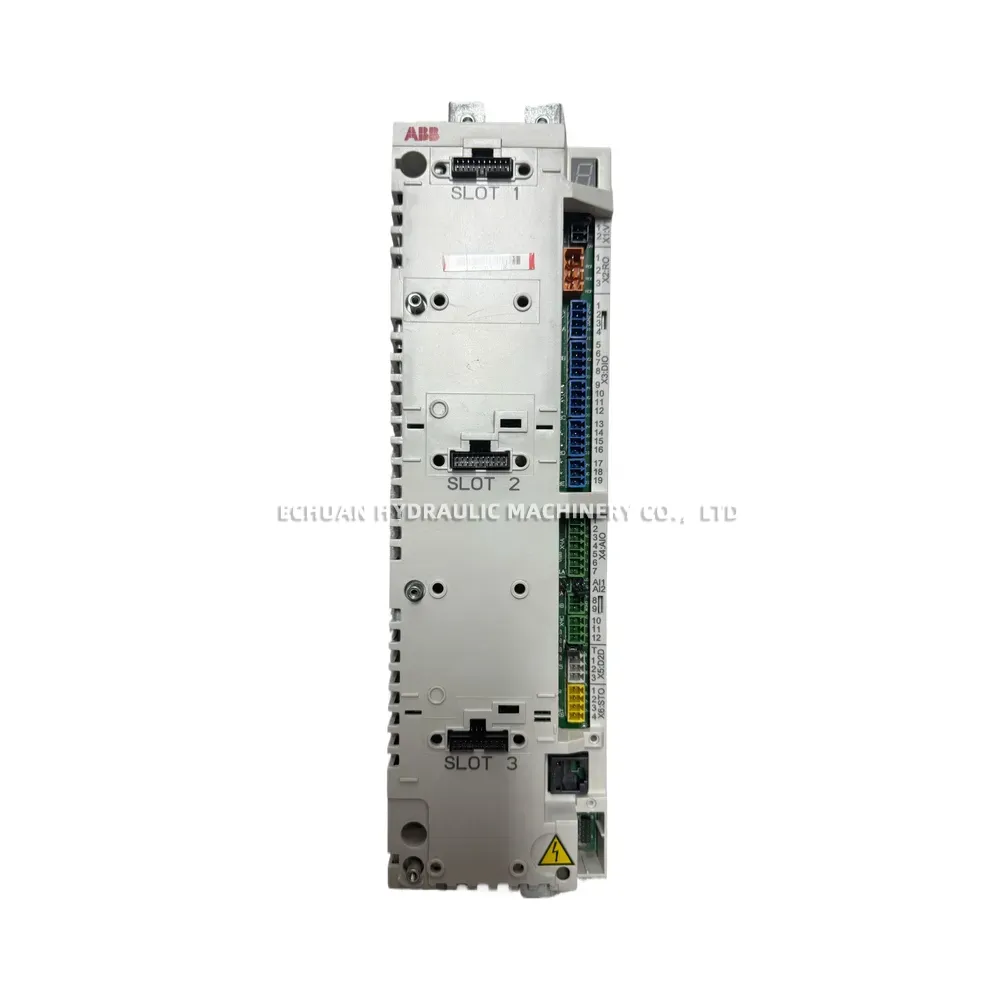

- Expansion Slots: 3 Slots (Slot 1, Slot 2, Slot 3) for option boards
- Power Supply: 24V DC Input

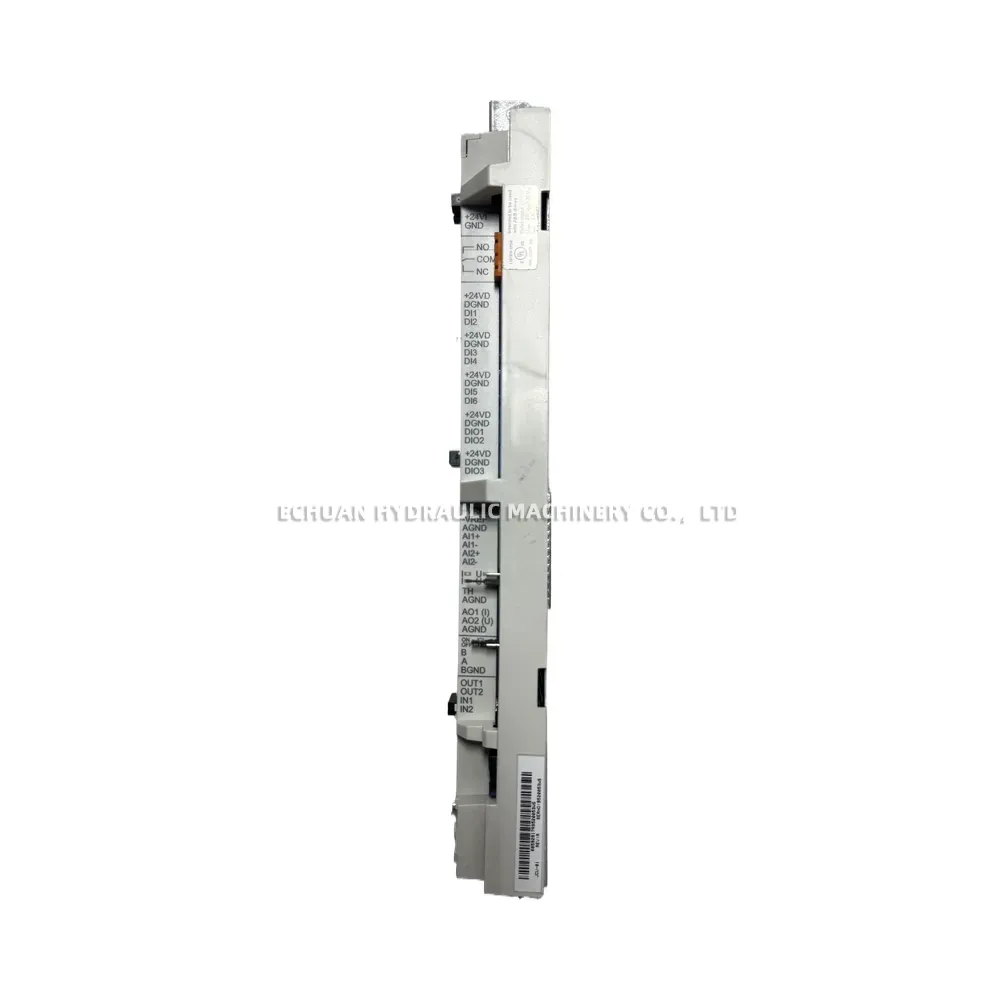

- Digital I/O: 6 x Digital Inputs (DI1-DI6), 3 x Digital I/Os (DIO1-DIO3)
- Analog I/O: 2 x Analog Inputs (AI1, AI2), 2 x Analog Outputs (AO1, AO2)
- Relay Output: 1 x Relay Output (NO/COM/NC)
- Communication Interfaces: RS485 / Serial Interface
ABB JCU-01 Control Unit Module
Optimize your industrial drive systems with the genuine ABB JCU-01 Control Unit Module (Part No. 68592917). Featuring 3 expansion slots, comprehensive digital/analog I/O terminals, and reliable RS485 connectivity, this module ensures precise control and seamless automation integration for your ABB variable frequency drives.
