Product Description

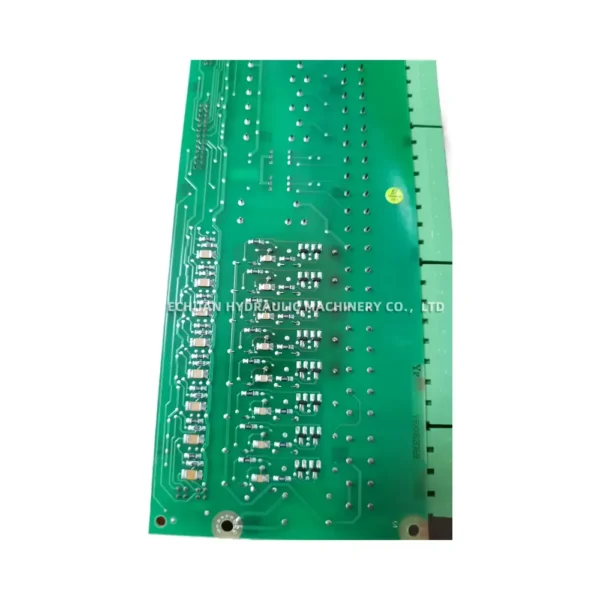

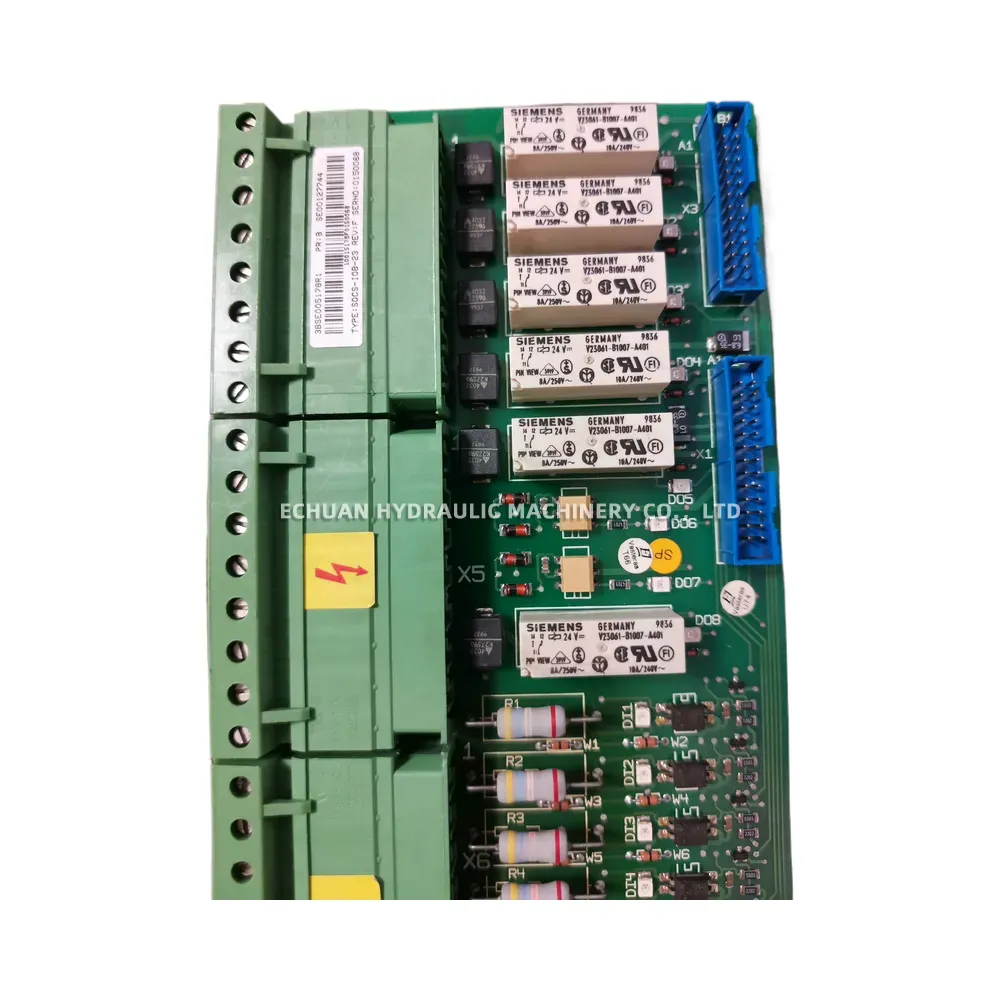

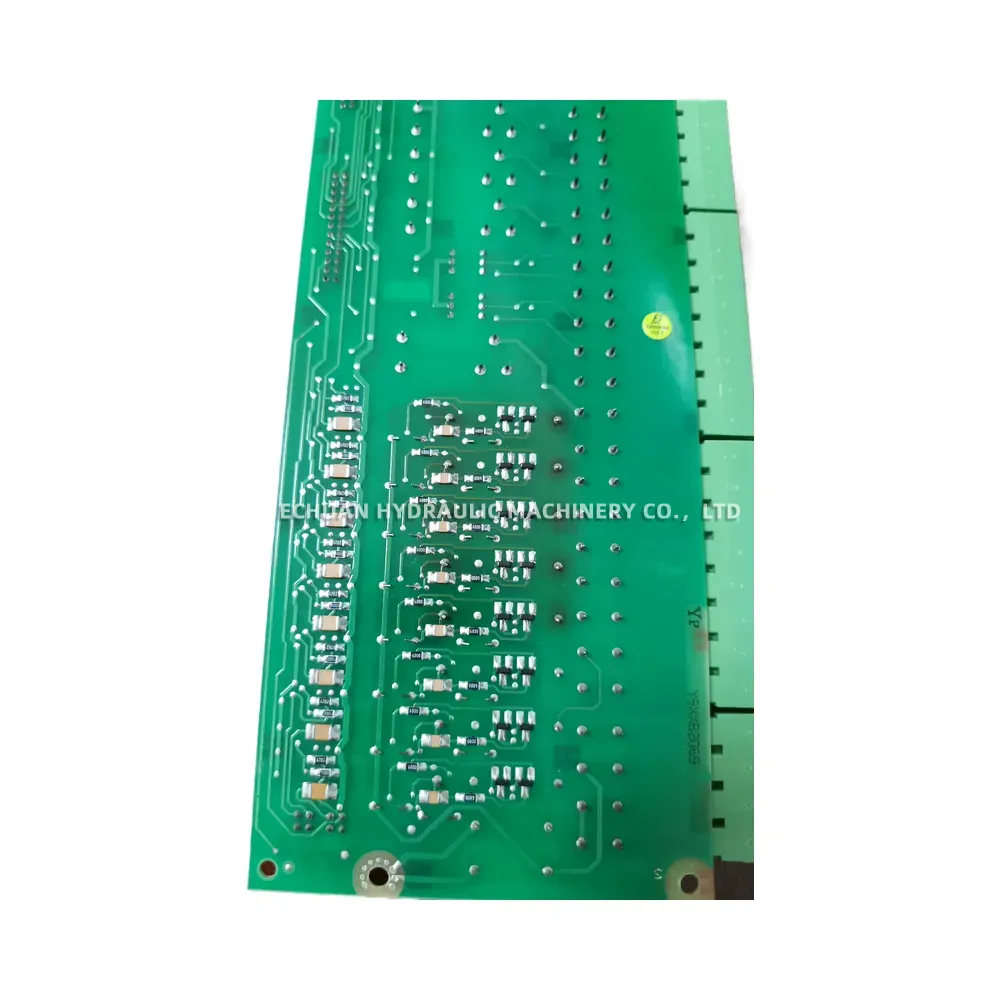

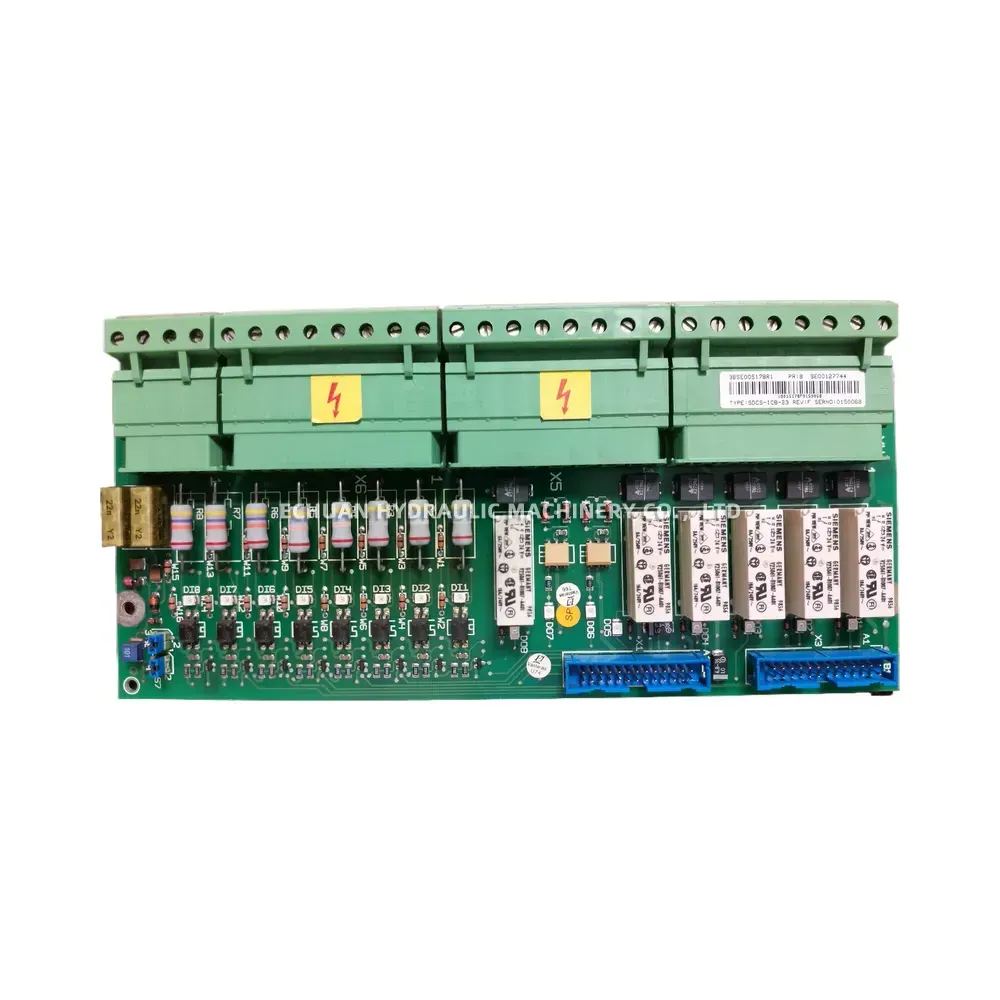

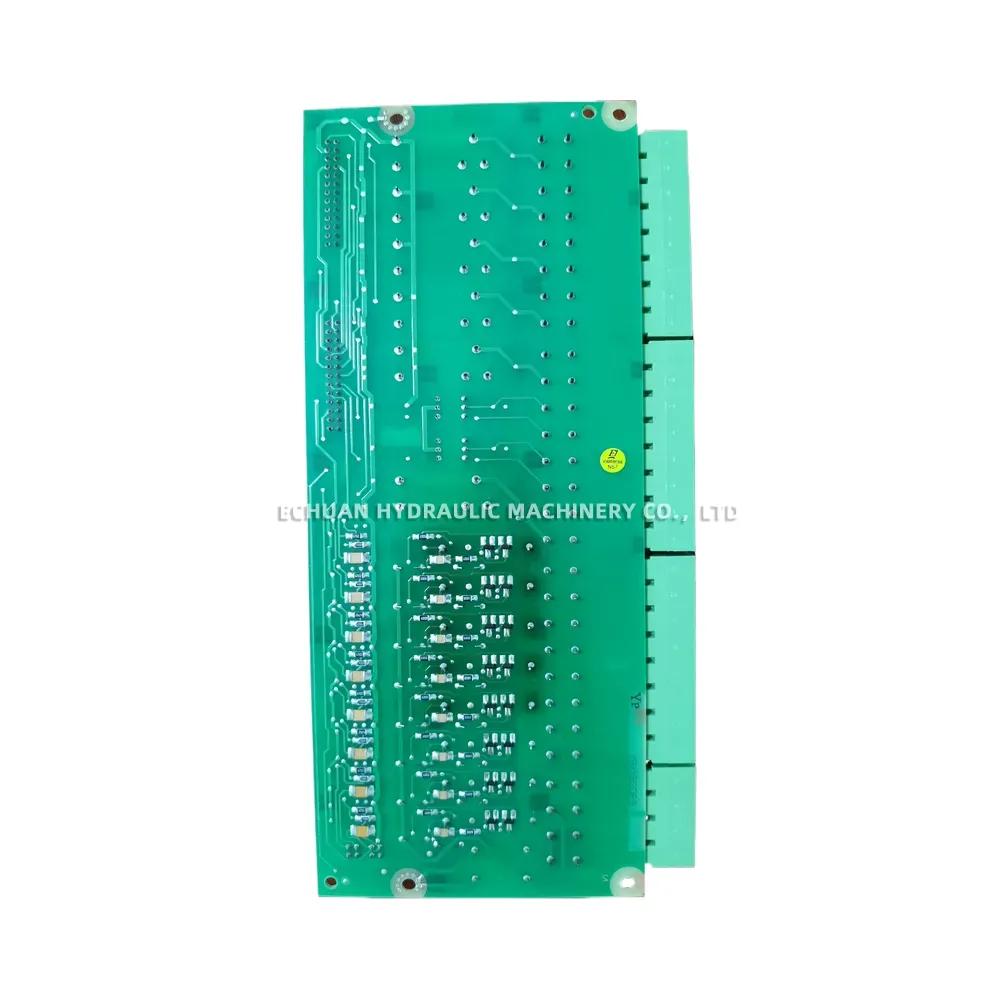

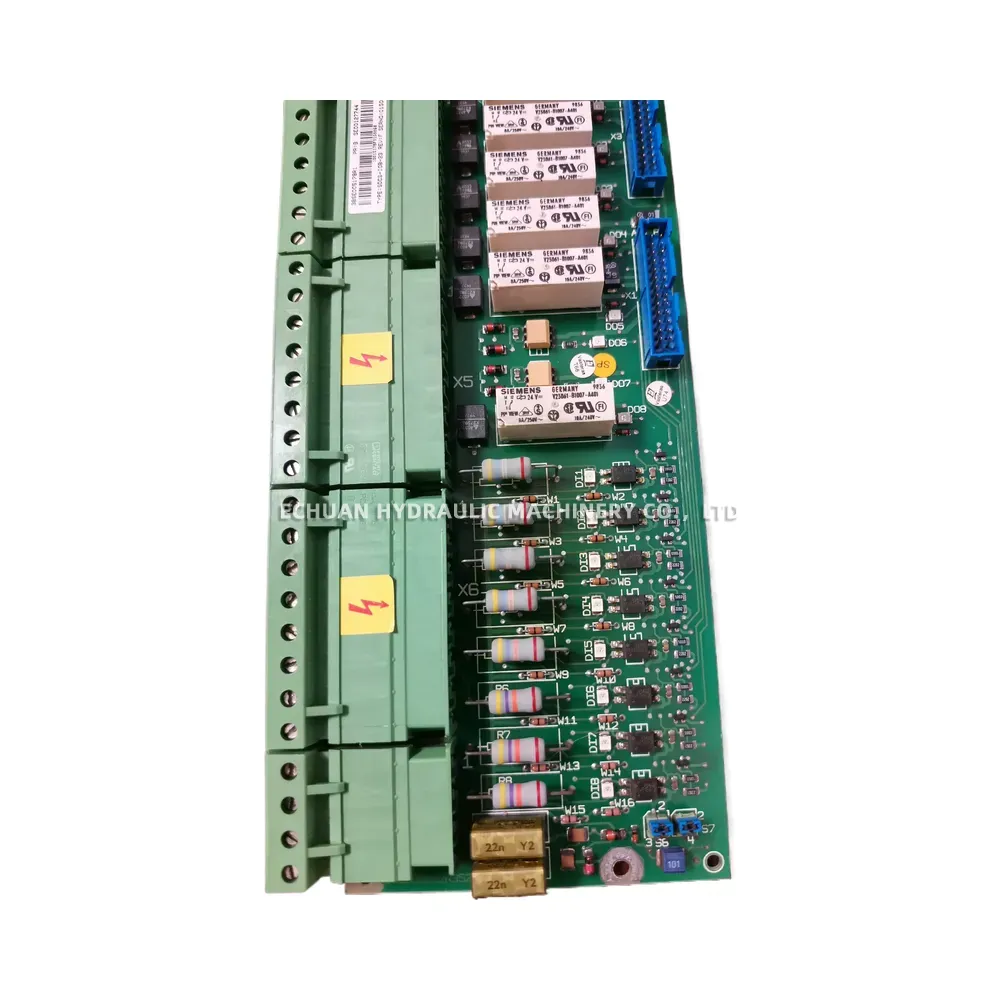

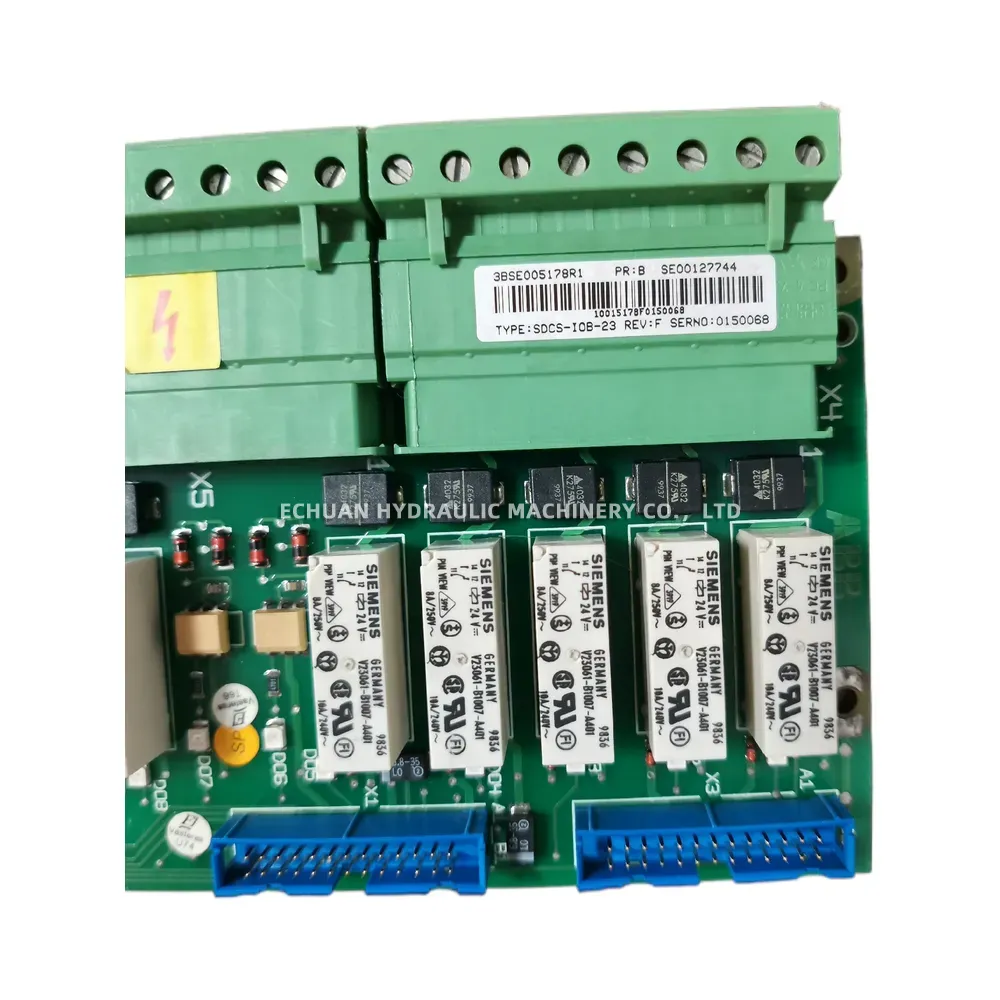

ABB SDCS-IOB-23
The ABB SDCS-IOB-23 is an optional analog and digital I/O extension board designed primarily for use with ABB DCS800 series DC drives. It provides additional input and output capabilities beyond the standard connections available on the drive’s main control board, allowing for more complex control schemes and interfacing with external devices. This board enhances the flexibility and application range of the compatible drives.
Technical Specifications:
- Manufacturer: ABB
- Product Type: I/O Extension Board
- Part Number: SDCS-IOB-23 (Alternate P/N: 3ADT315000R0001)
- Compatibility: Designed for ABB DCS800 series drives (May also be compatible with DCS550 series)
- Analog Inputs: 4 (Typically configurable for voltage or current signals, e.g., +/-10V, 0/4-20mA)
- Analog Outputs: 2 (Typically configurable for voltage or current signals, e.g., +/-10V, 0/4-20mA)
- Digital Inputs: 6 (Typically 24VDC logic)
- Digital Outputs: 2 (Often Relay Outputs)
- Mounting: Plugs into the drive’s control board
ABB SDCS-IOB-23
Model:ABB SDCS-IOB-23
| Brand | ABB |
|---|---|
| Model | SDCS-IOB-23 |
| Part No. | ABB SDCS-IOB-23 |
| Category | Electrical |
