Product Description

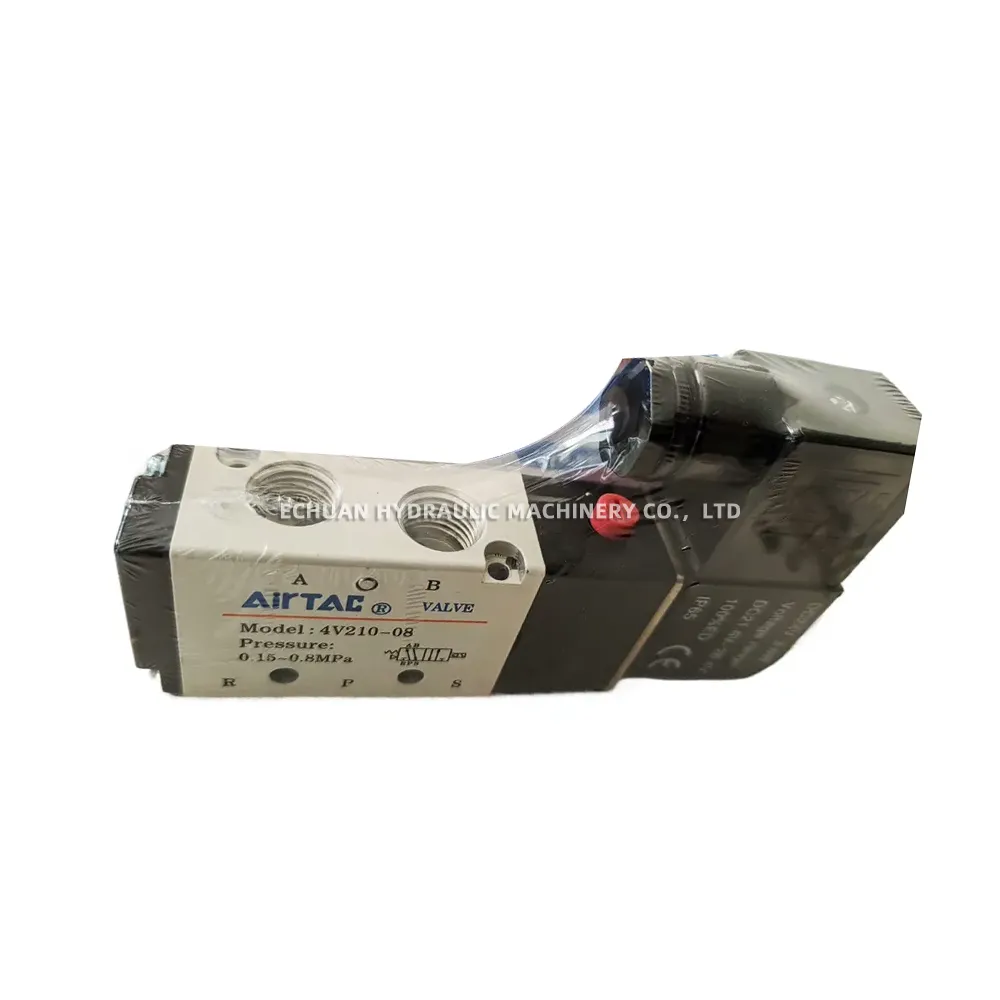

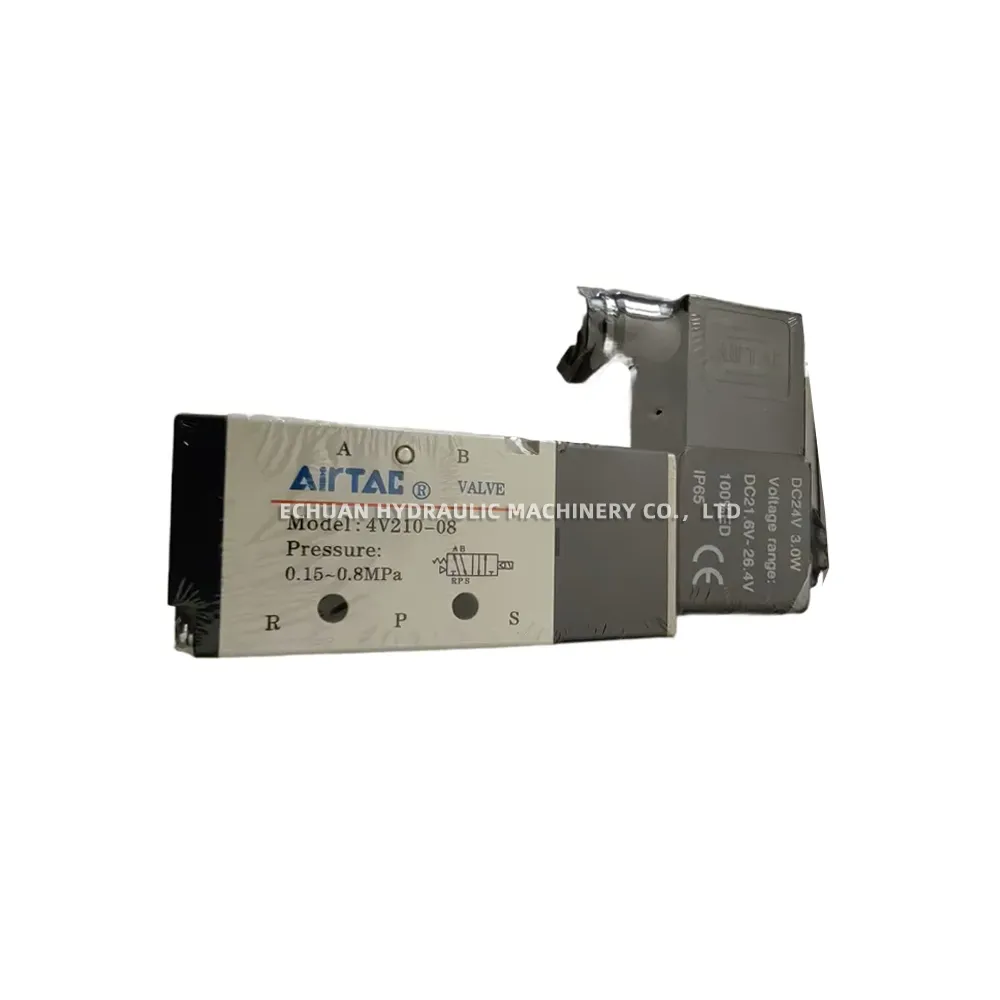

AirTAC 4V210-08B

The AirTAC 4V210-08B is a 5-port, 2-position, single solenoid pneumatic directional control valve. It is widely utilized in industrial automation to control the flow of compressed air, typically for operating pneumatic cylinders or other actuators. This valve features a G1/4″ port size and is known for its reliable performance, compact design, and ease of integration into pneumatic systems. The ‘B’ designation in the model number typically indicates a DIN connector type for electrical connection, often with an indicator light.

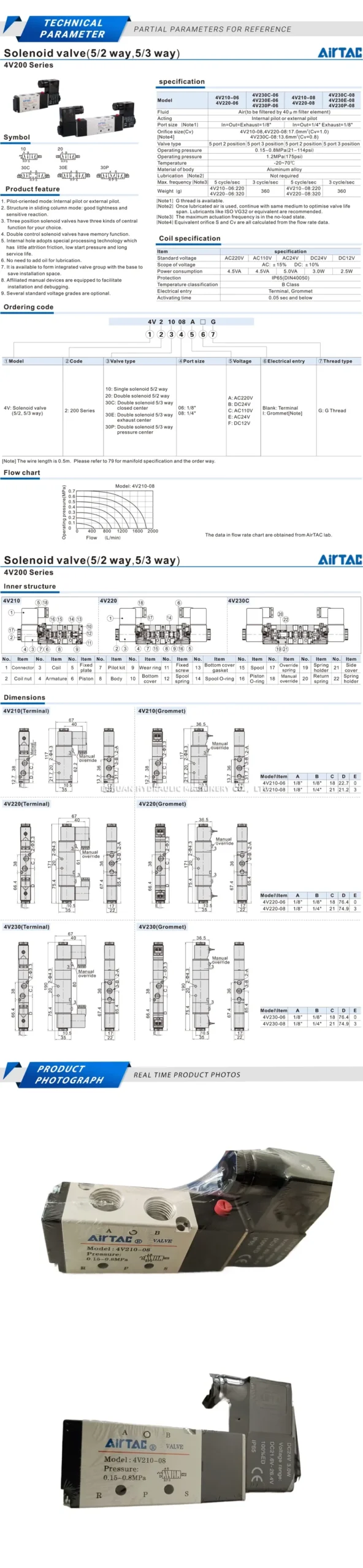

Technical Specifications:

Model: 4V210-08B
Type: 5/2 Way Single Solenoid Valve (Internally Piloted)
Fluid: Air (40 micron filtered)
Port Size (Inlet, Outlet): G1/4″
Port Size (Exhaust): G1/8″
Operating Pressure Range: 0.15 ~ 0.8 MPa (1.5 ~ 8 bar / 21 ~ 116 psi)
Proof Pressure: 1.2 MPa (12 bar / 174 psi)
Effective Sectional Area: 16mm² (Cv = 0.89)
Response Time: < 0.05 seconds
Maximum Operating Frequency: 5 cycles/second
Ambient and Fluid Temperature: -5°C to 50°C (No freezing)
Standard Voltages: DC12V, DC24V, AC24V, AC110V, AC220V (Coil voltage must be specified when ordering)
Coil Power Consumption (Typical): AC: approx. 4.5VA; DC: approx. 3W
Protection Class: IP65 (when used with appropriate DIN connector and gasket)
Electrical Entry: DIN Connector (Form B)
Lubrication: Not required
Body Material: Aluminum Alloy
Seal Material: NBR (Nitrile Butadiene Rubber)
