Product Description

Airtac HLH10X10S

The Airtac HLH10X10S is a compact, parallel-style air gripper designed for precision and reliability in automated systems. Part of the HLH series, this gripper features a lightweight, integrated design with a double piston mechanism, providing a large gripping force while maintaining a compact profile. Its high repeatability makes it ideal for delicate pick-and-place operations, electronics assembly, and other robotic applications requiring precise handling of small components. The body is constructed from a high-strength, hard-anodized aluminum alloy for durability and long service life. This model includes a built-in magnet for easy mounting of auto switches.

Technical Specifications:

  • Model: HLH10X10S

  • Gripper Type: Parallel Style

  • Action: Double Acting

  • Bore Size: 10 mm

  • Total Stroke: 10 mm (5 mm per finger)

  • Operating Pressure Range: 0.15 ~ 0.7 MPa

  • Repeatability: ±0.01 mm

  • Features: Built-in magnet for sensor switch

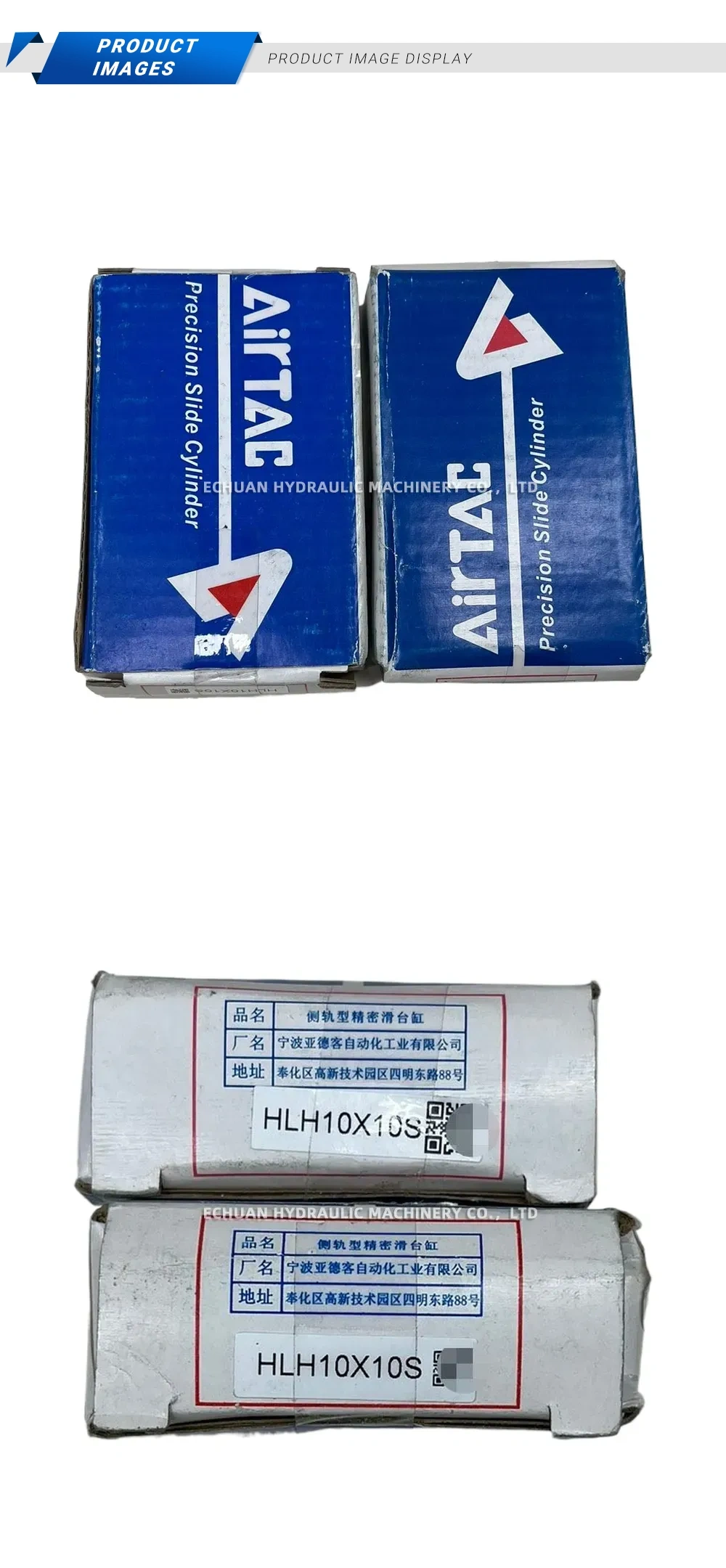

Airtac HLH10X10S Description

Airtac HLH10X10S

Airtac HLH10X10S parallel style pneumatic air gripper with a 10mm bore and 10mm total stroke. A compact and high-precision gripper ideal for automation and robotic pick-and-place applications.
