Product Description

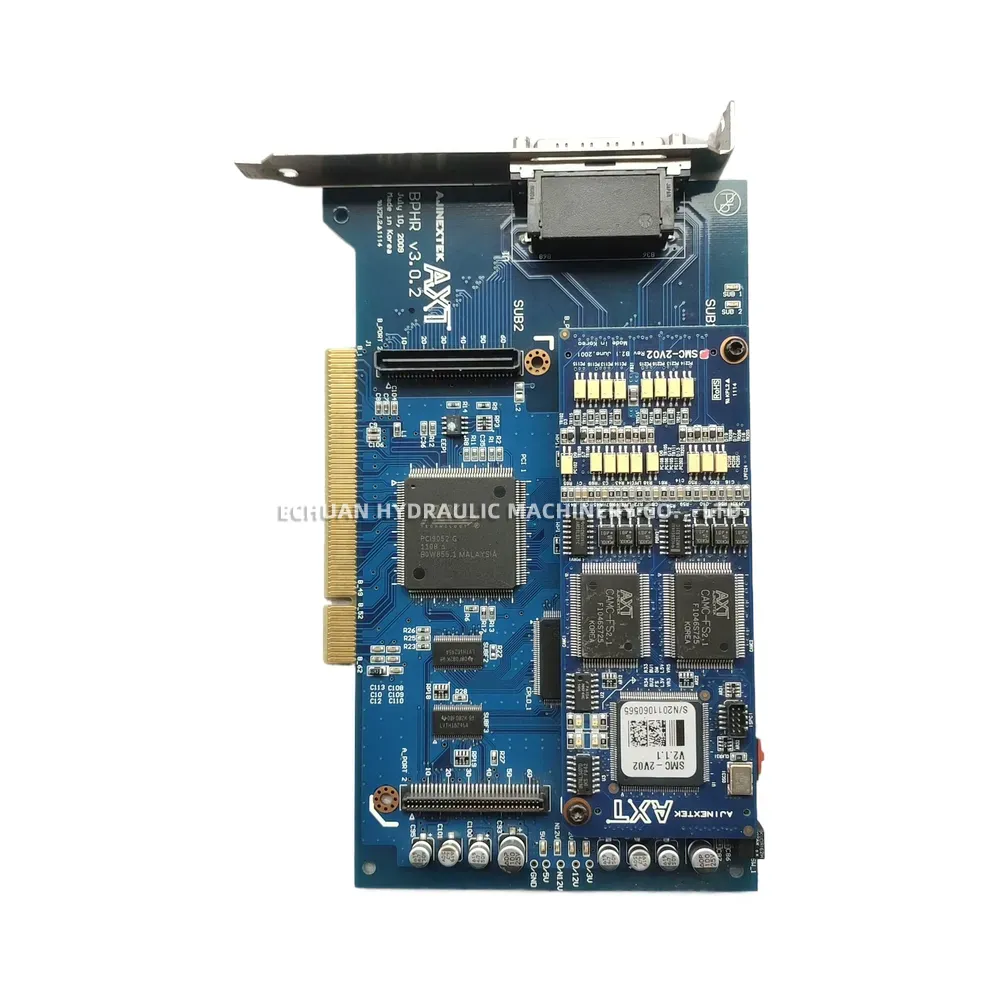

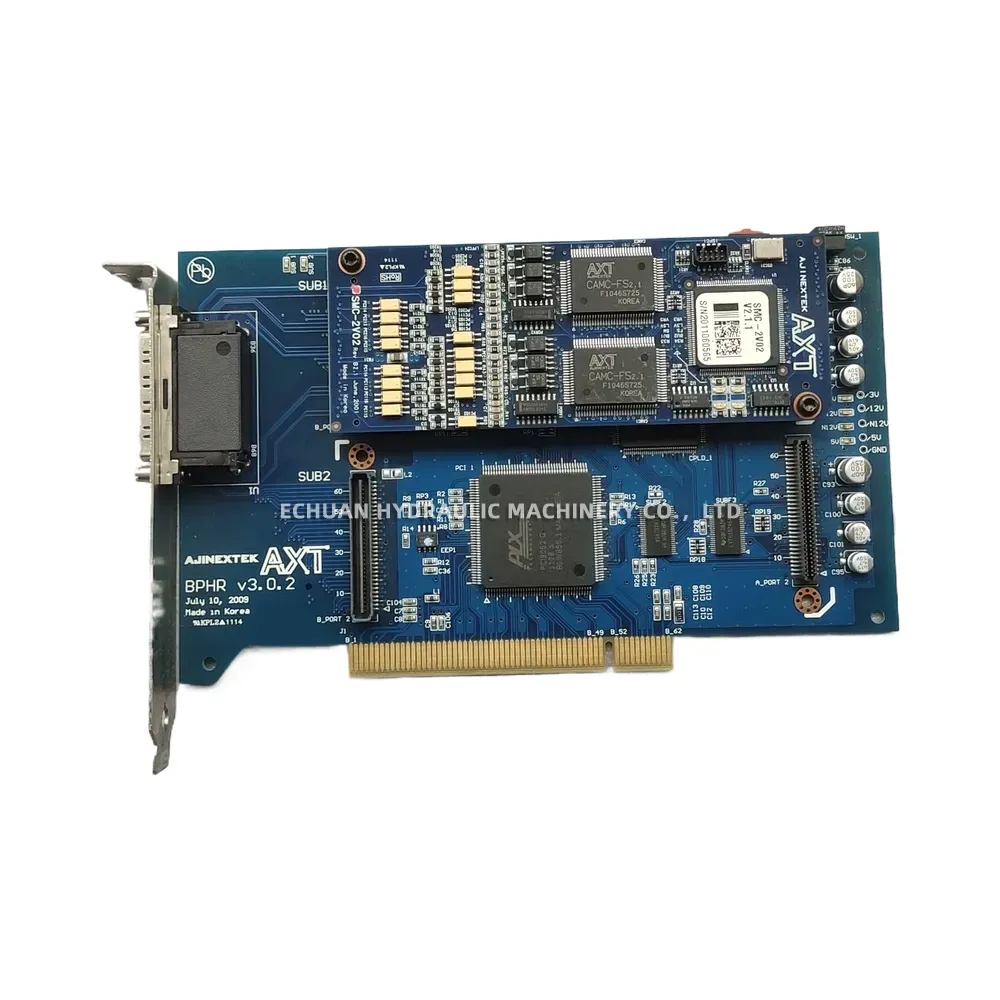

AJINEXTEK SMC-2V02 PCI Motion Control Card
The AJINEXTEK SMC-2V02 is a high-performance 2-axis motion control card designed for industrial automation applications. Utilizing a standard PCI interface, this card provides precise and reliable control for both stepper and servo motor systems. It is engineered around AJINEXTEK’s proprietary CAMC-FS2.1 motion control chip, ensuring robust performance for complex tasks such as multi-axis synchronization, linear and circular interpolation, and high-speed positioning. Ideal for integration into CNC machinery, robotics, semiconductor manufacturing, and automated inspection systems, the SMC-2V02 offers a powerful and cost-effective solution for demanding motion control requirements.
Technical Specifications:
- Controlled Axes: 2 Axes
- Host Interface: 32-bit PCI Bus

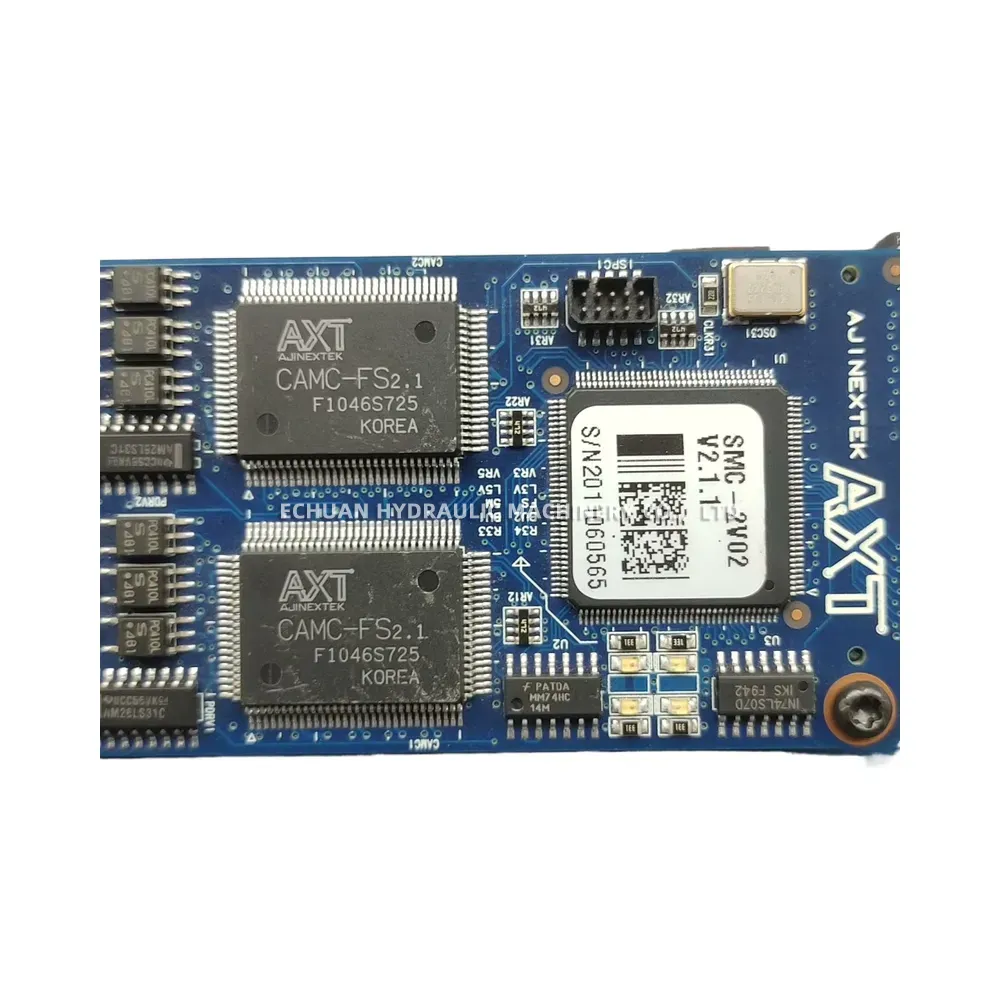

- Motion Control Chip: AJINEXTEK CAMC-FS2.1
- Max Pulse Output Rate: Up to 4 Mpps
- Pulse Output Method: Differential Line Driver (OUT/PULS, DIR/SIGN)
- Interpolation: 2-axis Linear, Circular, and Helical interpolation
- Encoder Input: 2 Channels (A, B, Z phase)
- Dedicated Motion I/O: Includes inputs for Emergency Stop (EMG), +/- Limit sensors, Origin sensor (ORG), Alarm (ALM), and In-position (INP) per axis.
AJINEXTEK SMC-2V02 PCI Motion Control Card
The AJINEXTEK SMC-2V02 is a reliable 2-axis PCI motion control card for high-precision industrial automation. It provides robust control for both stepper and servo motors, making it ideal for robotics, CNC, and automated inspection systems.
| Brand | AJINEXTEK |
|---|---|
| Model | SMC-2V02 |
| Part No. | 990258027210 |
| Category | Electrical |
