Product Description

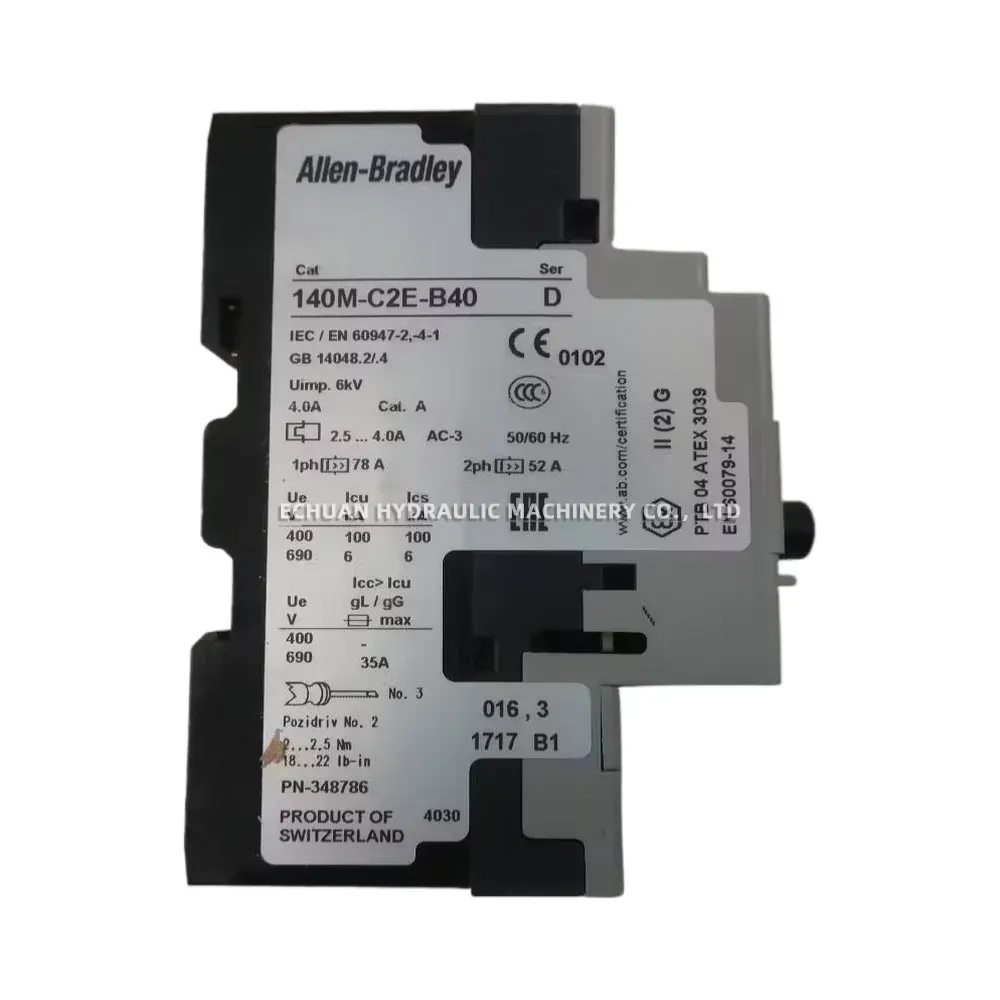

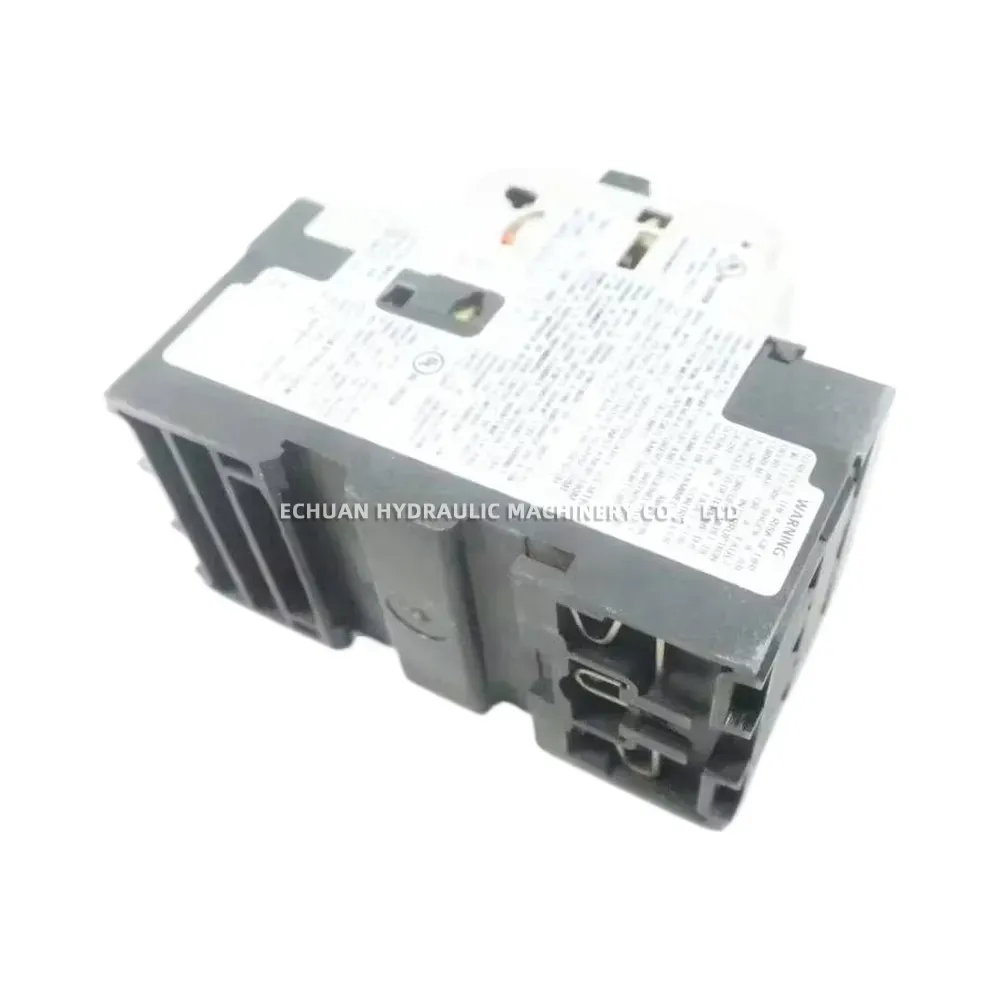

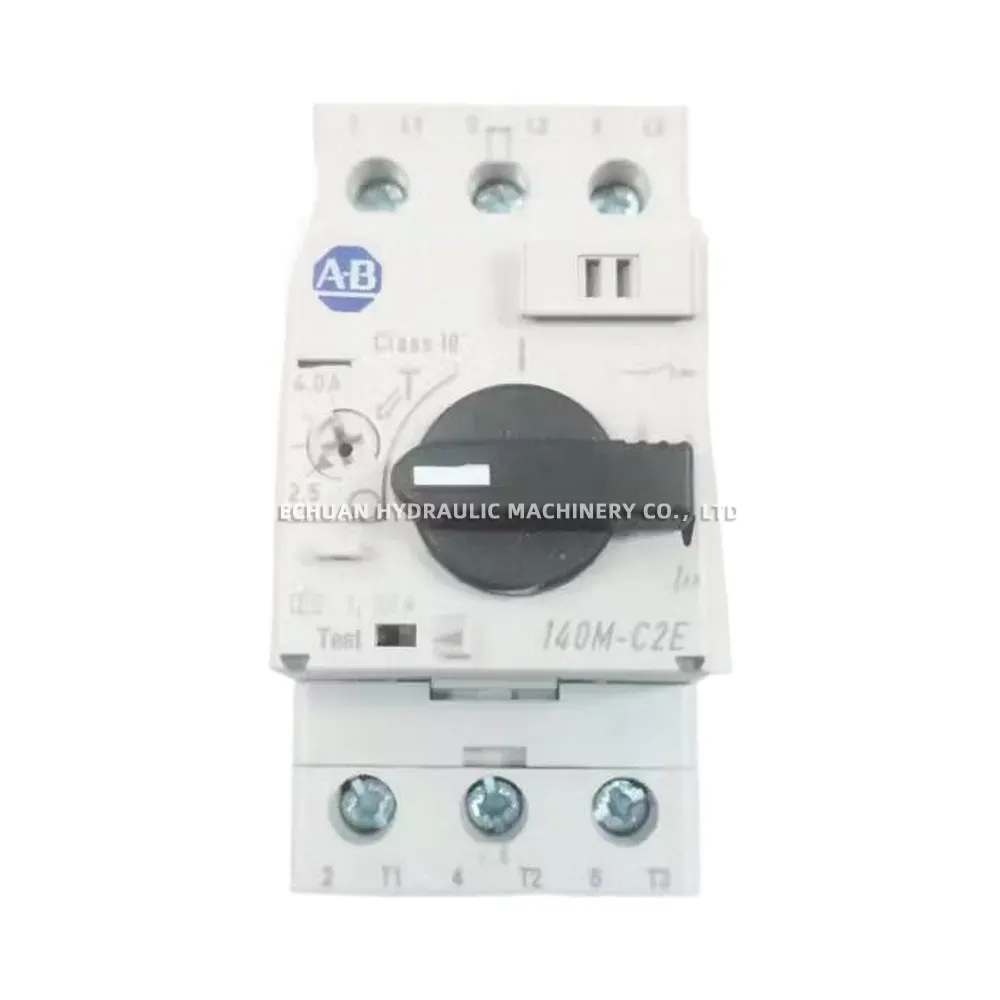

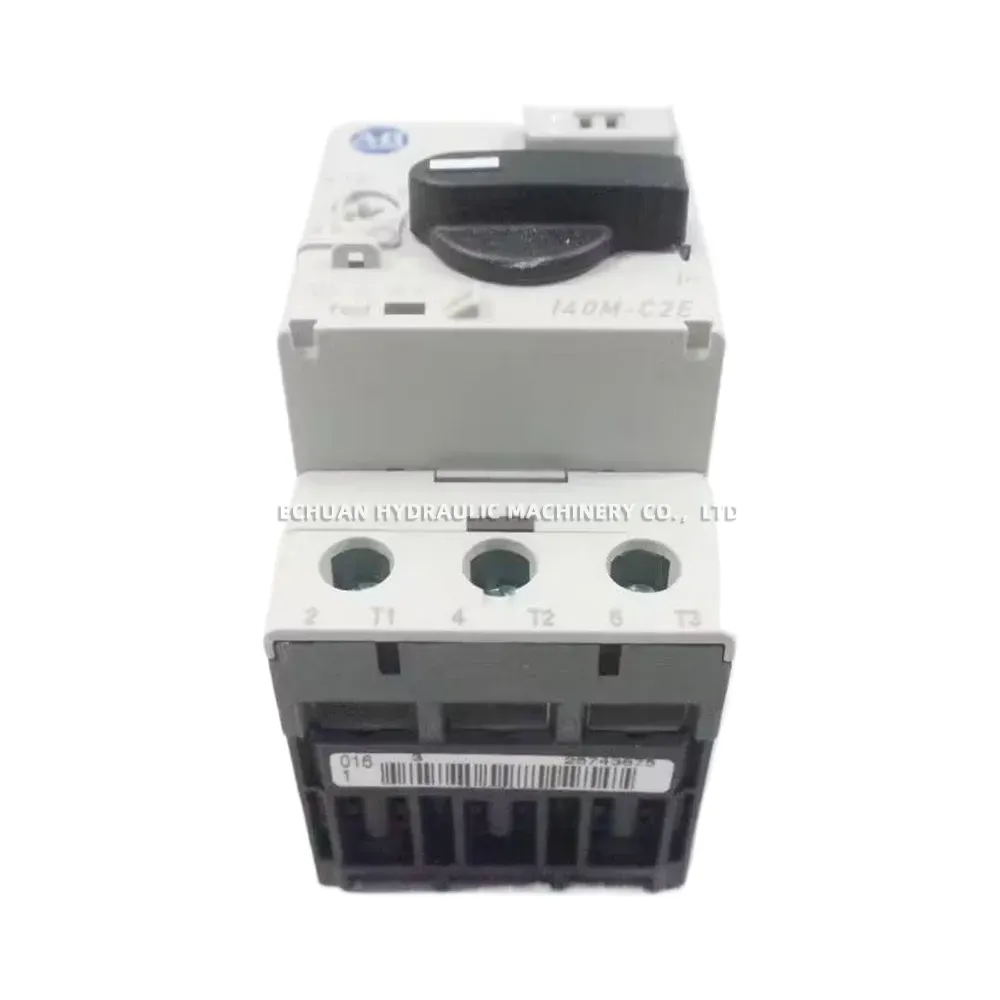

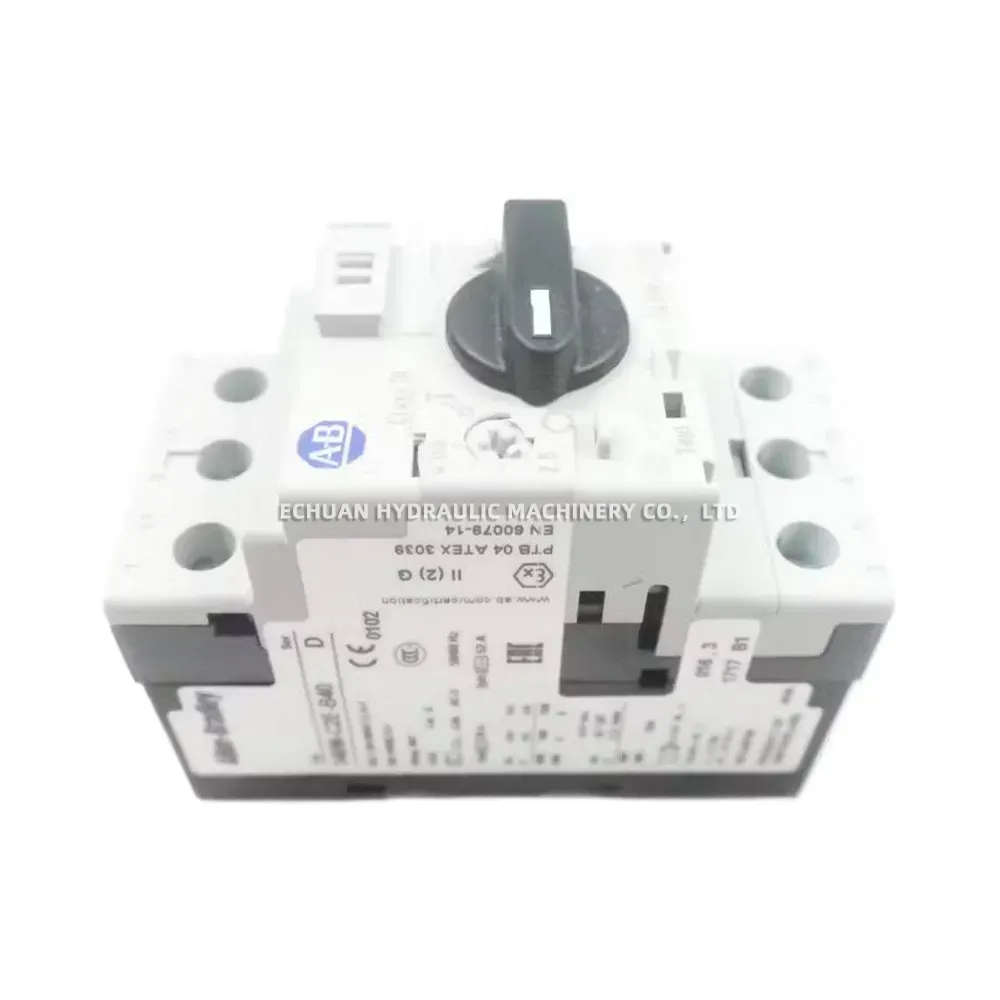

Allen-Bradley 140M-C2E-B40 Manual Motor Starter
The Allen-Bradley 140M-C2E-B40 by Rockwell Automation is a highly reliable, three-phase manual motor starter designed to deliver comprehensive thermal-magnetic motor protection. Functioning as a self-protected combination motor controller, this unit features a convenient rotary operating handle and a Class 10 trip mechanism. With a precise current setting range of 2.5 to 4.0 A, it is engineered for AC-3 utilization at 50/60 Hz. Built for rigorous industrial environments, it boasts a rated impulse withstand voltage (Uimp) of 6 kV and an exceptional short-circuit breaking capacity (Icu) of 100 kA at 400 V. The 140M-C2E-B40 ensures maximum safety and compliance, meeting stringent international standards including IEC/EN 60947-2, IEC/EN 60947-4-1, and ATEX II (2) G.
Technical Specifications:
- Manufacturer / Brand: Allen-Bradley (Rockwell Automation)
- Model Number: 140M-C2E-B40 (Series D)
- Current Setting Range: 2.5 … 4.0 A
- Trip Class: Class 10
- Rated Operational Voltage (Ue): Up to 690 V AC, 50/60 Hz
- Short-Circuit Breaking Capacity (Icu): 100 kA @ 400V / 6 kA @ 690V
- Rated Impulse Withstand Voltage (Uimp): 6 kV
- Utilization Category: AC-3
- Terminal Specifications: Screw terminals, Pozidriv No. 2, Torque 2…2.5 Nm (18…22 lb-in)
- Standards & Certifications: IEC/EN 60947-2, IEC/EN 60947-4-1, GB 14048.2/.4, ATEX II (2) G (PTB 04 ATEX 3039), CE 0102
Allen-Bradley 140M-C2E-B40 Manual Motor Starter
Shop the Allen-Bradley 140M-C2E-B40 Manual Motor Starter. This 3-phase, 2.5-4.0A thermal-magnetic circuit breaker offers a Class 10 trip and a 100kA short-circuit capacity at 400V for reliable, ATEX-certified industrial motor protection.
| Brand | Allen-Bradley |
|---|---|
| Model | 140M-C2E-B40 |
| Part No. | 1039363698870 |
| Category | Electrical |
| Link | https://www.echuan-hydraulic.com/product/allen-bradley-140m-c2e-b40-manual-motor-starter |
