Product Description

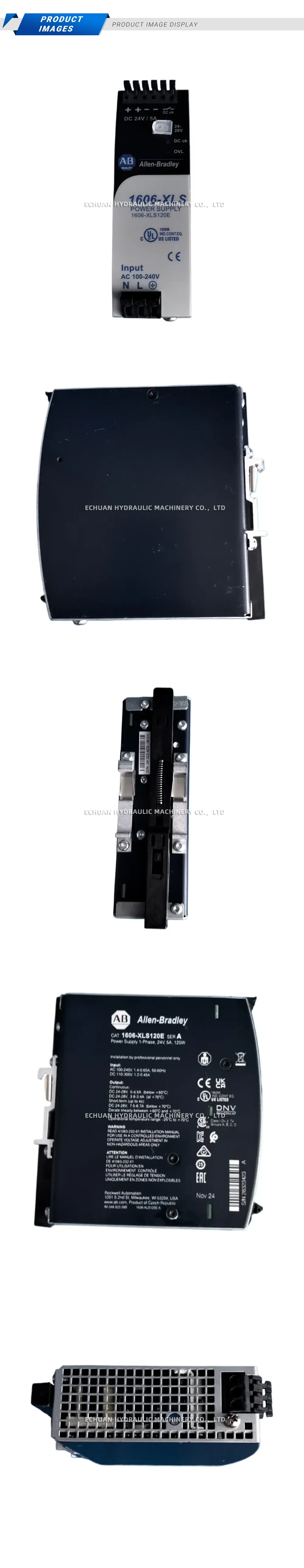

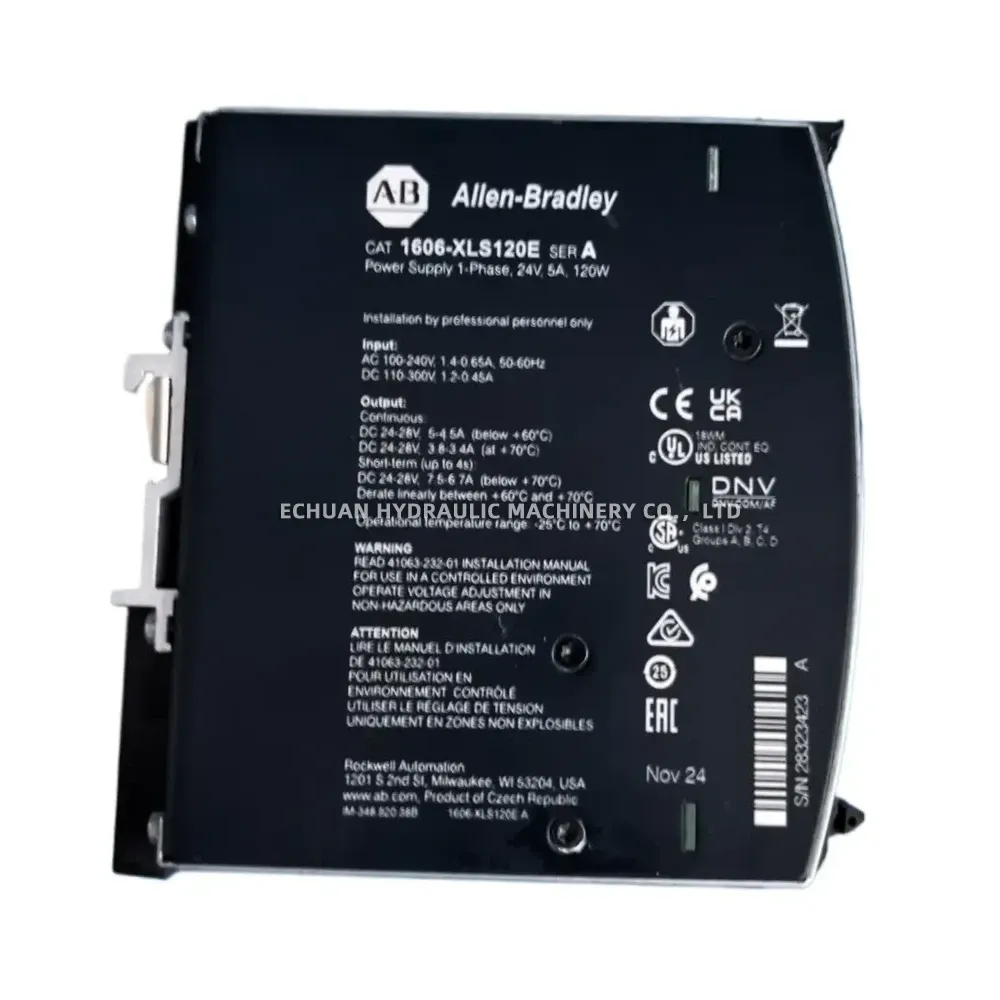

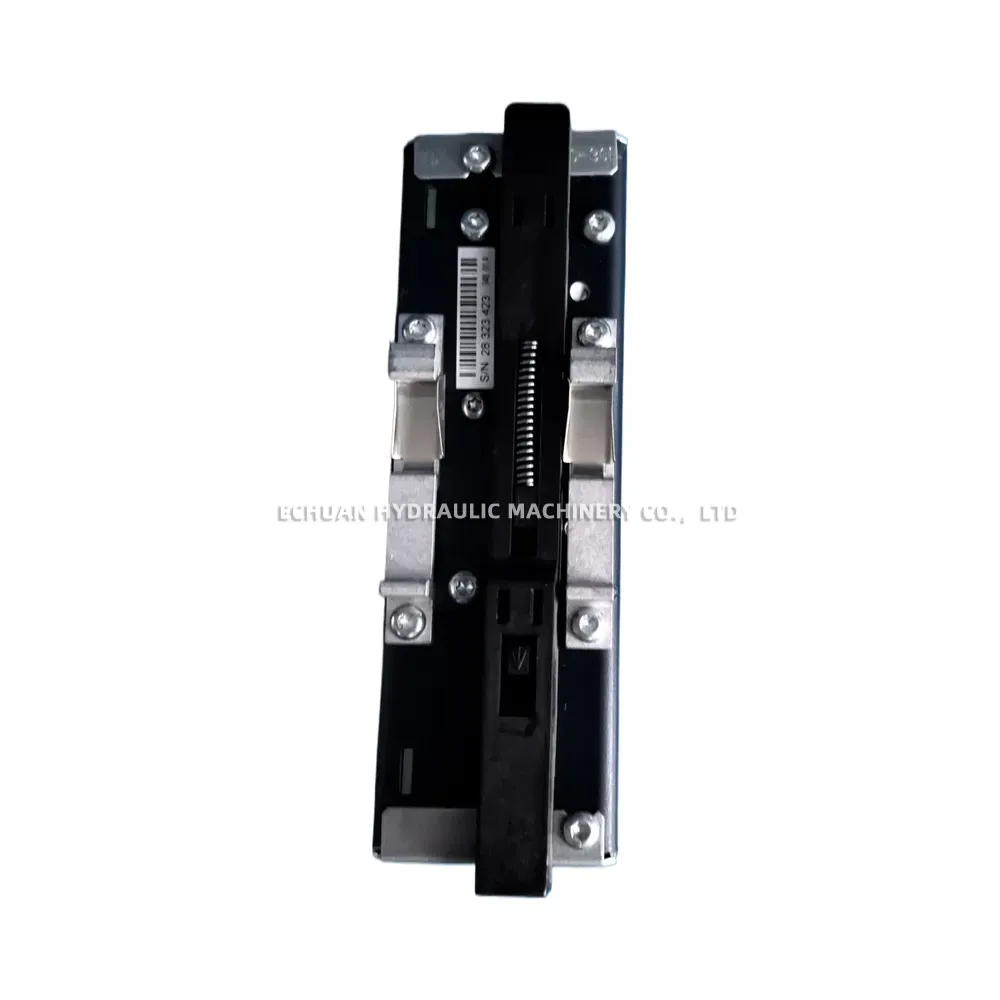

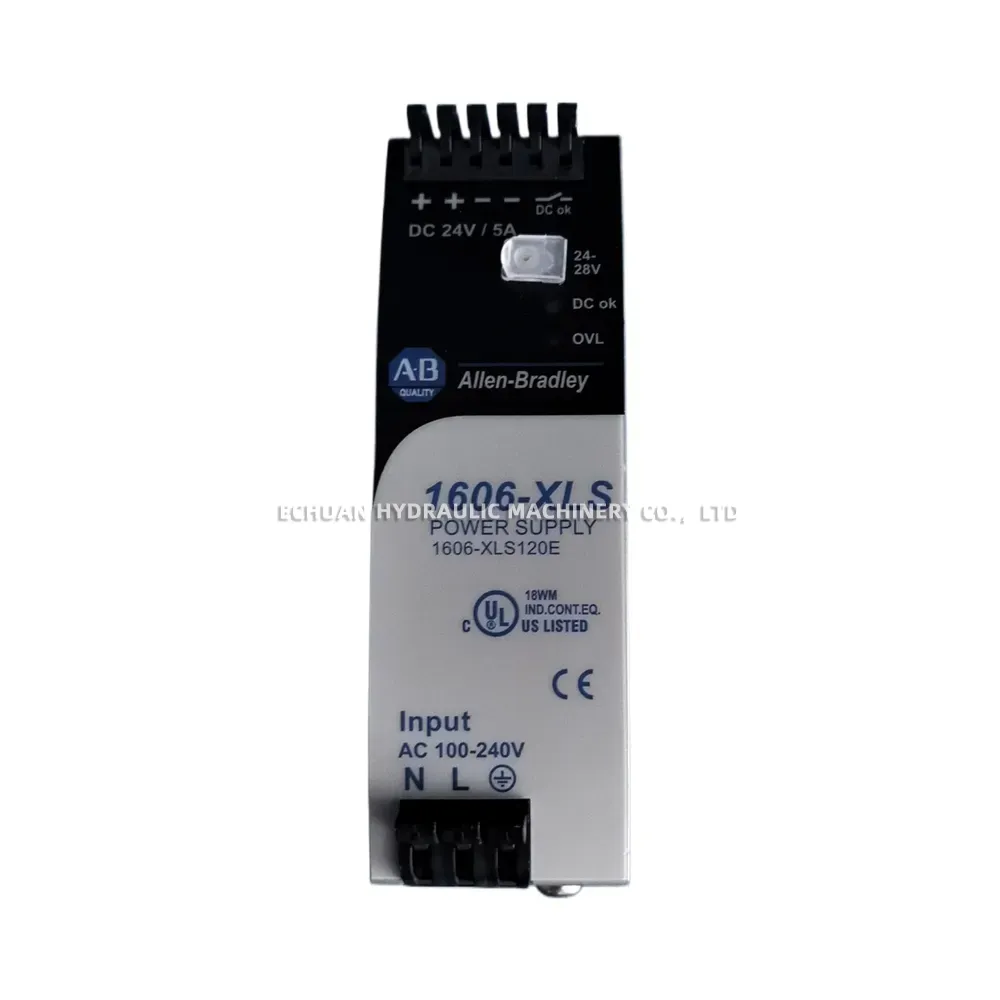

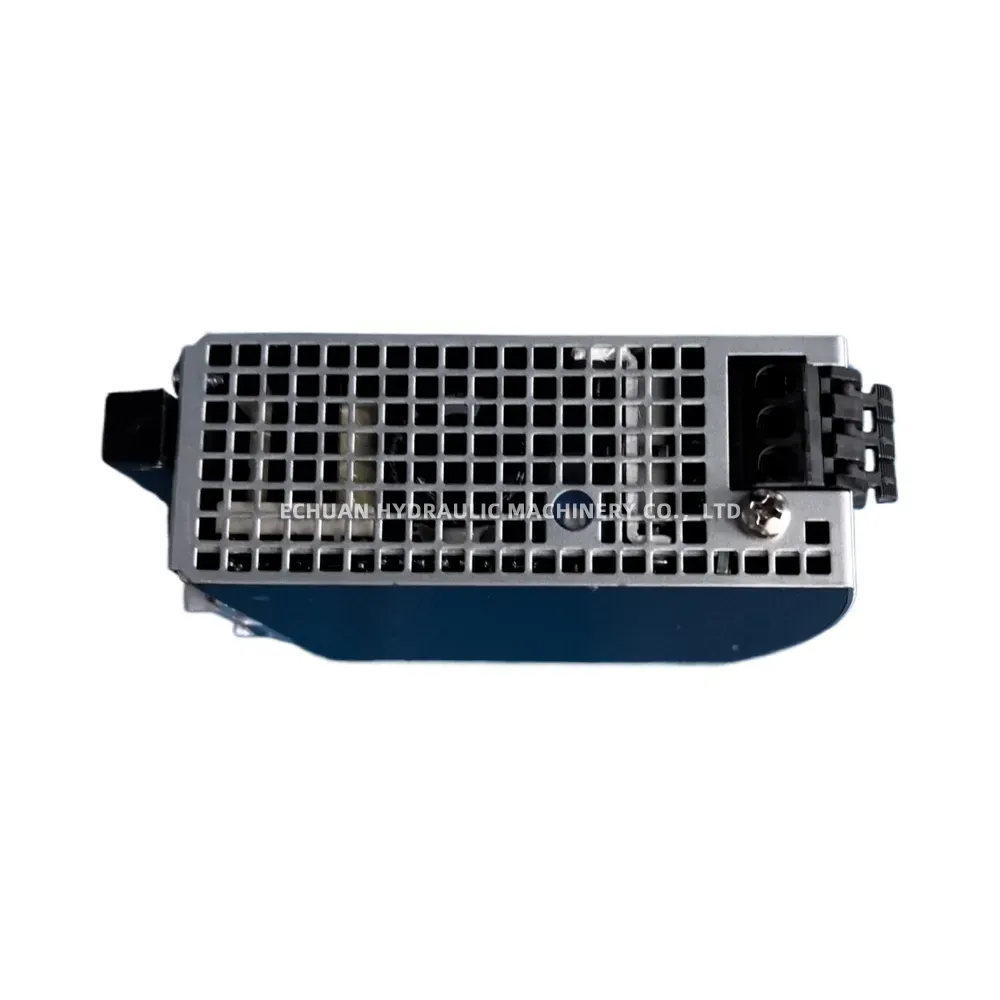

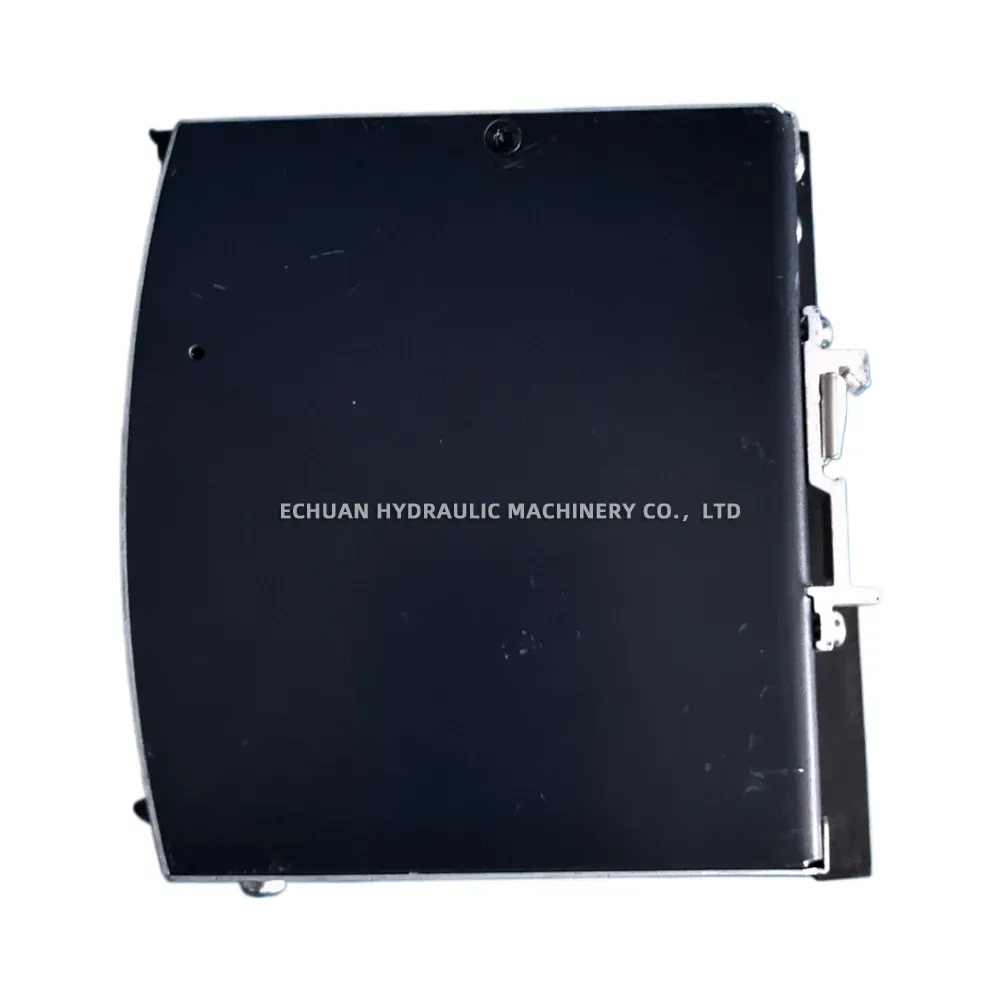

Allen-Bradley 1606-XLS120E Power Supply
The Allen-Bradley 1606-XLS120E by Rockwell Automation is a premium, single-phase DIN rail power supply engineered for demanding industrial control environments. Delivering a continuous 120W of power with an adjustable 24-28V DC output at 5A, this compact unit ensures stable and reliable power delivery for your critical automation components. It features a highly versatile wide-range input, accepting both AC (100-240V) and DC (110-300V) voltages. Designed for maximum durability, the 1606-XLS120E operates flawlessly in extreme temperatures ranging from -25°C to +70°C and includes a short-term power boost capability of up to 7.5A for 4 seconds to handle startup surges. With comprehensive global certifications including UL, CE, UKCA, DNV for marine applications, and CSA Class I Div 2 for hazardous locations, it is the ideal power solution for diverse manufacturing and processing facilities.
Technical Specifications:
- Brand: Allen-Bradley / Rockwell Automation
- Model: 1606-XLS120E (Series A)
- Type: Single-Phase DIN Rail Power Supply
- Power Rating: 120W
- Input Voltage: AC 100-240V (1.4-0.65A, 50-60Hz) | DC 110-300V (1.2-0.45A)
- Output Voltage: DC 24-28V (Adjustable)
- Continuous Output Current: 5-4.5A (below +60°C) | 3.8-3.4A (at +70°C)
- Short-Term Output Current: 7.5-6.7A (up to 4s, below +70°C)
- Operating Temperature: -25°C to +70°C (Linear derating between +60°C and +70°C)
- Certifications: UL Listed, CE, UKCA, CSA Class I Div 2 (Groups A, B, C, D), DNV, KC, EAC
Allen-Bradley 1606-XLS120E Power Supply
Optimize your industrial automation systems with the Allen-Bradley 1606-XLS120E 24V DC, 5A, 120W single-phase DIN rail power supply. Features AC/DC wide-range input, 4-second power boost, and Class I Div 2 hazardous location rating.
