Product Description

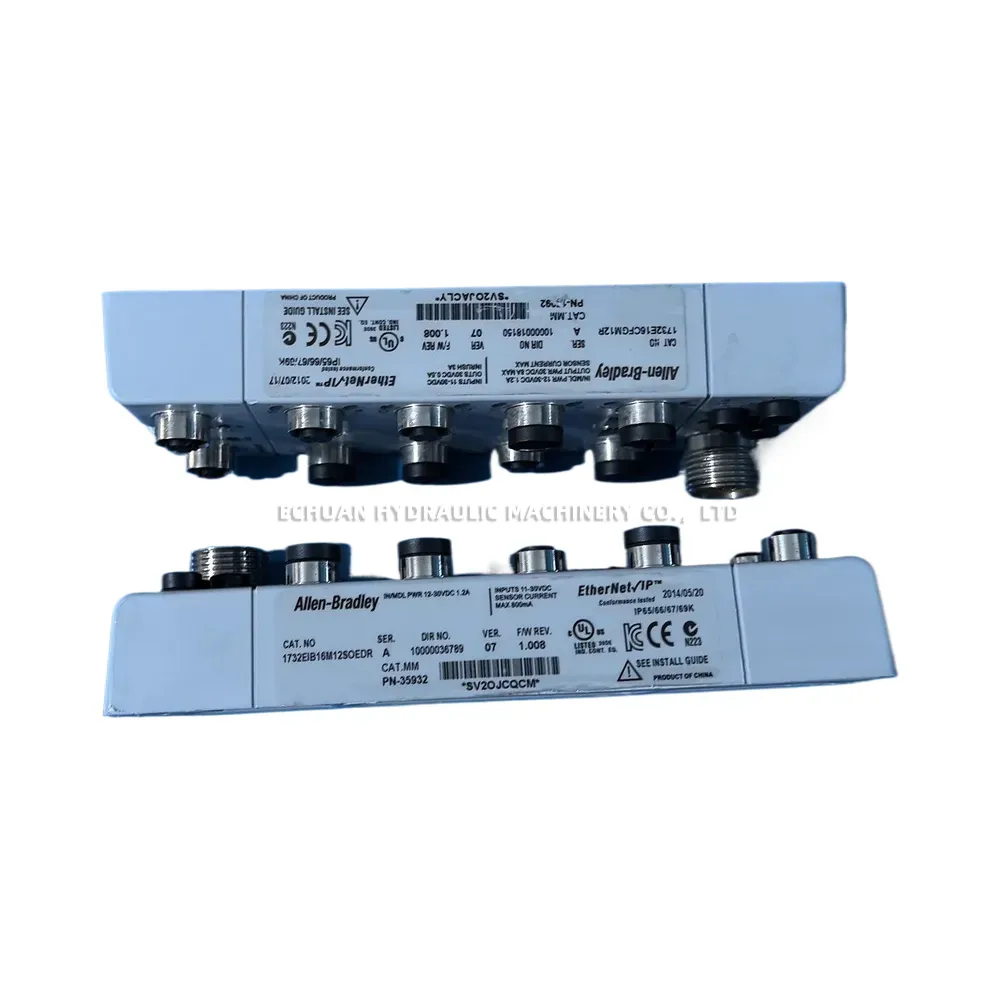

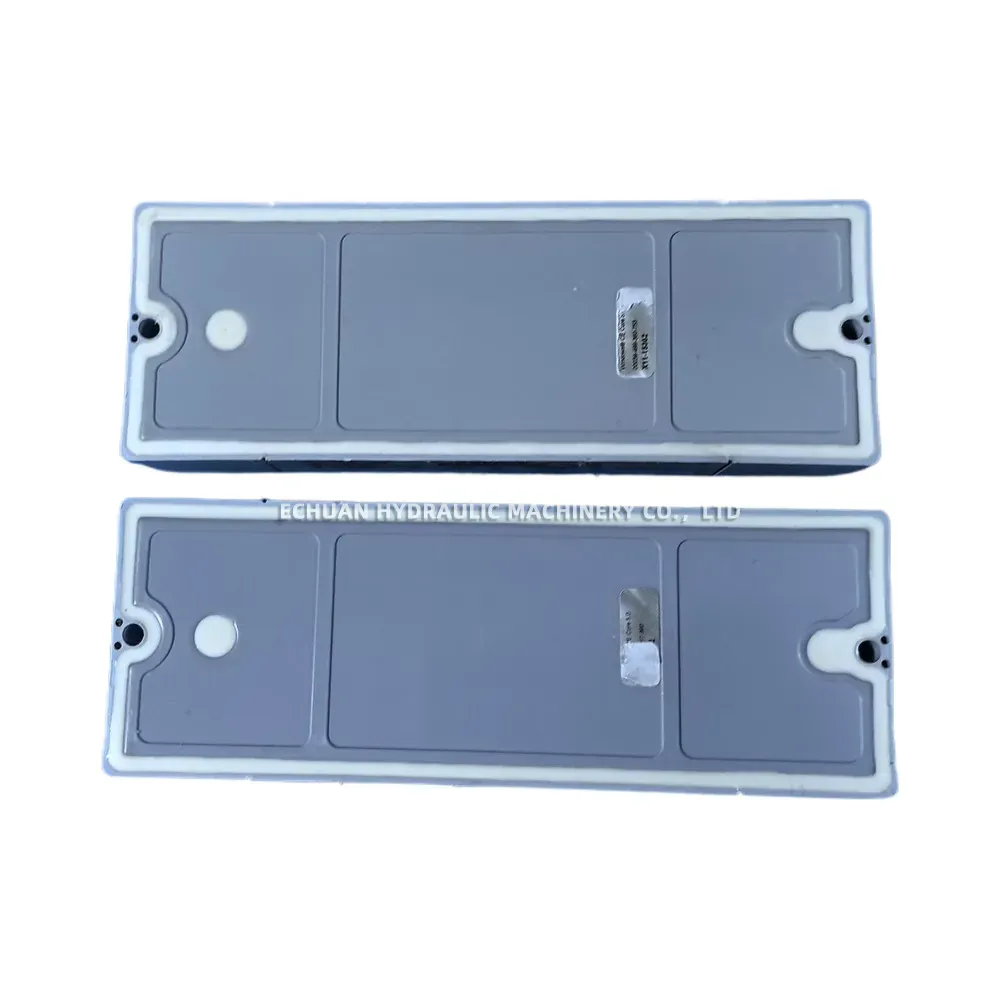

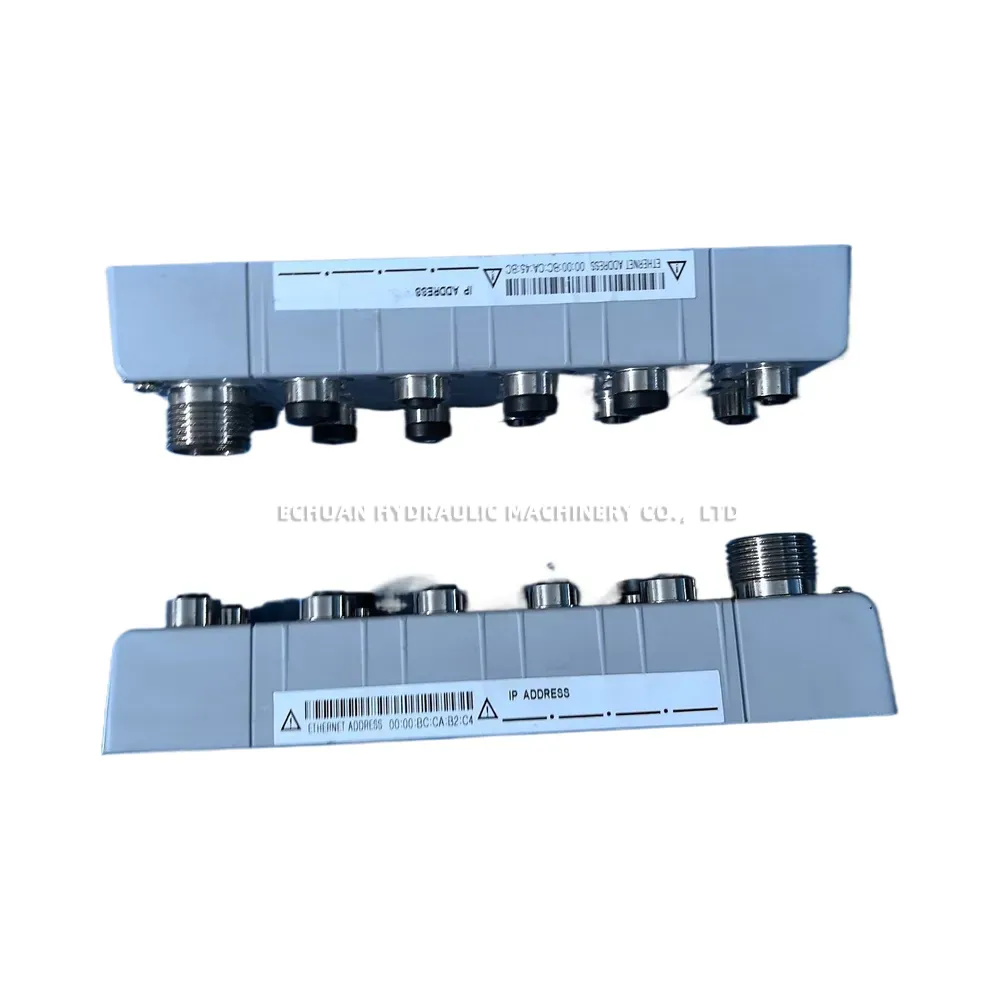

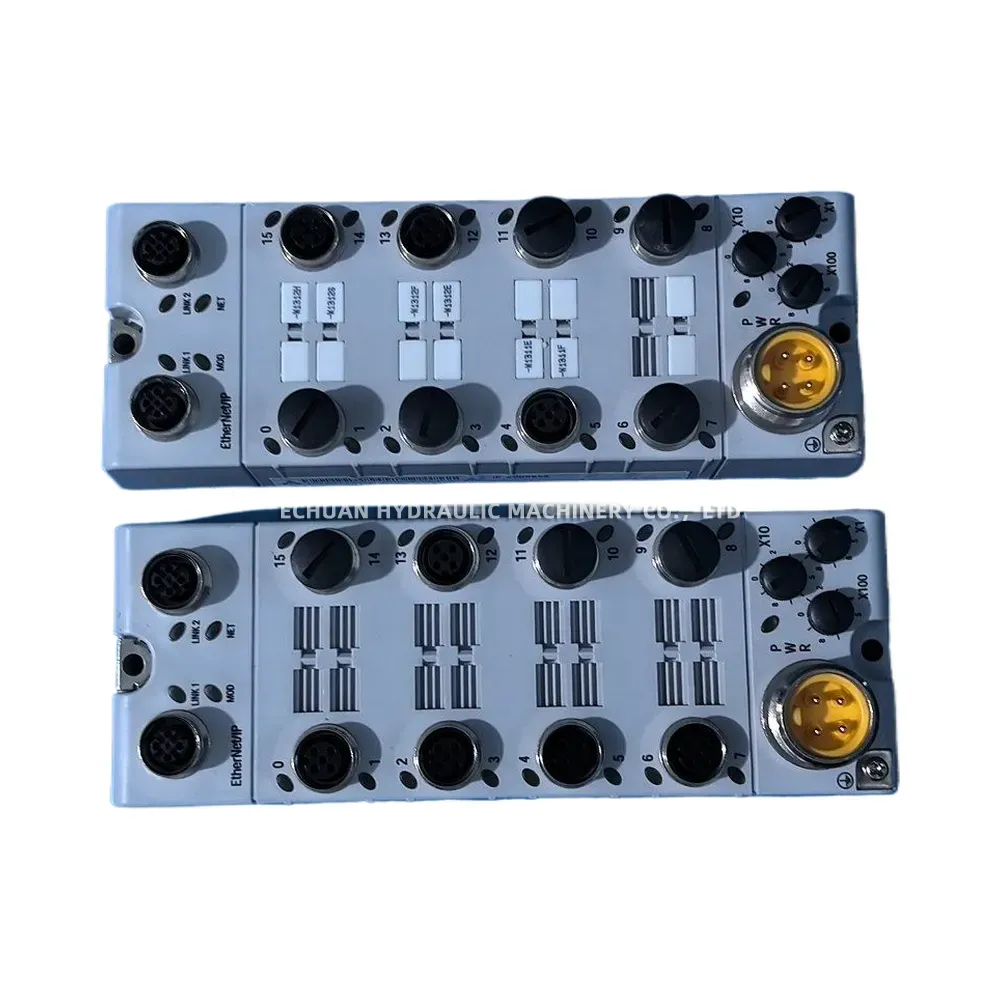

Allen-Bradley 1732EIB16M12SOEDR
The Allen-Bradley 1732EIB16M12SOEDR is a rugged ArmorBlock I/O module designed for on-machine applications, eliminating the need for a protective cabinet. This module provides 16 sinking/sourcing digital inputs and communicates over an EtherNet/IP network. It features two M12 EtherNet/IP ports supporting Device Level Ring (DLR) topology for enhanced network resiliency. A key feature is its Sequence of Events (SOE) capability, which allows for high-speed, high-resolution timestamping of input state changes, making it ideal for diagnostics and troubleshooting in demanding industrial automation environments. Its IP67/IP69K rating ensures reliable performance in harsh conditions with exposure to dust, water, and high-pressure washdowns.
Technical Specifications:
- Product Series: ArmorBlock 1732E
- Number of Inputs: 16 (Sinking/Sourcing)
- Communication Protocol: EtherNet/IP
- Connectors: M12 Quick Disconnect (4-pin)
- Enclosure Rating: IP67, IP69K, NEMA 4X
- Input Voltage: 24V DC
- Special Features: Device Level Ring (DLR), Sequence of Events (SOE)
Allen-Bradley 1732EIB16M12SOEDR
Allen-Bradley 1732EIB16M12SOEDR ArmorBlock EtherNet/IP 16-point 24V DC input module with M12 connectors, IP67 rating, Device Level Ring (DLR), and Sequence of Events (SOE) capability for rugged on-machine applications.
| Brand | Allen-Bradley |
|---|---|
| Model | 1732EIB16M12SOEDR |
| Category | Electrical |
| Link | https://www.echuan-hydraulic.com/product/allen-bradley-1732eib16m12soedr |
