Product Description

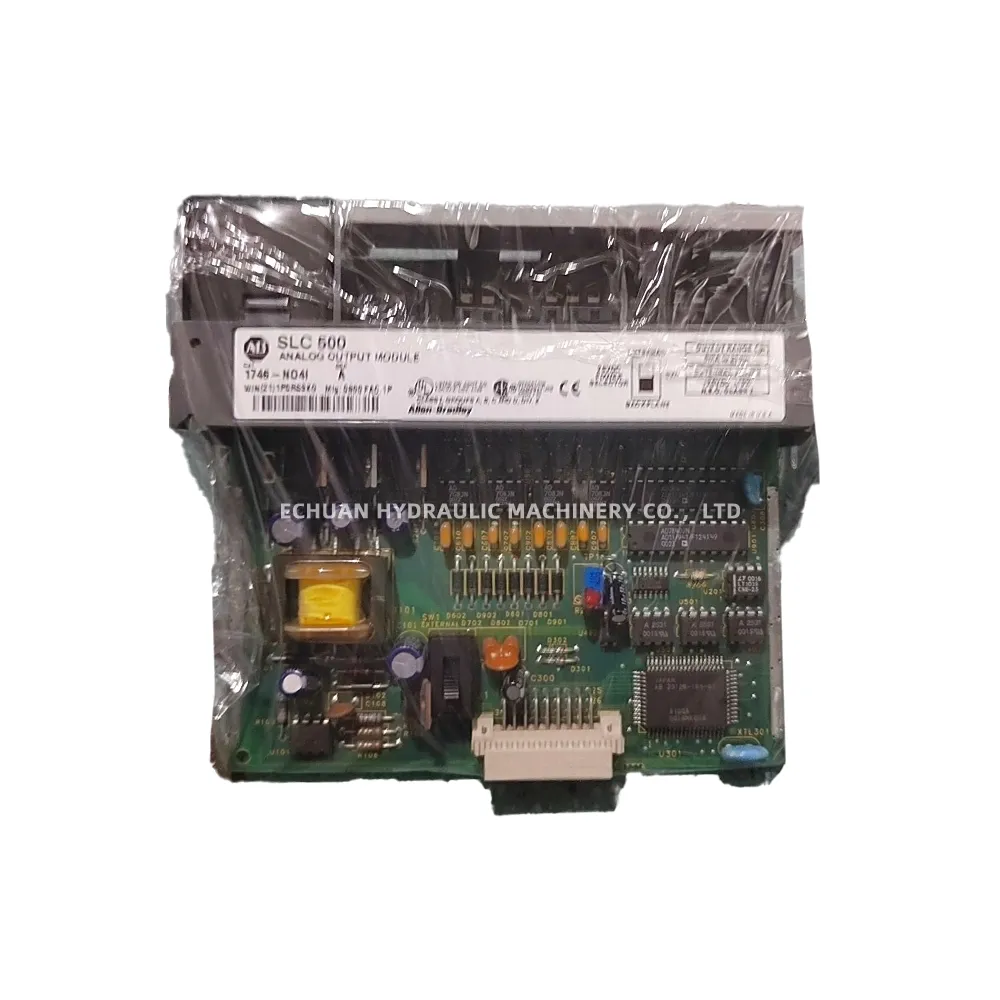

Allen-Bradley 1746-NO4I

The Allen-Bradley 1746-NO4I is a high-performance analog output module designed for the SLC 500 series programmable logic controllers. This module provides four individually isolated analog current outputs, making it ideal for controlling a wide range of industrial devices such as valves, actuators, drives, and chart recorders. It offers precise control with a 12-bit resolution over a 4-20 mA range. The 1746-NO4I easily integrates into any available slot in an SLC 500 chassis, providing a reliable and scalable solution for applications requiring accurate analog signal generation for process control and automation systems.

Technical Specifications:

  • Number of Outputs: 4 (Individually Isolated)

  • Output Type: Analog Current

  • Output Range: 4 to 20 mA

  • Resolution: 12-bit

  • Backplane Current: 55 mA at 5V DC, 145 mA at 24V DC

  • Compatibility: Allen-Bradley SLC 500 Series

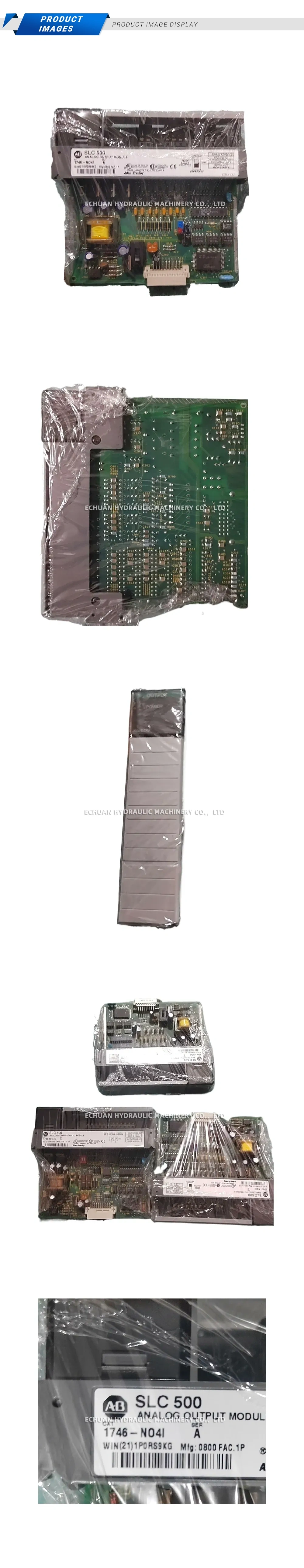

Allen-Bradley 1746-NO4I Description

Allen-Bradley 1746-NO4I

Allen-Bradley 1746-NO4I SLC 500 4-Channel Analog Current Output Module, providing a reliable 4-20mA signal for precise industrial control applications.

BrandAllen-Bradley
Model1746-NO4I
CategoryElectrical
Linkhttps://www.echuan-hydraulic.com/product/allen-bradley-1746-no4i
