Product Description

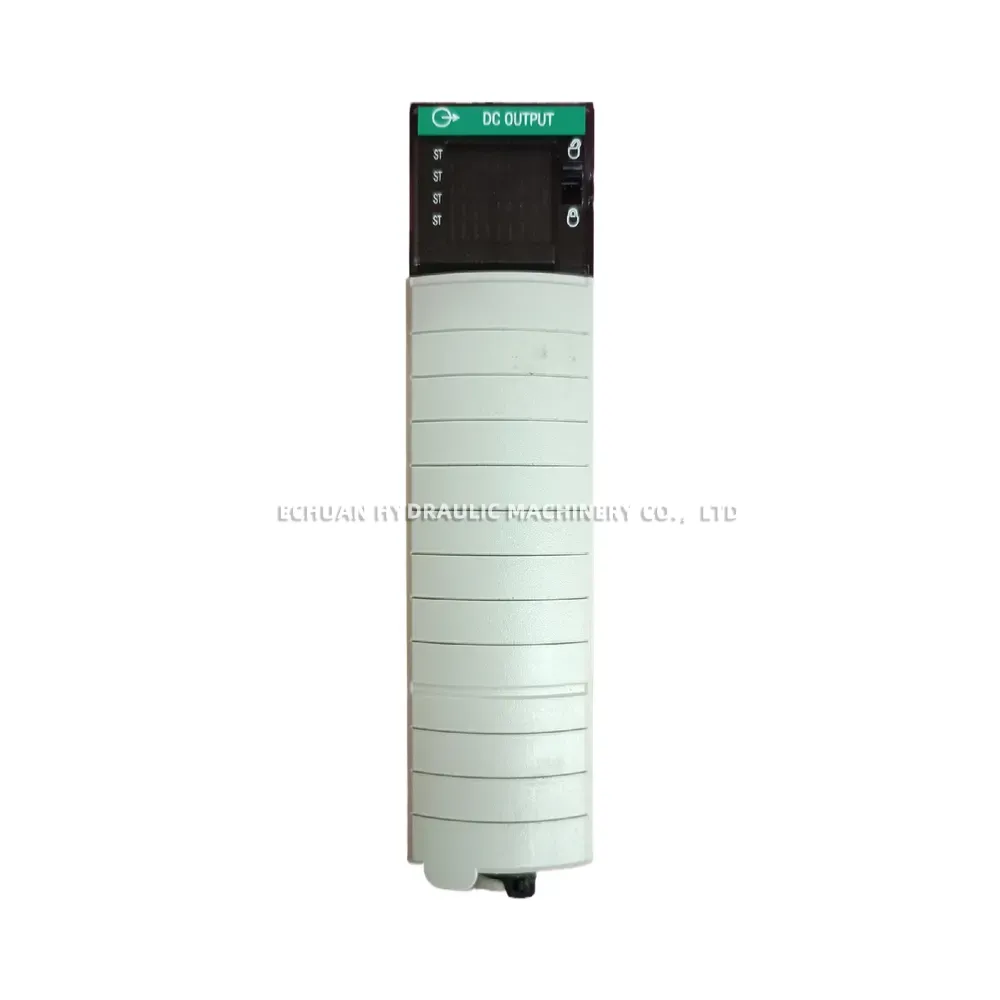

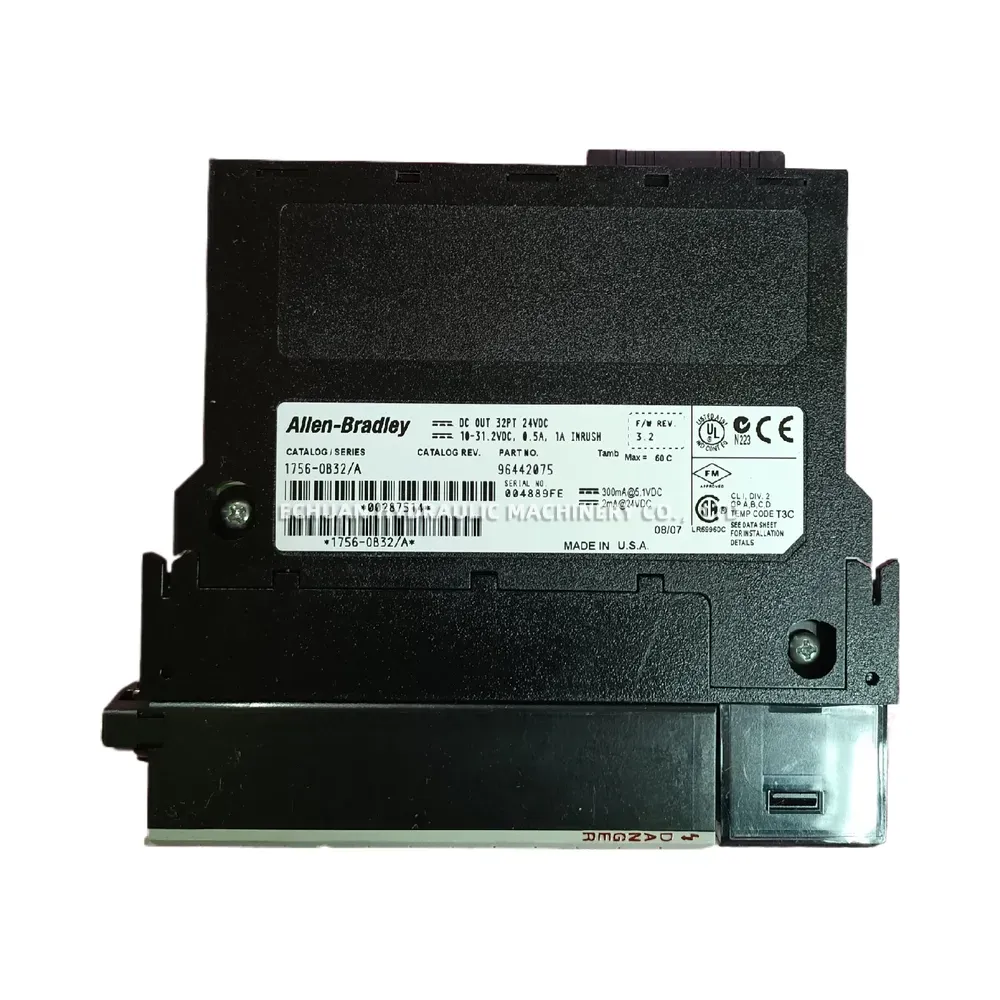

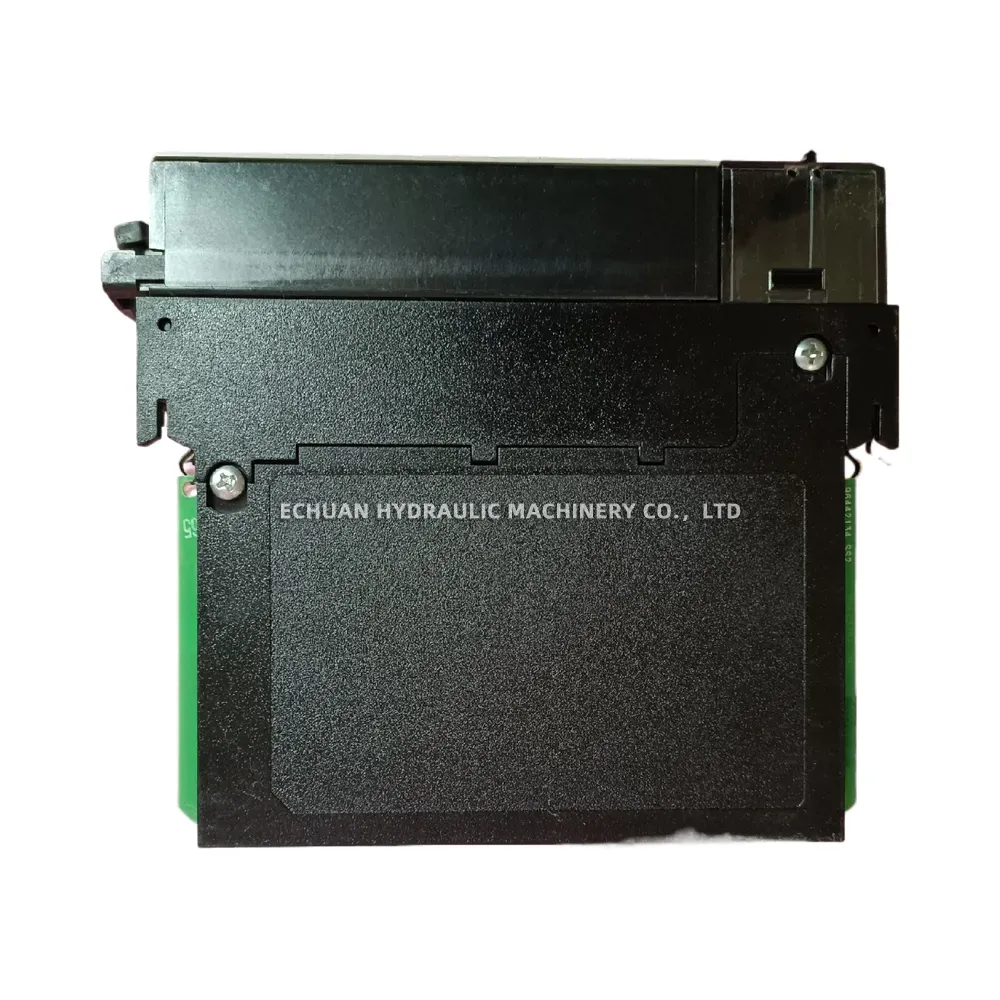

Allen-Bradley 1756-OB32 Module
The Allen-Bradley 1756-OB32 is a ControlLogix Digital DC Output Module designed for high-density applications in industrial automation systems. It provides 32 sourcing-type outputs, arranged in two groups of 16, making it ideal for controlling a wide range of devices such as pilot lights, relays, and motor starters. This module integrates seamlessly into any slot of a ControlLogix chassis, offering reliable performance and diagnostics for demanding control tasks. Its robust design ensures dependable operation in various industrial environments, and it requires a Removable Terminal Block (RTB) like the 1756-TBCH or 1756-TBS6H for field-side wiring connections.
Technical Specifications:
- Outputs: 32 (2 groups of 16), Sourcing
- Voltage Category: 12/24V DC
- Operating Voltage Range: 10…31.2V DC
- Output Current Rating: 0.5 A per point, 8 A max per module
- Backplane Current: 300 mA at 5.1V DC, 2 mA at 24V DC
- Required Terminal Block: 1756-TBCH or 1756-TBS6H
Allen-Bradley 1756-OB32 Module
Discover the Allen-Bradley 1756-OB32 ControlLogix 32-Point Digital DC Sourcing Output Module. Ideal for high-density I/O applications, it offers reliable 12/24V DC control for industrial automation systems.
