Product Description

Allen-Bradley 1756-OF4

The Allen-Bradley 1756-OF4 is a ControlLogix Analog Output Module designed for high-performance industrial control systems. It provides four single-ended, non-isolated analog output channels that can be configured for either voltage or current signals. This module is ideal for applications requiring precise control of devices such as actuators, valves, and variable speed drives. As part of the Rockwell Automation ControlLogix family, the 1756-OF4 integrates seamlessly into any 1756 chassis, offering reliability and flexibility for complex automation tasks.

Technical Specifications:

  • Outputs: 4 single-ended

  • Output Range: ±10V, 0-20 mA

  • Resolution: 15 bits plus sign (Voltage), 15 bits (Current)

  • Backplane Current: 150 mA at 5.1V DC, 110 mA at 24V DC

  • Slot Width: 1

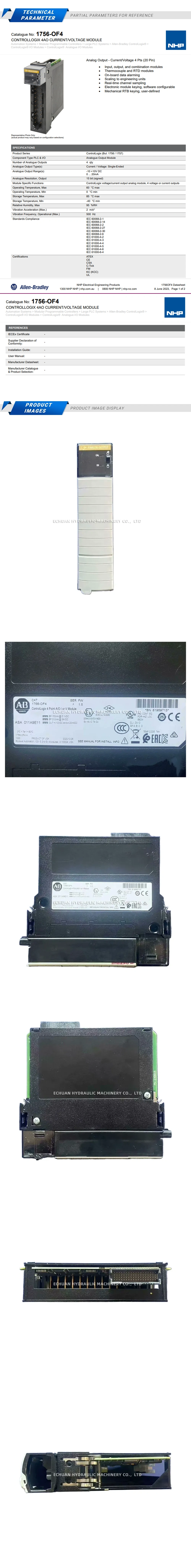

Allen-Bradley 1756-OF4 Description

Allen-Bradley 1756-OF4

Allen-Bradley 1756-OF4 ControlLogix 4-Channel Analog Output Module, providing configurable voltage (±10V) and current (0-20 mA) outputs for precise industrial process control.
