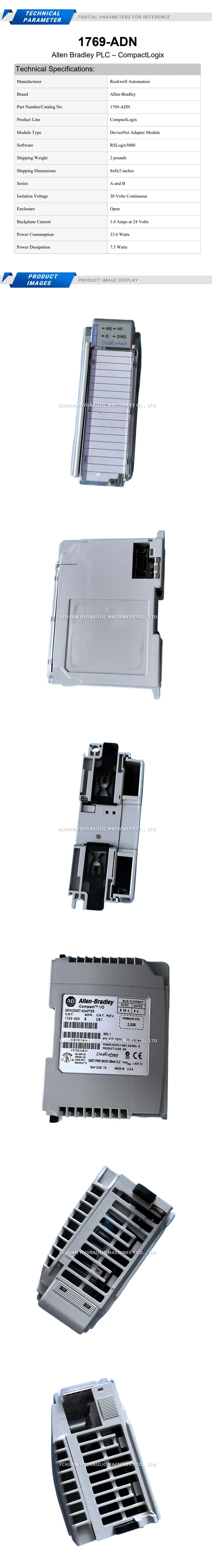

Product Description

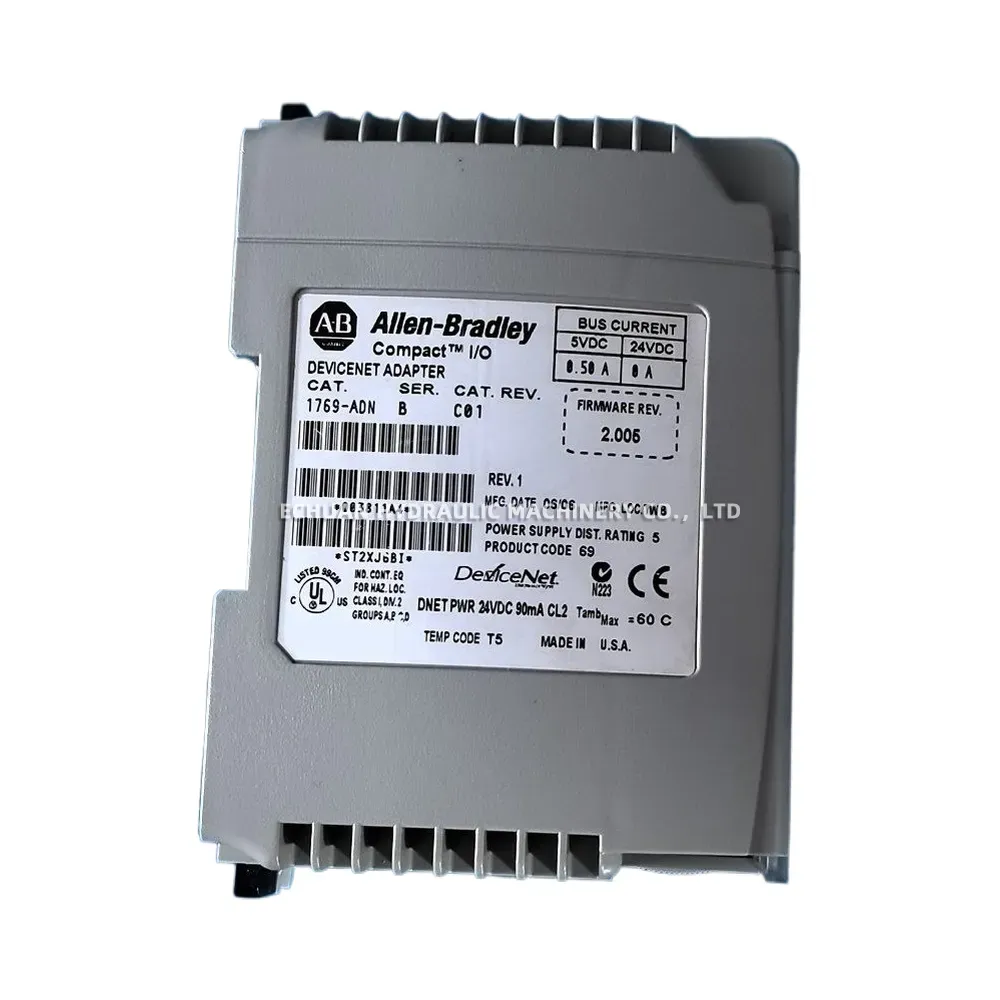

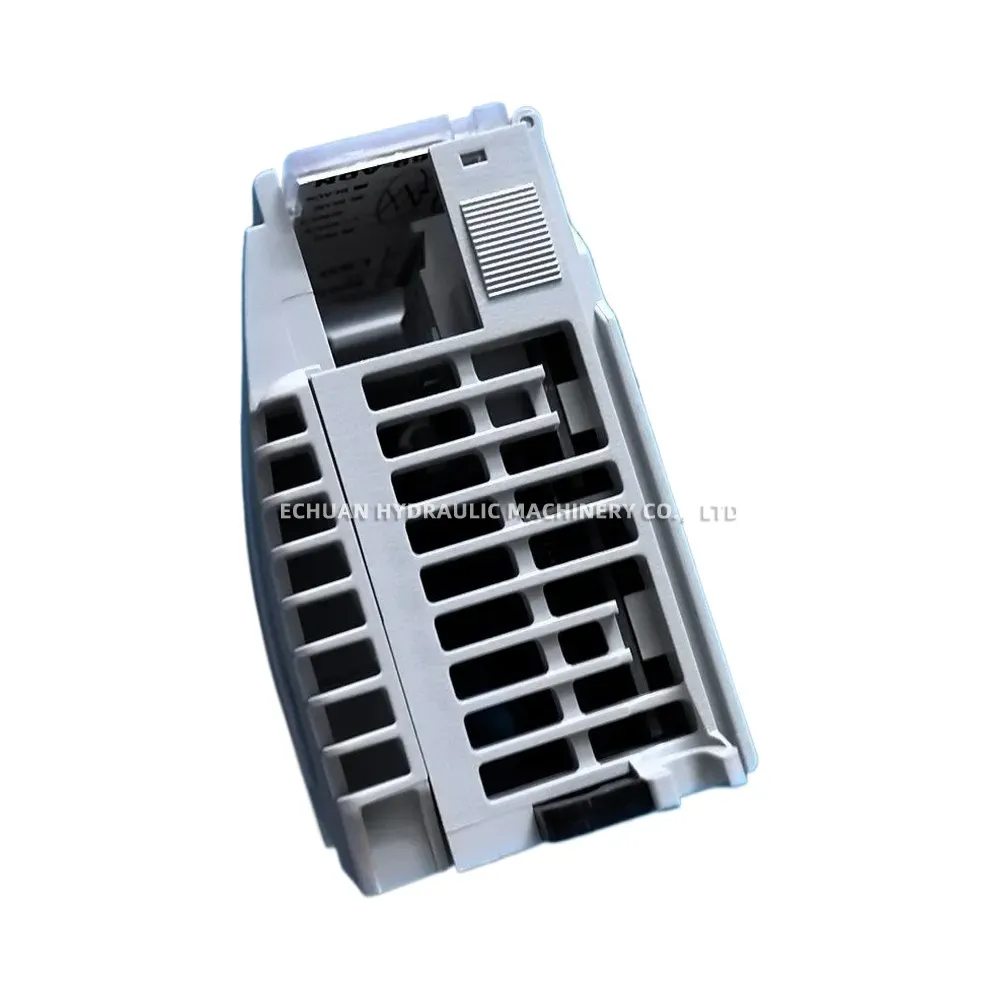

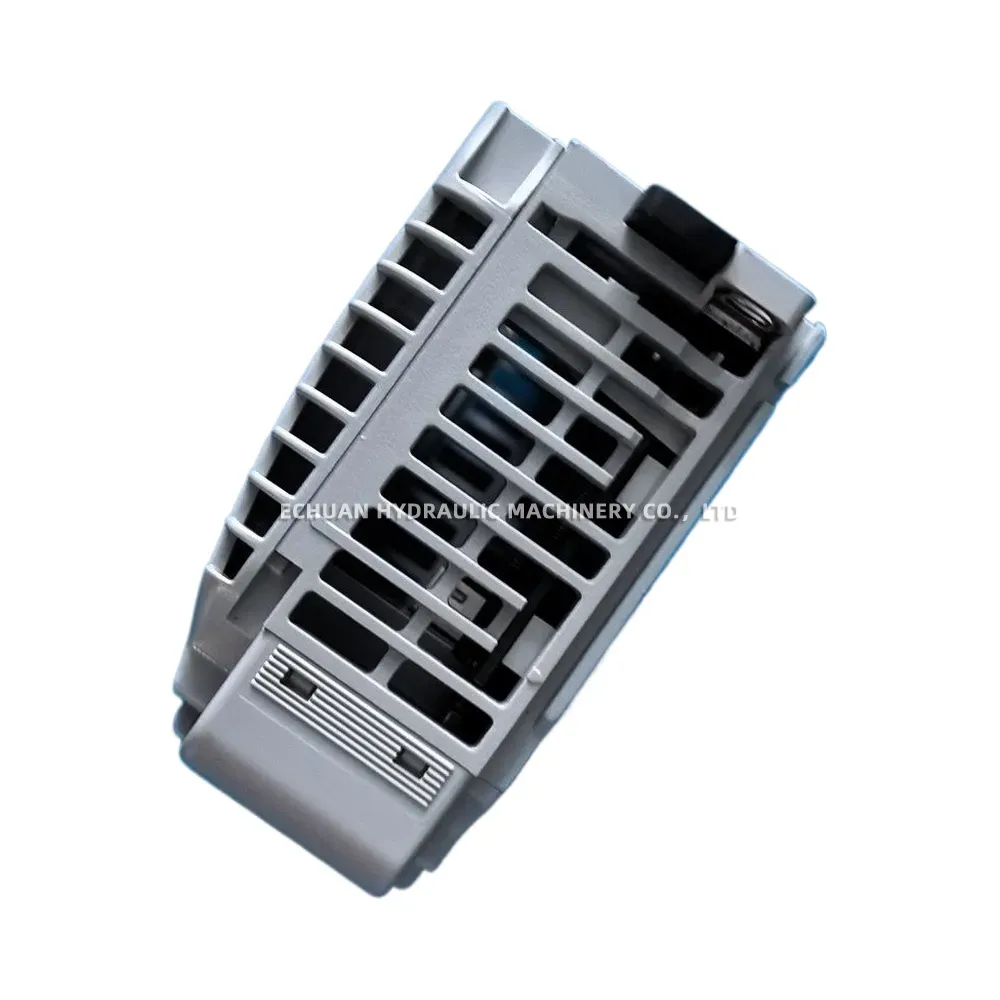

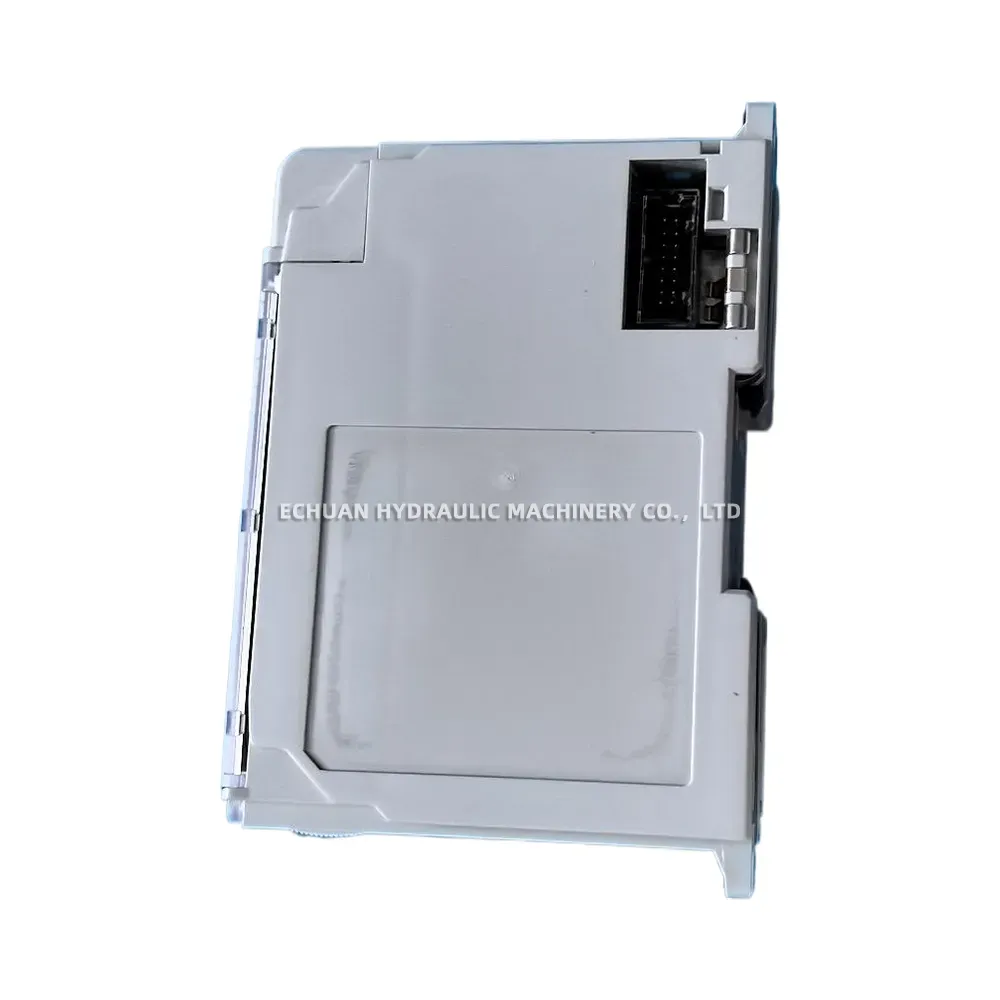

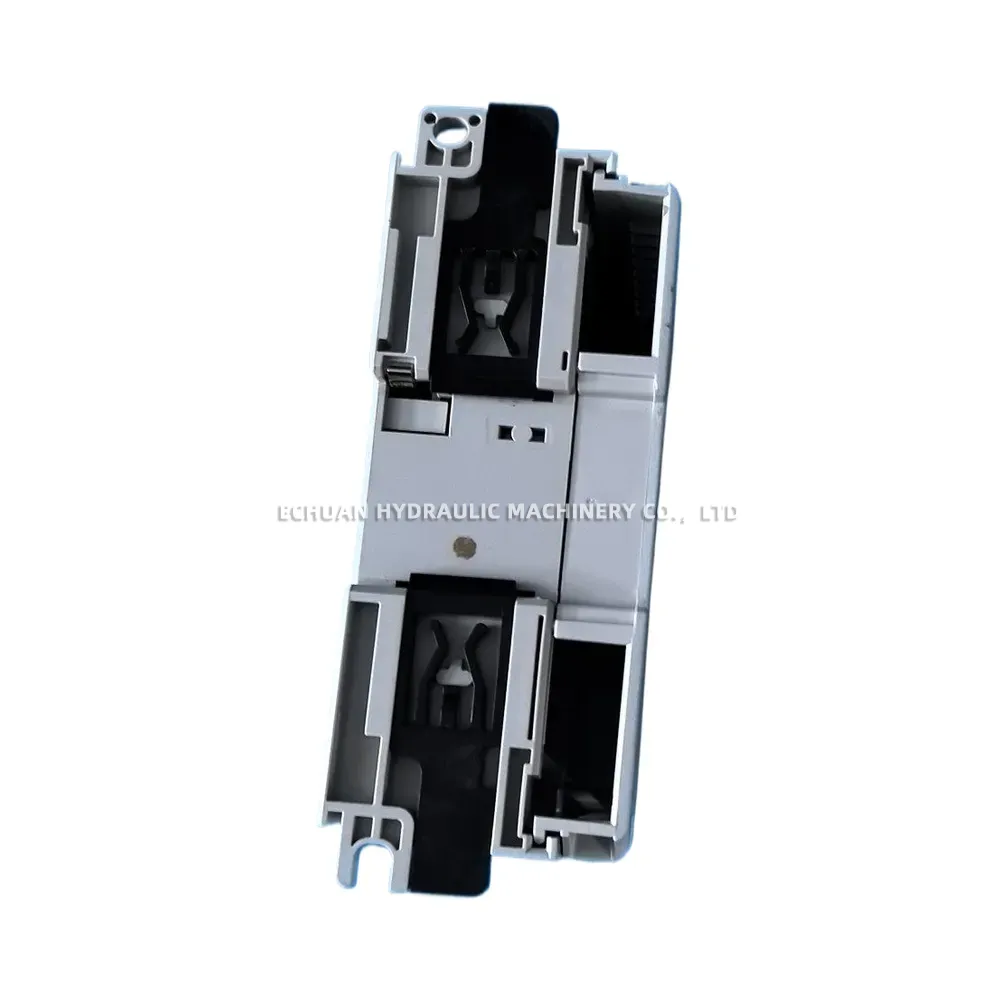

Allen-Bradley 1769-ADN
The Allen-Bradley 1769-ADN is a Compact I/O DeviceNet Adapter module designed to seamlessly integrate a bank of 1769 Compact I/O modules into a DeviceNet network. This adapter functions as a slave device, allowing a DeviceNet scanner or master to communicate with and control the connected I/O modules. It supports various communication rates, configurable via rotary switches, ensuring flexibility across different network speeds. The 1769-ADN is an essential component for distributed I/O applications within the Rockwell Automation ecosystem, providing reliable and efficient data exchange for industrial control systems.
Technical Specifications:
- Module Type: DeviceNet Adapter
- Communication Rate: Selectable 125 Kbps, 250 Kbps, or 500 Kbps
- Backplane Current Draw: 450 mA at 5V DC
- Maximum I/O Modules: Supports up to 30 1769-I/O modules
- Power Supply Distance Rating: 4 modules

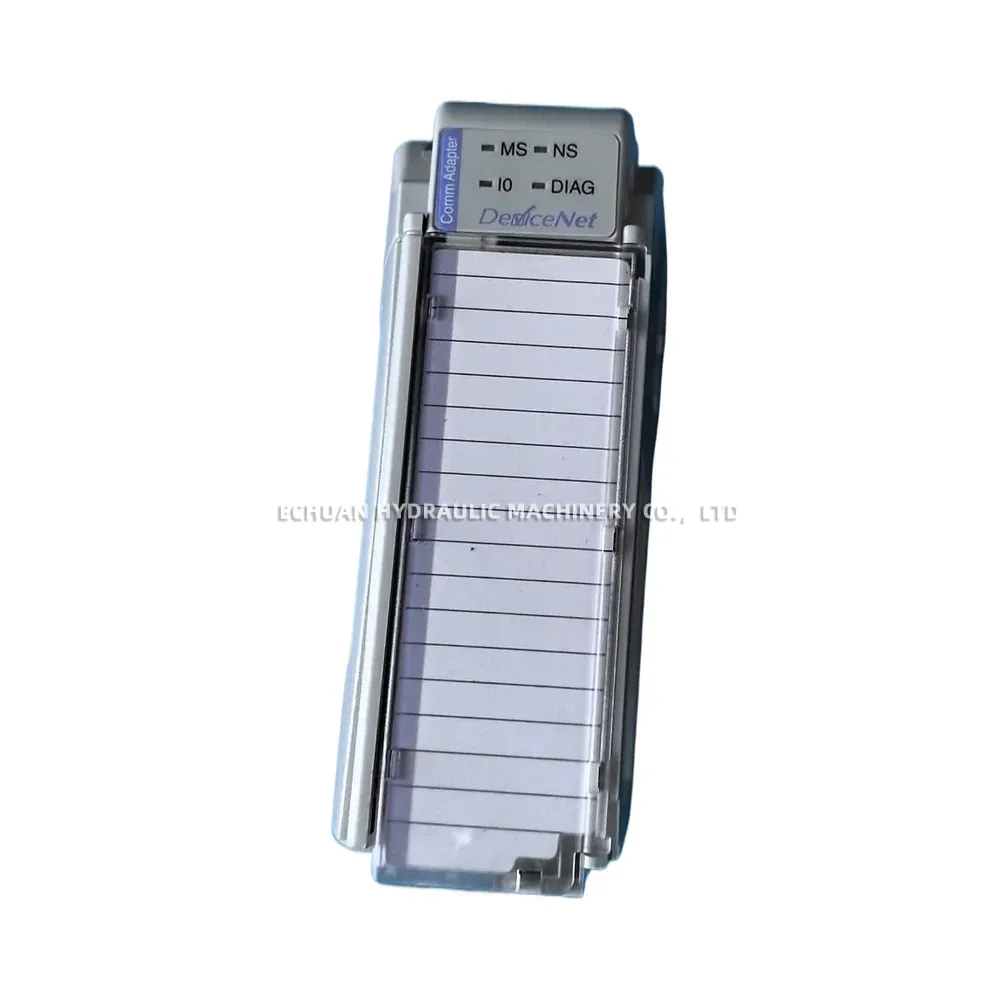

- Indicators: LED indicators for Module Status and Network Status
Allen-Bradley 1769-ADN
Allen-Bradley 1769-ADN Compact I/O DeviceNet Adapter module for integrating 1769-series I/O into a DeviceNet network. Supports up to 30 modules and selectable communication rates.
| Brand | Allen-Bradley |
|---|---|
| Model | 1769-ADN |
| Category | Electrical |
| Link | https://www.echuan-hydraulic.com/product/allen-bradley-1769-adn |
